Fitting instructions
This product contains light sources of energy efficiency class <E>.

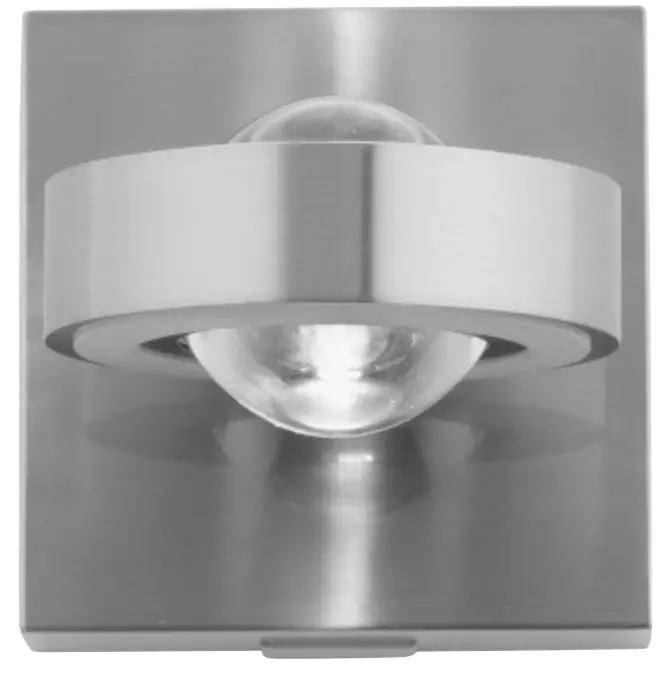

834418
230V/50 Hz-,
2x LED-Board 24V DC/4,6
W 2x LED-Board 24V DC/2,8 W not changeable
LED | 4,6 W | 2,8 W |
| 550 Im | ||
 | 11 W | 11 W |
| 580 Im | 580 Im | |
 | LED-Board | LED-Board |
| t | 25.000 h | 25.000 h |
| Tk | 2.700 – 5.000 | RGB |
 | K 15.000 x | 15.000 x |
 | <0,5 s | <0,5 s |
 | dimmable with rrc | |

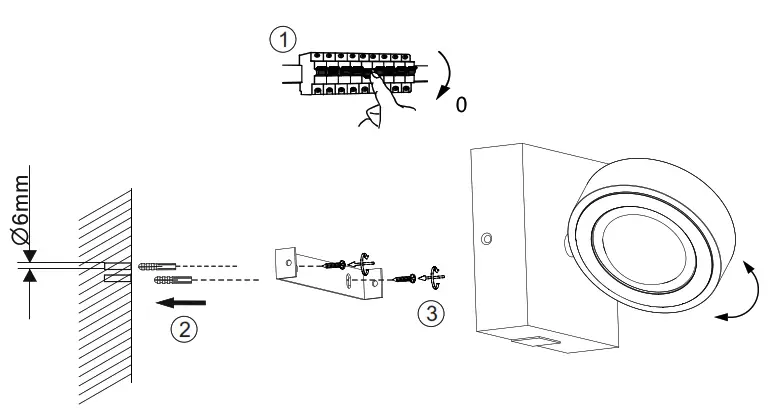

fitting
as wall light

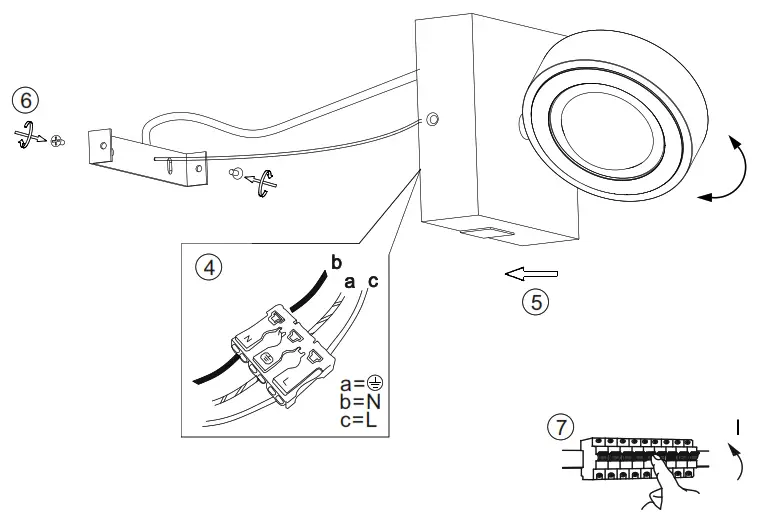

electrical connection
230 voltage/50 Hz connection

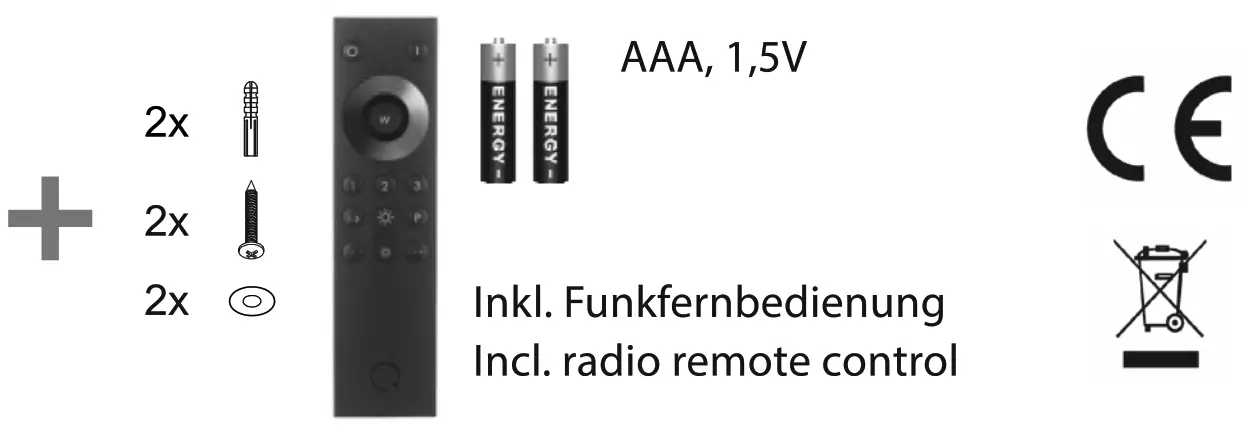

teach remote control
See Q-remote control manual
http://q.paul-neuhaus.de/
Reset
Reset the lamp, factory new
Paul Neuhaus GmbH Olakenweg 36
• 59457 Werl Germany
Telefon: +49 (0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
