KITCHEN SCALE
580226

You should read this user manual carefully before using the appliance.
Keep these instructions with the appliance.
For indoor use only.

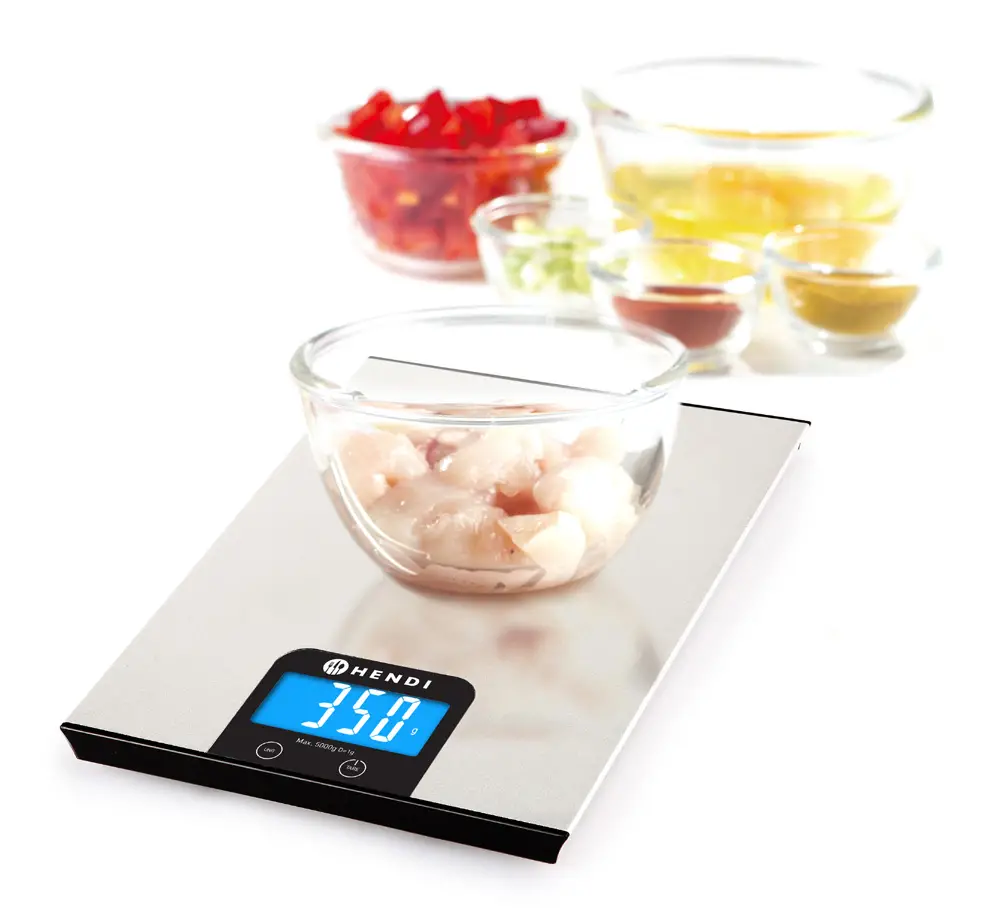

The kitchen scale and precision scale, 580226 is water resistant scale with sealed housing design. The scales have a tare function built-in. Suitable for kitchen usages.
Battery Safety Instructions
- Danger of explosion! The batteries must not be charged, or re-activated by other means, disassembled, throw into fire or short-circuited.
- Do not expose batteries to extreme temperatures, like direct sunlight or fire. Do not place near any heat source.
- Caution! Danger of explosion if batteries are incorrectly replaced. Replace batteries only with the same or equivalent type. Do not mix old and new batteries or batteries of different types or brands.
- Always insert batteries correctly with regard to the polarities (+ and -) marked on the battery.
- Swallowed batteries are lethal. Keep batteries out of reach of children and pets. Immedi- ately ask for medical assistance if battery is swallowed.
- Remove the batteries if you will not use the kitchen scale for an extended period of time.
- Batteries shall be stored in well-ventilated, dry and cool conditions.”
Information
- Aluminium housing for easy cleaning.
- Precise measuring.
- Matt polish aluminium surface with blue digital readout.
- Water proof structure suitable for usage in kitchen
- Battery powered.
Preparing the appliance for use
- Remove all the packing material
- Remove 2 insulation tapes on the batteries for operation.
- Press the “ON” button. The scale is now ready for use.
Instruction for use

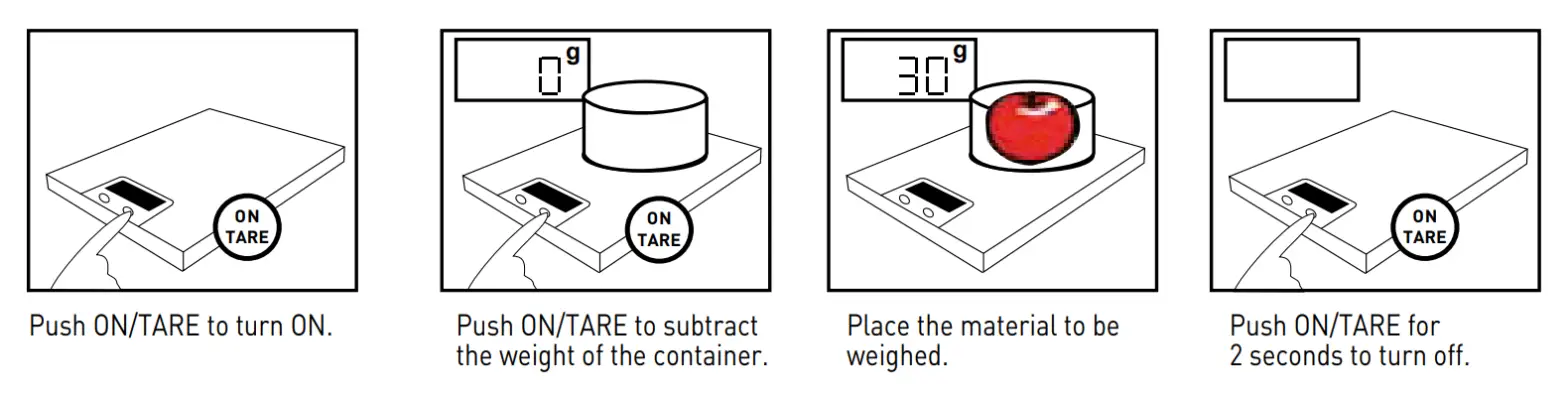

Weighing

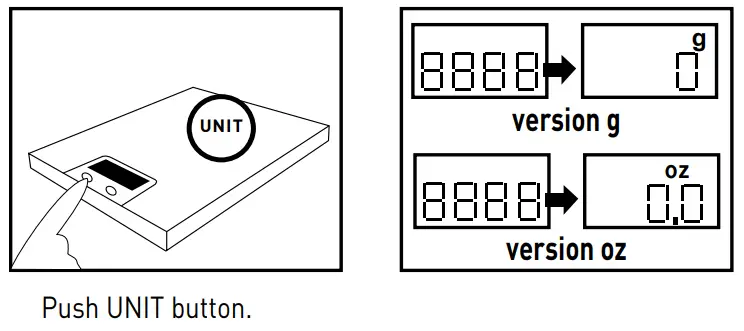

Mode Change

Automatic Power off
The scale is designed with an auto power-off function for energy efficiency. If the same reading is displayed for more than 1 minutes the scale will automatically turn off.
Specifications
| Item no.: | 580226 |
| Operating voltage: | 2 x 3V, Lithium button cells, type CR2032 (included, non-rechargeable) |
| Max. Weight: | 5000g / 175oz |
| Graduation: | 1 g |
| Dimension: | 200x151x(H)11 mm |
Warranty
Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).
In line with our policy of continuous product development, we reserve the right to change the product, packaging and documentation specifications without notice.
Discarding & Environment
When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is re-cycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
Overload indicator | When the scale is overloaded, “EEEE” will be displayed. |
Out of Battery | When LCD indicates “Lo”, open the battery cover and replace the batteries with same or equivalent type. |

| Hendi B.V. Innovatielaan 6 6745 XW De Klomp, The Netherlands Tel: +31 317 681 040 Email: [email protected] | PKS Hendi South East Europe SA 5 Metsovou Str. 18346 Moschato, Athens, Greece Tel: +30 210 4839700 Email: [email protected] |
| Hendi Polska Sp. z o.o. ul. Firmowa 12 62-023 Robakowo, Poland Tel: +48 61 658 7000 Email: [email protected] | Hendi Italia S.R.L. Via Leonardo da Vinci 4 39100 Bolzano (BZ), Italy Tel: +39 800 727 438 Email: [email protected] |
| Hendi Food Service Equipment GmbH Ehring 15 5112 Lamprechtshausen, Austria Tel: +43 6274 200 10 0 Email: [email protected] | Hendi HK Ltd. 1208, 12/F Exchange Tower 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852 2154 2618 Email: [email protected] |
| Hendi Food Service Equipment Romania S.R.L. Str. 13 decembrie 94A, Hala 14 Brașov, 500164, Romania Tel: +40 268 320330 Email: [email protected] | Find Hendi on internet: www.hendi.eu www.facebook.com/HendiToolsforChefs www.linkedin.com/company/hendi-food-serviceequipment-b.v. www.youtube.com/HendiEquipment |
- Changes, printing and typesetting errors reserved.
© 2020 Hendi B.V. De Klomp – The Netherlands
Ver: 30-10-2020
