3CH Transmitter / Radio
Instructions

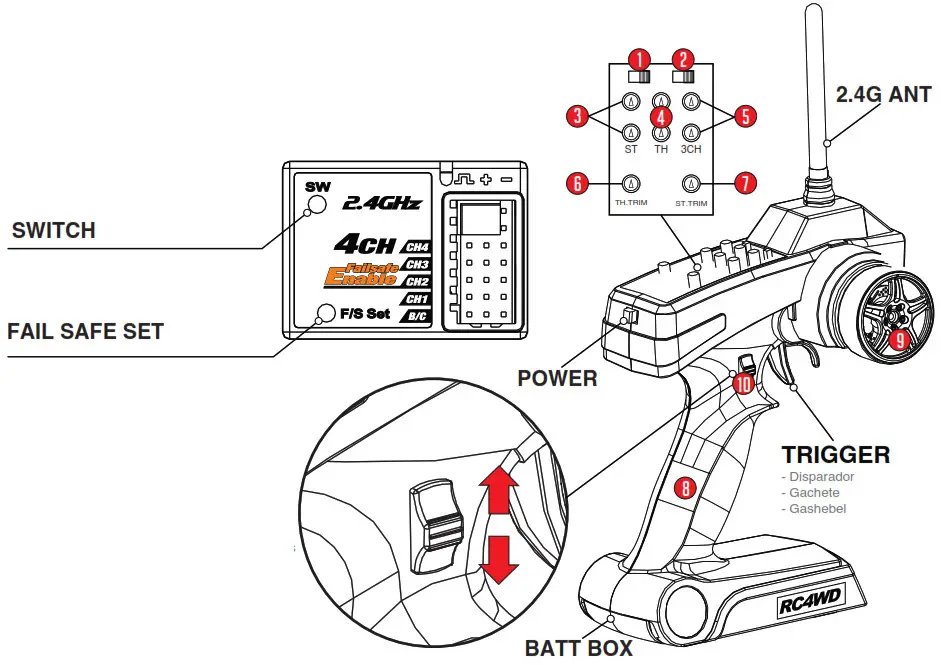

Step 1. Transmitter and Receiver Overview
Connectors
- Steering Servo (Ch1)
- Throttle Servo (Ch2)
- Channel 3 Servo (Ch3)
- Channel 4 Servo (Ch4)
B/C: Power Connector
| 1 ST REV | 6 TH TRIM |
| 2 TH REV | 7 ST TRIM |
| 3 ST EPA | 8 GRIP HANDLE |
| 4 TH EPA | 9 STEERING WHEEL |
| 5 3CH EPA | 10 3CH Uses: |
Step 2. Receiver and Servo Connection

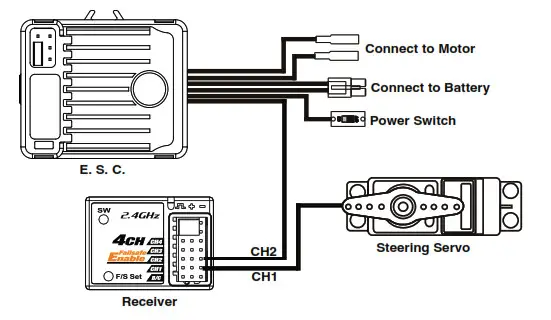

Electric Powered Model

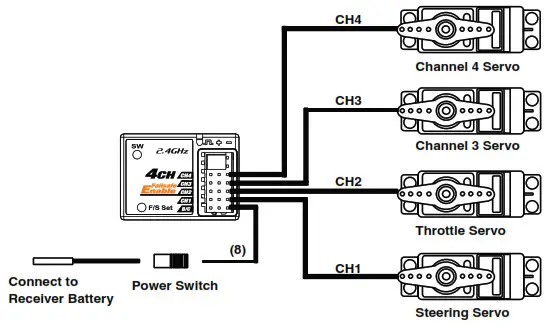

Gas Powered Model

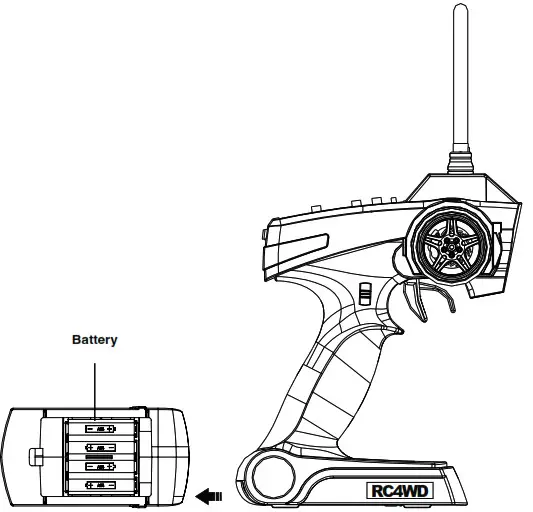

Step 3. Installing the Batteries
- Remove the battery compartment cover.
- Install four (4) new AA batteries.
Warning: Please replace batteries when the power indicator blinks or the buzzer beeps.

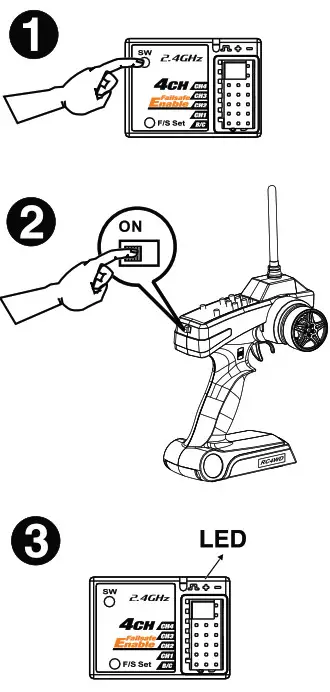

Step 4. Binding the Transmitter and Receiver
- Turn on the receiver power. Press the SW switch. The receiver’s LED should start flashing.
- Turn on the transmitter.
3. When the LED on the receiver becomes solid, the binding process is completed.
Step 5. Fail Safe Function Settings
- Set the TH, ST switches to the norm position.
- Turn on the transmitter and receiver.
- Press the F/S SET button, the LED on the receiver should start flashing rapidly.
- Put the throttle trigger in the break position, press the F/S SET button. The LED should become solid.
- For Electric Model, Put the throttle trigger in the stop setting. position when you are adjusting the setting.
Step 6. Transmitter Adjustments

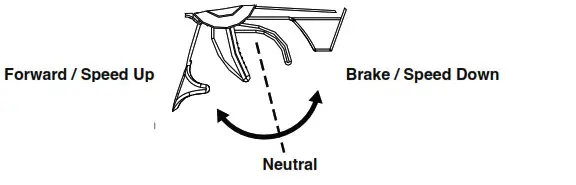

A. Throttle Trigger
- Push the trigger forward to slow down brake.
- Pull the trigger backward to accelerate.
WARNING:
- Keep the transmitter and receiver 40cm apart when operating.
- Do not operate the radio system when the battery power is low.

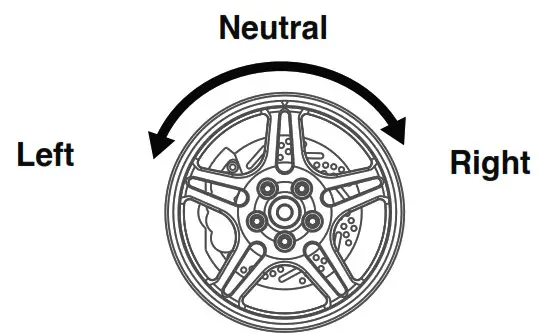

B. Steering Wheel
Turn the steering wheel to the left or right to let the vehicle turn left or right.
RC4WD USA 100-0012
