400 CAPSULE FEEDER
Customer instructions

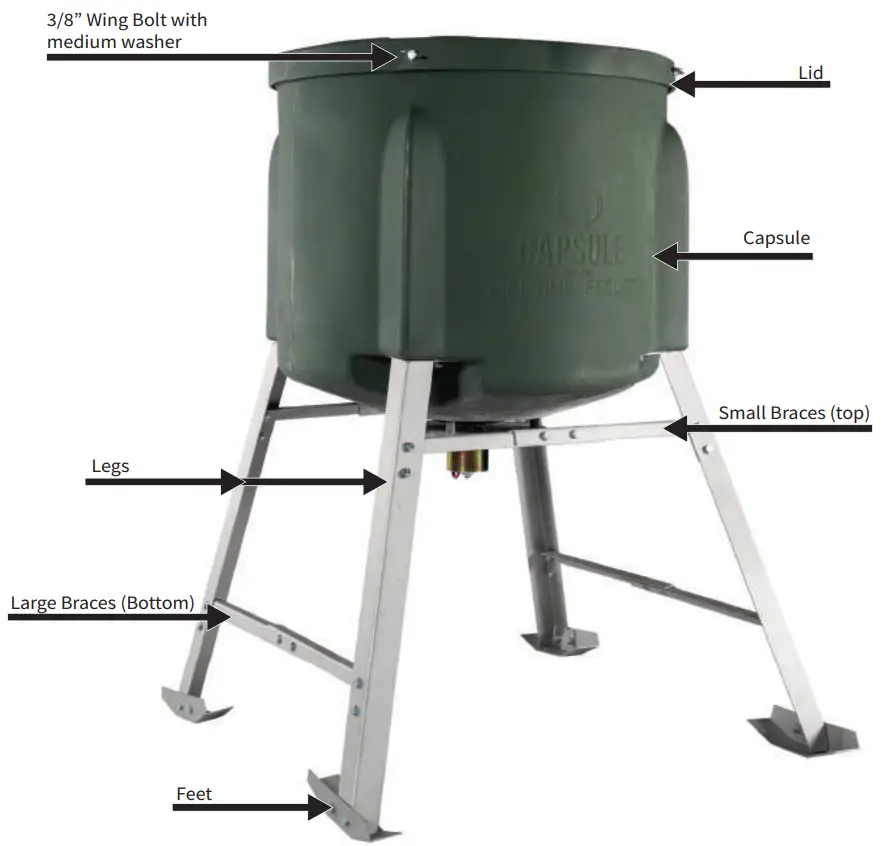

400 Capsule Feeder
- 1 Capsule With Lid
- 4 3/8″ Wing Bolts
- 4 Washers
- 4 Square Plates
- 2 Large Braces
- 2 Sets of Legs
- 1 Motor Assembly
- 1 Leg Accessory Box
- 4 Feet – 40 Leg Bolts/Lock Nuts
- 1 Solar Panel Cover
- 2 1/4″ Wing Bolts
- 2 Washers
- 2 Small Braces

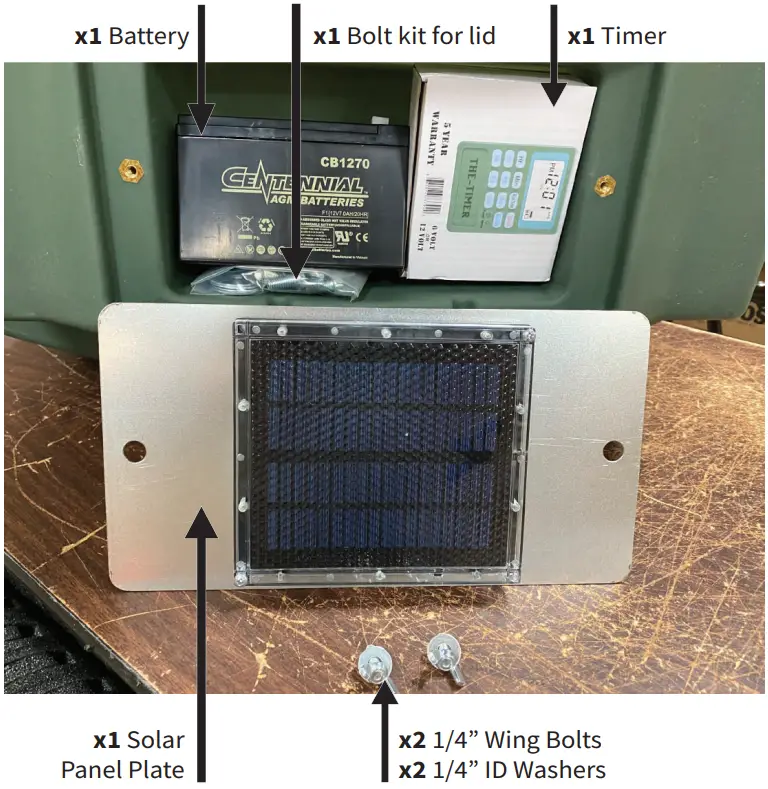

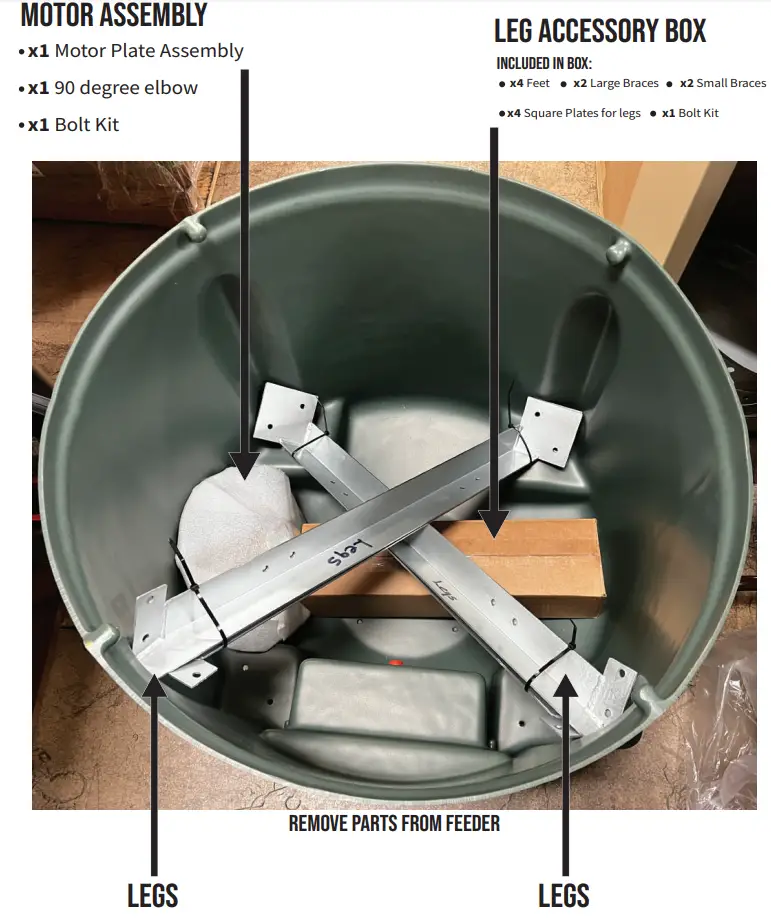

View from inside capsule: everything needed
Remove above parts from feeder.

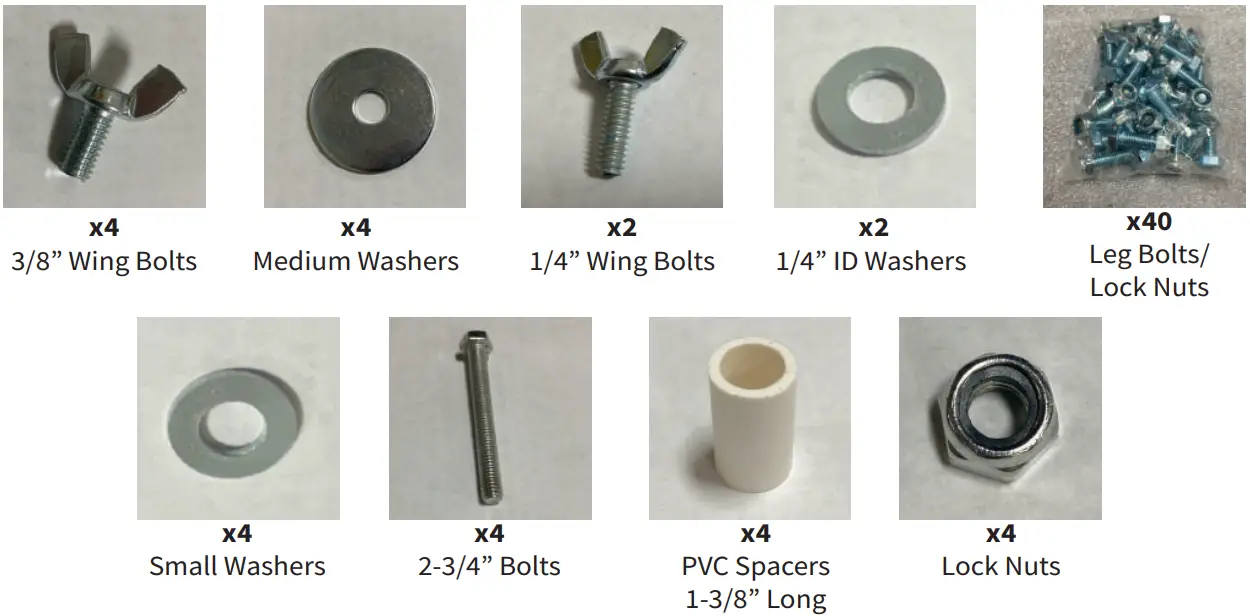

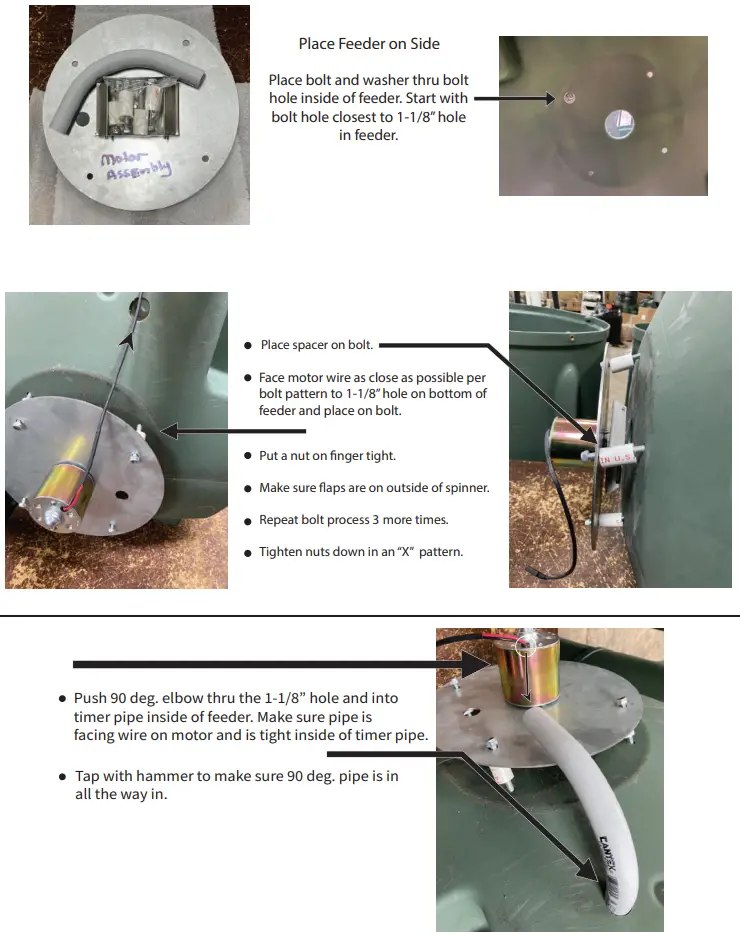

Motor Assembly
- xl Pipe
- x4 PVC Spacers
- x4 2-3/4″ Bolts
- x4 Small Washers

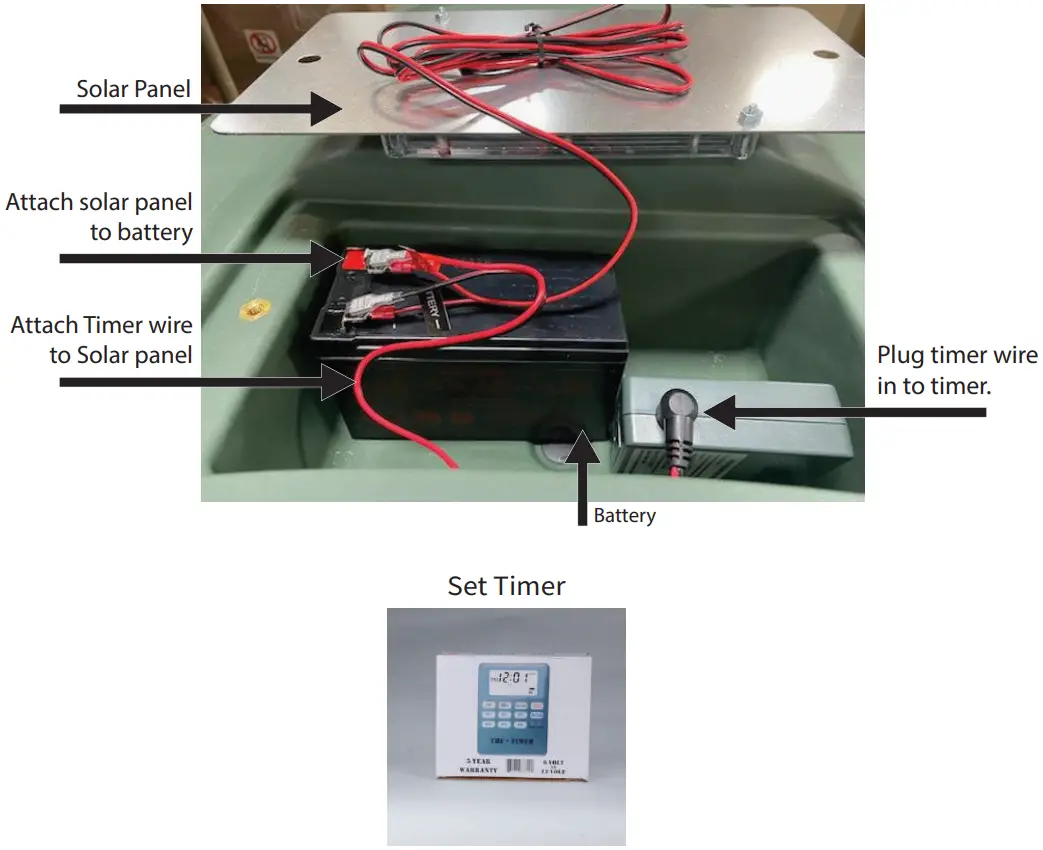

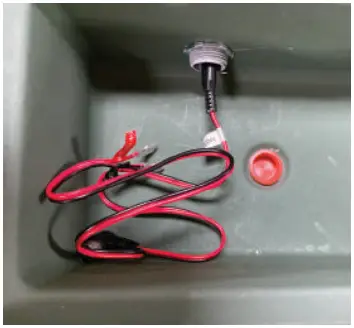

BATTERY BOX

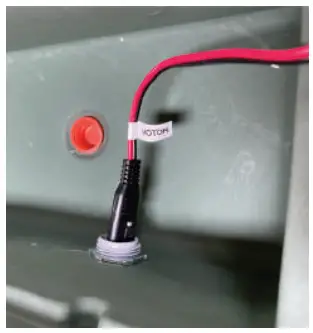

- Feed timer plug thru PVC pipe

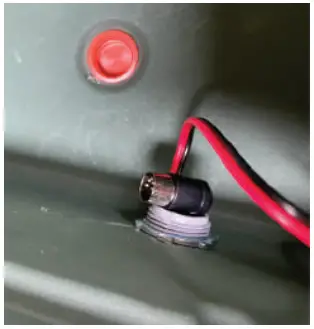

- Push plug all the way in.

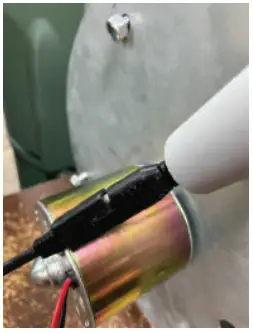

- Plug into motor wire
- Pull wire back into box
Put timer and battery back into box.
Attach to Solar panel plate you took off earlier with x2 1/4″ wing bolts & x2 washers.

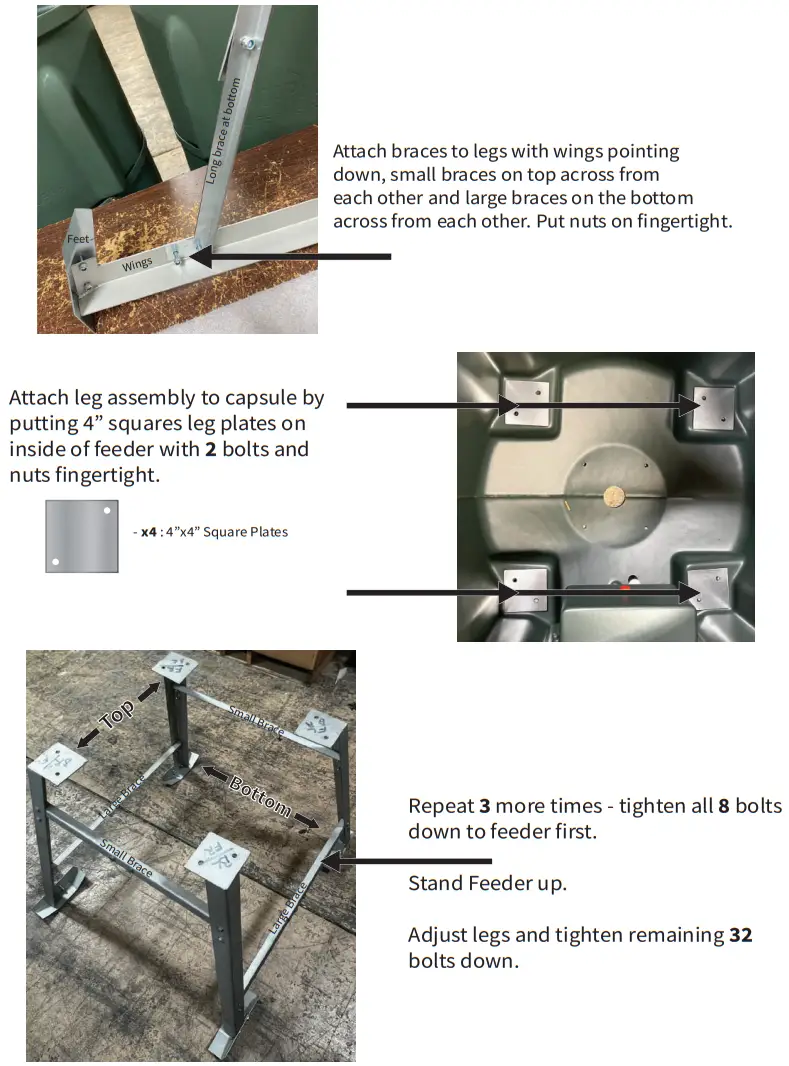

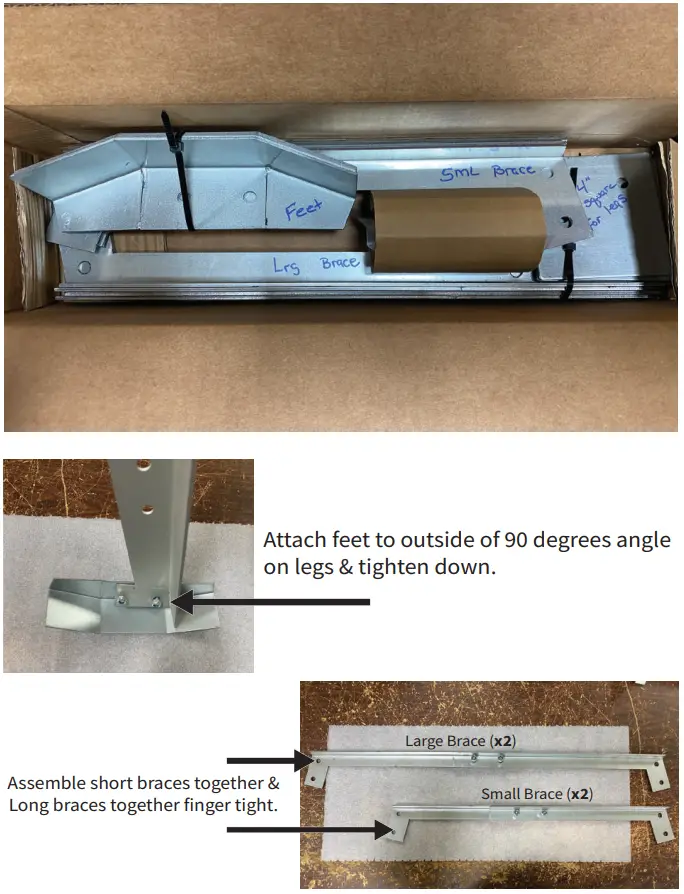

FEET/LEG ASSEMBLY
- 4 Small Barces
- 4 Feet
- 1 Bag of Hardware
- 4 Large Braces
- 4 Square Leg Plates

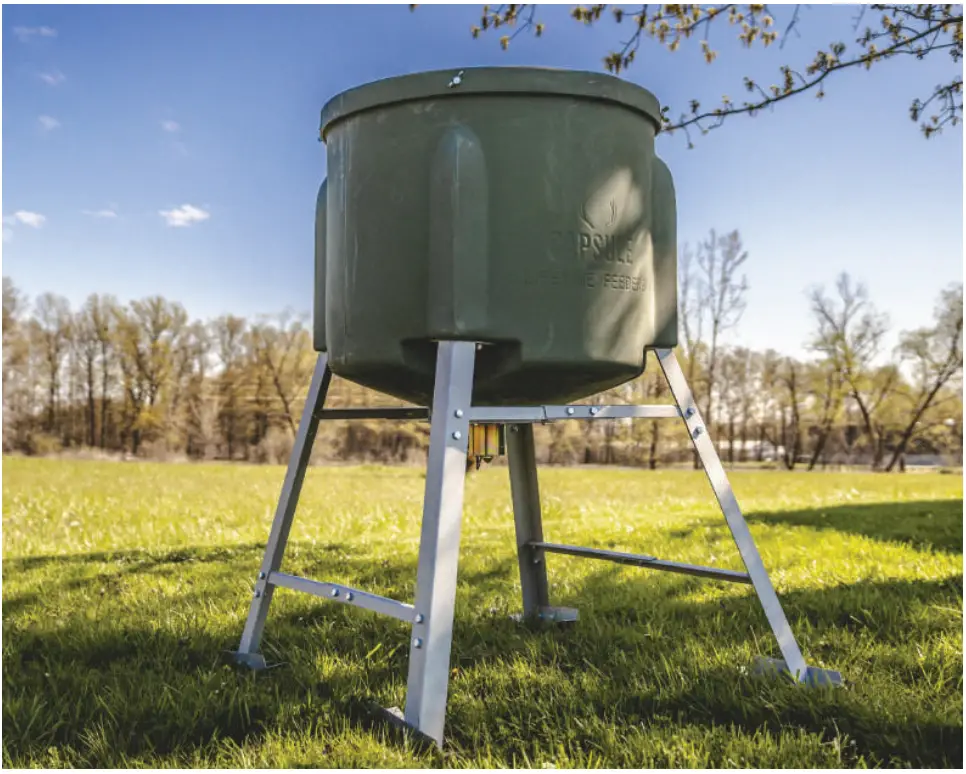

Place Capsule Feeder in desired location & fill with feed.
Attach lid by aligning holes on lid with nut inserts on feeder and secure lid with the x4 3/8″ wing bolts and x4 medium washers.
ATTENTION: IN ORDER TO ACTIVATE YOUR WARRANTY
YOU MUST REGISTER AT: www.capsulefeeders.com/warranty
