Use & Care Guide
Household Wet
Model: KW3030

BEFORE USING YOUR NEW VACUUM CLEANER

Read this Use & Care Guide. It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way.
For more information about vacuum cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model and serial numbers when requesting information.
Your vacuum cleaner’s model and serial numbers are located on the Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner.
Model No.___________________
Serial No. ____________________
Date of Purchase ______________
Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE VACUUM CLEANER is packaged with the following parts and components assembled separately in the carton:

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your vacuum cleaner.
WARNING!
Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions  including the following:

• Do not run vacuum unattended.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not vacuum, or use this vacuum near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite flammable vapors or dust.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, immediately discontinue use and call 1-877-5317321 (US) / 1-844-608-3081 (CA) for assistance.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or filters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.
• This vacuum is designed for household use only!

When using as blower:

• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.

CAUTION
To reduce the risk of injury from moving parts – Unplug before servicing.
WARNING
To reduce the risk of electric shock – Unplug before cleaning or servicing.
SAVE THESE INSTRUCTIONS
Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended for Household Use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

VACUUM CLEANER WARRANTY

LIMITED WARRANTY
FOR ONE YEAR from the date of sale this product is warranted against defects in material or workmanship.
WITH PROOF OF SALE, a defective product will be replaced free of charge.
The Kenmore brand is used under license. Direct all claims for warranty service to: 1-877-531-7321 (US) / 1-844-608-3081 (CA).
This warranty does not cover attachments such as filter, hose, nozzles, or casters which are expendable parts that can wear out from normal use within the warranty period.
This warranty is void if this product is ever used for other than private household purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Cleva North America, Inc., Greenville SC 29607

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vacuum is double insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double- Insulated Wet/Dry Vacuums before servicing. Use this vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your vacuum.
Double Insulated – Grounding not required – When servicing use only identical replacement parts.
WARNING
To reduce the risk of electric shock – do not expose to rain. Store indoors.
WARNING
For your own safety, read and understand the operator’s manual. Do not run unattended. Do not pick up hot ashes, coals, toxic, flammable or other hazardous materials. Do not use around explosive liquids or vapors.
CAUTION
Do not vacuum drywall dust, fireplace soot, or ash with standard wet/dry filter. This type of dust is very fine which may not be captured by the filter and cause damage to motor. When vacuuming fine dust use a fine dust filter.
WARNING
Servicing of double-insulated wet/dry vacuums With a double-insulated wet/dry vacuum, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double insulated wet/ dry vacuum requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double-insulated wet/dry vacuum must be identical to the parts they replace. Your double-insulated wet/dry vac is marked with the words ‘double insulated’ and the symbol (Square within a square) may also be marked on the appliance.

EXTENSION CORDS

When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.

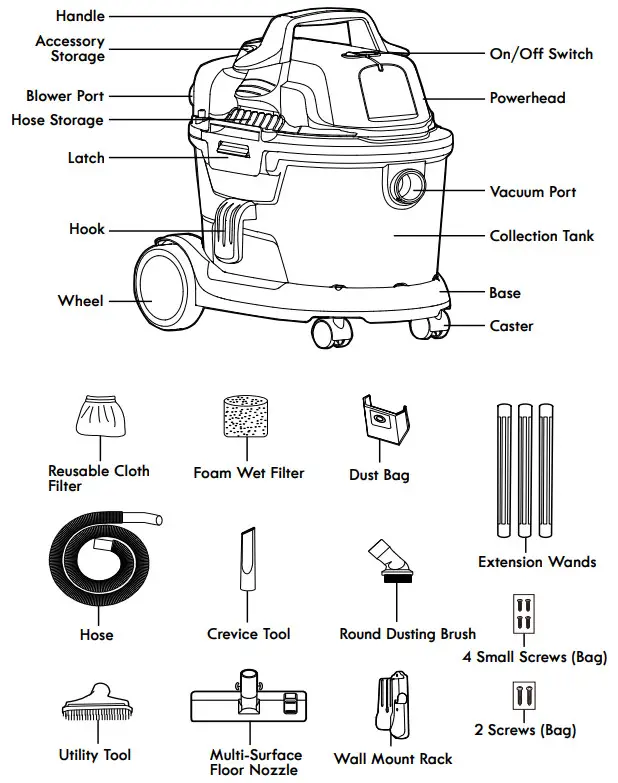

PARTS AND FEATURES

It is important to know your vacuum cleaner’s parts and features to assure its proper and safe use. Review these before using your vacuum cleaner.
REPLACEMENT PARTS

To order a replacement part, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).NOTE: The hose and accessories for this vacuum are 1-1/4” (32mm) diameter.
Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury. CAUTION statements alert you to such hazards as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling the vacuum cleaner, check the PACKING LIST (page 3). Use this list to verify that you have received all the components of your new Kenmore Vacuum Cleaner.
WARNING
Electrical Shock Hazard.
DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury. To reduce the risk of electric shock, do not expose  to rain.
NOTE: A Phillips head screwdriver is required.

1. Undo the latches.

2. Lift the powerhead off the collection tank.

3. Remove the contents from inside the collection tank; make sure you have all contents as listed on page 9.

4. Insert the casters and wheels into the respective sockets on the bottom of the base. Apply pressure until casters and wheels snap into place.

5. Turn the collection tank upside down and fit the base assembly onto the tank. Secure the base to the tank with the supplied four small screws. Verify that the base is assembled correctly. Do not over-tighten screws.

6. Hold the handle in one hand and align with openings in top of motor housing. Push down firmly onto top of handle until snaps into position.

7. Your vacuum comes ready for dry vacuum cleaning. If the reusable cloth filter is not installed, refer to page 18 for installation instructions.
8. For wet vacuum cleaning, remove the reusable cloth filter, and install the supplied foam wet filter. See page 19 for the foam wet filter installation instructions.
9. Place the powerhead back on the collection tank aligning the top section with the latches, and snap into place.

10. Insert the large end of the hose onto the vacuum port on the collection tank.

11. Choose the desired accessory and insert onto the end of the hose or extension wand.
    For your convenience this vacuum comes with a wall mounting support for storage.
    IMPORTANT!
    • Do not mount the rack over 5 feet from the floor.
    • Do not screw the wall mount rack to drywall only. Secure the screws to a stud.
    • Do not hang from or sit on the vacuum when on wall mount rack.
    • Do not use the vacuum while it is mounted on the wall mount rack.
    • Empty the collection tank before mounting the vacuum on the wall.
12. Make sure the rack is level and mark the hole locations. Align the two screw holes so that they are over a stud and secure the mount rack to the wall stud with the two screws provided.

13. Place the wet and dry vacuum cleaner into the wall mount rack.


OPERATING INSTRUCTIONS

DRY VACUUMING OPERATION
WARNING
Be sure to read, understand, and apply information entitled ‘important safety instructions’. Do not vacuum in areas with flammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.
WARNING
Do not plug the power cord into electrical supply. Make sure the plug is disconnected before changing the filters.
CAUTION
Do not vacuum drywall dust or fireplace soot or ash with standard wet/dry filter. This is a very fine dust which will not be captured by the filter and may cause damage to motor.
NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

1. Verify that the power cord is disconnected from the outlet.

2. In order to prepare your vacuum for dry vacuuming, make sure the reusable cloth filter completely covers the filter cage against the powerhead. Your wet/ dry vacuum comes with the reusable cloth filter pre-installed. For installation instructions, see page 18.

3. Optional: For improved dust filtering, fit dust bag flange onto the inlet port, taking care not to damage the bag. Dustbag sold separately.

4. Place the powerhead back on the collection tank and secure it in place using the latches.

5. Insert the larger end of the hose onto the vacuum port.
6. Choose the desired accessory and insert onto the end of the hose or extension wand.
7. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. Plug the power cord into the outlet.
8. Turn the motor on by flipping the switch to the ‘I’ ON position and begin vacuuming.

9. Once you have completed vacuuming, flip the on/off switch to the ‘O’ OFF position and unplug the power cord from the outlet. O = OFF I = ON

CAUTION
DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.
CAUTION
DO NOT USE DUST BAG FOR LIQUID VACUUMING.
LIQUID VACUUMING OPERATION
WARNING
Be sure to read, understand, and apply information entitled ‘important safety instructions’. Do not vacuum in areas with flammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials.
WARNING
Do not plug the power cord into electrical supply. Make sure the plug is disconnected before changing the filters.

1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is clean and free of dust and dirt.

2. Remove the reusable cloth filter, then carefully install the foam wet filter over the filter cage and place the powerhead back on the collection tank. For foam wet filter installation instructions, see page 19.
   CAUTION
   DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.
   CAUTION
   DO NOT USE DUST BAG FOR LIQUID VACUUMING.
3. Choose the desired accessory and insert onto the end of the hose or extension wand.

4. Verify that the on/off switch is in the ‘O’ OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet.

5. Turn the motor on by flipping the switch to the ‘I’ ON position.

6. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord from the outlet.
7. After use, empty the collection tank, clean and dry the inside and outside of the collection tank.

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from electrical supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the powerhead to the collection tank. After wet vacuuming, turn the machine off and remove plug from electrical supply. Empty the collection tank, clean, and dry the inside and outside before storage.
IMPORTANT! The foam wet filter must be removed after wet vacuuming and the reusable cloth filter must be installed before dry vacuuming again.
BLOWER OPERATION
This Wet/Dry Vacuum has blowing capabilities. To use the blower feature, follow the instructions listed below.
WARNING
ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR INCANADA, CSAZ94.3) BEFORE USING BLOWER.
CAUTION
KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
WARNING
WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BEINHALED.

1. Verify that the power cord is disconnected from the outlet.

2. Make sure the collection tank is empty before using as a blower. Clear all dirt and debris from the hose and collection tank.

3. Remove the hose from the vacuum port.
4. Insert the larger end of the hose into the blower port on the back of the powerhead.
5. Choose the desired accessory and insert onto the end of the hose or extension wand.

6. Verify that the on/off switch is in the ‘O’ OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet.

7. Before turning on the vacuum, firmly hold the loose end of the hose. Turn the motor on by flipping the switch to the ‘I’ ON position.

8. Once you have completed blowing, flip the on/off switch to the ‘O’ OFF position and unplug the power cord from the outlet.


VACUUM MAINTENANCE AND CARE

EMPTYING THE COLLECTION TANK
WARNING
Always disconnect the plug from the outlet before removing the powerhead from the collection tank.

1. Verify that the power cord is disconnected from the outlet.

2. Disconnect the hose from the vacuum.

3. Undo the latches and remove the powerhead from the collection tank. Place powerhead on a soft, clean surface upside down.

4. Clear all dirt or debris from the collection tank and hose into a proper waste container.

5. Clean or replace the filters.
6. Check the hose, accessories, and power cord to verify that they have not been damaged.
7. Place the powerhead back on collection tank and secure latches.

IMPORTANT! Clean or change the filter regularly for best performance. ALWAYS USE THE REUSABLE CLOTH FILTER FOR DRY VACUUMING. If the machine is used without the reusable cloth filter, the motor will burn out and the warranty will be voided. Always keep spare filters on hand.
NOTE: The filters included are made of high-quality materials designed to stop small dust particles. The reusable cloth filter should be used for dry pickup only. A dry reusable cloth filter is necessary to pick up dust. If the reusable cloth filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through and out of the filter. Do not use a filter with holes ortears; replace it immediately.
STORAGE
Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be cleaned and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.
REPAIRS
Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only identical replacement parts.
INSTALLING & CLEANING REUSABLE CLOTH FILTER
INSTALLING REUSABLE CLOTH FILTER

1. Verify that the power cord is disconnected from the outlet.

2. Remove the powerhead and place in an upside-down position.
3. Install the reusable cloth filter over the filter cage making sure the cage is completely covered.

4. Place the powerhead back onto the collection tank.

REMOVING & CLEANING REUSABLE CLOTH FILTER

1. With the removed powerhead in an upside-down position, carefully remove the reusable cloth filter from the filter cage.

2. Clean the reusable cloth filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance, a new filter is recommended.
3. Use a mild soap and water solution to wash reusable cloth filter and rinse with clean water.

4. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.
5. Install cleaned or new filters as above in steps 2-4 of Installing Reusable Cloth Filter.

INSTALLING & CLEANING FOAM WET FILTER
INSTALLING FOAM WET FILTER

1. Verify that the power cord is disconnected from the outlet.

2. Remove the powerhead and place in an upside-down position. Follow instructions to remove the reusable cloth filter on page 18.
3. Carefully slide the foam wet filter down over the filter cage making sure the cage is completely covered.

4. Place the powerhead onto the collection tank.

CLEANING FOAM WET FILTER

1. With the removed powerhead in an upside-down position, carefully remove the foam wet filter.

2. Use a mild soap and water solution to wash the foam wet filter and rinse with clean water.

3. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should  be performed by a qualified service agent.
WARNING
Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

Vacuum Cleaner Help Line
Assistance telephonique
pour les aspirateurs
US: 1-877-531-7321
CA: 1-844-608-3081
8:00 am — 5:00 pm ET M-F
De 8 h a 17 h HE lun a yen
Kenmore and the Kenmore logo are registered trademarks of Transform SR Brands LLC
and are used under license by Cleva North America, Inc., Greenville, SC 29607
