dahua Pro Series 2 x 4MP Multi-Sensor Network Dome Camera

INSTALLATION INSTRUCTION

WizMind Series devices offer Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products are ideal for complex applications with demanding requirements that need advanced analytic capabilities.

System Overview

The Dahua 2 x 4MP Dual-sensor Dome Camera offers advanced analytics and Starlight functionality for complete security solution. Each sensor can be positioned and configured independently of the other allowing flexible, multi-directional video security that is ideal for monitoring an entire corridor, a stairwell, or a street. In addition, Analytic+ functions can be applied to each channel and enabled simultaneously. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.

Functions

Perimeter Protection

• Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.

People Counting

• The camera uses complex real-time people counting algorithms to deliver accurate flow statistics from two distinct people counting functions, Line Crossing and Regional. The line-crossing function counts the number of people crossing a defined line, and the regional function counts the number of people in a distinct, user-defined area.

Starlight Technology

• For challenging low-light applications, Dahua’s Enhanced Starlight Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
• Two (2) Independent 1/2.7-in. 4MP CMOS Sensors
• Triple-stream Encoding per each Channel
• AI Coding, Smart H.265+, and Smart H.264+ Video Compression
• Two (2) 2.8 mm Fixed Lenses
• Analytics+ Functions — Perimeter Protection, Smart Motion Detection+, People Counting, and Face Detection
• Option to Display Dual Video in the First Channel
• Enhanced Starlight Technology for Low Light Sensitivity
• ArcticPro Series Camera — Operational down to –40° C (–40° F)
• IP67 Ingress Protection and IK10 Vandal Resistance
• Built-in Microphone
• Maximum IR LED Distance 30 m (98.43 ft)
• Five-year Warranty*

ArcticPro

• The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as –40°F (–40°C) without the need for an internal heater. The lack of a heater reduces the camera’s power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.

AI Coding

• The AI Coding function puts recording emphasis on human or vehicular objects in the video scene. This technology, based on constant bit rate (CBR), dynamically allocates increased bit rate to the target object while reducing the bit rate allocated to background objects. AI Coding reduces bit rate and storage requirements by up to 25% when compared to the H.265 video compression standard.

Smart Illumination

• With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera’s integrated infrared illumination provides high-performance in extreme low-light environments.

Cybersecurity

• Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental

• The camera complies with the IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

Technical Specification

Camera

Lens

Installation Angle

Video

Audio

Network

Certifications

Interface

Electrical

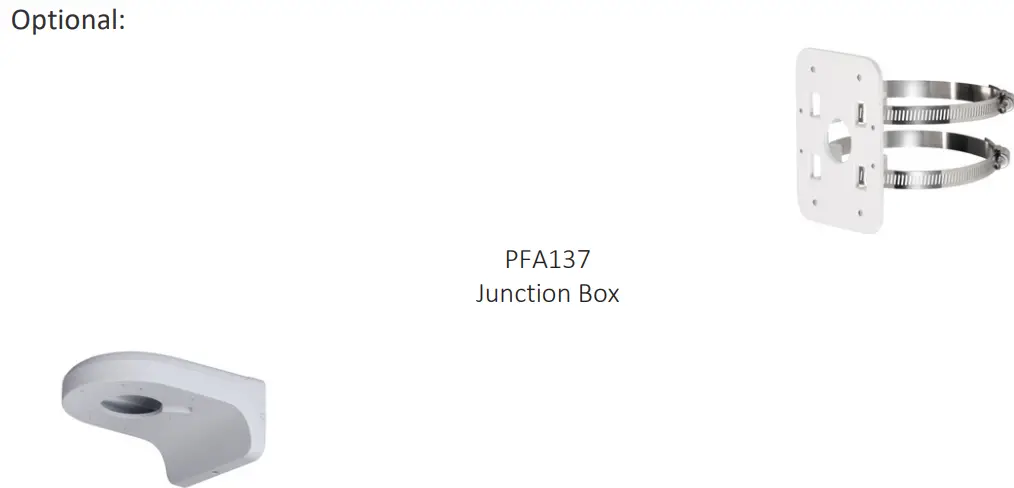

Accessories

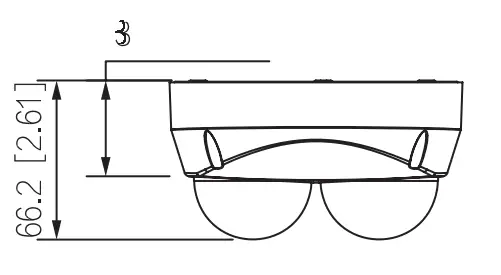

Dimensions (mm/inch)
