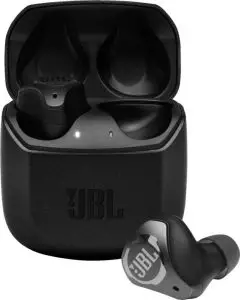

JBL CLUB PRO+TWS Headphones User Guide

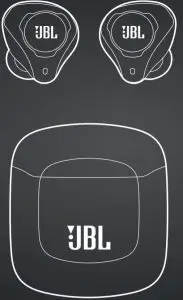

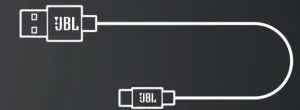

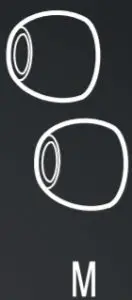

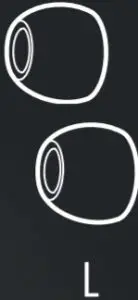

WHAT’S IN THE BOX

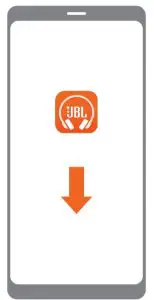

App
My JBL Headphones
https://play.google.com/store/apps/details?id=jbl.stc.com&hl=en&gl=US
https://apps.apple.com/us/app/my-jbl-headphones/id1053136947
First time use

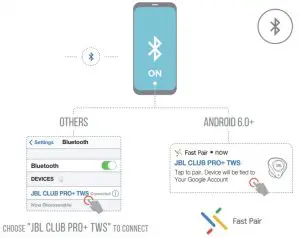

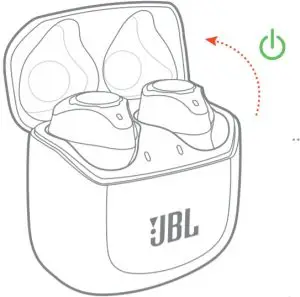

power on & CONNECT

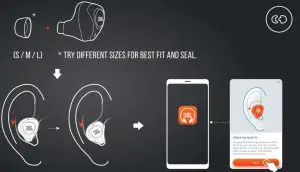

how to wear

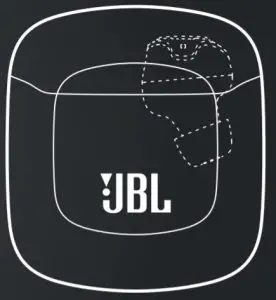

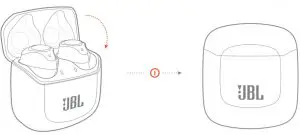

Power off

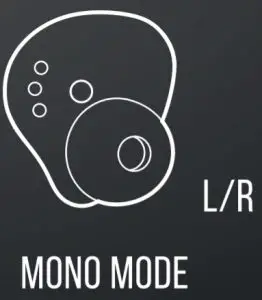

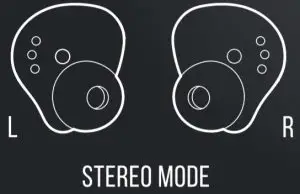

DUAL CONNECT + SYNC
- Enable advance controls by connecting your JBL CLUB PRO+TWS to My JBL Headphones App . L R ANC/ Ambient Aware*/OFF

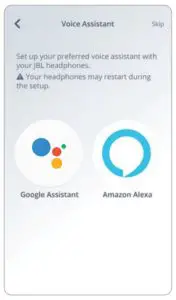

- ENABLE YOUR VOICE ASSISTANT THROUGH MY JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R)

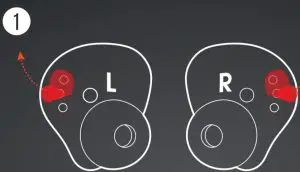

MANUAL CONTROLS

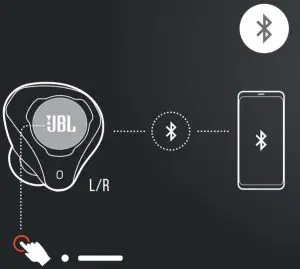

- Connect to a Bluetooth device

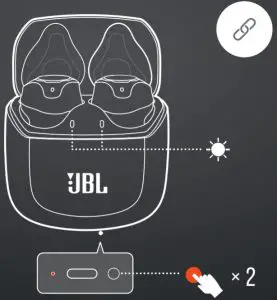

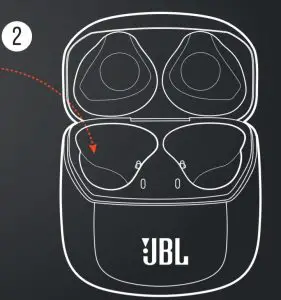

- pairing Left and Right earpieces

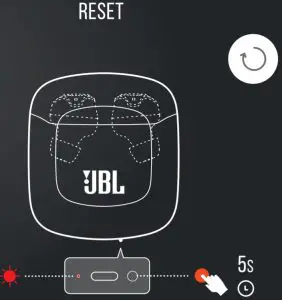

- Reset

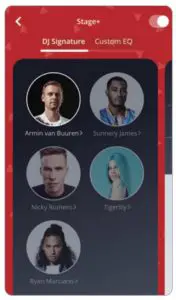

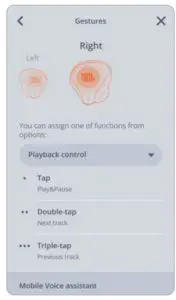

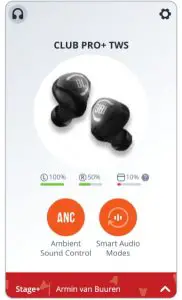

DO MORE WITH THE APP

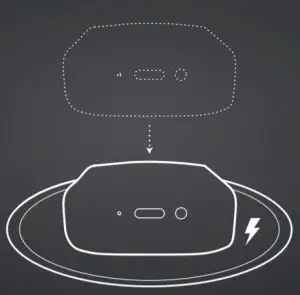

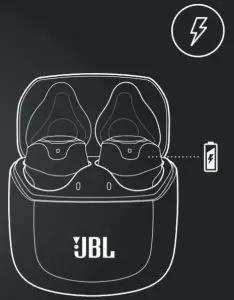

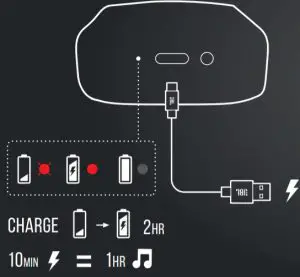

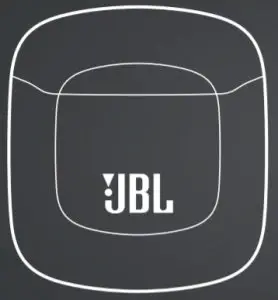

Charging

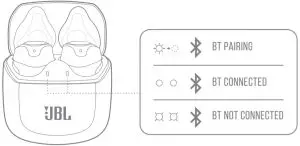

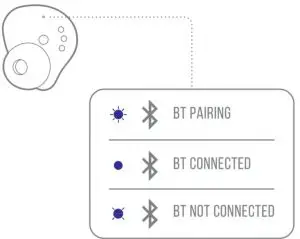

Led behaviors
Tech spec
| Model | CLUB PRO+ TWS |
| Driver Size: | 6.8 mm/0.27″ Dynamic Driver |
| Earpiece | 5 V 1 A |
| Charging case | 6.85 g per pc (13.7 g combined)/0.015 lbs per pc (0.03 lbs combined) |
| Headset battery type | 55.4 g/0.12 lbs |
| Charging case battery type | Lithium-ion polymer (3.7 V, 55 mAh) |
| Charging time (USB-C) | 2 hrs from empty |
| Music playtime with BT on and ANC off | up to 8 hrs |
| Music playtime with BT on and ANC on | up to 6 hrs |
| Frequency Response | 10 Hz – 20 kHz |
| Impedance | 16 ohm |
| Sensitivity | 102 dB SPL@1kHz/1mW |
| Maximum SPL | 99 dB SPL |
| Microphone sensitivity | -6 dBV@1kHz/Pa |
| Bluetooth version | 5.1 |
| Bluetooth profile version | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2400 – 2483.5 MHz |
| Bluetooth transmitter power: | < 9.5 dBm (EIRP) |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45°C |
Bluetooth:
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. Google, Android and Google Play are trademarks of Google LLC. Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
FCC ID: APICLUBPROTWS
IC: 6132A-CLUBPROTWS
WPC: 110-148KHz
Anatel — Agência Nacional de Telecomunicações
