Shure

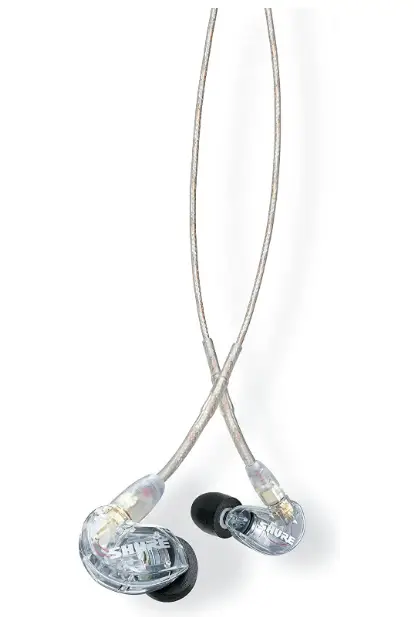

Shure SE215 PRO Wired Earbuds-Professional Isolating Earphones

Shure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-IMAGE

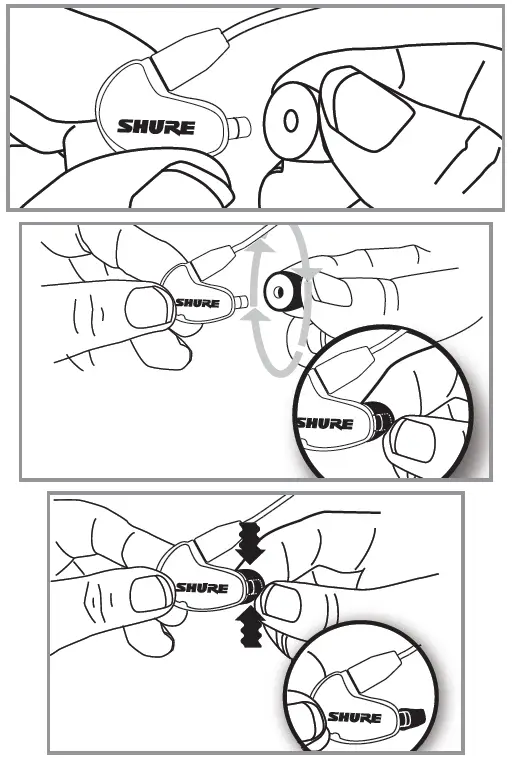

Apply sleeveShure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-2

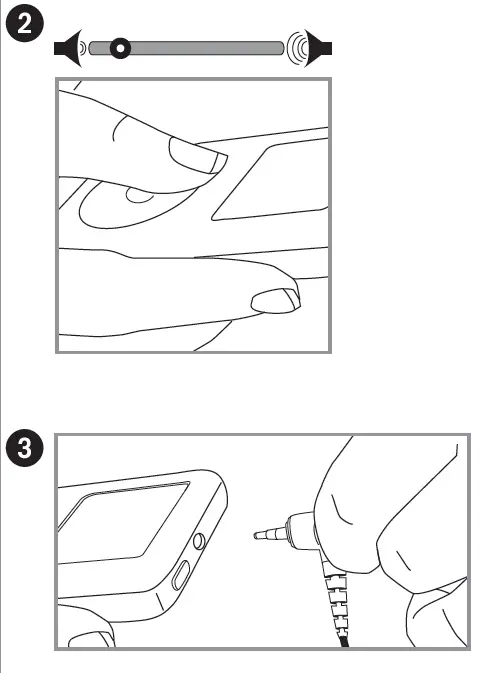

Turn volume DownShure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-3

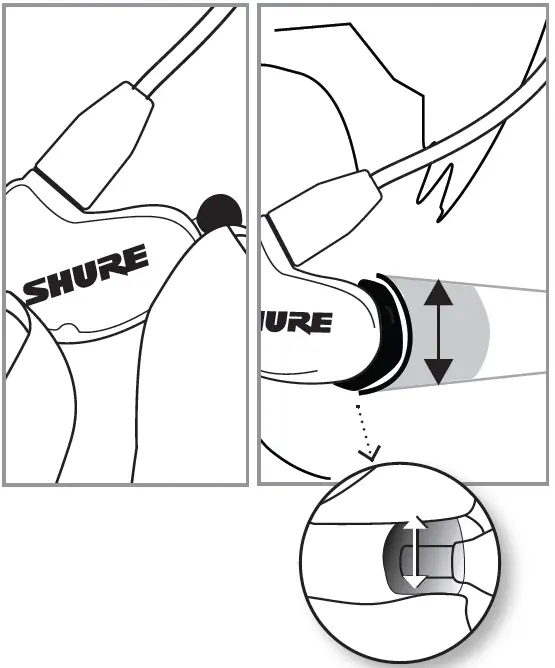

Insert into ear like an earplugShure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-4

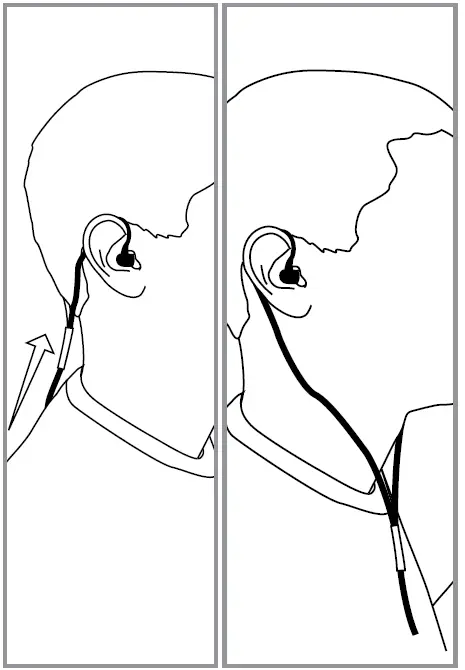

Wearing your earphonesShure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-5

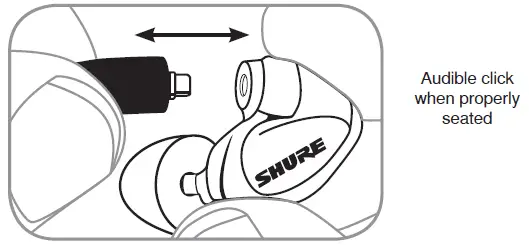

Detachable CableShure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-6

You may need to detach the cable from the earphones to attach optional components or to replace the cable if it becomes damaged. To prevent accidental separation, the connector has a snug fit. Take special care to prevent damage to the earphone and connectors.

  • Do not use pliers or other tools.
  • Grasp the connector and the earphone as close as possible to where they join.
  • Pull straight apart—do not twist. Cable is a snap fit, not threaded.
  • Do not pull on the cable or put any pressure on the earphone nozzle.
  • Listen for a click when connecting.
  • When reattaching the cable, match the “L” and “R” markings.
  • For clear cables and earphones, match the color dots (Red = Right, Blue = Left).
    Note: If you pull at an angle, the connector will not detach.

For more information on how to use your ear-phones go to
http://www.shure.com/PersonalAudio/Products/Earphones/HowToUseEarphones

MAINTENANCE AND CLEANING

Careful maintenance ensures a tight seal between the sleeve and nozzle, im-proving sound quality and product safety.

  • Keep the earphones and sleeves as clean and dry as possible.
  • To clean sleeves, remove them from earphones, gently rinse in warm water and air dry. Foam sleeves require a longer drying time. Inspect for damage and replace if necessary. Ear sleeves must be completely dry before reusing.
  • Wipe the earphones and sleeves with mild antiseptic to avoid infections. Do not use alcohol-based disinfectants.
  • Do not expose earphones to extreme temperatures.
  • Replace the sleeves if they do not fit properly.
  • Do not attempt to modify this product. Doing so will void the warranty and could result in personal injury and/or product failure.
    Note: The cable connectors to the earphones may collect debris or other deposits that can affect audio quality. If this happens, disconnect the cables and clean them
    using a dry cotton swab.
    WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Cleaning Earphones

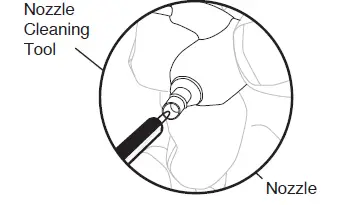

If you notice a change in sound quality, remove the sleeve and check the nozzle of your earphone. If the nozzle is blocked, clear the obstruction by using the wire loop end of the cleaning tool.

Warning: The cleaning tool is only to be used to clean the earphones. Any other use, such as using the tool to clean ears, could result in injury.Shure-SE215-PRO-Wired-Earbuds-Professional-Isolating-Earphones-Sound-7

Warning: Please read all Safety Instructions & Warnings included in the literature packet prior to use of this product. Failure to do so may result in injury or product malfunction.

TECHNICAL SPECIFICATIONS

  • Transducer type
    Single High-Definition MicroDriver
  • Sensitivity (at 1khz)
    107 dB SPL/mW
  • Impedance (at 1kHz)
    20 W
  • Frequency Range
    22 Hz – 17.5 kHz
  • Net weight
    30 g (1 oz.)

CERTIFICATION

Eligible to bear CE Marking. Conforms to EMC Directive 2004/108/EC. Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments. The Declaration of Conformity can be obtained from the address below.

ACCESSORIES

For information about earphone accessories and other Shure products visit: www.shure.com
Furnished accessories are subject to change.

Shure Europe GmbH
Authorized European representative: Shure Europe GmbH
Headquarters Europe, Middle East & Africa Department: EMEA Approval Wannenacker Str. 28
D-74078 Heilbronn, Germany
Phone: +49 7131 72 14 0
Fax: +49 7131 72 14 14
Email: [email protected]

FREQUENTLY ASKED QUESTION

Can i isolate myself from my mom screaming at me?

Depends how loud she is. Riley why are you being yelled at?. Earbuds are not going to solve this issue.
I can say with great certainty that if you are wearing them when she screams chances are you are screaming back. Sound isolation is good but Moms are by far better.
NOT A MOM FILTER.

Can I use it for the gym? is it water/sweat resistant? will it stay in my ears during the workout?

They probably won’t be a very good choice for wear while you’re in the gym. As for moisture, I can only tell you my experience. I wear them onstage and during a show I sweat buckets. I normally take them out between sets and dry them off but I have never had them stop working. I assume that sweat is OK but I won’t guarantee it. They stay in my ears just fine but for a workout, I don’t know. Maybe

Does this item work with xvive u4 IEM wireless system?

If it has a 3.5mm headphone jack, yes, it will work.

I just recently lost one side of the earphones. I have the left side and the cord, is it possible for me to buy a replacement for the right side?

If it’s covered by the warranty and you have the receipt, it can be replaced.
Otherwise, you will have to pay for the replacement.
But for the price… if it’s >50% of the retail price, you may as well buy a newer set.
When you send in the unit for repair, Shure will contact you. You can ask if you can just buy a newer set from them since the cost of the replacement won’t be worth the cost.
Shure may give you a discount on a newer model which may still be pricey but at least it’s a discount.

Are these good to use with a monitor system? I’m a drummer in a band and looking for a set of in-ear’s to use.

They will work just fine. I would suggest getting the triple-flange replacement tips (EATFL1-6) so they sit in the ear better and stay in while playing better. The single driver won’t give you amazing sound but this is a great entry-level IEM. I use custom Ultimate Ears UE11 Pro’s on stage most of the time but always have these SE215s in my gear kit as back-up; that said, the rest of my band used these as their standard IEM without complaint (these are what come with the Shure wireless IEM system). I did use these at a couple of shows when my UE’s cable went wonky and they did just fine. On a daily basis, I actually use these when I go running or go to the gym and they are fantastic for that!

Can it be connected to the xvive u4 item wireless system(no need extra adapter)?

Yes, it can be connected to xvive. I use those as well and these in-ears connect with no special adaptor.

How do these headphones do with blocking out talking? I’m looking to drown out some people at work who haven’t learned what an inside voice is. Thanks

Hi, these headphones are very good at blocking out talking in the office. I often use them precisely for that reason and commonly don’t have any music playing from them while at work so I can focus better. They’re sort of like earplugs in that way. You’ll still hear some outside noise while wearing these but they do a good job of drowning out nearby talking.

I run a lot. Will these stay in my ears when my head is shaking all about?

They should unless you really whip your head when running and don’t run the chord around the back of the ear and over the top. I’m a drummer and I wear these by running the chord up my back and over the tops of my ears. While I’m not a “head banging” player, I do at times shake/bob my head jerk it side-to-side and these stay put. The chord closest to the buds is somewhat stiff and can be bent into shape, so it works well “molding” over the top of the ear. This helps keep the bud in the ear.

Is the isolation good enough for drumming? (much better than standard iems)

Yes! I play the drums with these on and they sound better for some reason… However these headphones have a lifetime of 1 year, that is before encountering illogical problems. Beware

Would these be comfortable under a motorcycle helmet?

They would be, if you don’t have fake ones delivered… I ordered them for the same purpose (under a

helmet) and had the cheapest knockoffs delivered. Comfortable but awful sound. Beware
