Tripod Mount Adaptor
Instruction Manual
Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.
Function/Application
Magnetic wall bracket – for versatile use
– For all laser measuring devices with 1/4“ thread
– For mounting on 1/4“ and 5/8“ thread tripods

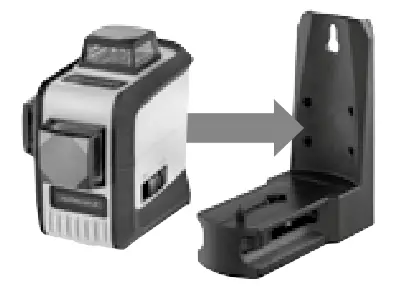

– The magnetic wall bracket allows the unit to be used as a stand-alone device or in combination with other devices
– on walls and attached to magnetic objects.
 |  |

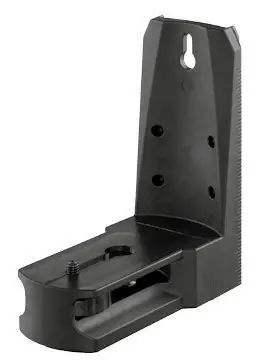

- Eyelet for mounting on the wall
- Powerful magnets (backside)
- 1/4“ thread
- 1/4“ fastening screw 1
- /4“ tripod threads (bottom)
- 5/8” tripod threads (bottom)
Mounting on a wall
The lug (1) facilitates direct mounting on walls.

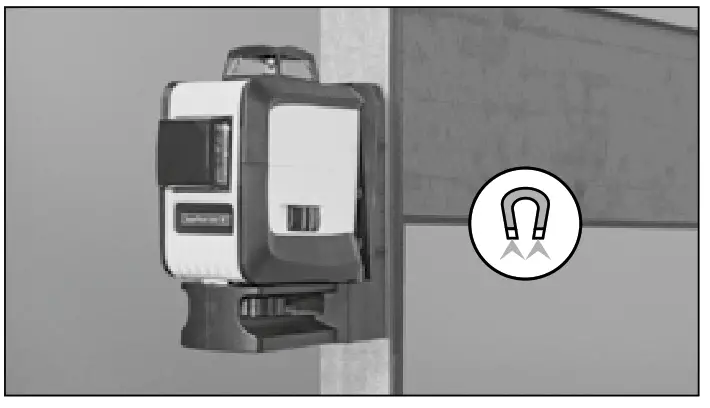

Mounting on magnetic objects
The powerful magnets (2) at the rear allow the bracket to be fixed to magnetic objects.
Mounting on a tripod
The wall bracket can be screwed onto tripods with 1/4“ and 5/8“ thread.
Danger – powerful magnetic fields
Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemakers) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).
With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety – electromagnetic fields) in the Federal Republic of Germany.
To avoid interference/disruption, always keep the implant or device a safe distance of at least 20 cm away from the magnet.
Technical data(Subject to technical alterations. 09.16)
| Weight | 280 g |
| Dimensions (W x H x D) | 60 x 145 x 130 mm |
EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU.
Further safety and supplementary notices at: www.laserliner.com/info
