Schrder SE1 Solar system
Product Information

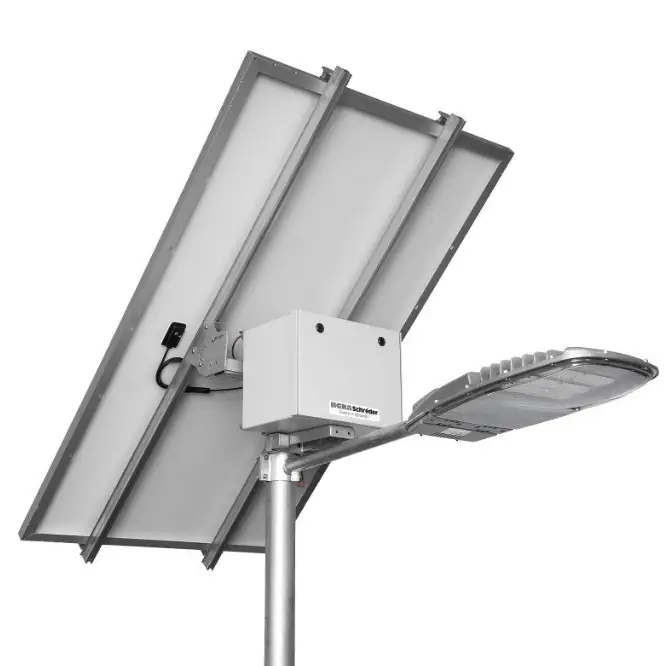

Solar System SE1-SE2-SE4

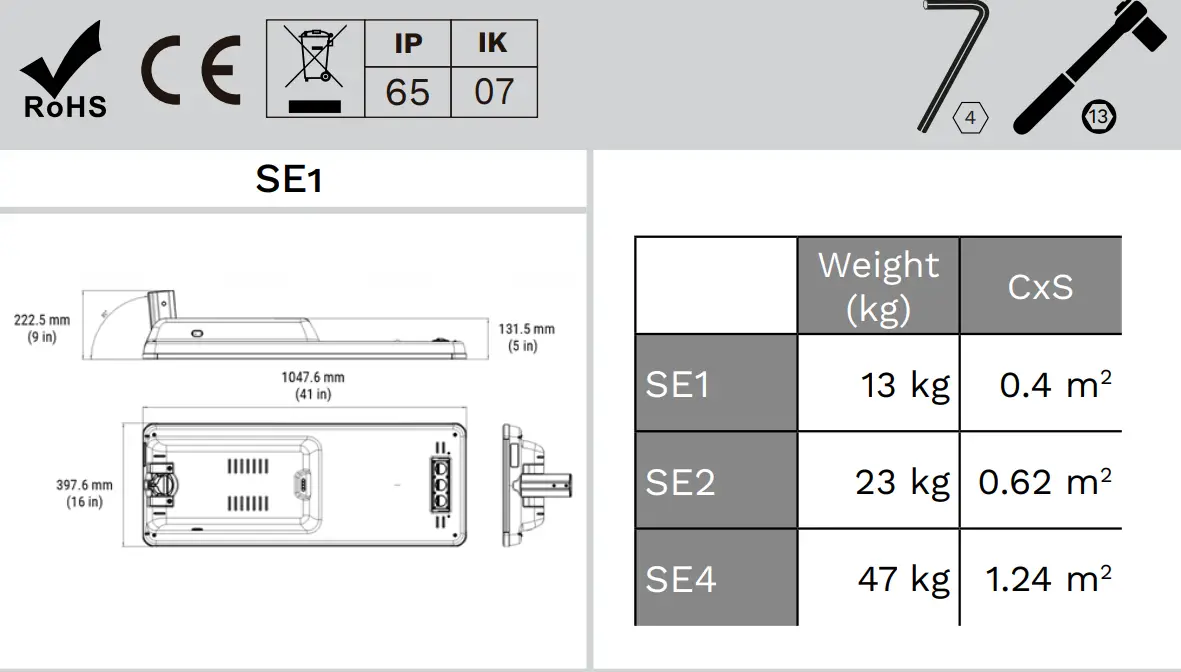

The Solar System SE1-SE2-SE4 is a range of solar-powered lighting solutions offered by Schreder, a leading manufacturer of outdoor lighting products. These lighting solutions are designed for use in areas where traditional electrical power sources are not available or sustainable. The Solar System SE1-SE2-SE4 comes in three different models: SE1, SE2, and SE4, which have differentweight and size specifications depending on the application. The SE1 model weighs 13 kg and has a shading area of 0.4 m2, the SE2 model weighs 23 kg and has a shading area of 0.62 m2, and the SE4 model weighs 47 kg and has a shading area of 1.24 m2. The Solar System SE1-SE2-SE4 is environmentally friendly, easy to install, and requires minimal maintenance.
Product Usage Instructions
The Solar System SE1-SE2-SE4 is a solar-powered lighting solution designed to provide lighting in areas with no access to traditional electrical power sources. Here are the step-by-step instructions for using the product:
- Unpack the product and verify that all parts are included as per the parts list provided in the user manual.
- Select the appropriate mounting pole based on the dimensions provided in the user manual.
- Ensure proper positioning of the solar panel on the mounting pole for maximum sun exposure.
- Follow the installation steps provided in the user manual specific to your chosen model (SE1, SE2 or SE4).

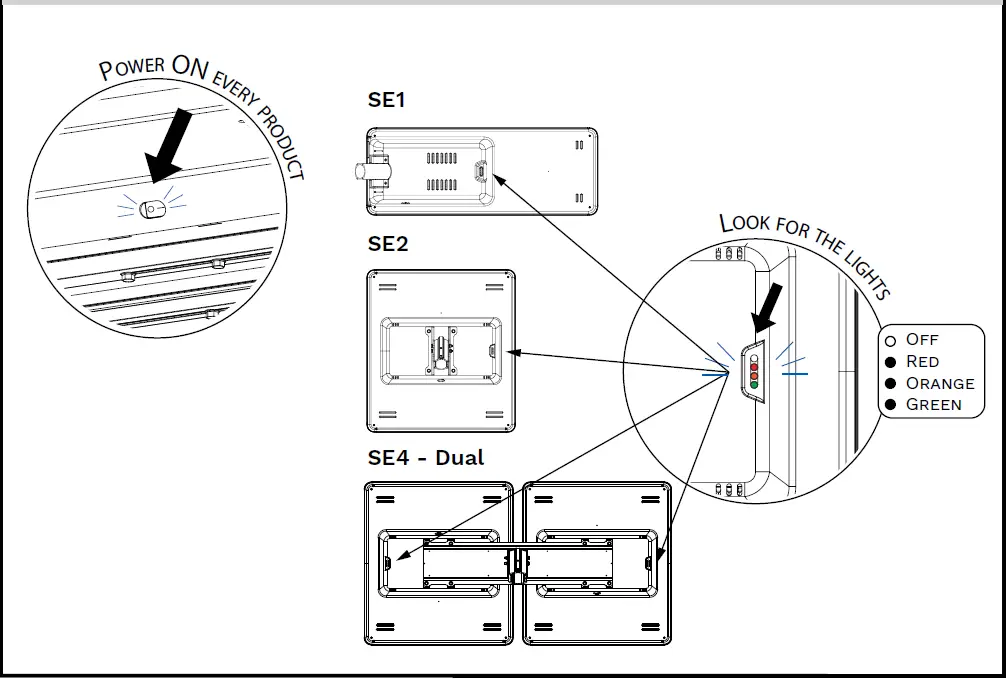

- Once installed, turn on the product by looking for the green LED light on the luminary side. If it is not lit, look for the LI-O-R-O-G LED status as indicated in the user manual.
- The product will automatically turn on at night and turn off during the day. The orange LED light indicates the product is in sleeping mode. The red LED light indicates a major or critical
alarm. Consult the user manual accordingly for troubleshooting. - The product is designed to operate with a PIR sensor, which is optional. If you have the PIR sensor, follow the connection instructions provided in the user manual.
- Enjoy your solar-powered lighting solution!
OVERVIEW

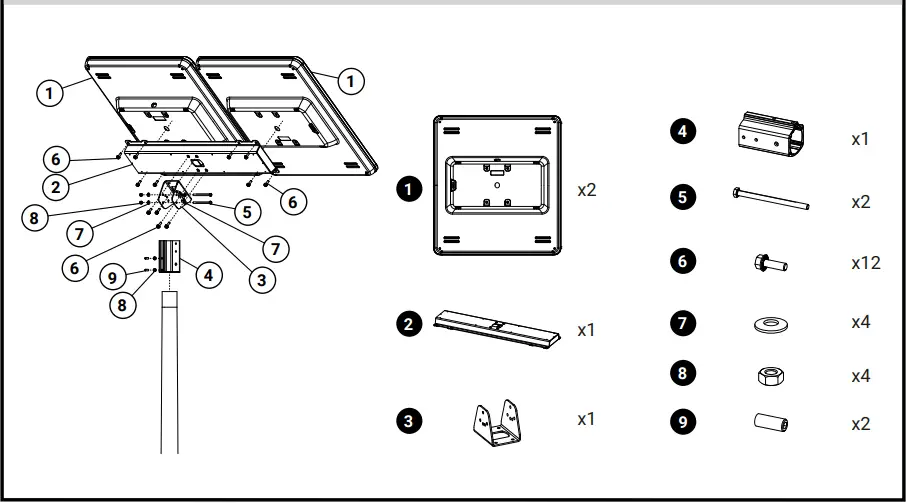

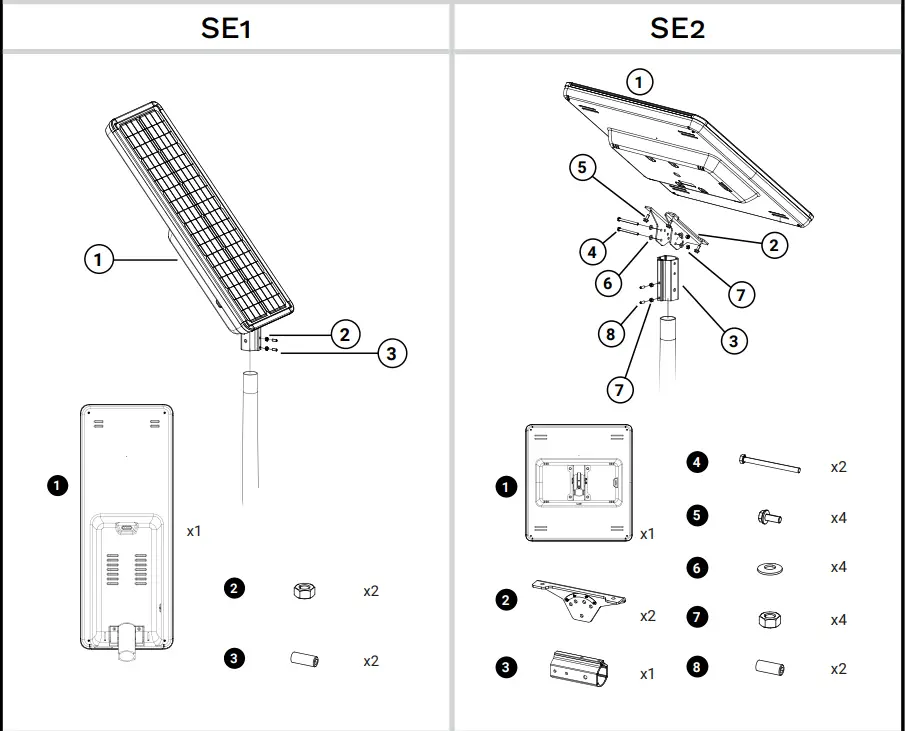

Parts list

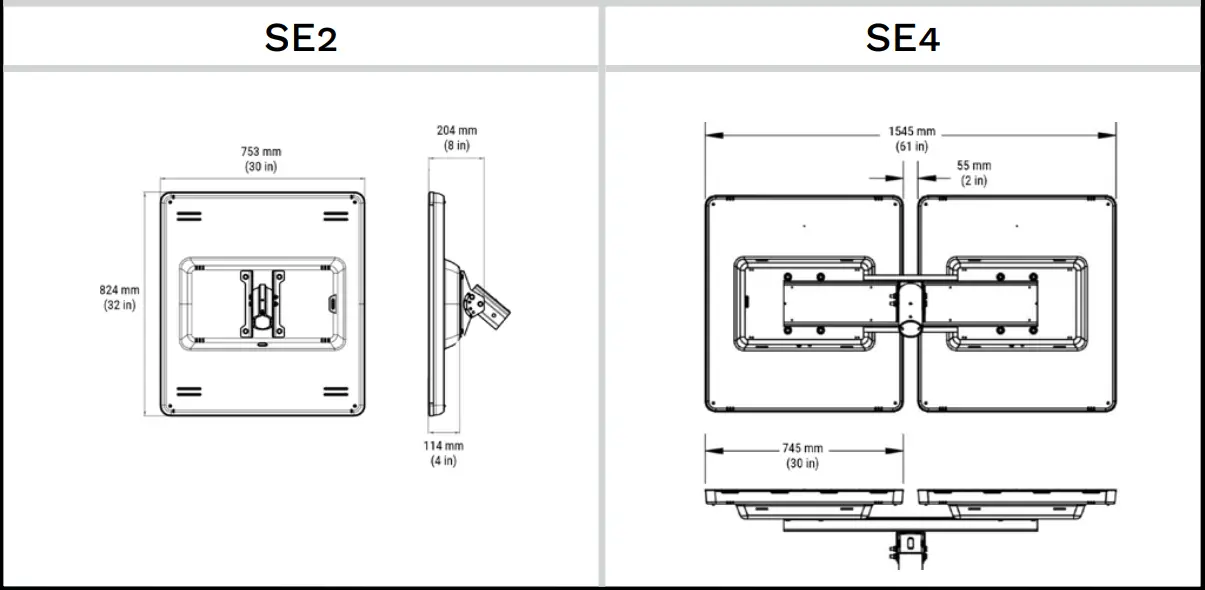

SE4

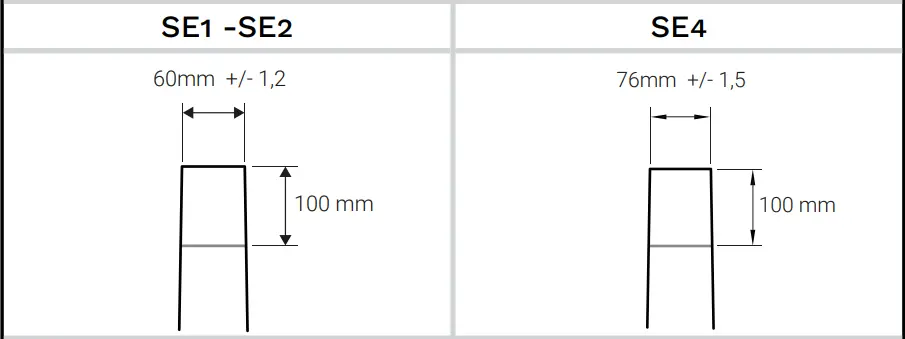

Pole dimension

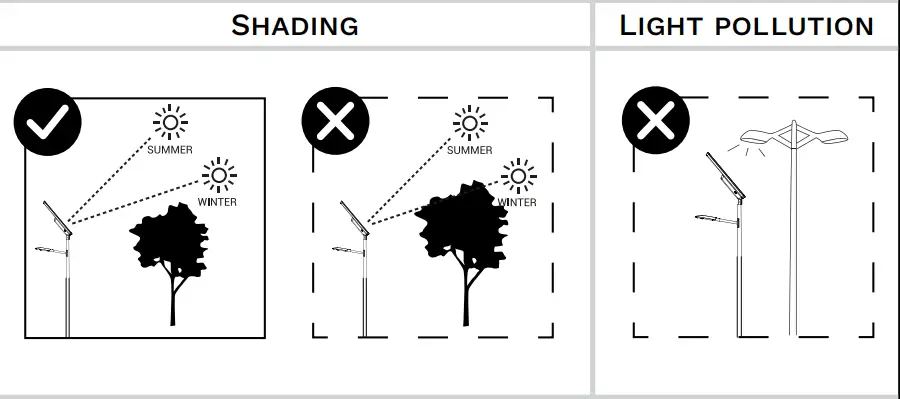

Positioning advice

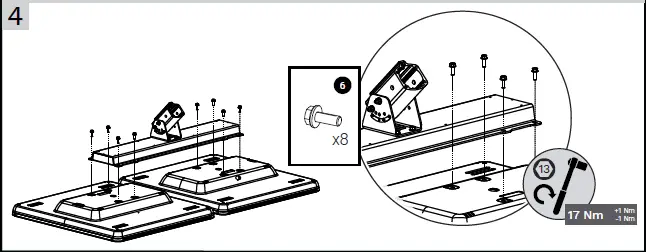

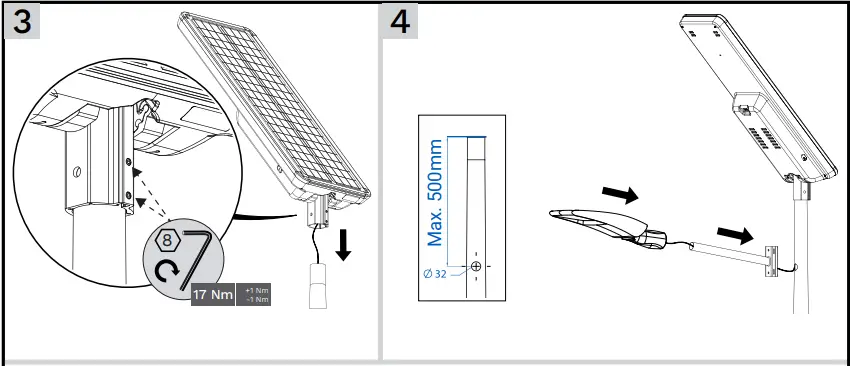

INSTALLATION INSTRUCTION

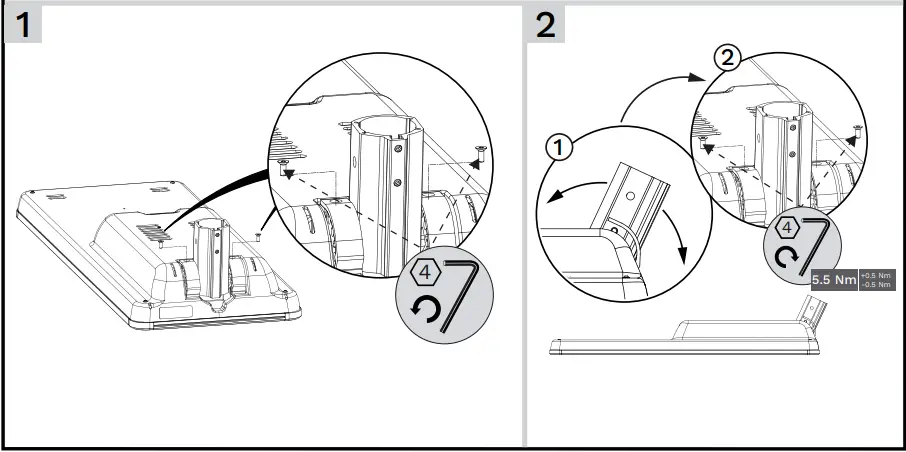

SE1
SE2

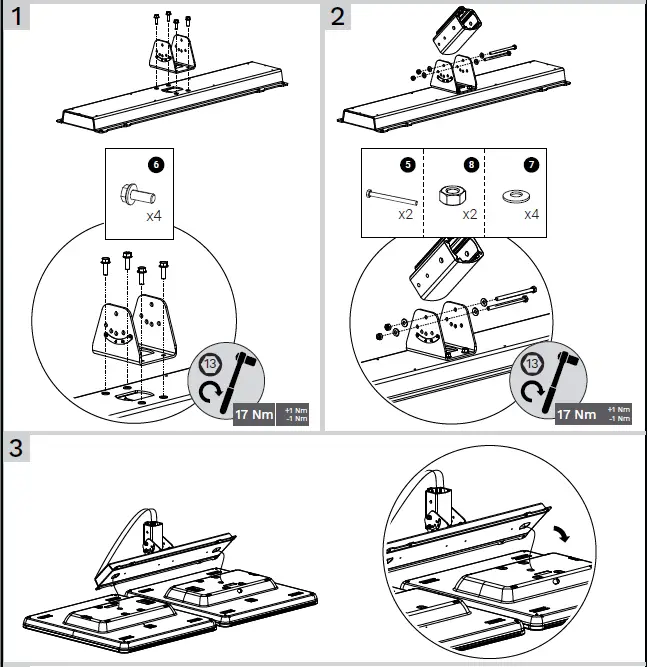

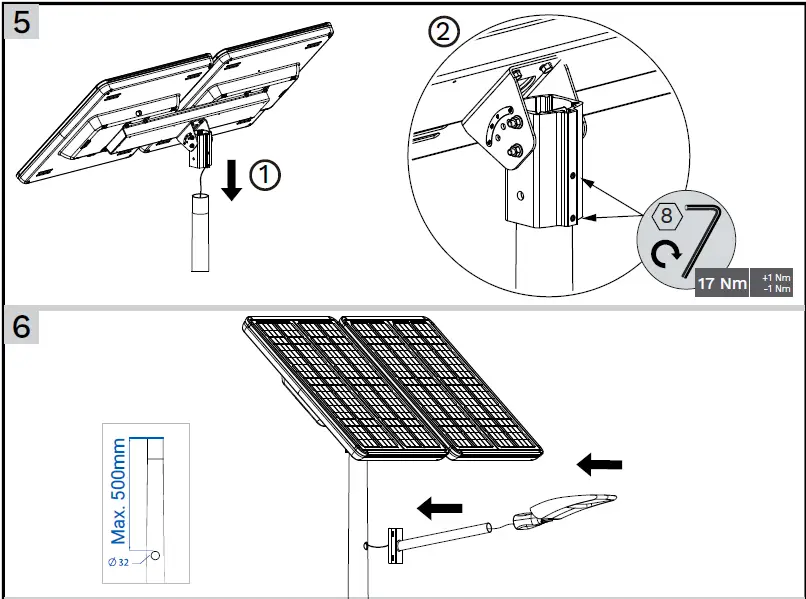

SE4
Start steps

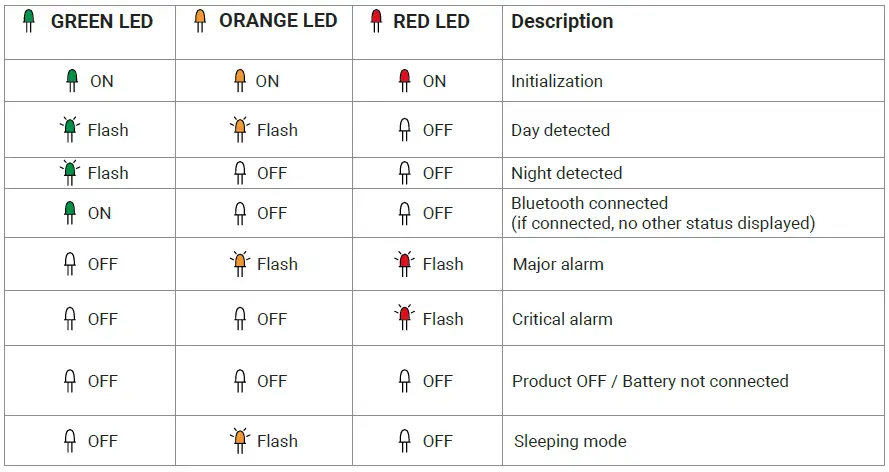

Description status LED

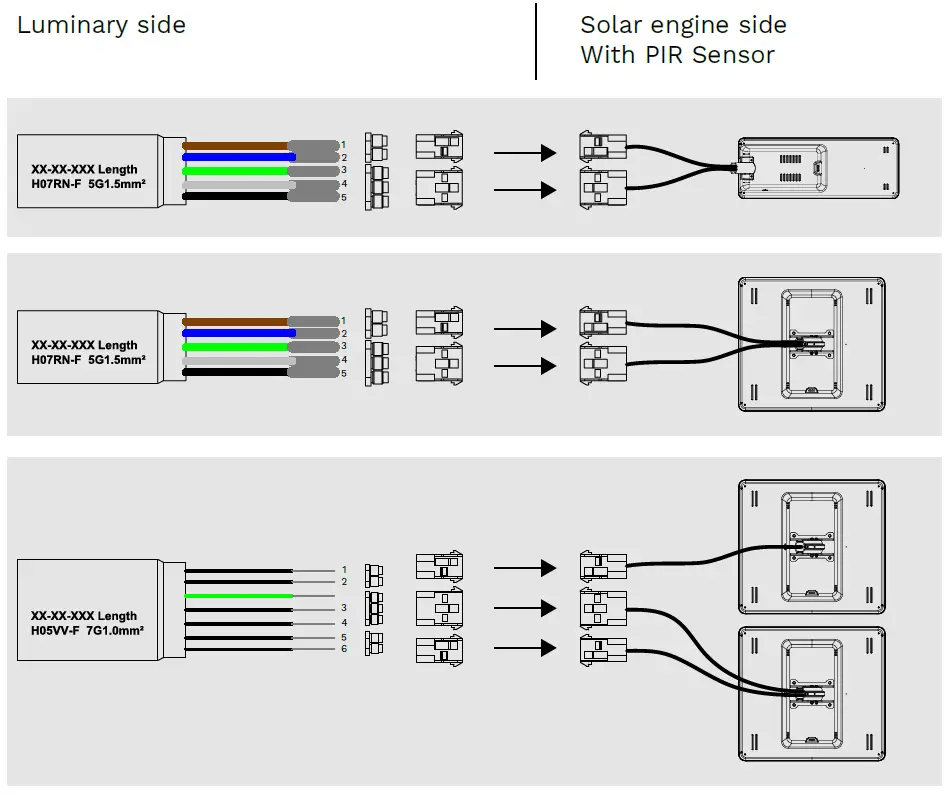

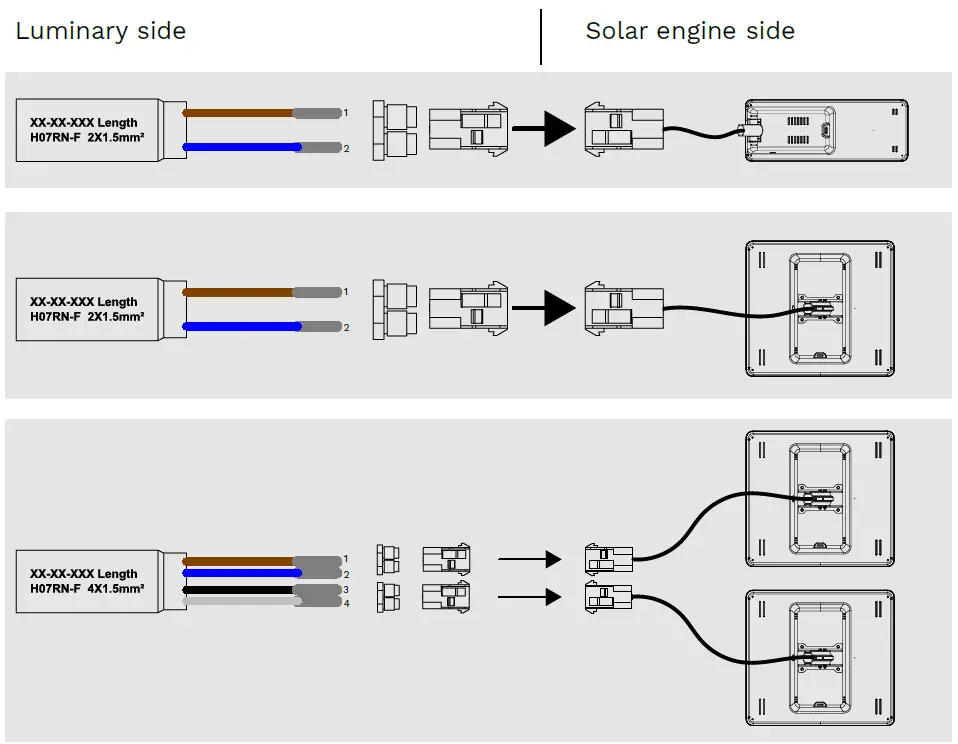

Connection
