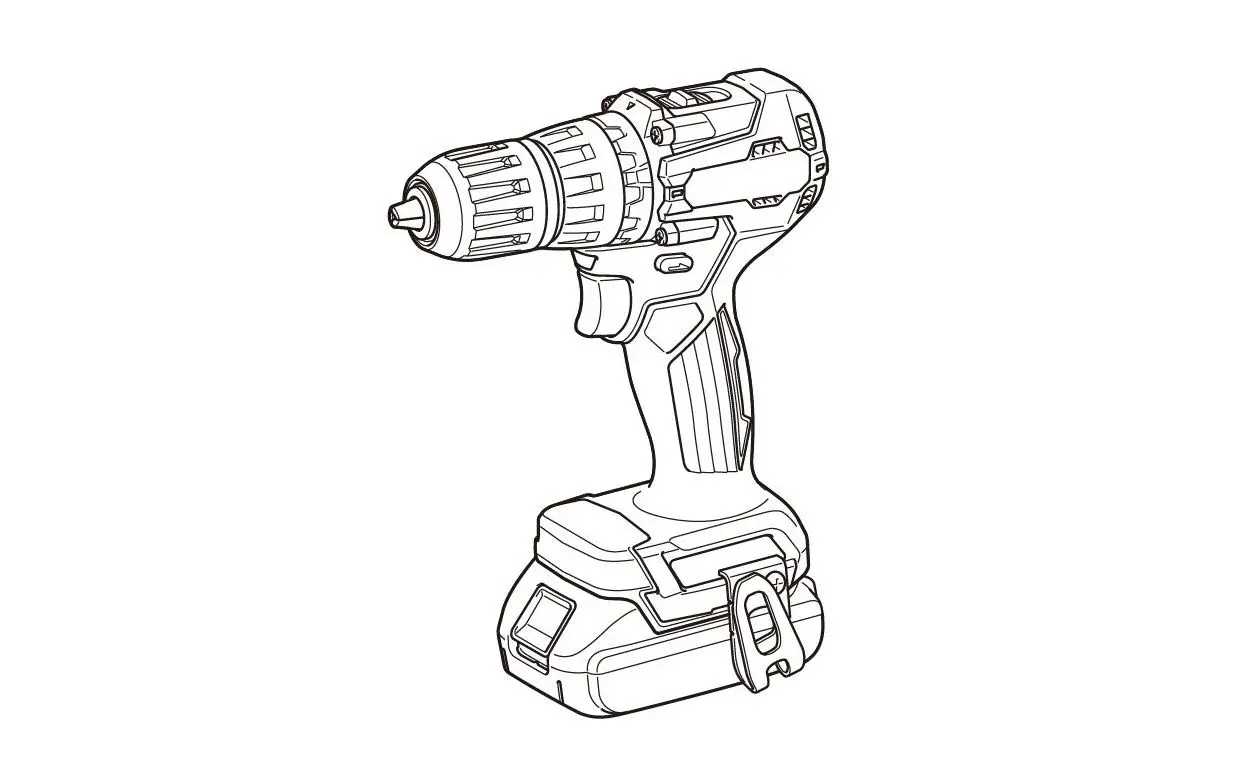

Brushless Sub-Compact Lithium-Ion 1-2 Inch Cordless Hammer Drill-Driver
Owner’s Manual

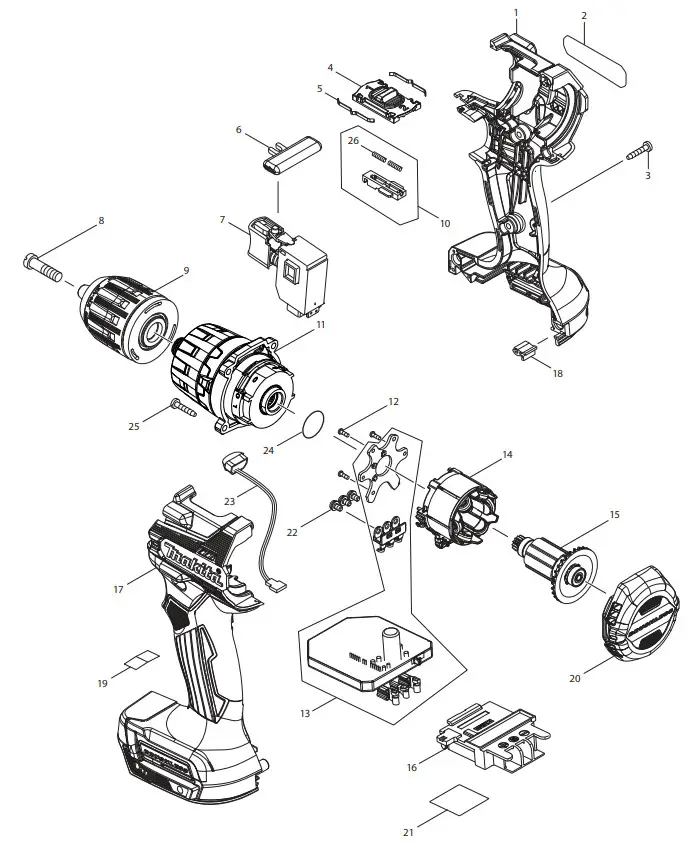

Model XPH15ZB Parts List
A = Standard Equipment
〇= Circuit Diagram
| Item# | Part# | Description | Q’ty Unit |
| 1 | 191P55-3 | HOUSING SET | 1 SET |
| 001 C1 | 263005-3 | RUBBER PIN 6 | 2 PC. |
| 001 C2 | 252126-6 | HEX. LOCK NUT M4-7 | 2 PC. |
| 001 D1 | INC. 17 | ||
| 2 | 811B93-2 | XPH15 NAME PLATE | 1 |
| 3 | 266429-2 | TAPPING SCREW 3X16 | 7 PC. |
| 4 | 413310-0 | SPEED CHANGE LEVER | 1 PC. |
| 5 | 232493-5 | LEAF SPRING | 2 PC. |
| 6 | 419041-9 | F/R CHANGE LEVER | 1 PC. |
| 7 | 650689-0 | SWITCH C3JW-2B | 1 PC. |
| 8 | 251468-5 | – FLAT HEAD SCREW M6X22 | 1 PC. |
| 9 | 763256-3 | KEYLESS DRILL CHUCK 13 | 1 PC. |
| 10 | 127758-7 | CHANGE LEVER ASSEMBLY | 1 PC. |
| 010 D1 | INC. 26 | ||
| 11 | 122B23-1 | GEAR ASSEMBLY | 1 |
| 12 | 266490-9 | TAPPING SCREW PT 2 | 3 PC. |
| 13 | 620E45-8 | CONTROLLER | 1 PC. |
| 14 | 629A41-9 | STATOR | 1 PC. |
| 15 | 619671-8 | ROTOR | 1 PC. |
| 16 | 643874-2 | TERMINAL | 1 PC. |
| 17 | 191P55-3 | HOUSING SET | 1 SET |
| 017 C1 | 263005-3 | RUBBER PIN 6 | 2 PC. |
| 017 C2 | 252126-6 | HEX. LOCK NUT M4-7 | 2 PC. |
| 017 D1 | INC. 1 | ||
| 18 | 424517-3 | CUSHION | 1 PC. |
| 19 | 8029L9-4 | CAUTION LABEL | 1 PC. |
| 20 | 413748-9 | REAR COVER | 1 PC. |
| 21 | 811C01-9 | XPH15 SERIAL NO. LABEL | 1 PC. |
| 22 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 PC. |
| 23 | 620549-0 | LED CIRCUIT | 1 PC. |
| 24 | 213A10-6 | O-RING 16.5 | 1 PC. |
| 25 | 266429-2 | TAPPING SCREW 3X16 | 4 PC. |
| 26 | 233025-1 | COMPRESSION SPRING 2 | 2 PC. |
| A01 | 251314-2 | SCREW M4X12 | 1 PC. |
| A02 | 346449-3 | HOOK | 1 PC. |
