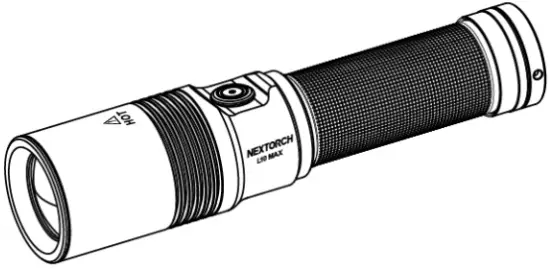

L10 MAX
| ANSI / PLATO-FL1 | High | Medium | Low | Strobe |
 Light Output | 400 lm | 100 lm | 30 lm | 400 lm |
 Run Time | 4 h 30 min | 5 h 30 min | 10 h | — |
 Beam Distance | 1200 m | 650 m | 370 m | — |
 Beam Intensity | 360000 cd | 105625 cd | 34225 cd | — |
 Impact Resistance | ||||
 Waterproof | IPX7, 1 m | |||
| Weight and Dimensions | Weight: 155 g / 5.46 oz (Without Battery) Size: 154.8mm (Length)× 26mm (Body Diameter)×35.6mm(Head Diameter) | |||
| Body Material | Light Source: White-light Emitter | |||
| Anodized 6061-T6 Aluminum Alloy | ||||
| Battery | 1 x 21700 | |||
The above-tested specifications are strictly based on the standard of ANSI / PLATO-FL1. We tested L10 MAX with 1 × 21700 (4800mAh) Lithium battery in 22°C ± 3°C. The specifications might be different when using a different battery or testing in a different environment.
FEATURES
- 1200 meters long-range Beam Distance.
- 4 modes for multiple lighting needs.
- Type-C Rechargeable design, economical and convenient.
- Powered by 1 × 21700 (4800 mAh) high capacity battery.
INSTRUCTION

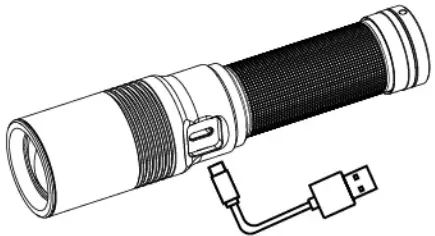

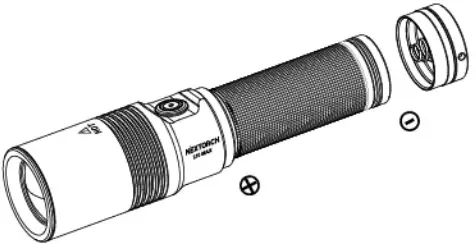

| • Battery Replacement 1 x 21700 battery | • Type-C Rechargeable Charging time about 4.5 hours |
 |  |

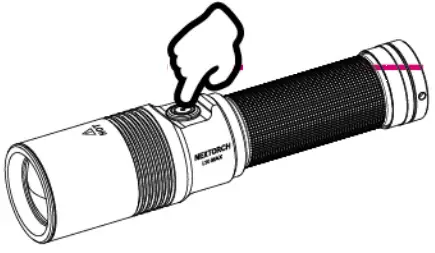

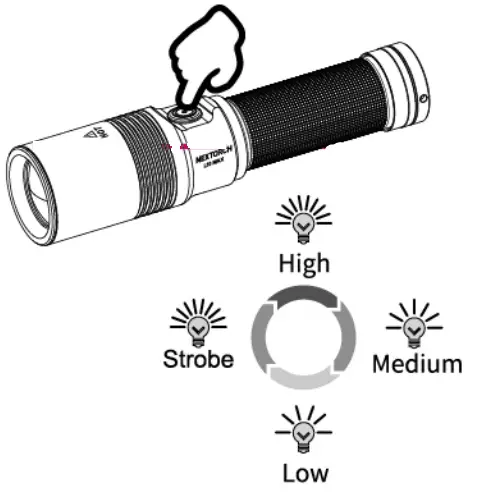

| • ON/OFF Press for 1 second | • Mode Switch Click to switch mode |
 |  |
Never look directly into the laser beam, use the laser light only for its intended purpose.
MAINTENANCE
- Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
- Please use high-quality batteries; Remove batteries when not working for a long time, and then store them in a cool dry place.
- Replace waterproof O-ring immediately when considering the damage with use.
WARRANTY
- NEXTORCH warrants our products to be free from any defects in workmanship and/or materials for a period of 15-day from the date of purchase. We will replace it. NEXTORCH reserves the right to replace an obsolete product with current production, like a model.
- NEXTORCH warrants our products to be free of defects for 5-year of use. We will repair it.
- The warranty excludes other accessories, but rechargeable batteries are warranted for one 1year from the date of purchase.
- In the event that any issue with a NEXTORCH product is not covered under this warranty, NEXTORCH can arrange to have the product repaired for a reasonable fee.
- You could access to NEXTORCH website (nextorch.com) to gain warranty service information by scanning the following QR code. You could also:
Email us at [email protected]
Call us: 0086-400-8300-799
OR contact your local dealer/distributor.
Email us at CONTACT WITH NEXTORCH DESIGNER
In order to improve NEXTORCH, we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
 |  |
