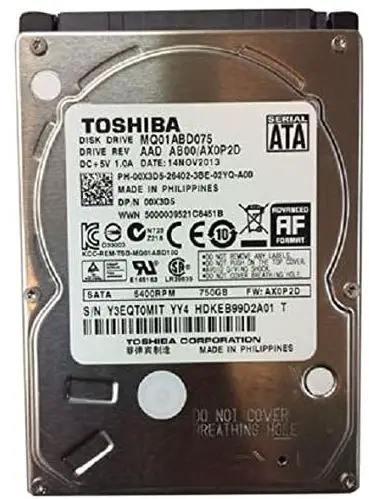

TOSHIBA MQ01ABD075 750GB SATA Hard Drive
KEY FEATURES
- Up to 1 TB of Storage Capacity
- 2.5-inch, Small Form Factor
- 5,400 rpm
- SATA up to 3.0 Gbit/s
- Advanced Format (AF) 512e Sector Length
- Low Power Consumption Compared to 3.5-inch Form Factor (DT01ABAxxxV series)
- 17 dB (Idle)
APPLICATIONS
- Video Editing Systems
- Set-Top-Box (STB)
- Digital Video Recorders (DVR)
- Network Video Recorders (NVR)
MAIN SPECIFICATIONS
| Model Number | MQ01ABD100V | MQ01ABD050V | MQ01ABD032V | MQ01ABD025V | |
| Interface | Serial ATA 2.6 / ATA-8 | ||||
| Formatted Capacity | 1 TB | 500 GB | 320 GB | 250 GB | |
|
Performance | Interface Speed | 3.0 Gbit/s Max. | |||
| Rotation Speed | 5,400 rpm | ||||
| Average Latency Time | 5.56 ms | ||||
| Buffer Size | 16 / 8 MiB | ||||
| Logical Data Block Length | MQ01ABDxxxV | HOST: 512 B, DISK: 4,096 B | |||
| Supply Voltage | Allowable Voltage | 5 V ± 5% | |||
| Power Consumption | Read / Write | 1.5 W Typ. | |||
| Low Power Idle | 0.55 W Typ. | ||||
| Acoustics (Sound Power) | Idle | 23 dB | 17 dB | ||
| Seek | 24 dB | 19 dB | |||
RELIABILITY
| Model Number | MQ01ABDxxxV |
| Non-recoverable Error Rate | 1 error per 1014 bits read |
MECHANICAL SPECIFICATIONS
| Model Number | MQ01ABD100V | MQ01ABD050V | MQ01ABD032V | MQ01ABD025V |
| Height | 9.5 mm Max.. | |||
| Width | 69.85 mm | |||
| Length | 100.0 mm Max. | |||
| Weight | 117 g Max. | 107 g Max. | ||
ENVIRONMENTAL LIMITS
| Item | Specification | |
| Temperature | Operating | 0 °C to 55°C |
| Non-Operating | – 40 °C to 70 °C | |
| Humidity | Operating | 8 % to 90 % R.H. (No condensation) |
| Non-Operating | 8 % to 90 % R.H. (No condensation) | |
| Shock | Operating | 3,920 m/s2 {400 G} (2 ms half-sine wave) |
| Non-Operating | 8,820 m/s2 {900 G} (1 ms half-sine wave ) | |
| Vibration | Operating | 9.8 m/s2 {1.0 G} (5 to 500Hz) |
| Non-Operating | 49 m/s2 {5.0 G} (15 to 500Hz) | |
| Altitude | Operating | – 300 m to +3,000 m |
| Non-Operating | – 300 m to +12,000 m |
Definition of Capacity
Toshiba defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes, and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 230 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary. A kibibyte (KiB) means 210, or 1,024 bytes, a mebibyte (MiB) means 220, or 1,048,576 bytes, and a gibibyte (GiB) means 230, or 1,073,471,824 bytes.
Toshiba Semiconductor & Storage Products Company defines “RoHS-Compatible” products as products that either (i) contain no more than a maximum concentration value of 0.1% by weight in Homogeneous Materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) and of 0.01% by weight in Homogeneous Materials for cadmium; or (ii) fall within any of the application exemptions set forth in the Annex to the RoHS Directive (Directive 2011/65/EC of the European Parliament and of the Council of 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment). “Homogeneous Material” means a material of uniform composition that cannot be mechanically disjointed (meaning separated, in principle, by mechanical actions such as unscrewing, cutting, crushing, grinding, and/or abrasive processes) into different materials. Examples of “Homogeneous Materials” would be individual types of plastics, ceramics, glass, metals, alloys, paper, board, resins, and coatings. Read and write speed may vary depending on the host device, read and write conditions, and file size. “2.5-inch” and “3.5-inch” mean the form factor of HDDs or SSDs. They do not indicate the driver’s physical size.
Subject to Change
While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, and availability are all subject to change without notice. Before creating and producing designs and using, customers must also refer to and comply with the latest versions of all relevant TOSHIBA information and the instructions for the application that Product will be used with or for.
FAQ’s
What is the storage capacity of the TOSHIBA MQ01ABD075 hard drive?
The TOSHIBA MQ01ABD075 hard drive has a storage capacity of 750GB.
What type of interface does the hard drive use?
The hard drive uses a SATA (Serial ATA) interface for data transfer and communication with the computer.
What is the rotational speed (RPM) of the hard drive?`
The TOSHIBA MQ01ABD075 hard drive typically operates at 5400 RPM (Revolutions Per Minute).
Is the hard drive suitable for laptops or desktop computers?
The TOSHIBA MQ01ABD075 hard drive is designed primarily for laptop computers but can also be used in certain desktop configurations compatible with 2.5-inch SATA drives.
Does the hard drive come with any software or pre-installed operating system?
No, the hard drive is typically sold as a standalone component without any software or pre-installed operating system.
Can I use the hard drive as an external drive with an enclosure?
Yes, you can use the TOSHIBA MQ01ABD075 hard drive in an external enclosure to convert it into an external hard drive for data backup or storage purposes.
What is the cache size of the hard drive?
The cache size of the TOSHIBA MQ01ABD075 hard drive is typically 8MB.
Is the hard drive compatible with Mac computers?
Yes, the TOSHIBA MQ01ABD075 hard drive is compatible with Mac computers that support 2.5-inch SATA drives.
Can I use the hard drive for gaming consoles like PlayStation or Xbox?
The compatibility with gaming consoles depends on the specific console and its support for SATA hard drives. Some gaming consoles allow you to replace the internal hard drive with compatible ones.
Does the hard drive support hardware encryption?
The TOSHIBA MQ01ABD075 hard drive does not typically have built-in hardware encryption features.
What is the maximum data transfer rate of the hard drive?
The hard drive's maximum data transfer rate is influenced by factors like the SATA interface speed and system configuration, but it generally offers reliable data transfer speeds suitable for everyday tasks.
Does the hard drive come with a warranty?
Yes, the TOSHIBA MQ01ABD075 hard drive usually comes with a standard manufacturer's warranty, which varies depending on the region and seller. Be sure to check the warranty terms and conditions before purchase.
