Specification
- Power Supply:
5 V 0 2 A (AC Adapter)
Built-in rechargeable battery - Power consumption: Refer to the main label.
- Dimensions (W x H x D):
Approx. 138 mm X 74.6 mm X 38.3 mm - Operating Temperature: 5 °C to 35 °C
- Operating Humidity: 5 % to 60 %
- Water-proof: IPX5
Degree of protection against jets of water. - Battery Life: Approx. 5 hours
(Varies by volume level and audio content.) - Design and specifications are subject to change without notice.
Important Notice
- Fully charge the device before using for the first time.
- It is recommended that you use the 5 V

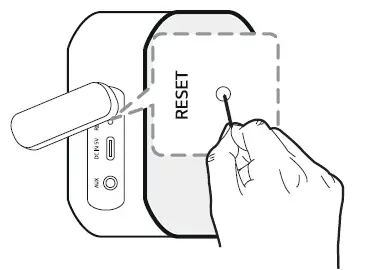

AC adapter (more than 2 A) with this unit - Resetting
If have a malfunction with the speaker, press the RESET button.

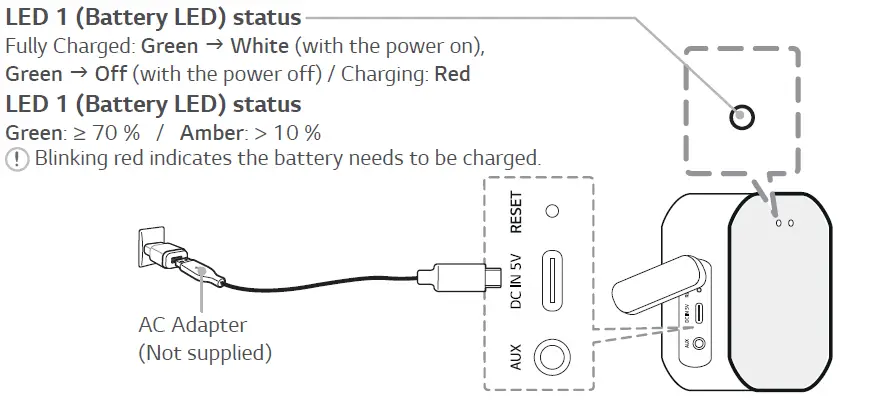

LED 1 (Battery LED) status
Fully Charged: Green White (with the power on), Green Off (with the power off) / Charging: Red
LED 1 (Battery LED) status
Green: ≥ 70 % / Amber: > 10 %
Blinking red indicates the battery needs to be charged.
| Power | Power On / Off………………………………………………….. Press 1 |
| Battery | Check Battery Status…………………….. Hold 1 for 2 seconds |
| Bluetooth | To pair your mobile device, select LG-PN1(XX) from device list. (LED 2 (Bluetooth LED): Blink g ON) |
| Ready to pair another device ……….. Hold for 2 seconds | |
| Playback Controls | Play / Pause………………………………………………….. Press Forward Skip …………………………….. Press X 2 Backward Skip …………………………… Press X 3 |
| Handsfree | Receive / Disconnect………………………………………….. Press |
| Volume | Volume Control ………………………….. Press or |
| Voice Command | Use voice command of your smart device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Press. |
| Dual Mode | Hold for 2 seconds of the each speaker’s. (LED 1 (Dual Mode LED): Blink g Blink ) |
Dual Mode
For more information, download the online owner’s manual. http://www.lg.com
