INTUITIVE SURGICAL 353970 Axes Controller Carriage Instrument
ACCI Pod Assembly

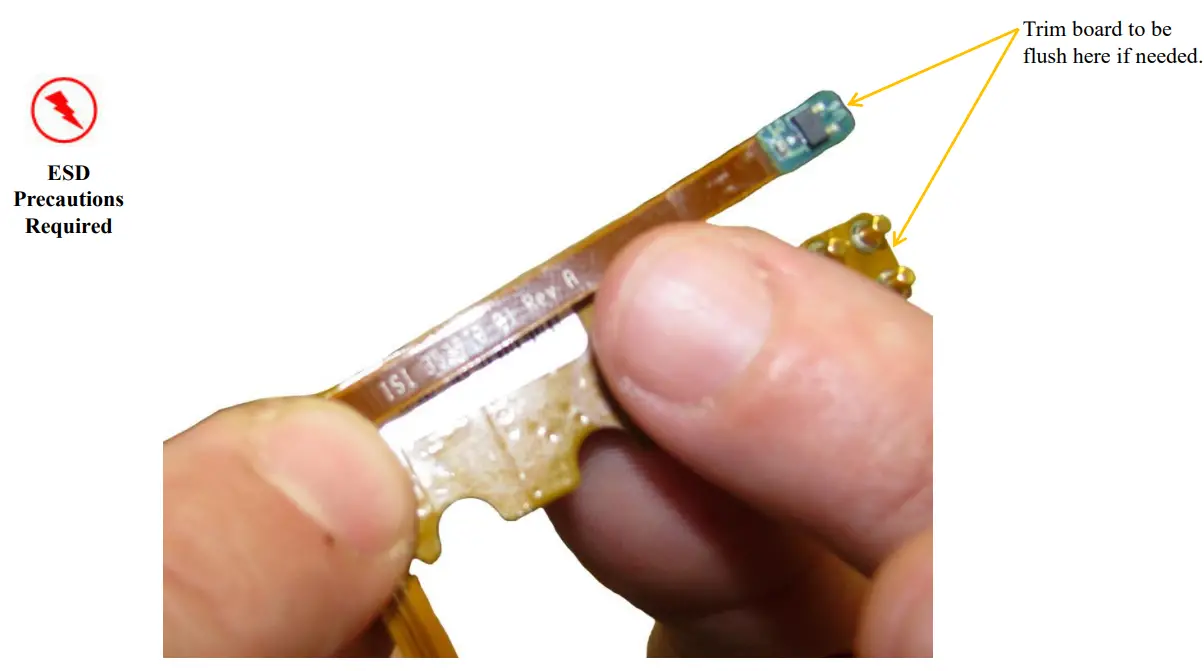

- Fold ACCI PCA (A) Flex Circuit as shown below. Do not crease Flex Circuit. ESD precautions required.
ITEM PART # DESCRIPTION QTY A 353970 PCA,AXESCONTROLLER CARRIAGE INTRUMENT (ACCI) 1

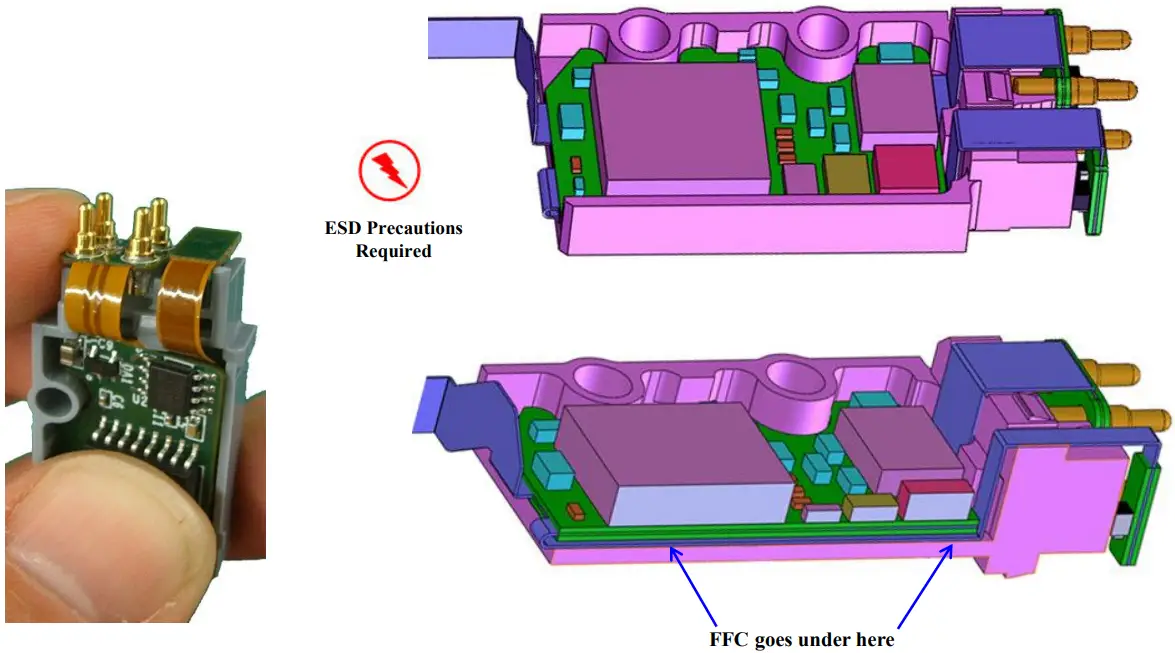

- Snap ACCI to Board Support (A). Note that part of the ACCI Flex Circuit goes between the PCA and the Board Support as shown. ESD precautions required.
ITEM PART # DESCRIPTION QTY A 318229 BOARD SUPPORT, ACCI,IS4000 CARRIAGE 1

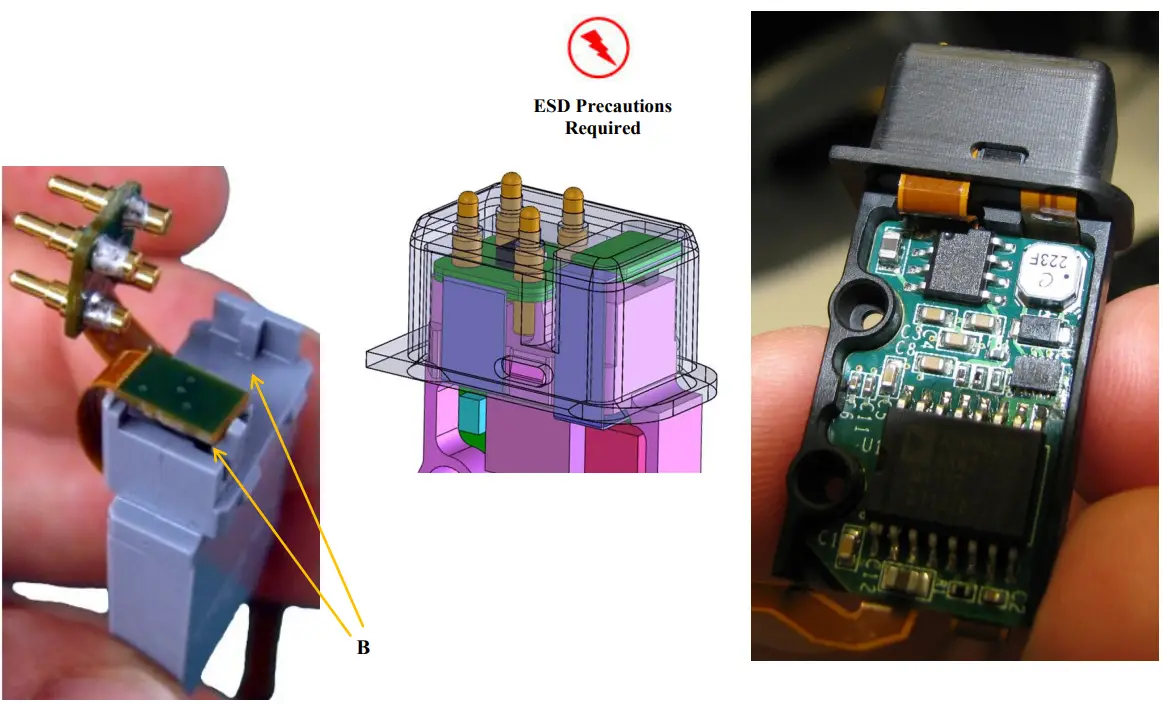

- Cut and place a small piece of Tape (B) onto Board Support to hold both boards down. Fold sub-boards into position and attach Dallas Pod Cover (A) to Board Support as shown. Do not crease Flex Circuit. ESD precautions required.”
ITEM PART # DESCRIPTION QTY A 318272 POD,DALLAS, IS4000 CARRIAGE 1 B 963013 DOUBLE SIDED ADHESIVE FOAM AR

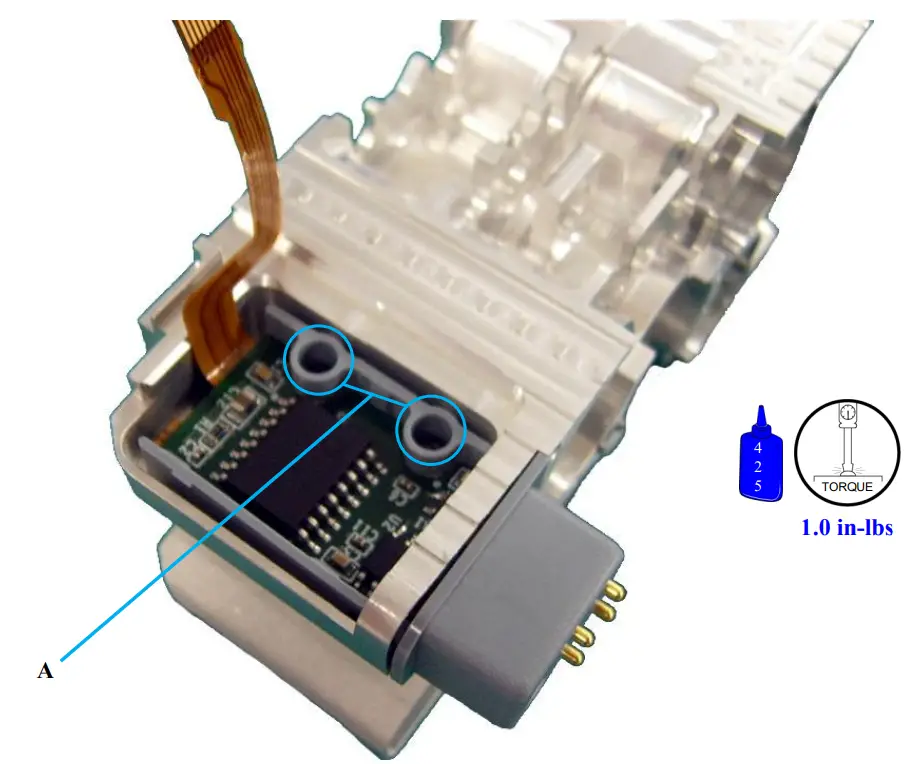

- Install ACCI Pod into Main Block (B) using Screws (A) and Loctite 425. Torque to 1.0 in-lbs using (C).
ITEM PART # DESCRIPTION QTY A 902462 SCREW,PHPH, M1.6X3,STST 2 B 318215 MAIN BLOCK,IS4000 CARRIAGE 1 C 721916 EFT, TORQUE WRENCH, 1.0 IN-LBF, 1/4″ FEM HEX ADAPTER NA
- Connect FFC (A) to ACCR (B) with ground bump on the end away from the board.
ESD precautions required for the all the following steps.ITEM PART # DESCRIPTION QTY A 181141 CABLE,FFC,11-PIN, 75MM,0.5MM P, SHLD,AU,USM,IS4000 1 B 353240 PCA,AXES CONTROLLER CARRIAGE RFID (ACCR) 1 C 318230 BOARD SUPPORT, ACCR,IS4000 CARRIAGE 1 D 319770 FOAM DOT,ACCRA RETAIN,IS4000 CARRIAGE 2

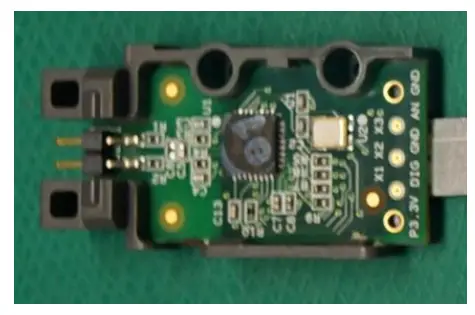

- Snap ACCR into Housing (C).

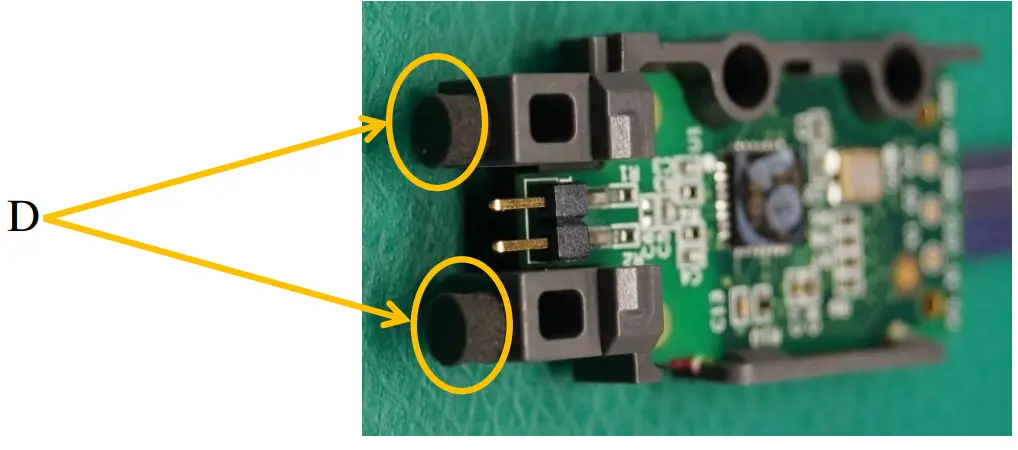

- Put Qty: 2 Foam Dots (D) on top of Housing as shown.

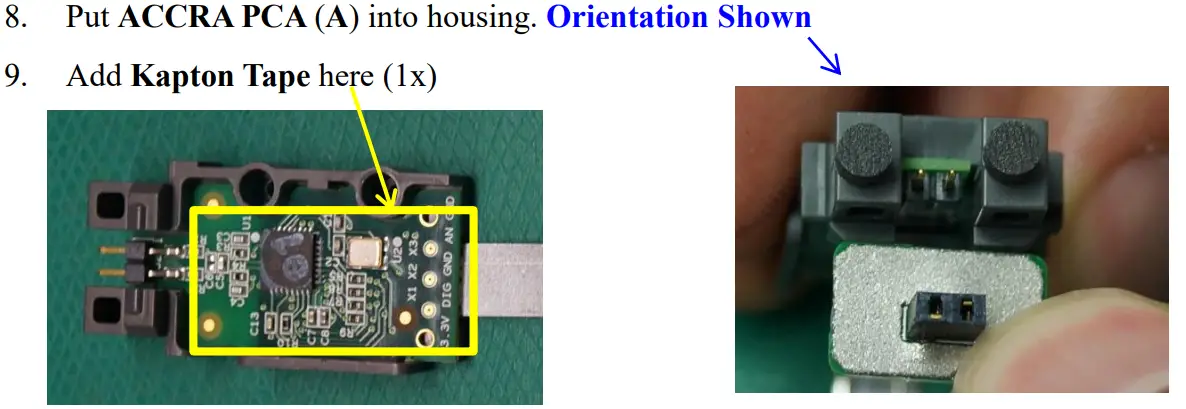

ITEM PART # DESCRIPTION QTY A 353460 PCA,ACCRA,AXES CONTROLLER CARRIAGE RFID ANTENNA 1 B 318273 POD,RFID,IS4000 CARRIAGE 1 C 902462 SCREW,PHPH, M1.6X3,STST 2 D 721916 EFT, TORQUE WRENCH, 1.0 IN-LBF, 1/4″ FEM HEX ADAPTER NA

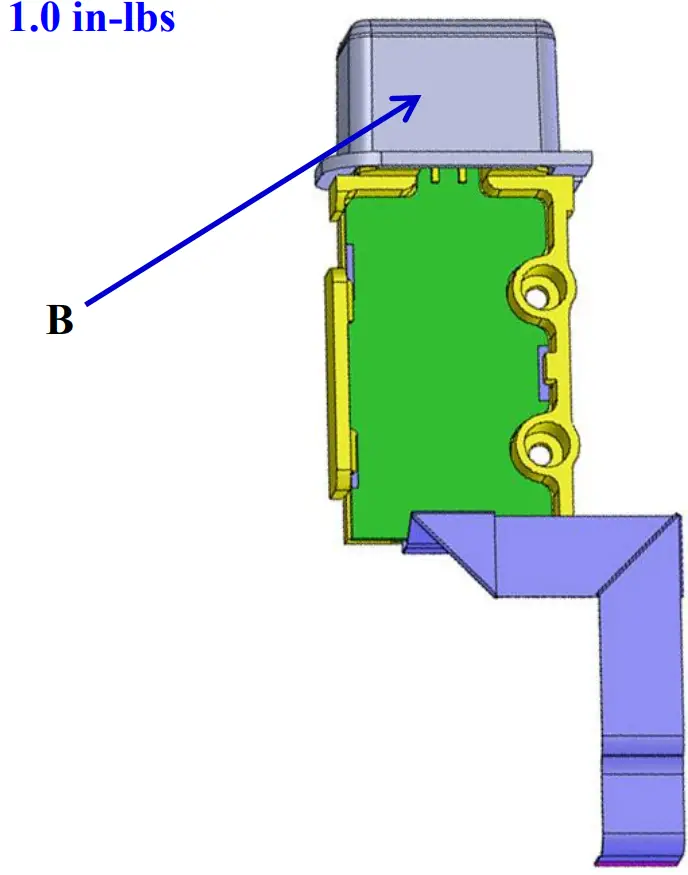

- Snap RFID Pod (B) on, keeping flat edge on right side.
- Insert into Carriage Housing and attach with Qty: 2 Screws (C) and Loctite 425. Torque to 1.0 in-lbs using (D).
