Noctua Nt-h2 10g Cleaning Wipes Instruction Manual

Noctua Nt-h2 10g Cleaning Wipes Instruction Manual

noctua logoNT-H2 10g Cleaning Wipes
Instruction Manual
NT-H2 10g
Usage Instructions

NT-H2 10g Cleaning Wipes

Designed in Austria, Noctua’s premium cooling components are internationally renowned for their superb quietness, exceptional performance and thoroughgoing quality.
Having received more than 6000 awards and recommendations from leading hardware websites and magazines, Noctua’s fans and heatsinks are chosen by more than a hundred thousand satisfied customers around the globe.
Should you encounter any difficulties, please check the FAQs on our website (www.noctua.at/faqs) and don’t hesitate to contact our support team at [email protected]

Application recommendations

If there are any residues of thermal paste from previous installations on the CPU or heatsink, please clean them off first.
Thanks to its excellent spreading properties, there is no need to manually spread NT-H2 before installing the cooler: simply apply some small dots of paste onto the CPU (see details below), put on the heatsink and you’re ready to go!

CPU sizeCPU typeNumber of dotsDot pattern
SMALLe.g. Intel [64115x/ 12001 dot with 3-4mm diameternoctua NT-H2 10g Cleaning Wipes - fig 1
MIDe.g. AMD AM4, AM5, Intel WM 700, 1_0420m4 dots with —2mm diameter near the corners plus 1 dot with 3-4mm
diameter
noctua NT-H2 10g Cleaning Wipes - fig 2

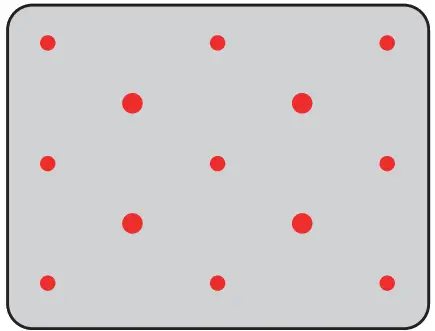

BIGe.g. AMD TR4, sWRX8, Intel [6446779 dots with —2mm diameter and 4 dots with 3-4mm diameternoctua NT-H2 10g Cleaning Wipes - fig 3

Caution: Applying too much thermal paste can lead to higher CPU temperatures.

Removal and cleaning

Use included NA-CW1 wipes or paper towel moistened with isopropyl alcohol to clean. If slight residues remain after cleaning with NA-CW1 wipes, you can use a paper towel or tissue to polish. However, such residues are of visual concern only and will not impair performance. If you need further NA-CW1 wipes, please purchase the NA-SCW1 set (20 pieces).

Safety

Do not ingest. Seek medical advice immediately if ingested.
Keep away from children and pets. Avoid skin or eye contact.

noctua NT-H2 10g Cleaning Wipes - qr code 1noctua NT-H2 10g Cleaning Wipes - qr code 2
http://mobile.noctua.at/manuals/accessories/NT-H2_10g/index.phphttp://mobile.noctua.at/videos/accessories/NT-H2_10g/index.php

noctua logo[email protected]
www.noctua.at
