SMARTB12IP
20W BATTERY POWERED ELLIPSODIAL LED
USER MANUAL
PRODUCT S PECIFICATIONS
TECHNICAL SPECIFICATIONS
LEDMODULE
| VOLTAGE | 18.5VDC |
| POWER | 20W |
| IPRATING | IP65 |
| OPERATION TEMPERATURE | 0°C~40°C |
| DIMENSIONS | 143X105X190mm |
| 1Kg |

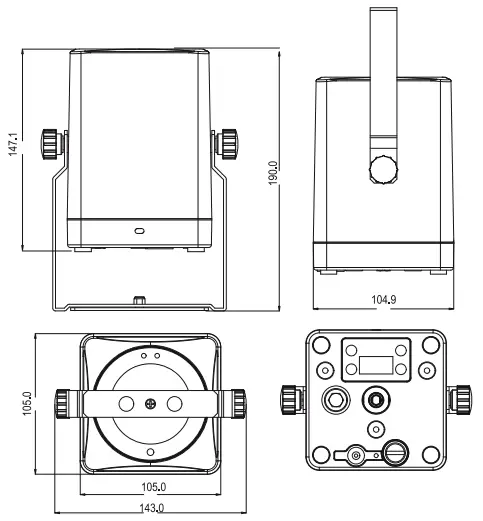

1.2 SIZE CHART
1.3 SAFETY WARNING
IMPORTANT
[ALWAYS READ THE USER MANUAL BEFORE OPERATION. ]
[PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA.]
- This product must be installed by a qualified professional.
- Always operate the equipment as described in the user manual.
- A minimum distance of 0.5m must be maintained between the equipment and combustible surface.
- The product must always be placed in a well ventilated area.
- Always make sure that the equipment s installed securely.
- DO NOT stand close to the equipment and stare directly into the LED light source
- Always disconnect the power supply before attempting maintenance.
- Always make sure that the supporting structure is solid and can support the combined weight of the products.
- The earth wire must always be connected to the ground.
- Do not touch the power cables if your hands are wet.
ATTENTION
- Do not operate in a sealed enclosure with insufficient air flow
- Do not operate in an environment with temperatures in excess of 45deg. C
- Do not operate store in close proximity to source of fire.
- Always charge with supplied charger
- Do not charge for more than 24 hours
- Always turn off battery storage switch when storing for longer than 7 days
- Always store with full load
- Always charge with flightcase open
- Always carry out one full discharge and charge cycle every 3 months
- Always store in a dry environment away from direct sunlight
GETTING STARTED

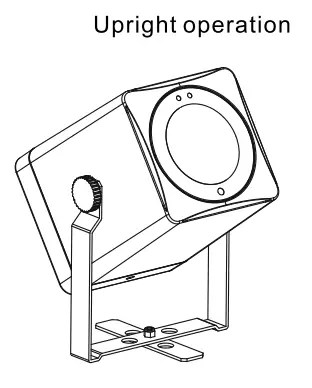

2.1 OPERATING POSITION

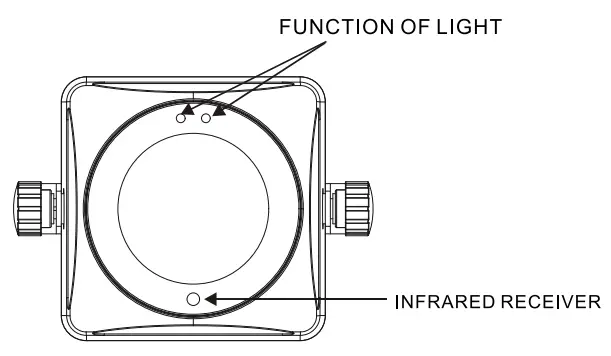

2.2 GENERAL OPERATION
- When charging, power light is red, when finish charging, power light s green
- When turn on fixture, it” s static mode, red light is off.
- If no DMX signal when turn on fixture, green light is flickering
- If there is DMX signal when turn on fixture, green light is always on
- Whenit’ sunder infrared mode and there is infrared signal, red light is flickering
DISPLAY PANEL OPERATION
3.1 DISPLAY OPERATION
◆MENU: BACK;
◆ENTER: ENTER OR SAVE;
◆ DOWN: DOWN;
◆Up: Up

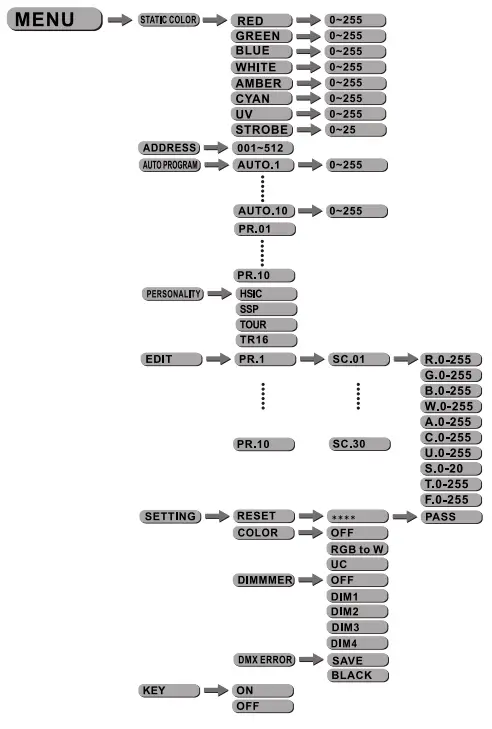

3.2 MENU MAP

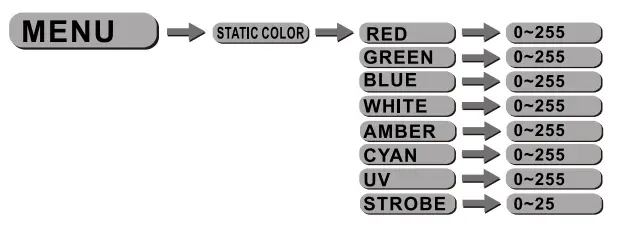

3.3 EDITSTATIC COLOUR
- Combine [RED], [GREEN], [BLUE], [WHITE], [AMBER] , [CYAN] and [UV] to create an infinite range of colors (0-255)
- Set the value of the [Strobe] (0-20Hz)
3.4 DMX512 SETTINGS
- Enter the [ ADDRESS] mode to set the DMX ADDRESS.

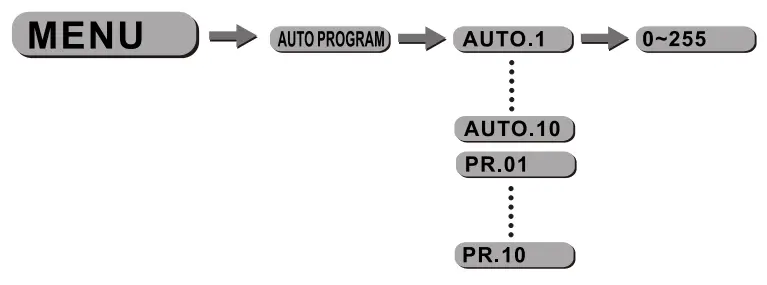

3.5 ACTIVATING AUTO PROGRAMS
- Select the target [AUTO PROGRAM] program and press [ENTER] .
- Programs [AUTO0.01] to [AUTO.10] are fully pre-programmed and will not bealtered by changes in [EDIT ] mode.
- Programs [PR.01] to [PR.10] are fully pre-programmed and can be edited in [EDIT ] mode.

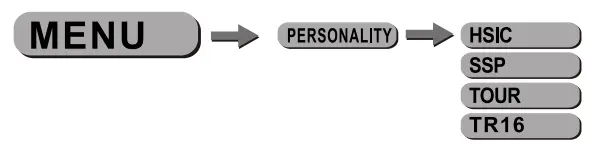

3.6 PERSONALITY
- Enter the [PERSONALITY] mode to select DMX mode: [HSIC] [SSP] [TOUR] . [TR16].
3.7 EDITING CUSTOM PROGRAMS
- Enter the [EDIT 1 mode to edit the custom programs [PR.011to [PR.10]
- Each custom program has 30 steps that can be edited.
- Each step allows the creation of a scene using [RED], [GREEN], [BLUE], [WHITE], [AMBER], [CYAN]. [UV], [STRBI, [TIME] & [FADE]
3.8 SPECIALSETTINGS
- [SETTING]…this menu allows the user to adjust key operation settings for this fixture.
- In order to reset custom modes to default values select [RESET].
- [COLOR] is for activate/unactivate the color calibration functions. When [RGBW] is selected, on RGB = 255,255,255, the color is displayed as calibrated in CALIB.C – RGBW. When[COLOR] is set[OFF], on RGB = 255,255,255, the RGB values are not adjusted and the output is most powerful. When [UC] is selected, the RGB output are adjusted to a standard preset universal color which balances fixtures from different generations
- Select [DIM1], [DIM2], [DIM3] or [DIM4] for different dimming speeds. ([DIM4]is the slowest dimming speed)
- [DMX ERROR] Choose[SAVE] in order to save the last DMX data incase of DMX signal error. Choose[BLACK] in order to blackout in case of DMX signal error.
3.9 ACTIVATE THE PASSWORD
- Enter the [KEY] mode to select whether the access password is on or off.
- When the fixture is setas PASS [ON1 , after 30 seconds or turn on the fixture next time, the fixture will need an access password to enter the display menu control.
Note: The factory access password is [UP] + [DOWN] + [UP] + [DOWN], then press [ENTER] to confirm the access.

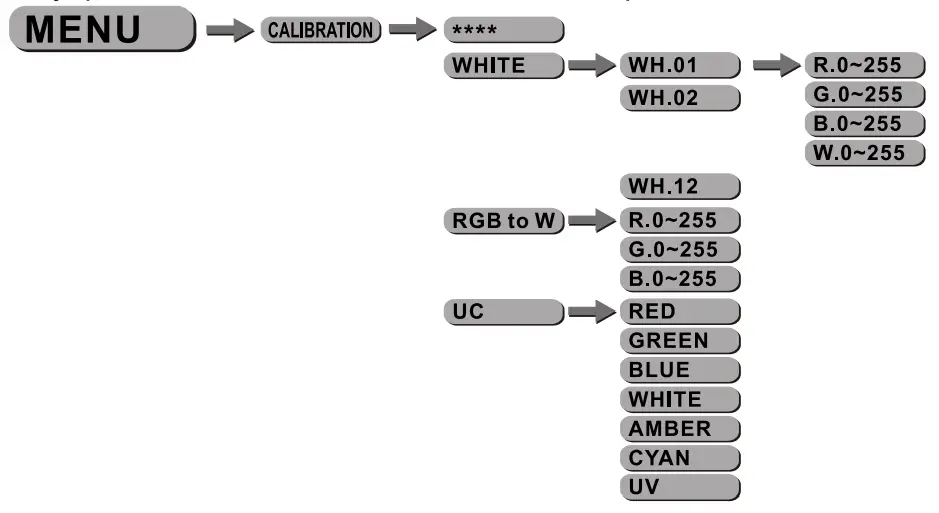

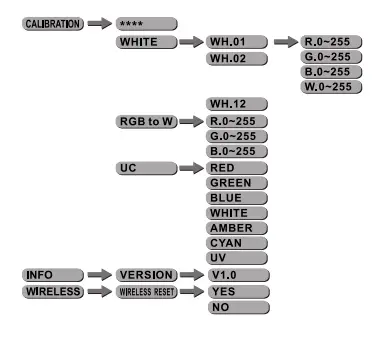

3.10 BALANCE PARAMETERS AND CORRECTION MENU DISPLAY
Press [MENU 1 button to enter the password confirmation, to enter the correct password < UP + DOWN + UP + DOWN > Key, press the [MENU 1 in, the correct password will enter show submenu
- Enter the [CALIBRATION] to select white color of different color temperature.
- There are 12 pre-programmed White colors can be edited by using [RED], [GREEN], [BLUE] & [WHITE].
Note: if CCT data is changed in [WHITE] from WT.01 to WT.12, CCT of according channel will be changed also - Enter the [RGB to W] to adjust the RGB parameter to make different whites.
- When the new setting is activated, the DMX controller choose RGB = 255,255,255 the white color will be made by the actual RGB values onthe [RGBtoW]
- under [UC ] menu, press [ ENTER ] for color correction
- Press [ENTER] and choose [RED]. [GREN] [BLUE] [WHITE]. [AMBER] [CYAN]and [UV] for correction.
- Press [ MENU ] and return to menu, and keep value automatically.
3.13 INFO
- Press [ENTER ] and goto [ INFOJ ,you can check [ VERSION] .
3.12 WIRELESS
- Press [ENTER ] and enter [ WIRELESS ] ,choose [NO ] means no reset, choose [YES] means reset
USINGADMX512 CONTROLLER
4.1 CHANNELASSIGNMENT
- Note: This product have four DMX512 channel configuration: [HSIC], [SSP], [TOUR], [TR16].
HSIC
| CHANNEL | VALUE | FUNCTION |
| 1 | 0 255 | INTENSIYT |
| 2 | 0255 | HUE |
| 3 | 0255 | HUE FINE |
| 4 | 0255 | SATURATION |
| 5 | CCT | |
| o 10 | NO FUNCTION | |
| 1130 | 2700K | |
| 315o | 3000K | |
| 5170 | 3200K | |
| 7190 | 3500K | |
| 91110 | 4000K | |
| 111130 | 4200K | |
| 131150 | 4500K | |
| 151170 | 5600K | |
| 171 190 | 6000I< | |
| 191210 | 6500K | |
| 211230 | 7200K | |
| 231255 | 8000K | |
| 6 | SPECIAL STROBE | |
| o 9 | NO FUNCTION | |
| 10 5o | STROBE FROM ( SLOD TO FAST . 0-25Hz ) | |
| 51100 | NO FUNCTION | |
| 101150 | LIGHTNING STROBE | |
| 151200 | NO FUNCTION | |
| 201 255 | RANDOM SROBE | |
| 7 | DIMMER SPEED | |
| o 9 | NO FUNCTION | |
| 1029 | OFF | |
| 304 69 | DIM1 | |
| 70129 | DIM2 | |
| 130189 | DIM3 | |
| 190255 | DIM4 |
SSP
| CHANNEL | VALUE | FUNCTION |
| 1 | 0 255 | MASTER DIMMER |
| 2 | 0 255 | RED |
| 3 | O255 | GREEN |
| 4 | o 255 | BLUE |
| 5 | 0255 | WHITE |
| 6 | 0 255 | AMBER |
| 7 | O255 | CYAN |
| 8 | 0255 | UV |
| 9 | SPECIAL STROBE | |
| o 9 | NO FUNCTION | |
| 10 50 | STROBE FROM r SLOD TO FAST . 0-25Hz) | |
| 51 100 | NO FUNCTION | |
| 101150 | LIGHTNING STROBE | |
| 151 200 | NO FUNCTION | |
| 201 255 | RANDOM SROBE | |
| 10 | DIMMER SPEED | |
| 0 9 | NO FUNCTION | |
| 10 29 | OFF | |
| 30 69 | DIM1 | |
| 70 129 | DIM2 | |
| 130189 | DIM3 | |
| 190 255 | DIM4 |
TOUR
| CHANNEL | VALUE | FUNCTION |
| 1 | O255 | MASTER DIMMER |
| 2 | 0255 | RED |
| 3 | o255 | GREEN |
| 4 | 0 255 | BLUE |
| 5 | 0255 | WHITE |
| 6 | o255 | AMBER |
| 7 | o 2ss | CYAN |
| 8 | 0255 | UV |
| 9 | MARCOS | |
| 010 | NO FUNCTION | |
| 1130 | RED 100% /GREEN UP /BLUE 0% | |
| 3150 | RED DOWN/GREEN 100% / BLUE 0% | |
| 5170 | RED O% / GREEN 100% f BLUE UP | |
| 7190 | RED 0% /GREEN DOWN / BLUE 100% | |
| 91 110 | RED UP / GREEN 0% /BLUE 100% | |
| 111 130 | RED 100% /GREEN 0%/BLUE DOWN | |
| 131150 | RED 100%/GREEN UP/BLUE UP | |
| 151170 | RED DOWN/GREEN DOWN/BLUE 100% | |
| 171195 | ALL LED AT FULL OUTPUT | |
| 196200 | 2700K | |
| 201205 | 3000K | |
| 206210 | 3200K | |
| 211215 | 3500K | |
| 216220 | 4000K | |
| 221225 | 4200K | |
| 226230 | 4500K | |
| 231235 | 5600K | |
| 236240 | 6000K | |
| 241245 | 6500K | |
| 246 250 | 7200K | |
| 251255
| 6000K | |
| 10 | SPECIAL STROBE | |
| 09 | NO FUNCTION | |
| 10 50 | STROBE FROM (SLOD TO FAST. 0-25Hz ) | |
| 61100 | NO FUNCTION | |
| 101 150 | LIGHTNING STROBE | |
| 151200 | NO FUNCTION | |
| 201 255 | RANDOM SROBE |
| CHANNEL | VALUE | FUNCTION |
| 11 | AUTO | |
| o ao | NO FUNCTION | |
| 4150 | ATUO1 | |
| 5160 | ATUO2 | |
| 8170 | ATUO3 | |
| 7180 | ATUO4 | |
| 8190 | ATUO5 | |
| 91100 | ATUO6 | |
| 101 110 | ATUO7 | |
| 111 120 | An/08 | |
| 121130 | ATUO9 | |
| 131140 | ATU010 | |
| 141150 | PROGRAMI | |
| 151160 | PROGRAM2 | |
| 161170 | PROGRAM3 | |
| 171180 | PROGRAM4 | |
| 181 190 | PROGRAMS | |
| 191200 | PROGRAMS | |
| 201210 | PROGRAM7 | |
| 211220 | PROGRAMS | |
| 221 230 | PROGRAM9 | |
| 231 255 | PROGRAM10 | |
| 12 | 0 255 | AUTO SPEED ADJUSTMENT |
| 13 | DIMMER SPEED | |
| o 9 | NO FUNCTION | |
| 10 29 | OFF | |
| 3069 | DIM1 | |
| 70 129 | DIM2 | |
| 130189 | DIM3 | |
| 190255 | DIM4 |
TOUR
| CHANNEL | VALUE | FUNCTION |
| 1 | O 255 | MASTER DIMMER |
| 2 | o255 | RED |
| 3 | 0255 | RED FINE |
| 4 | 0 255 | GREEN |
| 5 | 0 255 | GREEN FINE |
| 6 | 0 255 | BLUE |
| 7 | 0 255 | BLUE FINE |
| 8 | 0 255 | WHITE |
| 9 | 0 255 | WHITE FINE |
| 10 | 0 255 | AMBER |
| 11 | 0 255 | AMBER FINE |
| 12 | 0 255 | CYAN |
| 13 | 0 255 | CYAN FINE |
| 14 | 0 255 | UV |
| 15 | 0 255 | UV FINE |
| 16 | MARCOS | |
| 010 | NO FUNCTION | |
| 1130 | RED 100% / GREEN UP / BLUE 0% | |
| 3150 | RED DOWN !GREEN 100% i BLUE 0% | |
| 5170 | RED 0% /GREEN 100% /BLUE UP | |
| 714090 | RED 0% /GREEN DOWN !BLUE 100% | |
| 91110 | RED UP / GREEN 0% / BLUE 100% | |
| 111130 | RED 100% /GREEN 0%/BLUE DOWN | |
| 131150 | RED 100%/GREEN UP/BLUE UP | |
| 151170 | RED DOWN/GREEN DOWN/BLUE 100% | |
| 171 195 | ALL LED AT FULL OUTPUT | |
| 195200 | 2700K | |
| 201205 | 3000K | |
| 206 210 | 3200K | |
| 211215 | 3500K | |
| 216 220 | 4000K | |
| 221225 | 4200K | |
| 226290 | 4500K | |
| 231235 | 5600K | |
| 236240 | 6000K | |
| 24l245 | 6500K | |
| 246250 | 7200K | |
| 251255 | 6000K |
| CHANNEL | VALUE | FUNCTION |
| 17 | SPECIAL STROBE | |
| 0 9 | NO FUNCTION | |
| 10 50 | STROBE FROM (SLOD TO FAST . 0.25Hz) | |
| 51 100 | NO FUNCTION | |
| 101 150 | LIGHTNING STROBE | |
| 15t 200 | NO FUNCTION | |
| 201 255 | RANDOM SROBE | |
| 18 | AUTO | |
| 0 40 | NO FUNCTION | |
| 41 50 | ATUO1 | |
| 51 60 | ATUO2 | |
| 6170 | ATUO3 | |
| 71 80 | ATUO4 | |
| 8190 | ATUO5 | |
| 91100 | ATUO6 | |
| 101110 | ATUO7 | |
| 111120 | ATUO8 | |
| 121 130 | ATUO9 | |
| 131 140 | ATU010 | |
| 141150 | PROGRAM1 | |
| 151 160 | PROGRAM2 | |
| 161 170 | PROGRAM3 | |
| 171180 | PROGRAM4 | |
| 181190 | PROGRAMS | |
| 191 200 | PROGRAMS | |
| 201 210 | PROGRAM7 | |
| 211 220 | PROGRAMS | |
| 221 230 | PROGRAM9 | |
| 231 255 | PROGRAMIO | |
| 19 | 0 255 | AUTO SPEED ADJUSTMENT |
| 20 | DIMMER SPEED | |
| OP. 9 | NO FUNCTION | |
| 1029 | OFF | |
| 30 69 | DIM1 | |
| 70 t29 | 01M2 | |
| 130 189 | DIMS | |
| 190 255 | DIM4 |
EASYPLAY REMOTE CONTROL

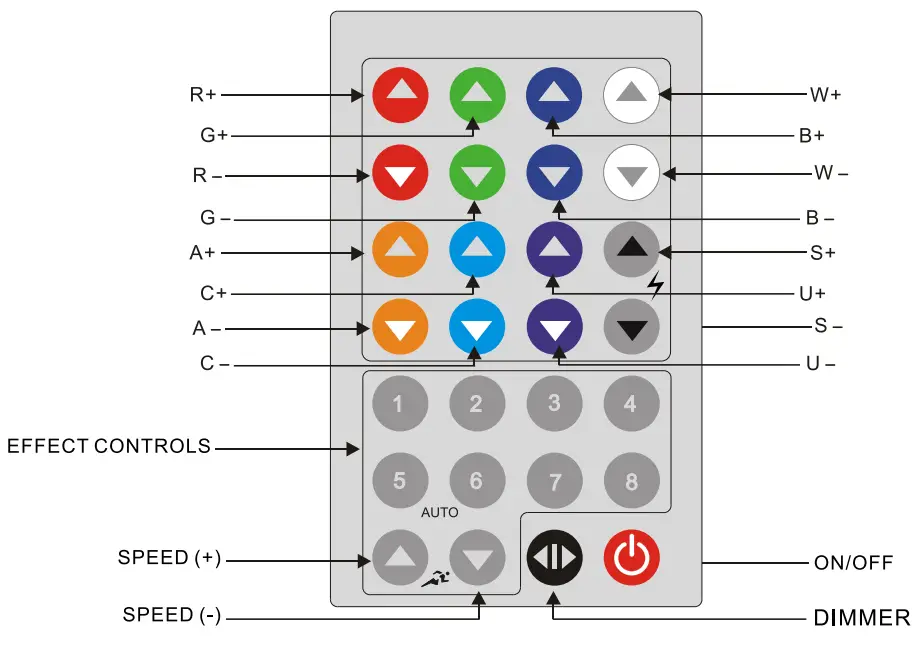

5.1 KEY FUNCTIONS
5.2 STATIC MODE
- It can be static dimmer, choose static mode and enter into static dimmer
- As instruction, it includes R+ R-,G+,G-,B+,B- W+ W- A+ A-,C+,C-,U+,U-, S+,8-,and [R+, R-1isforreddimmer, [G+, G-]is for green dimmer, [B+, B-1is forblue dimmer, [W+, W-1 is for white dimmer, [A+, A-1is for amber dimmer, [C+, C-1is forcyandimmer, [U+, U-]isfor UV dimmer, please refertoabove [RED] , [GREEN] , [BLUE] , [WHITE] , [AMBR] , [CYANI and [UV] to adjust
5.3 EFFECT CONTROLS
- Selectfrom [EFFECTKEY 011 to [EFFECTKEY 08] to play required play function (see section 2.3.3 for further information on how to patch [EFFECTKEYT )
- Select [SPEED (+)] or [SPEED (-)] toadjust speed play function.
- 1tis not possible to adjust the light level of the EFFECT programs using the [DIMMER] keys.
5.4 DIMMER
- There is a bottom for all color [RGBWACU] dimmer, lower right corner is a on/off bottom for fixture on/off operation.

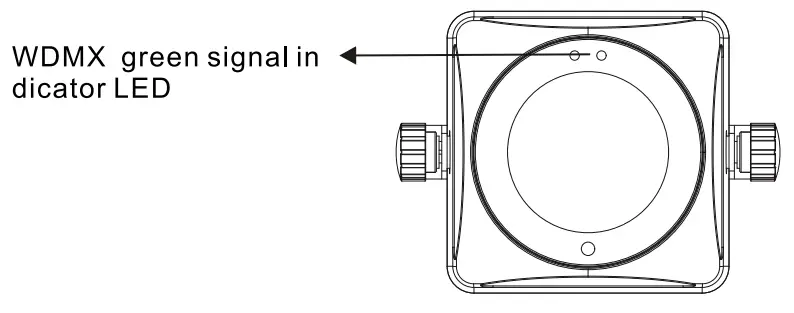

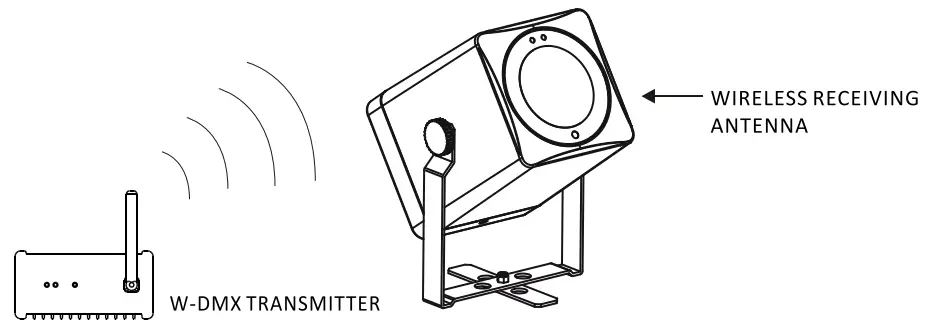

OPERATION WITH WIRELESS DMX
6.1 When using this lighting fixture with W-DMX receiver installed inside, the fixture may be placed at a range of 200m from W-DMX transmitter
6.2 Select DMX from the <RUN> menu.
6.3 Select ACTI from the <WDMX> menu and proceed to turn ON the WDMX If the WDMX receiver card is already paired with a WDMX transmitter then the fixture is ready for receiving DMX signal.
If the WDMX receiver card needs to be paired with a new WDMX transmitter, select YES from the <WDMX >/<REST> menu. The green signal indicator LED will not show which confirms that WDMX receiver card is unpaired and ready for new pairing..

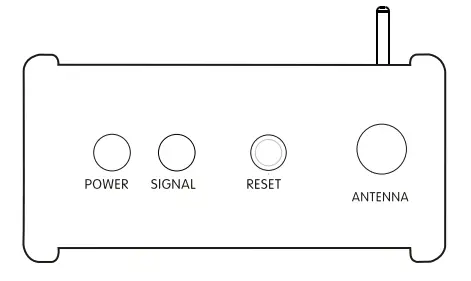

6.4 By pressing the RESET button on W-DMX transmitter, transmitter will search for RESET lighting fixtures. During search transmitter green SIGNAL indicator will flash. After pairing with lighting fixture green SIGNAL indicator will display.
6.5 Once a lighting fixture has been paired with a W-DMX transmitter, the green SIGNAL indicator will display. Once a lighting fixture has been paired with a W-DMX transmitter, the lighting fixture cannot be paired with another W-DMX transmitter.
If a lighting fixture requires pairing with a new W-DMX transmitter, steps 5.3 and 5.4 must be repeated.

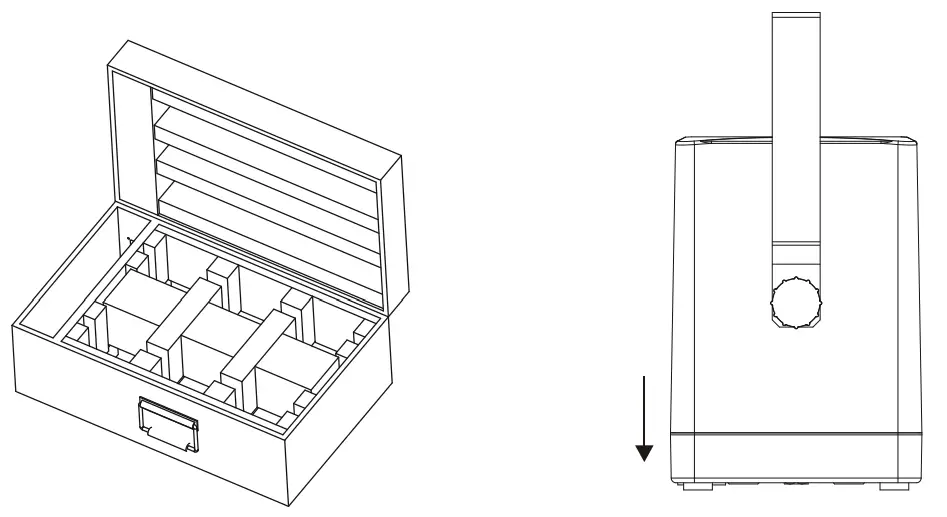

BATTERY CHARGING
7.1 FLIGHTCASE SPECIFICATIONS
Voltage: AC100-240V, 50,60Hz
Rated Power: 150W
Weight:9.8KG
Dimensions: 572x350x240mm

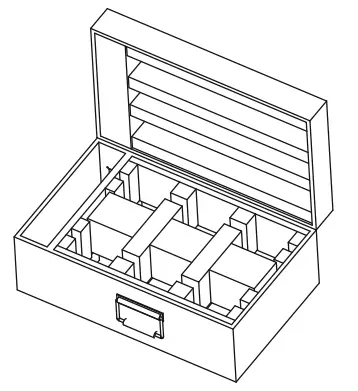

7.2:FLIGHTCASE WITH CHARGER

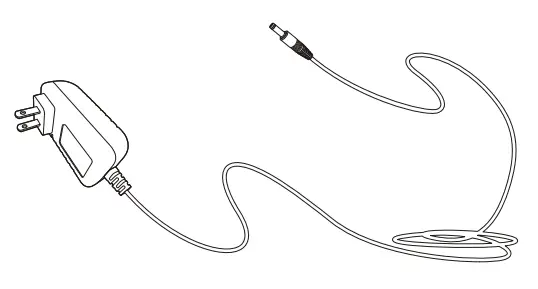

7.3 CHARGER SPECIFICATIONS
Voltage: AC100-240V, 50/60Hz
Output: DC24V, 1A
LED: <200mA
7.4: THEFLIGHTCASE MUST HAVE THE HOOD OPEN WHEN CHARGING.
7.5 IMPORTANT FACTS:
HOW TO CARE FOR YOUR BATTERY!
CHARGING
- DO NOT CHARGE FOR MORE THAN 24HRS
- RECHARGE WITHIN 3 DAYS OF USE
- CHARGE WITH FLIGHTCASE OPEN
STORING
- STORE WITH FULLLOAD
- TURN OFF AT BASE WHEN STORING FOR MORE THAN 7 DAYS
- STORE IN AN UPRIGHT POSITION
