Coolmusic C-ov01 Crunchy Electric Guitar Analog Overdrive Effect Pedal True Bypass Full Metal Shell User Manual

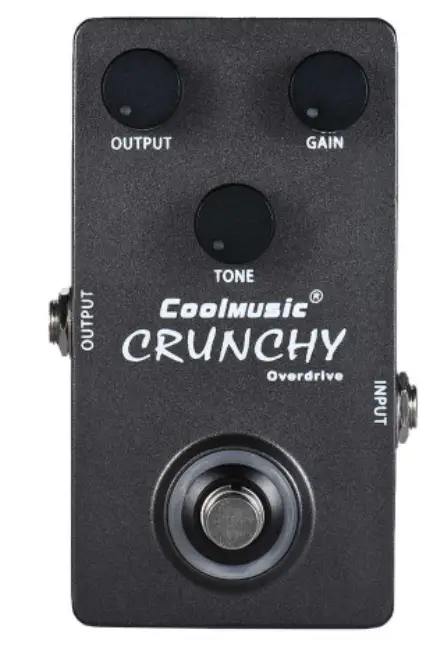

COOLMUSIC C-OV01 Crunchy Electric Guitar Analog Overdrive Effect Pedal True Bypass Full Metal Shell

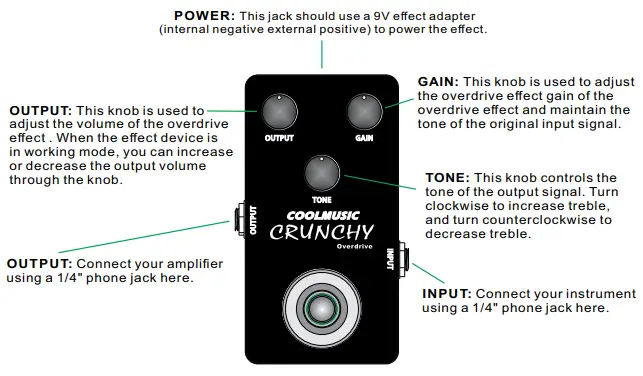

Instructions

1. POWER: This jack should use a 9V effect adapter (internal negative external positive) to power the effect.
2. OUTPUT: This knob is used to adjust the volume of the overdrive effect . When the effect device is in working mode, you can increase or decrease the output volume through the knob.
   OUTPUT: Connect your amplifier using a 1/4″ phone jack here.
3. GAIN: This knob is used to adjust the overdrive effect gain of the overdrive effect and maintain the tone of the original input signal.
4. TONE: This knob controls the tone of the output signal. Turn clockwise to increase treble, and turn counterclockwise to decrease treble.
5. INPUT: Connect your instrument using a 1/4″ phone jack here.

Specifications

• Weight: 200g (Bare metal).
• Dimension: 115mm(L) * 66mm(W) * 35mm(H).
