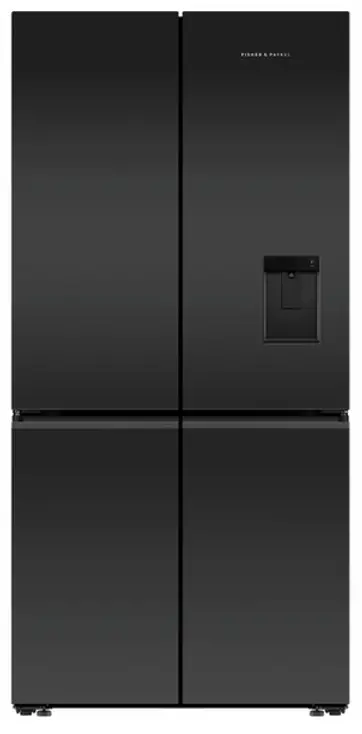

RF730QZUVB1 Freestanding Quad Door Refrigerator Freezer
User Guide

Freestanding Quad Door
Refrigerator Freezer, 90.5cm, 690L, Ice & Water
Series 7|Contemporary
Black Glass|French hinge

Our largest capacity Quad Door model has ample storage space and Variable Temperature Zone technology, with an elegant black glass finish.

Elegant matte black glass finish, with recessed handles for a streamlined look
Extra large capacity, with Variable Temperature Zone technology for optimal food storage
ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
Convenient access to fresh, chilled water and ice with slimline water dispenser and internal ice maker

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Warranty

5 Documents / Resources

5.1 References

6 Related Posts

DIMENSIONS

Height	1900mm
Width	905mm
Depth	748mm

FEATURES & BENEFITS

VARIABLE TEMPERATURE ZONE
When it comes to optimal food preservation, one temperature does not fit all. Variable Temperature Zones give you full control over the way you care for food. At the touch of a button, easily convert the lower right compartment to Freezer, Soft Freeze, Chill, or Fridge mode, to best suit different types of food. Adjust zones for maximum everyday convenience, or change modes to provide additional chilling capacity for special occasions.
CHILL MODE
Keep ready-to-eat food fresher for longer with Chill Mode (-1.5 to 0°C). Chill Mode is a perfect solution for everyday life. It keeps meats, poultry, and fish as cool as possible, retaining vital freshness, and helps food retain its condition for around three times longer than Fridge Mode. It’s also great for entertaining. Set a zone to Chill Mode to quickly bring beverages down to serving temperature.
SOFT FREEZE MODE
Soft freeze (-10 to -6°C) is perfect for food that will be consumed soon – but not right away. Set a zone to Soft Freeze Mode and enjoy optimal food storage and everyday convenience. Soft frozen food requires only a quick thaw rather than a full defrost. It is the ideal setting for easy portioning, such as cut loaves of bread, soups, and even cured meats, or for serving straight from the compartment.
ACTIVESMART™ FOOD CARE
ActiveSmart™ Foodcare learns how you live. It is a technology that understands how you use your fridge and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
CONSIDERED DESIGN
Designed to match our Contemporary style black glass family of products, this refrigerator freezer has a tactile black glass finish that pairs perfectly with recessed handles.
DESIGN QUALITY
Our refrigerators are designed and built using robust, quality materials, with stainless steel exteriors and solid glass for the interior shelving.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off when you need to free up freezer space, or during busy times, use the boost feature to increase ice production.

SPECIFICATIONS

Accessories

Replacement water filter	847200
Capacity
Volume	690L
Volume freezer	118L
Volume refrigerator	453L
Volume variable temperature	119L
Consumption
Energy rating	3 star
Energy usage	587kWh/year
Features
Adjustable door shelves	6
Adjustable glass shelves	2
Door alarm	•
Front levelling feet	•
Fruit and vegetable bins	3
Full extension runners	•
LED lighting	•
Rear rollers	•
SmartTouch control panel	•
Ultra slim water dispenser	•
Freezer Features
Automatic ice maker	•
Bottle chill	•
Door alarm	•
Fast freeze	•
Full extension clear bins	1
Ice Boost	•
Ice bin and scoop	•
LED lighting	•
Performance
ActiveSmart™ Foodcare	•
Frost free freezer	•
Humidity control system	•
Internal replaceable water filter	•
Inverter controlled compressor	•
R600a refrigerant	•
Sabbath mode	•
Variable food modes	Fridge, Chill, soft freeze,
Variable temperature	•
Power requirements
Rated current	1.8A
Supply voltage	220 – 240V
Product dimensions
Depth	748mm
Height	1900mm
Height to top of cabinet	1867mm
Height to top of door	1900mm
Width	905mm

Warranty

Parts and labour	2 years
SKU	26081

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
