Ikea Knoxhult Kitchen Series User Guide

BUYING GUIDE
KNOXHULT
Kitchen series

CARE
Wipe clean the cabinets with a cloth damped in water or a non-abrasive detergent. Wipe dry with a clean cloth.  Clean stainless steel surfaces after use
by wiping with a sponge and a clean cloth, adding non-abrasive detergent if necessary. Always wipe lengthways.

SAFETY:
Different wall materials require different types of fixing devices. Use fixing devices suitable for the walls in your home, sold separately.
GOOD TO KNOW:
The hinges are adjustable vertically, horizontally, and in-depth; making it easier to mount the door in an exact position. The doors can be mounted left or right. The legs are adjustable to make the frame stand steady on uneven surfaces.

New payment plan without a card

Interest-free installments with all credit cards.
The program does not apply for credit cards issued abroad.

Complete kitchen cabinets at a low price
Are you looking for a simple kitchen with both quality and a low price?
KNOXHULT kitchen series includes six complete cabinets with doors, drawers, and shelves. All base and wall cabinets have a scratch-resistant,
easy-to-clean foil surface both inside and out. And the work area has a depth of 61 cm. Combine the KNOXHULT kitchen with LAGAN appliances.  Complement with a sink and kitchen mixer tap – and with knobs and handles, too, of course.

All the products (shown here) may not be available at the store. Please contact the staff or look at www.IKEA.gr for more information. For more detailed product information, see the price tag and the Internet. All units require assembly.

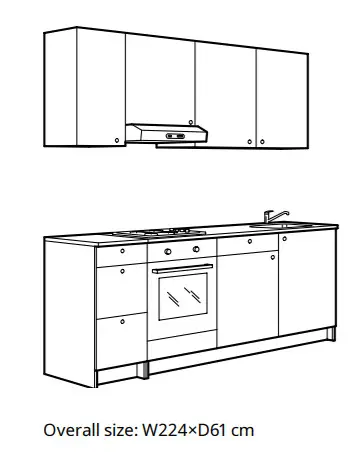

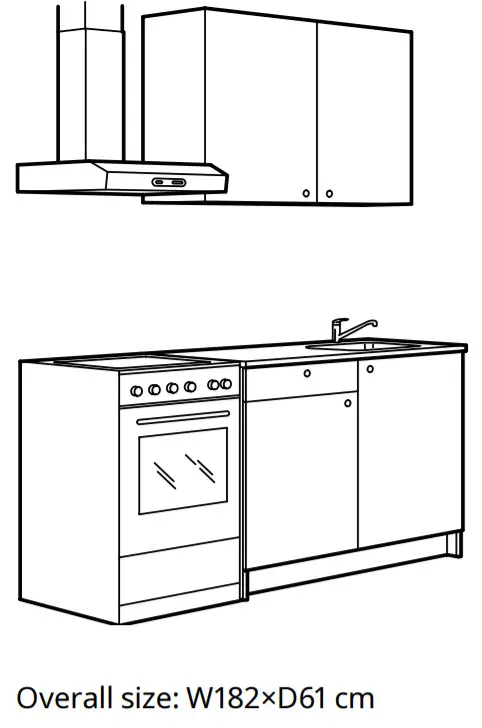

COMPLETE KITCHENS

The kitchens are complete with a worktop, shelves, drawers, hinges, plinth, sink, water trap, and tap. Just complement knobs, handles, and appliances. For suggested appliances, use the LAGAN range in the All parts and prices listed on page 5. KNOXHULT kitchen system can also be combined with all other appliances in the IKEA range.

Total price

Parts included in this combination

Total price

Parts included in this combination

Total price

Parts included in this combination

Total price

Parts included in this combination

ALL PARTS AND PRICES

The kitchen cabinet frames are made of 16 mm thick particleboard with doors and fronts in white, wood effect grey, high-gloss white melamine foil, and grey polypropylene foil.
The grey and white kitchens come with an oak laminate worktop. The wood effect grey and the high-gloss white kitchens come with a stone effect black worktop. The cabinets are complete with a worktop, shelves, drawers, hinges, and plinth included. Just complement with appliances, a sink, a  kitchen mixer tap and knobs and handles, and you have a complete kitchen.

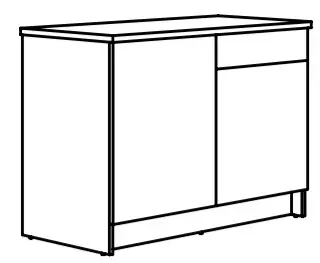

KNOXHULT base cabinet with doors and drawer. You can install a sink and also customize your storage with 2 adjustable shelves. The frame and fronts are coated with foil which gives a scratch-resistant surface that is easy to keep clean. You can easily mount the door front in the right position, because the hinges are adjustable in height, depth, and width. Stands steady on uneven floors because it has adjustable feet. Drawer with stop. The worktop has an overhang of 1 cm on each side. 122×61×90 cm. Cabinet width 120 cm.

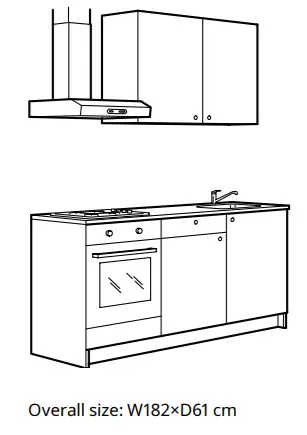

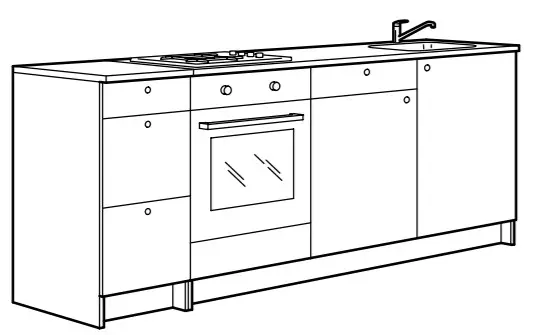

KNOXHULT base cabinet with doors and drawer. You can install a sink and also customize your storage with 2 adjustable shelves. The frame and fronts are coated with foil which gives a scratch-resistant surface that is easy to keep clean. You can easily mount the door front in the right position because the hinges are adjustable in height, depth, and width. Stands steady on uneven floors because it has adjustable feet. The worktop has an overhang of 1 cm on each side. To be complemented with an integrated oven and can be completed with hob and sink. 182×61×90 cm. Cabinet width 180 cm.

KNOXHULT base cabinet with drawers. Drawer with stop. Drawer fronts are covered with foil, which gives a scratch-resistant finish. Stands steady
on uneven floors because it has adjustable feet. 42×61×90 cm. Cabinet width 40 cm.

KNOXHULT wall cabinet with door. You can customize your storage with an adjustable shelf. The door is covered with foil, which provides a scratch-resistant surface. The door can be mounted to open from the left or right. 40×31×75 cm.

KNOXHULT wall cabinet with door. You can customize your storage with an adjustable shelf. The door is covered with foil, which provides a scratch-resistant surface. 60×31×60 cm.

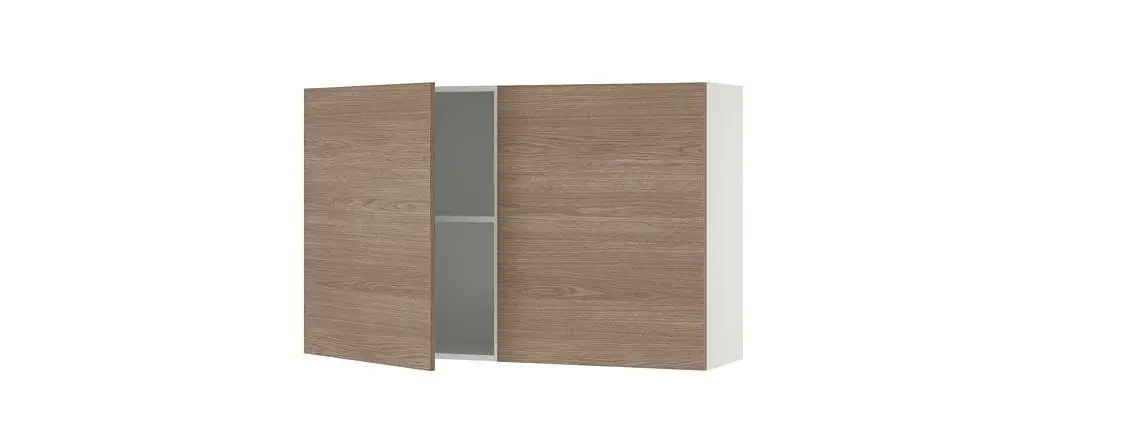

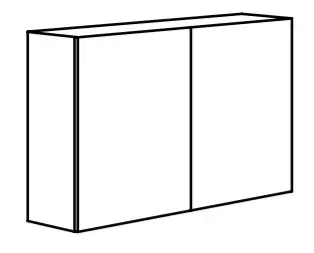

KNOXHULT wall cabinet with doors. You can customize your storage with 2 adjustable shelves. The doors are covered with foil, which provides a
scratch-resistant surface. The door can be mounted to open from the left or right. 120×31×75 cm.

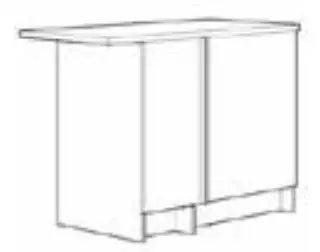

KNOXHULT corner wall cabinet. The melamine surfaces on the cabinet frames and doors are scratch-resistant and easy to wipe clean. The laminate worktop is moisture-, heat- and scratch-resistant and also easy to wipe clean. The doors can be hung to open left or right and the hinges can be adjusted to position the doors at the exact height, width, and depth. 100×91 cm

KNOXHULT ντουλάπι τοίχου με πόρτα. The melamine surface on the cabinet frames and doors is scratch-resistant and easy to wipe clean. The
doors can be hung to open left or right and the hinges can be adjusted to position the doors at the exact height, width, and depth. 60×75 cm

FINDING sink bowl. Sink in stainless steel, a hygienic, strong, and durable material that’s easy to keep clean. Sound absorbing material. Fits cabinet frames min. 50 cm wide. To be completed with LILLVIKEN strainer/water-trap. 45×39 cm.

LAGAN kitchen mixer tap. Single lever. Swivel spout 360°. H16cm.

ALL PARTS AND PRICES

LAGAN OV3 oven. Includes functions that you will need for your daily basic cooking. Energy consumption with a standard load, top and bottom heating: 0.79 kWh. 59.4×56×59 cm.

TOP HEATING. Gives a crispy finish and cooks the top of the food thoroughly. For baking gratins and desserts.
BOTTOM HEATING. Gives the underside of the food extra heat without burning the top. Ideal at the end of the cooking cycle, for dishes with a crispy bottom and for cooking with a water bath.
TOP AND BOTTOM HEATING. Combination of higher heat in the top part of the oven and lower in the bottom. Ideal for slow cooking and
gratins.

LAGAN HGC3K glass ceramic hob. Smooth tempered glass surface; makes it easy to clean and provides extra workspace. 2300W burner, 1200W burner, 1800W burner, 59×52×3.9cm.

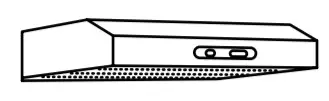

LAGAN wall-mounted extractor hood. Integrated extractor fan with 3 different speeds. Extraction rate in exhausting mode: 272 m³/h. Noise level
at max. Exhaust speed: 69 dB (A). 59.8×51×13 cm.

LAGAN fridge/freezer A+. The doors can be mounted to open from the left or right. Energy consumption: 297 kWh/year. Net volume fridge: 118 l. Net volume freezer: 52 l. 50×54×141.8 cm.

LAGAN fridge/freezer. The doors can be mounted to open from the left or right. Net volume fridge: 97 l. Net volume freezer: 16 l.  5.3×57.4×83.8cm. Energy class F. On a scale from A (most efficient) to G (less efficient). 4-star freezer/freezer compartment. For freezing fresh foods at -18°C or colder.

© Inter IKEA Systems B.V. 2016
Edition: August 2021
