QUICK INSTALLATION GUIDE
WM2211 SMART
ONE FOR ALL
ASSISTANT APP
Connect with us
facebook.com/oneforallworldwide
linkedin.com/company/one-for-all-worldwide/
youtube.com/user/oneforallproducts
Congratulations on the purchase of this One for All product! The product you now have in your possession is made of durable materials and is based on a design, every detail of which has been meticulously thought out. That is why One for All gives you a 10-year guarantee for defects in materials or manufacturing.
GUARANTEE TERMS AND CONDITIONS
- One for All guarantees that if during the guarantee period of a product, faults arise due to defects in manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product, free of cost. A guarantee for normal wear and tear is hereby expressly excluded.
- If the guarantee is invoked, the product should be sent to One for All together with the original purchase document (invoice, sales slip or cash receipt). The purchase document should clearly show the name of the supplier and the date of purchase.
- One for All guarantee shall lapse in the following cases: – If the product has not been drilled, installed and used in accordance with the Instructions for Use; – If the product has been altered or repaired by someone a party other than One for All; – If a fault arises due to external causes (outside the product) such as for example lightning, water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions, solvents or acids, wrong use or negligence; – If the product is used for different equipment than is mentioned on or in the packing.
UNIVERSAL ELECTRONICS BV, COLOSSEUM 2, 7521 PT ENSCHEDE, THE NETHERLANDS
WARNING
Correct installation is extremely essential, and falls outside the scope of responsibility of One for All. The fastening material provided is exclusively intended for installation on walls made of solid wood, bricks, concrete or solid-wood columns with a maximum of 3 mm wall finishing. For walls made of other materials, for example hollow bricks, please consult your installer and/or specialist supplier. During installation, please also follow the instructions for installation and use of the apparatus to be installed/fixed (for example the LCD/plasma screen).
Package M
M4x14 (x4) M-A M5x14 (x4) M-B
M6x14 (x4) M-C M8x20 (x4) M-D
D5 washer (x4) M-E D8 washer (x4) M-F
small spacer (x8) M-G
Package W

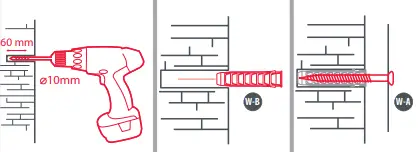

ST6.3×55 (x2) W-A concrete anchor (x2) W-B
D6 washer (x1) W-C
START

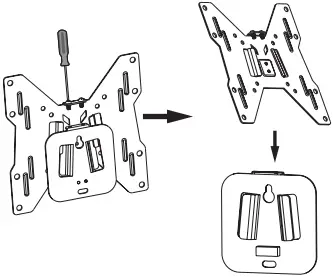

[1]

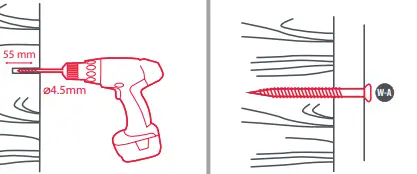

[2]
WARNING
Please verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components

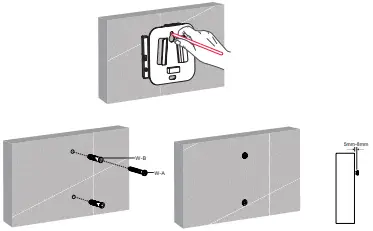

[3a]

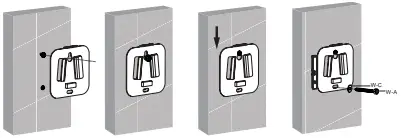

[3b]

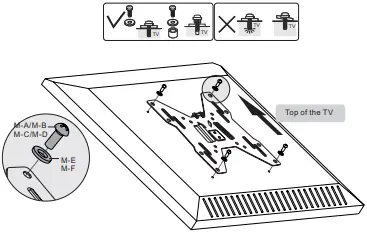

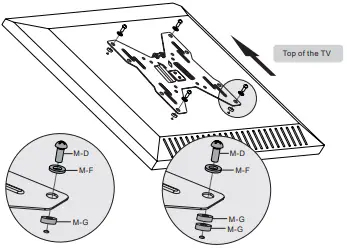

[4]
or

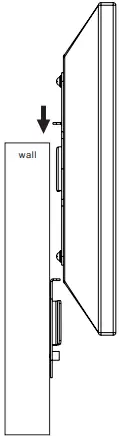

[5]

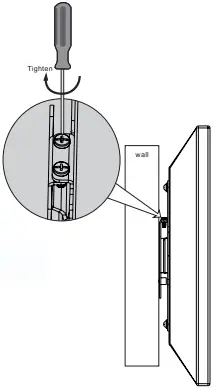

[6]
FINISH
Separate the waste
http://www.oneforall.com/documents
WM2211 Universal Electronics BV - Europe & International
710569 P.O. Box 3332, 7500 DH Enschede
RDN-1150323 The Netherlands
