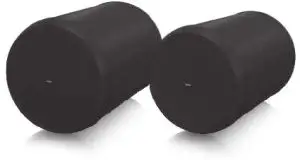

TANNOY OCV Series Coaxial Pendant Loudspeaker for Installation Applications
Important Safety Instructions
Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock.
Use only high-quality professional speaker cables with ¼” TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.
Caution
- To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel.
- To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus.
- These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Use only attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
- Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
- Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.
- Do not install in a confined space, such as a book case or similar unit.
- Do not place naked flame sources, such as lighted candles, on the apparatus.
- Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.
- This apparatus may be used in tropical and moderate climates up to 45°C.
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone, Aston Microphones and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty.
OCV Series OCV 8 / OCV 6 Introduction
Introduction
Thank you for purchasing this Tannoy Product loudspeaker. This product range is suited for high-level music and speech reinforcement applications requiring exceptional sonic quality with uncompromised reliability.
Unpacking
Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may ask you to return the faulty unit to them for inspection.
Each OCV loudspeaker is provided with the following accessories as standard; cable clamps, 1 x hanging cable, 1 x safety cable, 1 x terminal weather boot, 1 x euroblock connector, 3/8″ screwed rod adaptor, cable ties.
Safety Notices

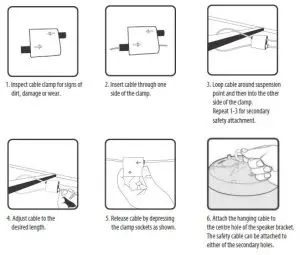

Some regional construction codes require the use of a secondary method of securing loudspeakers in ceiling to provide security of a backup support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. Please consult the relevant construction codes in your region. Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

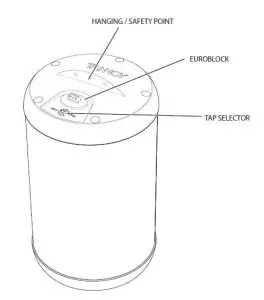

Installation Guide
- Remove the euroblock connector from the socket.
- Feed the cable through the rubber input seal, then connect the euroblock connector to the cable,observing the correct polarity.
- For connec tion to an amplifier, use pins 1 and 2:
Pin 1 is positive
Pin 2 is negative
For connection to additional speakers in a distributed line, pins 3 and 4 are in parallel where: Pin 3 is negative
Pin 4 is positive
- Connect the euroblock connector, then replace the rubber input seal to ensure the speaker is sealed.
THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.
- The OCV 6 and OCV 8 are fitted with 60 W transformers. When used in distributed-line systems, the transformer can be tapped at 60 W, 30 W, and 15 W, with an additional 7.5 W tapping for 70.7 V line systems.

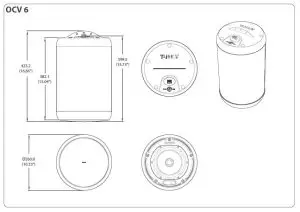

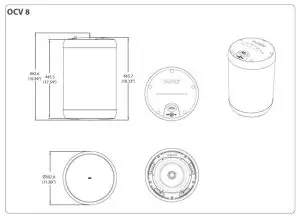

Dimensions
Specifications
| Frequency Response (-3 dB) (1) | 75 Hz – 20 kHz | 80 Hz – 20 kHz |
| Frequency Range (-10 dB) (1) | 60 Hz – 30 kHz | |
| System Sensitivity (1 W @1 m) (2) | 90 dB | 88 dB |
| Dispersion (-6 dB) | 80 degrees conical | 90 degrees conical |
| Transducers | Coaxial | |
| Low Frequency | 200 mm (8.00″) mineral loaded cone material | 150 mm (6.00″) mineral loaded cone material |
| High Frequency | 25 mm (1.00″) | 20 mm (0.79) |
| Crossover | 4.5 kHz – 3rd order LF, 2d order HF | 5.4 kHz – 2nd order LF, 2nd order HF |
| Directivity (Q) | 14.4 averaged 1 kHz to 6.3 kHz | 11.3 averaged 1 kHz to 6.3 kHz |
| Directivity (DI) | 11.6 dB averaged 1 kHz to 6.3 kHz | 10.5 dB averaged 1 kHz to 6.3 kHz |
| Rated Maximum SPL (2) | 108 dB (average) 114 dB (peak) | 105 dB (average) 111 dB (peak) |
| Average | 70 W 60 W |
| Programme | 140 W 120 W |
| Peak | 280 W 240 W |
| Recommended Amplifier Power | 140 W @ 16 Ohms 120 W @ 16 Ohms |
| Nominal Impedance | 16 Ohms |
| Enclosure | ABS / Steel | |
| Grille | Steel, plated and powder coat painted | |
| Connectors | Euroblock type removable locking connector with screw terminals with “loop through” facility | |
| Transformer setting | Rotary switch | |
| Safety Agency Ratings | UL-1480, UL-2043, CE | |
| Bezel diameter | 302 mm (11.9″) | 260 mm (10.2″) |
| Overall Length | 493 mm (19.4″) | 423 mm (16.7″) |
| Net Weight | 8.2 kg (18.1 lbs) | 5.8 kg (12.8 lbs) |
| Shipped weight | 10.4 kg (22.9 lbs) | 7.6 kg (16.7 lbs) |
| 70 V | 60 W / 30 W / 15 W / 7.5 W & low Impedance operation |
| 100 V | 60 W / 30 W / 15 W & low Impedance operation |
Notes:
1. Average over stated bandwidth. Measured at 1 metre on axis in an anechoic chamber
2 Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, and Ease Data can be downloaded from www.tannoy.com
Other important information
Important information
- Register online. Please register your new Music Tribe equipment right after you purchase it by visiting musictribe.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.
- Malfunction. Should your Music Tribe Authorized Reseller not be located in your vicinity,
you may contact the Music Tribe Authorized Fulfiller for your country listed under “Support” at musictribe.com. Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at musictribe.com. Alternatively, please submit an online warranty claim at musictribe.com BEFORE returning the product. - Power Connections. Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.
Hereby, Music Tribe declares that this product is in compliance with Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC, and this passive product is not applicable to EMC Directive 2014/30/EU, LV Directive 2014/35/EU.
Full text of EU DoC is available at https://community.musictribe.com/
EU Representative: Music Tribe Brands DK A/S
Address: Ib Spang Olsens Gade 17, DK – 8200 Aarhus N, Denmark
