Creative Mf8365 Play Portable And Waterproof Bluetooth Speaker User Guide

CREATIVE MF8365 Play Portable and Waterproof Bluetooth Speaker User Guide
.

CREATIVE MF8365 Play Portable and Waterproof Bluetooth Speaker

2019 Creative Technology Ltd. All rights reserved. Creative and the Creative logo are trademarks or registered trademarks of Creative Technology Ltd in the United States and / or other countries. The Bluetooth® word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. Actual product may differ slightly from images shown. Use of this product is subject to a limited warranty. © 2019 Creative Labs Pte. Ltd.

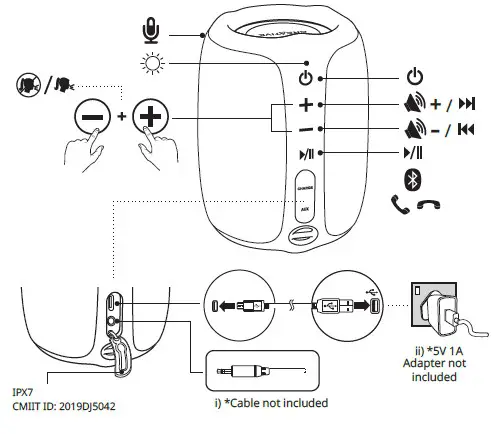

1. Overview

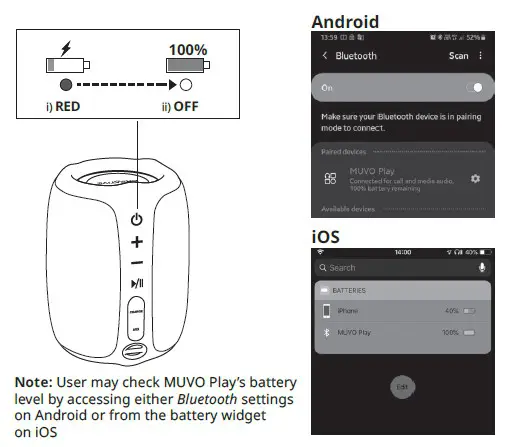

2. Battery

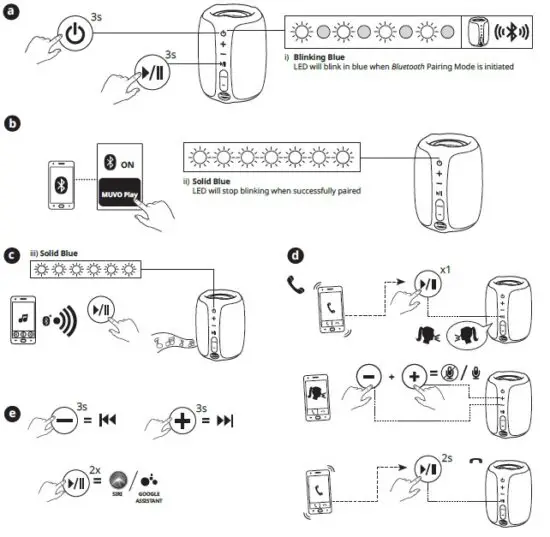

3. Bluetooth®

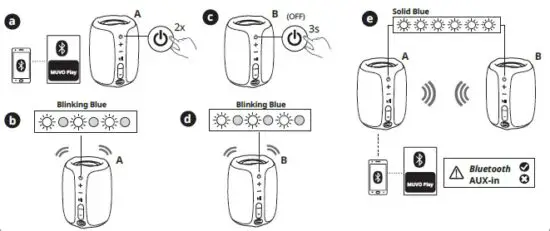

4. Stereo Wireless Link

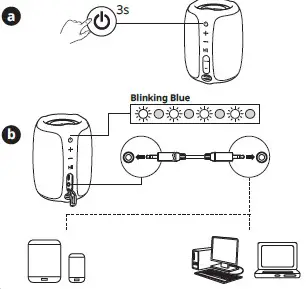

5. AUX-in

6. Stereo Wireless Unlink

Technical Specificatons

Bluetooth® Version: Bluetooth 5.0
Operating Frequency: 2402–2480 MHz
Operating Range: Up to 10m, measured in open space. Walls and structures may affect range of device.
RF Output Power: < 4 dBm (For Europe)
Supported Bluetooth Profiles: A2DP (Wireless Stereo Bluetooth), AVRCP
(Bluetooth Remote Control), HFP (Hands-free profile) Supported Codec: SBC
Lithium-ion Battery: 3.7V 2000 mAh (7.4 Wh)
Input: 5V 1A
Battery Saving Mode: The speaker automatically powers down when there is no Bluetooth connection, USB connection or audio cable attached to it for more than 10 minutes.

Operating Temperature Range: 0–45ºC

Note: Compliance markings are located on the bottom of this product. *Not Included. Sold Separately.

Other Information

For the latest, online version of this guide, DoC and supplementary documentation such as safety and regulatory information for this product, please visit creative.com/support/muvoplay
Detailed instructions on removal of integrated battery can be found at Quickstart User Guide / Safety and Regulatory Information (creative.com/compliance/muvoplay), these instructions are meant strictly for independently qualified professionals.

Hereby, Creative Labs Pte. Ltd. declares the Bluetooth Speaker, model no. MF8365 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at http://www.creative.com/EUDoC

Safe Removal of Built-in Battery

This product contains an integrated battery which should ONLY be removed by service centers or recycling facilities with reference to the instructions herein. Creative and its affiliates will not be liable for any damages resulting from attempting to remove and/or tampering with the battery or any part of the product by an end user.

WARNING DO NOT OPEN

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE PRODUCT(S) COVERS (OR BACKS).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:
Make sure the product is disconnected from the charging cable before removing the battery.
Cover one of the battery terminals with insulation tape to prevent short circuit – not applicable to battery with connector

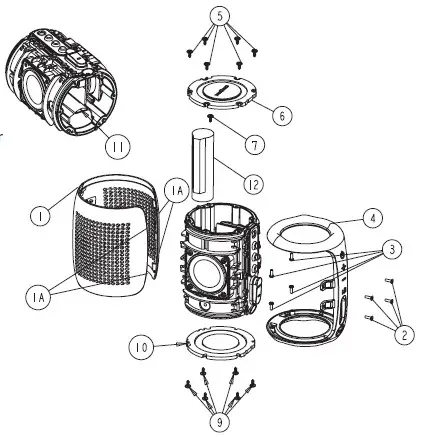

Battery Removal Instruction:

1. Unclip 4 of the fabric mesh’s catches
2. Unscrew the first 4 screws on the bezel
3. Unscrew another 4 screws from the bezel
4. Remove main unit from the bezel
5. Unscrew 6 screws from the first passive radiator
6. Remove the first passive radiator
7. Unscrew 1 screw from the battery’s case
8.  Detach the battery from its connector
9. Unscrew 4 screws from the second passive radiator
10. Remove the second passive radiator
11.  Push the battery upwards
12. Slide the battery out from its case to remove the battery
