Sub-zero Icbid-ci Integrated Drawer Combination Instructions

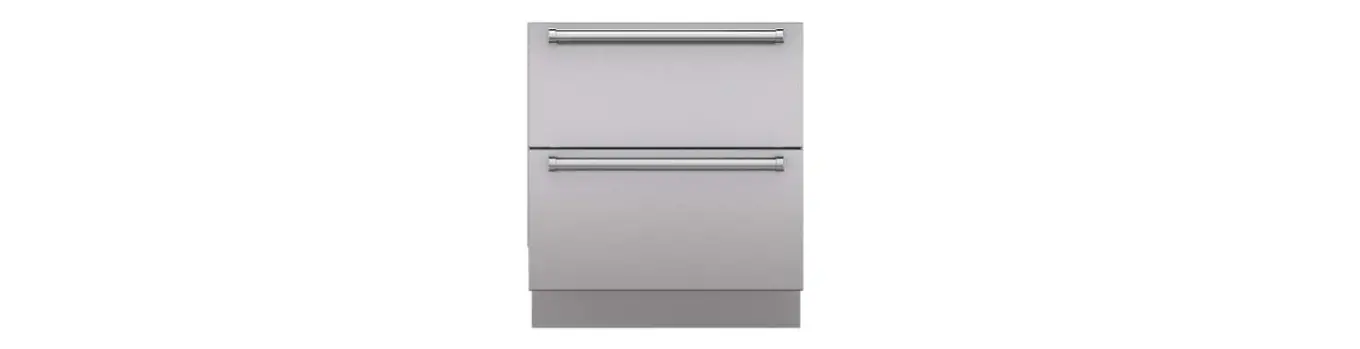

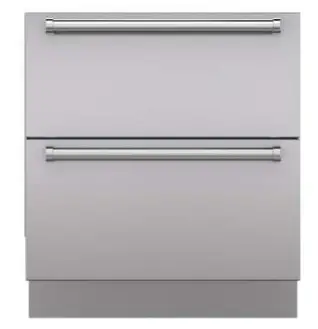

SUB-ZERO ICBID-CI Integrated Drawer Combination

ICBID-CI Integrated Drawer Combination
Ice Maker

ICEMAKER OPERATION

• The control board operates the Nidec-Servo icemaker. Power comes from the control board. The control board manages fill time and icemaker errors which it senses and displays.
• The control board powers the icemaker system when the is selected and the icemaker energizes.
• If the door/drawer switch is closed (drawer/door open), the control board interrupts power to the icemaker, unless the icemaker is in the fill mode. Once the door/drawer switch opens, power does not return to the icemaker for three minutes.
• When the icemaker rotates to the fill position, the icemaker sends voltage to the control board. The control board then sends power to the water valve(s) for a preset duration.
• The fill adjustment screw on the icemaker does not adjust the water fill time. The control board controls the water fill time.
• When the ice harvest is complete the control board removes power to the icemaker for 45 minutes.
• Max Ice feature runs the evaporator fan at high speed when the compressor is runs and at low speed when the compressor is off.
• Sabbath Mode disables the icemaker

service.subzero.com
