DOORB112WT
Wireless doorbell-Transmitter/Receiver

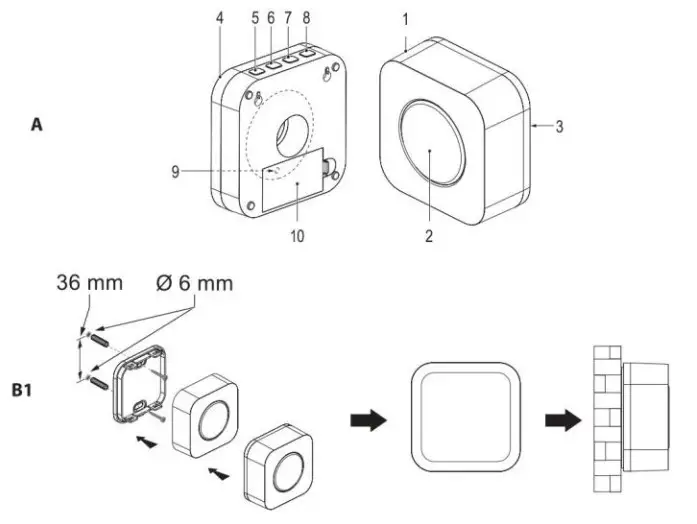

Description (fig. A)
| 1. Transmitter | • Refer to the illustration (fig. 61) to install the transmitter. |
| 2. Doorbell button | |

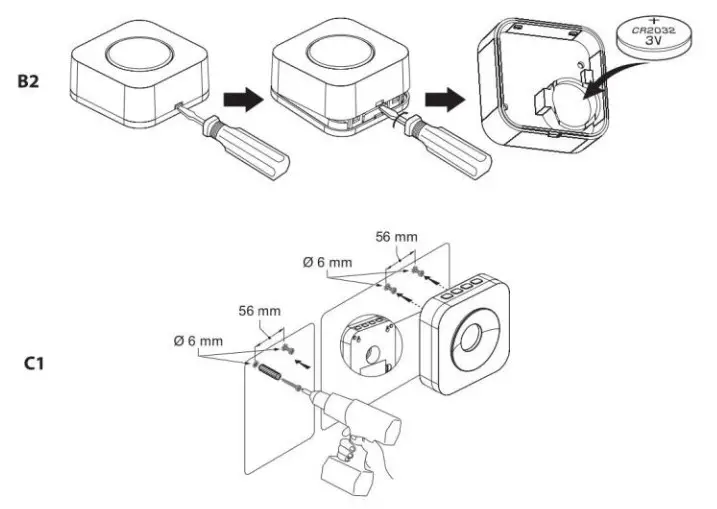

| 3. Battery compartment | • Refer to the illustration (fig. 82) to install the battery. |
| 4. Receiver | • Refer to the illustration (fig. C1) to install the receiver. |
| 5. Volume button | • Press the button to set the volume. |
| 6. Melody selection button | • Press the button to select the melody (36 melodies). • To delete all the information from the receiver, press and hold the button for 5 seconds. |
| 7. Mode selection button | • Press the button to select the mode: (1) sound only / (2) flashing LED indicator only / (3) both sound and flashing LED indicator. |
| 8. Learning button | • To pair the receiver with the transmitter, press and hold the learning button for 2 seconds. If a beep sounds and the LED indicator comes on, press the doorbell button on the transmitter. The receiver will beep to indicate that the pairing is succesful. |
| 9. LED indicator | |

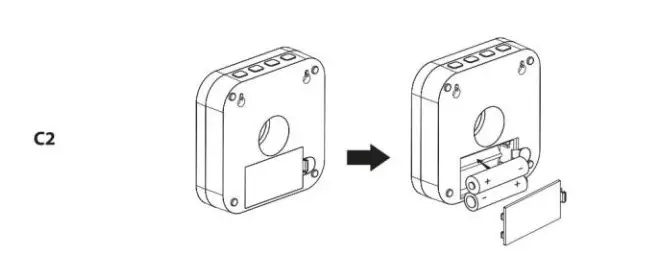

| 10. Battery compartment | • Refer to the Illustration (fig. C2) to install the batteries. |
Technical data
| Power supply | Transmitter. CR2032, 3 V DC (included) Receiver: AA, 1.5 V DC (2x) (not included) |
| Frequency | 433 MHz |
| Noise level | 90 dB (within 0.5 m) |
| Operating range | 150 m (line of sight) |
| Operating temperature | -30°C— +40°C |
| IP protection | Transmitter. IP44 |
| Dimensions (HxVVxD) | Transmitter 49 x 49 x 21 mm Receiver: 105 x 105 x 30 mm |
Safety
To reduce risk of electric shock, this product should only be opened by an authorized technician when service is required.- Disconnect the product from the mains and other equipment if a problem should occur.
- Read the manual carefully before use. Keep the manual for future reference.
- Only use the device for its intended purposes. Do not use the device for other purposes than described in the manual.
- Do not use the device if any part is damaged or defective. If the device is damaged or defective, replace the device immediately.
- Do not use the device outdoors. The device is suitable for indoor use only.
- Do not expose the device to high temperatures.
- Do not expose the device to direct sunlight.
- Do not use the device in locations with high humidity, such as bathrooms and swimming pools.
- Do not install the device in areas where interference can be caused by other devices.
- Do not touch the device with wet hands.
To reduce risk of electric shock, this product should only be opened by an authorized technician when service is required.Cleaning and maintenance
Warning!
- Do not clean the inside of the device.
- Do not use cleaning solvents or abrasives.
- Do not attempt to repair the device. If the device does not operate correctly, replace it with a new device.
- Clean the outside of the device using a soft, damp cloth.
