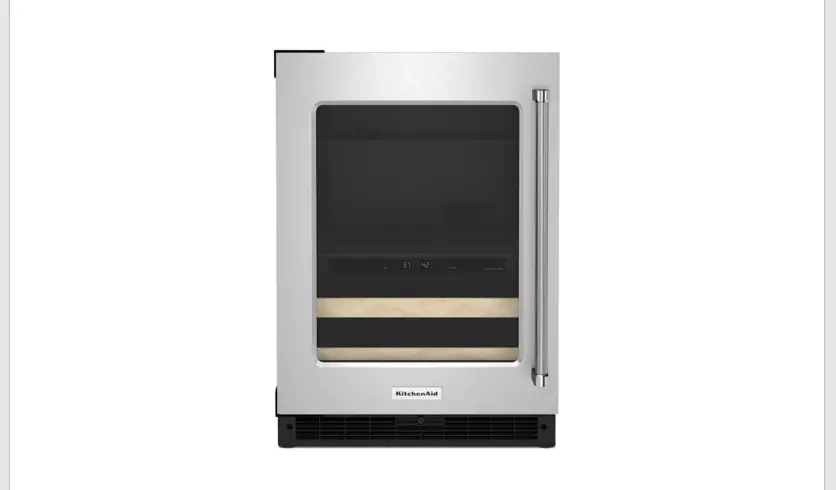

UNDER COUNTER BEVERAGE CENTER
KUBR314KSS, KUBL314KSS, KUBR314KBS, KUBL314KBS,
KUBR214KSB, KUBL214KSB, KUBR214KPA
Detailed Planning Dimensions Guide

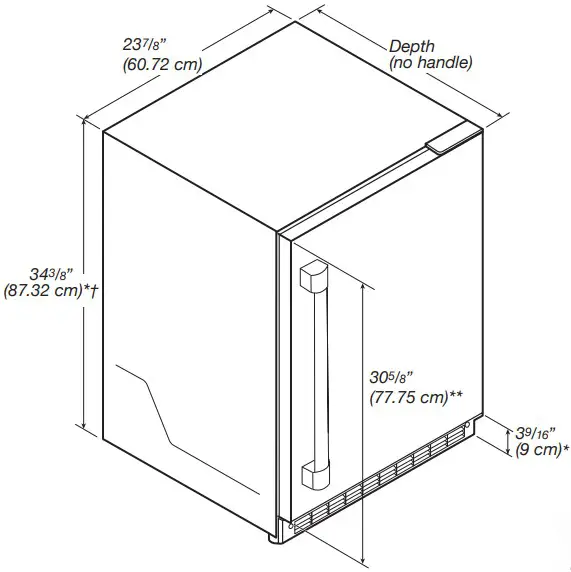

Product Dimensions
* Add 5/8” (1.6 cm) to the height dimension when leveling legs are fully extended.
** For custom panel models, this will vary.
† Add 1/4” (6.4 mm) to the height dimension for height with hinge covers.]
| Variant | Depth (no handle) |
| Panel ready models (with 3/4” panel) | 2313 /16” (60.7 cm) |
| Stainless and black stainless | 235 /8” (60.2 cm) |
Because Whirlpool Corporation’s policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with the product. Specifications subject to change without notice.

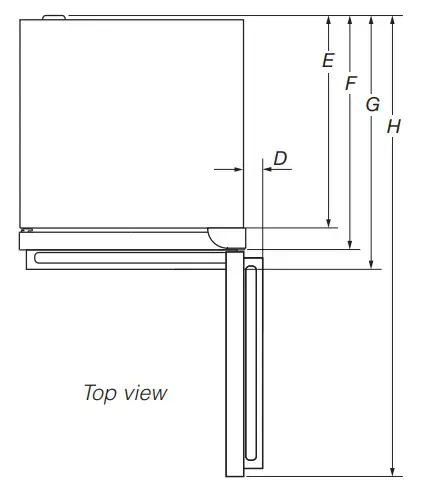

| Dimension | Description | Panel ready models (with 3/4” panel) | Stainless and black stainless models |
| A | Width of door | 233/4” (60.3 cm) | 233/4” (60.3 cm) |
| B | Width of the grille | 2313/16” (60.5 cm) | 2313/16” (60.5 cm) |
| C | Height to top of handle | ** | 311/8” (78.85 cm) |
| D | Width from the side of the beverage center to handle – door open 90° | ** | 21 /3” (5.95 cm) |
| E | Depth without door | 2111/16” (55.1 cm) | 2111/16” (55.1 cm) |
| F | Depth with door | 2313 /16” (60.7 cm) | 235 /8” (60.2 cm) |
| G | Depth with handle | ** | 267 /16” (67.15 cm) |
| H | Depth with door open 90° | 4715 /16” (121.8 cm) | 4715 /16” (121.8 cm) |
**For custom panel models, this will vary.

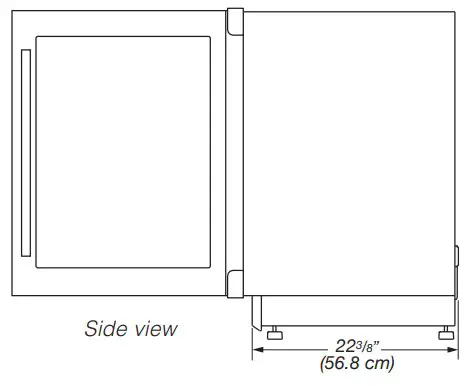

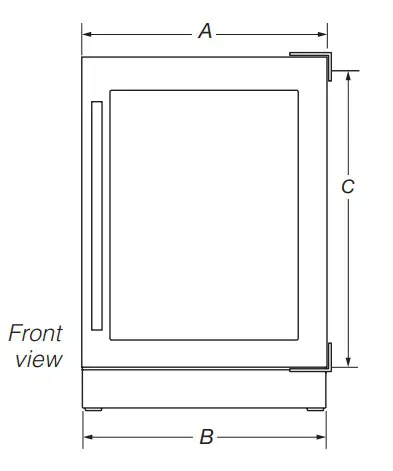

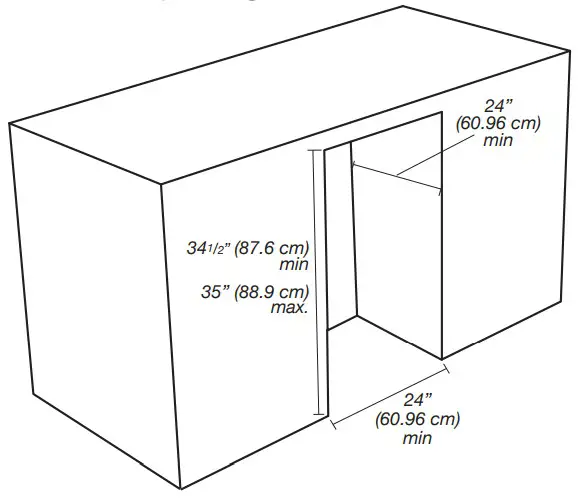

Opening Dimensions
NOTE: Make sure there is 3” (7,6 cm) space between beverage center and adjacent appliance/wall for door swing.

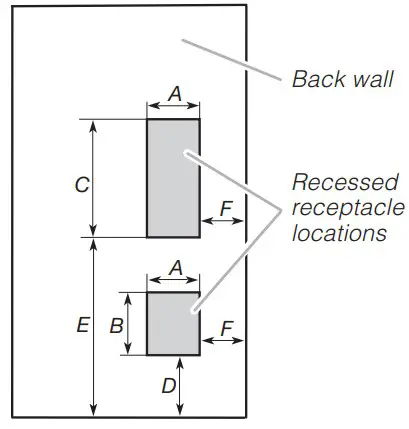

Electrical Supply Location
- Lighter grey area indicates recommended recessed power outlet (located behind the beverage center).
- Power cord length is 60” (152.4 cm).
- For flush installation, the power outlet can be installed in adjacent cabinetry with a cutout on the power cord side for routing of the power cord.
Dimensions | |||
| A | 3” (7.55 cm) | D | 121 /16” (30.64 cm) |
| B | 41/2” (11.37 cm) | E | 213 /4” (55.16 cm) |
| C | 91/4” (23.47 cm) | F | 13 /4” (4.44 cm) |
Electrical Requirements
|
 |
| Electrical Shock Hazard Plug into a grounded 3 prong outlet. |
WARNINGA 115 V, 60 Hz, AC only, 15 A or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your beverage center be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
Location Requirements
|
 |
Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from the beverage center. Failure to do so can result in death, explosion, or fir |
For the beverage center to be flush with the front of the base cabinets, remove any baseboards or moldings from the rear of the opening. Flooring under product must be at the same level as the room. If the floor of the opening is not level with the kitchen floor, shim the opening to make it level with the kitchen floor.
Because Whirlpool Corporation’s policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with the product. Specifications subject to change without notice.
Wood Panel Guide
| CAUTION: Installation of door panels with less than a 3/8” (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching. |
IMPORTANT:
- The graphics in the following sections show a custom panel for a door with the hinges installed on the righthand side. If your beverage center has the hinges installed on the left-hand side, rotate the custom frame 180° so the hinge markings will be on the left.

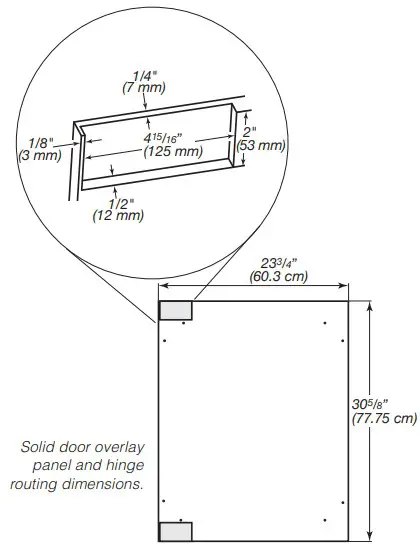

Solid door overlay panel
- Panel dimensions shown are the minimum size to cover the appliance door. Panels can be made taller/wider to match surrounding cabinetry.
- The recommended thickness of the overlay panel is 3/4” (19 mm).
- Custom solid door overlay panel must not weigh more than 20 lb (9.07 kg).
- Custom glass door overlay panel must not weigh more than 10 lb (4.54 kg).
- Overlay panels weighing more than recommended may cause damage to your appliance.

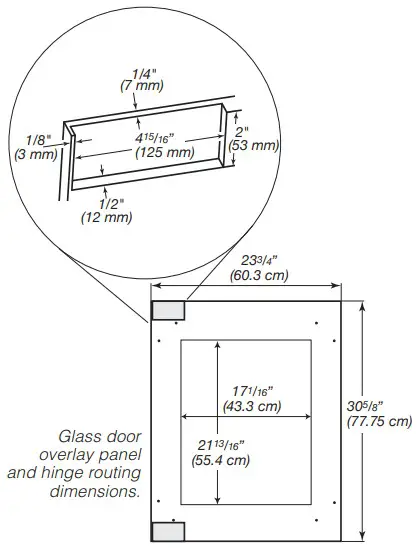

Glassdoor overlay panel
