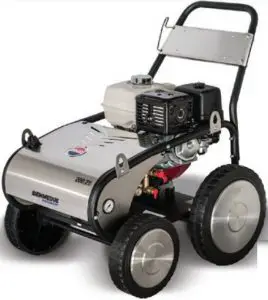

ARCOMAT Cold Water High Pressure Cleaners with Internal Combustion Engine User Guide
MOBILE
MOBILE

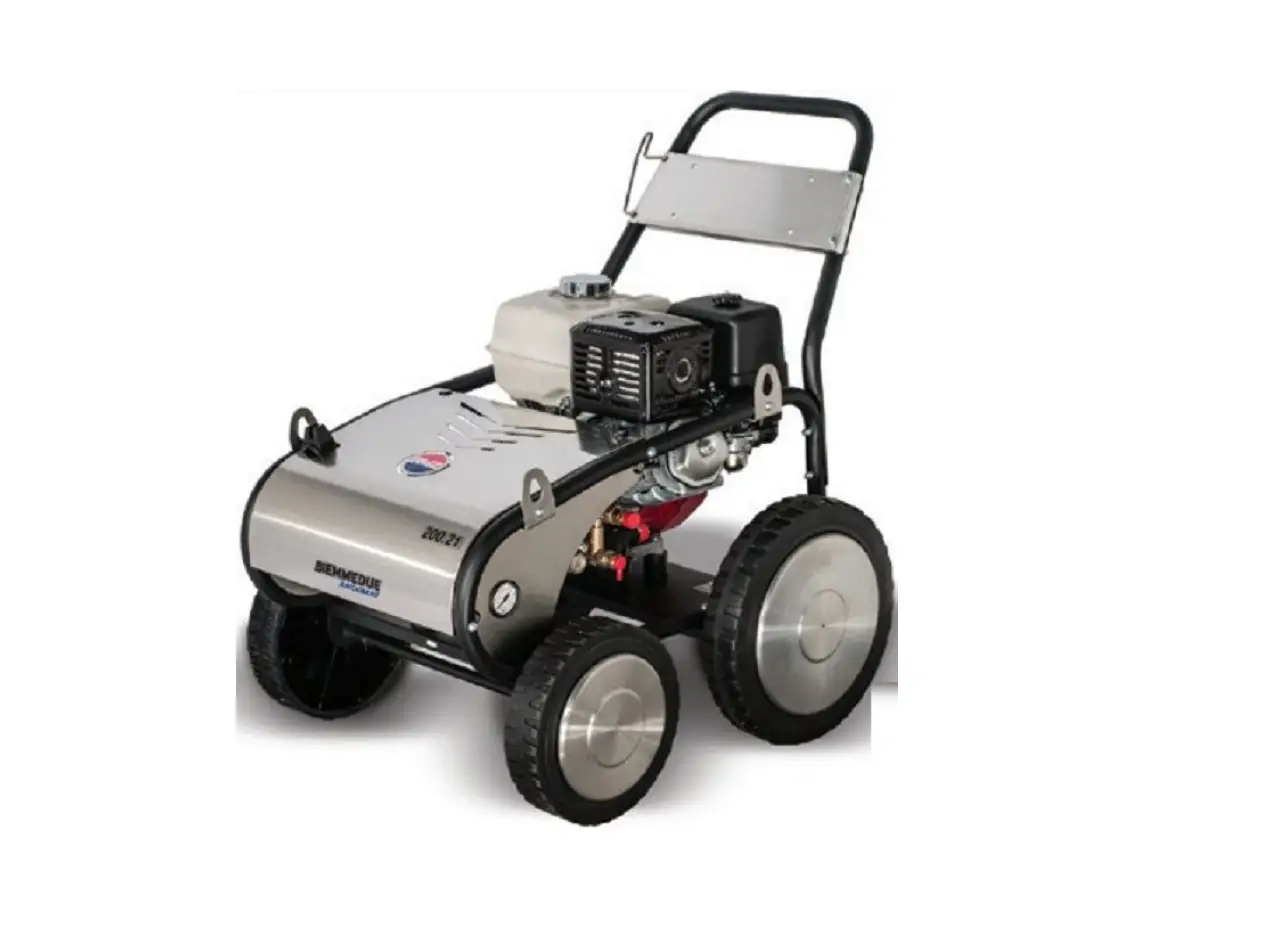

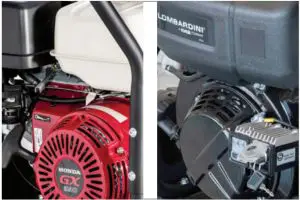

- Honda (GX) and Loncin combustion engine, overhead valves,4-stroke and diesel Kohler, everyone air-cooled
- Triplex water pump with three ceramic pistons and brass or nickel head
- Recoil start for mod. 200/12, 180/13, 200/21, 250/16 and 200/15
- Hydraulic motor brake. The device allows the deceleration of the motor in by-pass phase, reducing consumption, noise and avoiding overheating of the pump (excluding mod. 200/12 and 180/13)
- “Oil level” warning system for models with Honda and Kohler engines
- Low pressure detergent injection (DV\WRLQVSHFWZDWHUͧOWHU Thermal relief safety valve
- Machine structure made of steel with robust frame

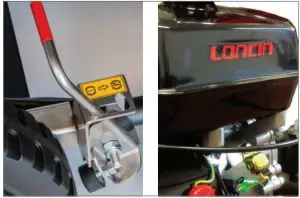

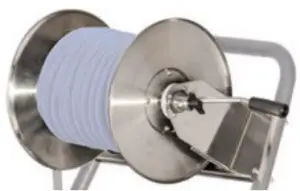

- Supports for lance and hose and provision for mounting a hose reel (optional)

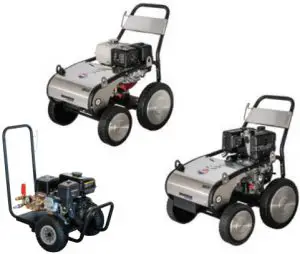

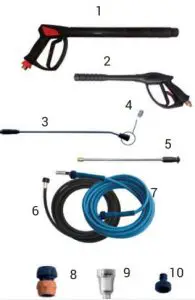

ACCESSORI IN DOTAZIONE / SUPPLIED ACCESSORIES
 | N° | MOD. | COD. | DESCRIZIONE – DESCRIPTION | – |
| 1 | 180/13-200/21- | 01AC422 | Idropistola con Semilancia e swivel (in M22 out M22) | – | |
| 250/16-200/15 | Spray gun with Semilance and swivel (in M22 out M22) | – | |||
| 2 | 200/12 | 01AC435 | Idropistola con Semilancia e swivel (in 1/4″ out M22) | – | |
| Spray gun with Semilance and swivel (in 1/4″ out M22) | – | ||||
| 3 | 180/13-200/21- | 01AC419 | Lancia INOX l=70 cm (in M22 out 1/4”F) | – | |
| 250/16-200/15 | Stainless steel lance l=70 cm (in M22 out 1/4”F) | – | |||
| 250/16 | I50202 | Ugello – Nozzle 1/4″M 2504 | – | ||
| 200/21 | I50307 | Ugello – Nozzle 1/4″M 2506 | – | ||
| 4 | – | ||||
| 200/15 | I50284 | Ugello – Nozzle 1/4″M 25045 | – | ||
| 5 | 200/12 | 01AC439 | Lancia l=50 cm con ugello regolabile (037) | – | |
| Lance l=50 cm with adjustable nozzle (037) | – | ||||
| 6 | 200/12 | 01AC488 | Tubo A.P. l=10 m R1 – 5/16″ M22 – 1/4″ F H.P. hose l=10 m R1 – 5/16″ M22 – 1/4″ F | – | |
| 7 | 180/13-200/21- | 01AC425 | Tubo A.P. l=15 m R2 – 5/16″ M22 – M22 | – | |
| 250/16-200/15 | H.P. hose l=15 m R2 – 5/16″ M22 – M22 | – | |||
| 8 | Tutti-All | B.RCVR00170 | Portagomma innesto rapido 1/2″ | – | |
| Hose connector | – | ||||
| 9 | 180/13-200/21 | B.RCVR00215 | Presa portagomma con filtro – Threaded tap adaptor with fllter | – | |
| 10 | Tutti-All | B.RCVR00169 | Presa Portagomma 3/4″ – Threaded tap adaptor | – |
ACCESSORI A RICHIESTA/ ACCESSORIES ON DEMAND

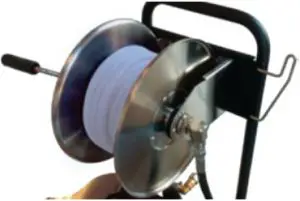

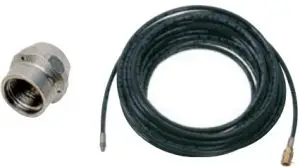

| AVVOLGITUBO MANUALE PER TUBO ALTA PRESSIONE L MAX = 40 m MANUAL HOSE REEL FOR HIGH PRESSURE HOSE 40 m LONG MAX | AVVOLGITUBO MANUALE PER TUBO ALTA PRESSIONE L MAX = 20 m MANUAL HOSE REEL FOR HIGH PRESSURE HOSE 20 m LONG MAX | KIT UGELLO STURATUBO PIPE CLEANING KIT | – |
|
|  |
| – |
| Mod. 200/21-250/16-200/15 Cod. 01AC470 | Mod. 200/12-180/13 Cod. 01AC518 | Mod. Tutti-All Tubo-Hose (15 m) Cod. 01AC376 | – |
| Mod. 200/15 – 180/13 Ugello-Nozzle (05) Cod. 01AC403 | – | ||
| Mod. 200/21 Ugello-Nozzle (06) Cod. 01AC291 | – | ||
| Mod. 200/12-250/16 Ugello-Nozzle (04) Cod. 01AC471 | – | ||

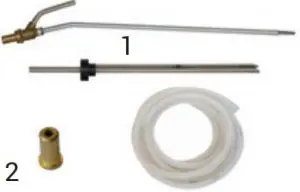

| KIT UGELLO ROTANTE TURBO TURBO NOZZLE KIT | KIT SABBIATURA SANDBLASTING KIT | SABBIA (25 KG) SAND (25 KG) | – |
 |  |  | – |
| Mod. Tutti-All Lancia-Lance (70 cm) Cod. 01AC514 | Mod. 200/15 (045= 1,27 mm) Cod. 01AC475* | Sabbia-Sand (25 kg) Cod. 01AC284 | – |
| Mod. 200/15 – 180/13 Ugello-Nozzle (05) Cod. 01AC296 | – | ||
| Mod. 200/21 (06= 1,47 mm) 1Cod. 01AC478* | – | ||
| Mod. 200/21 Ugello-Nozzle (06) Cod. 01AC348 | – | ||
| Mod. 180/13-200/12-250/16 (04= 1,19 mm)1 Cod. 01AC474* | – | ||
| Mod. 200/12 Ugello-Nozzle (04) Cod. 01AC294 | – | ||
| Mod. Tutti-All Ugello Sabbia – Sand Nozzle 2 (ricambio – spare part) Cod. 01AC480 | – | ||
| Mod. 250/16 Ugello-Nozzle (04) Cod. 01AC493 | – |
MOBILE – IDROPULITRICI AD ACQUA FREDDA CON MOTORI A COMBUSTIONE INTERNA COLD WATER HIGH-PRESSURE CLEANERS WITH INTERNAL COMBUSTION ENGIN
BATTERIES
Mod. 200/21L Battery (12V – 50 Ah) mm 210x180x190
Cod. 121AC132

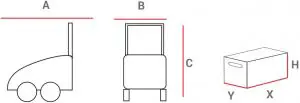

| PESI E DIMENSIONI MACCHINA WEIGHTS AND DIMENSIONS MACHINE | IMBALLO PACKAGING | |||||||
| MOD | A | B | C | Netto/Net | X | Y | H | Lordo/Gross |
| [mm] | [mm] | [mm] | [kg] | [mm] | [mm] | [mm] | [kg] | |
| MOBILE 200/12 | 780 | 500 | 750 | 41 | 920 | 750 | 880 | 46 |
| MOBILE 180/13 | 780 | 500 | 750 | 41 | 920 | 750 | 880 | 46 |
| MOBILE 250/16 | 1.000 | 800 | 900 | 85 | 920 | 750 | 880 | 93 |
| MOBILE 200/21 | 1.000 | 800 | 900 | 90 | 920 | 750 | 1.080 | 108 |
| MOBILE 200/15D | 1.000 | 800 | 900 | 87 | 920 | 750 | 1.080 | 105 |
| 200/12L | 180/13 | 200/21L | 250/16 | 200/21 | 200/15D | ||
| codice – code | 01SC10 | 01SC13 | 01SC11 | 01SC06 | 01SC05 | 01SC12 | |
| pressione mas. – max. pressure | [ bar ] [ MPa – psi ] | 200 20 – 2.009 | 180 18 – 2.600 | 200 20 – 2.009 | 250 25 – 3.600 | 200 20 – 2.009 | 200 20 – 2.009 |
| portata mas. – max. flow rate | [ lt/h ] | 720 | 780 | 1260 | 960 | 1260 | 900 |
| pompa – pump | E1 | E1 | E3 | E2 | IP 47 | E2 | |
| motore – motor | [ type ] mod. | LONCIN | HONDA | LONCIN | HONDA | KOHLER | |
| G200F | GX200 | G420FD | GX390 | GX390 | 15 LD 350 | ||
| hp max | 5,7 | 5,5 | 12,2 | 11,7 | 11,7 | 7,5 | |
| hp net | 5,4 | 5,0 | 10,3 | 9,8 | 10,3 | 7,3 | |
| sistema di arresto – stop system | no/not included | deceleratore automatico / speed reducer automatic | |||||
| rotazione pompa – pump speed | [ rpm ] | 3400 | 3400 | 1450 | 3400 | 1450 | 3400 |
| cilindrata motore engine displacement | [ cm3 ] | 196 | 196 | 420 | 389 | 389 | 349 |
| avviamento motore – engine start | autoavvolgente / recoil | elettrico* electric* | autoavvolgente / recoil | ||||
| carburante – fuel | gasoline | gasoline | gasoline | gasoline | gasoline | diesel oil | |
| capacità serbatoio carburante fuel tank capacity | [lt] | 3,6 | 3,1 | 6,5 | 6,1 | 6,1 | 4,3 |
| consumo carburante fuel consumption | [ lt/h ] | 1,7 | 1,7 | 2,4 | 3,3 | 3,3 | 1,6 |
| massima temp. aliment. max. inlet temp. | [°C ] | 40 | 40 | 40 | 40 | 40 | 40 |
