Subwoofer
Owner’s Manual
ML-10S D2/D4
ML-12S D2/D4
MACHETE SERIES
INTRODUCTION
Thank you for purchasing this Deaf Bonce product! Our company is committed to the creation of extremely loud sound systems with no loss of quality.
To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution in this manual. Please keep the manual in a safe and accessible place for future reference.
SAFETY INSTRUCTIONS
- Fasten the subwoofer properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the vehicle or another vehicle.
- Before installing the components, if possible store the product in its original package to avoid accidental damage to the product.
- Be careful when installing and dismantling the subwoofer! Do not let the subwoofer drop to avoid damage to its moving parts.
- When working with tools follow safety rules.
- Before the installation switch off the head unit and all other audio devices to avoid their damage.
- Make sure that the location of the subwoofer does not hinder the proper operation of mechanical and electrical devices of the vehicle.
- Do not install components in places exposed to water, excessive humidity, high or low temperature, dust, or dirt.
ATTENTION!!! The product may be operated from +5°C (41 F) to +40 °C (104F). In case of moisture condensation, let the product dry. - When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe, or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.
- When stretching back the speaker cables make sure that they are not in contact with sharp edges or moving mechanical devices. Make sure that they are firmly fixed and protected over the entire length.
- The diameter of the speaker cables must be selected in accordance with the length and applied power.
- Never stretch the cables outside of the car and near the moving parts of the car. This can lead to the destruction of the insulating layer, short circuit,s and fire.
- To protect the cables use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.
CAUTION!!! High sound pressure can damage your health!
Please use common sense when controlling volume!
WIRING DIAGRAMS
Attention! You need to connect both voice coils of the subwoofer.
Do not expose your amplifier to loads below the value predetermined by the manufacturer.
Various examples of connection types are given on the pages below. Use these examples to determine the required load impedance of your connection.

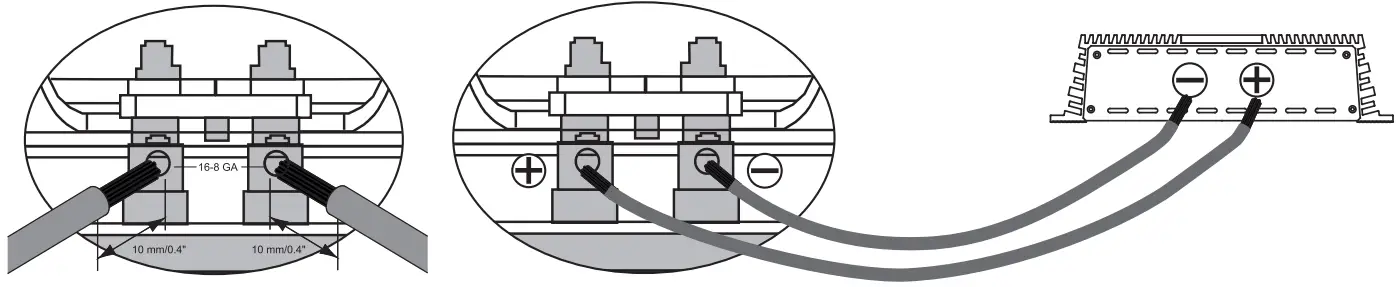

Connection of terminals
Serial connection

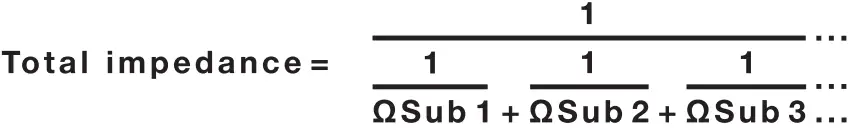

Total impedance = ΩSub 1+ ΩSub 2 + ΩSub 3
Parallel connection
Schemes of enabling the load of the subwoofer

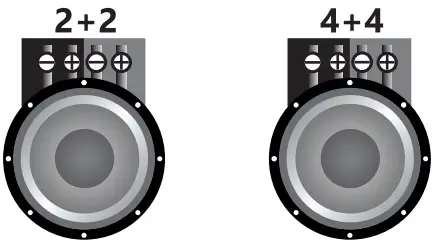

Voice coils 2+2,4+4 Ohm
The subwoofer has a voice coil D2 or D4.

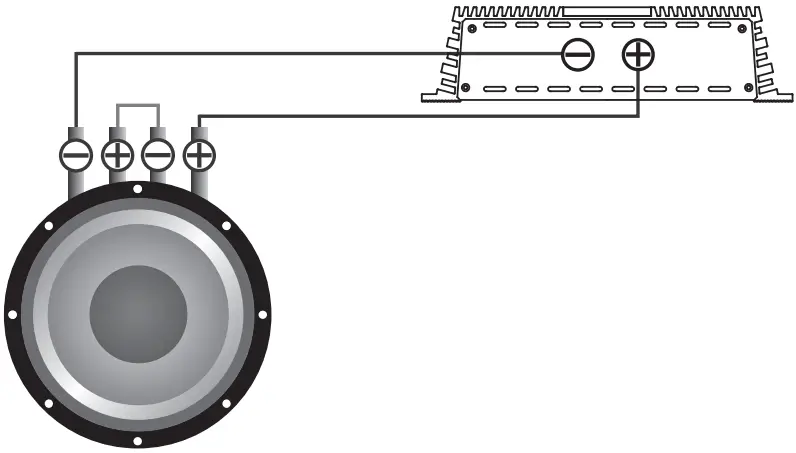

One subwoofer, coils in series
| Voice coils | Total Impedance |
| 2+2 Ohm | 4 Ohm |
| 4+4 Ohm | 8 Ohm |

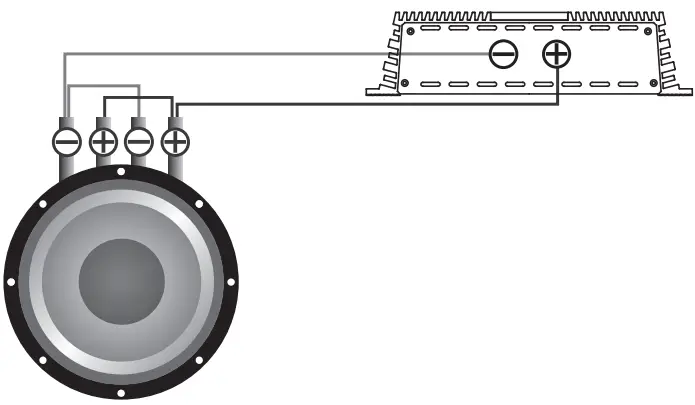

One subwoofer, coils in parallel
| Voice coils | Total Impedance |
| 2+2 Ohm | 1 Ohm |
| 4+4 Ohm | 2 Ohm |

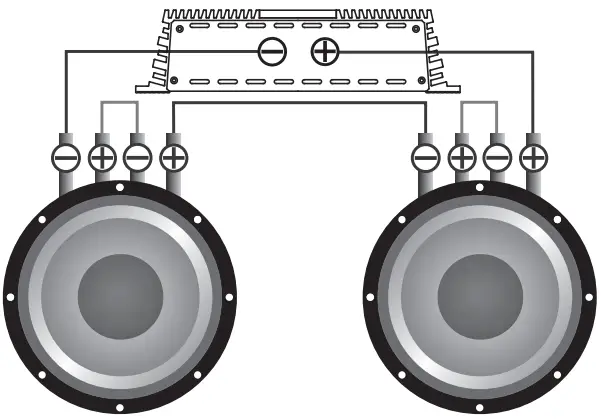

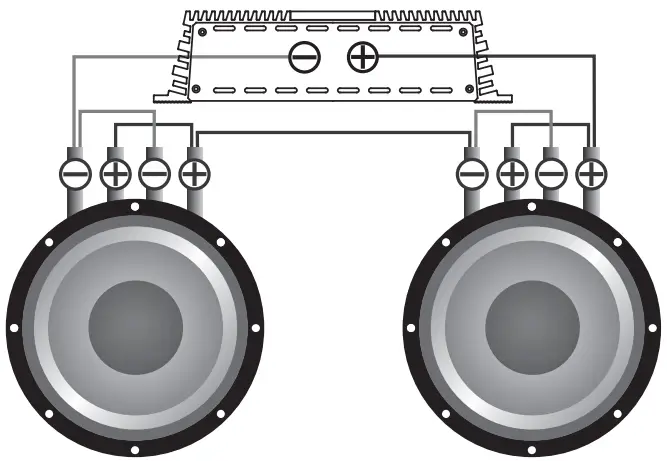

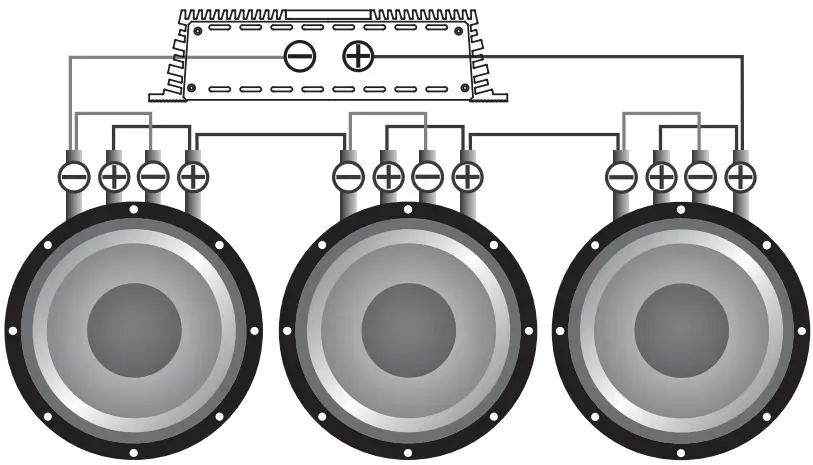

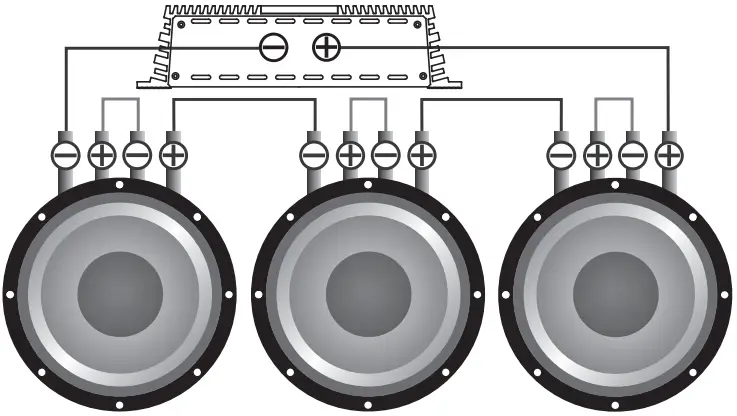

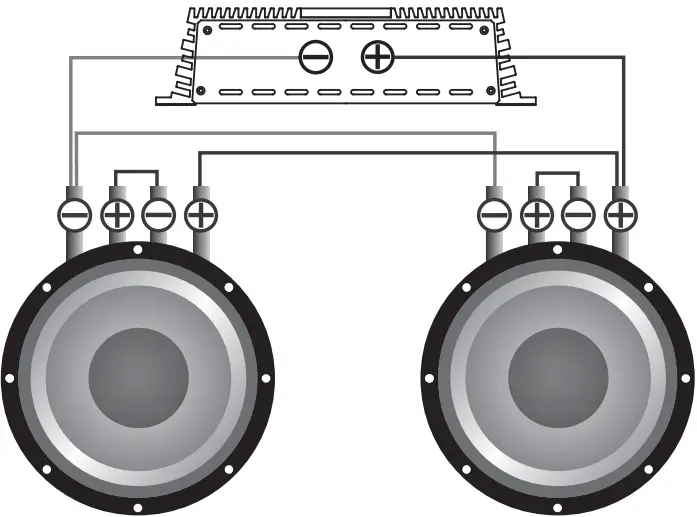

Subwoofers In series, coils in parallel
| Voice coils | Total Impedance |
| 2+2 Ohm | 2 Ohm |
| 4+4 Ohm | 4 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 3 Ohm |
| 4+4 Ohm | 6 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 4 Ohm |
| 4+4 Ohm | 8 Ohm |

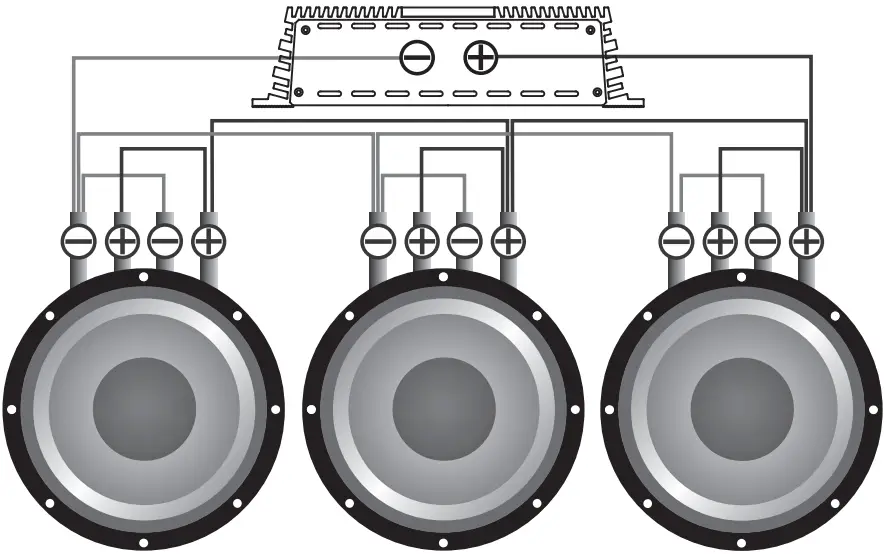

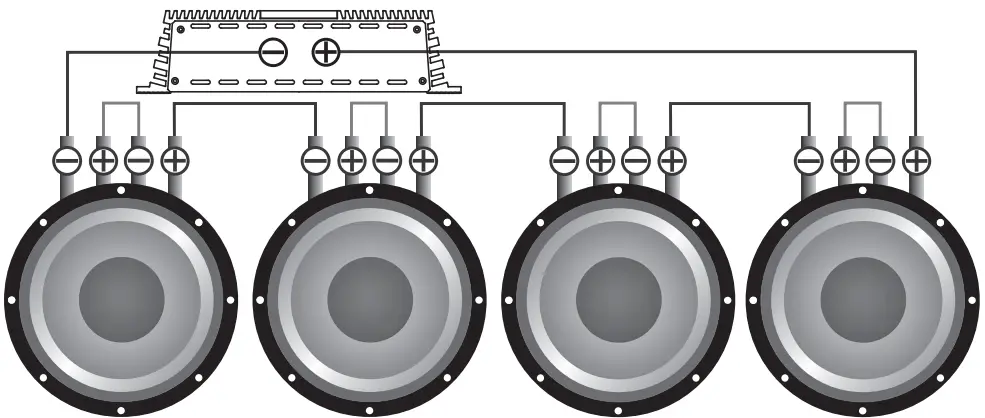

Subwoofers in Series, coils in series
| Voice coils | Total Impedance |
| 2+2 Ohm | 8 Ohm |
| 4+4 Ohm | 16 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 12 Ohm |
| 4+4 Ohm | 24 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 16 Ohm |
| 4+4 Ohm | 32 Ohm |
Subwoofers in parallel, coils in series
| Voice coils | Total Impedance |
| 2+2 Ohm | 2 Ohm |
| 4+4 Ohm | 4 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 1.33 Ohm |
| 4+4 Ohm | 2.66 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 1Ohm |
| 4+4 Ohm | 2 Ohm |

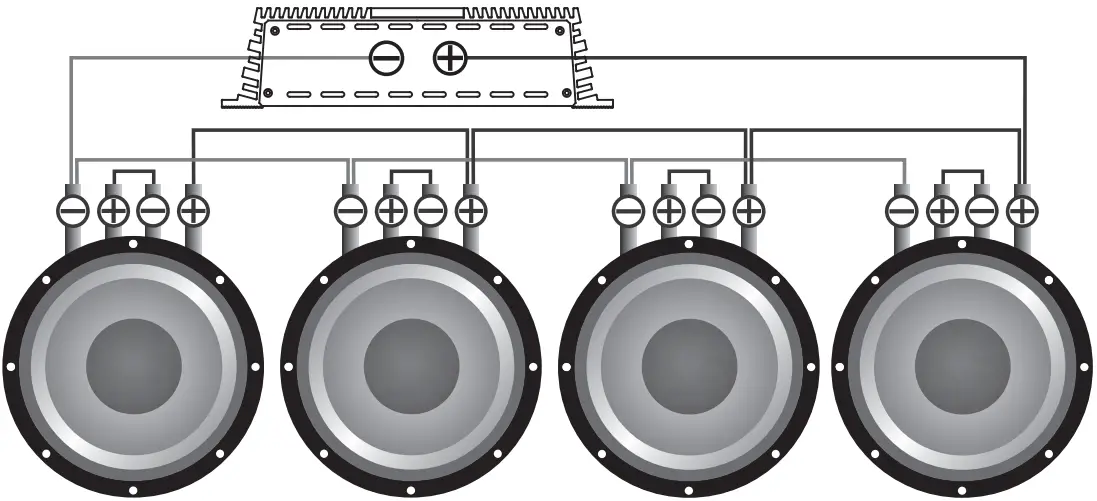

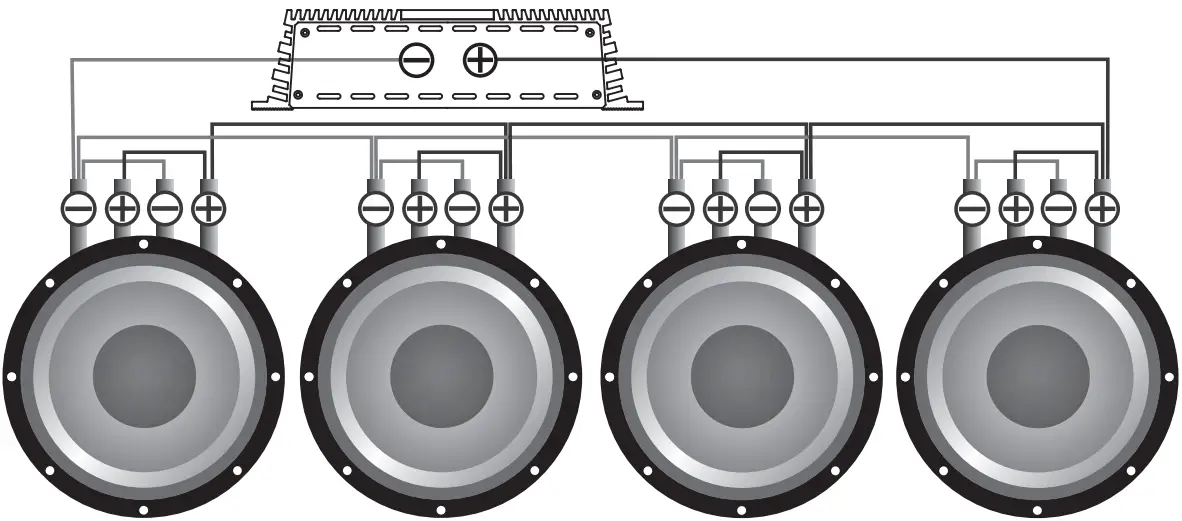

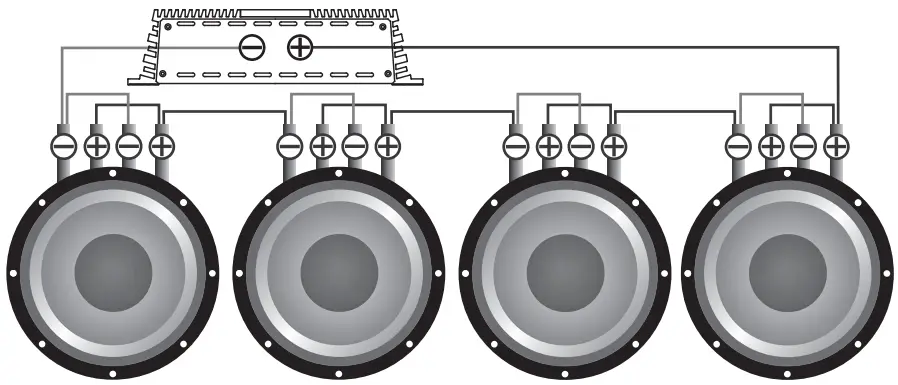

Subwoofers in parallel, coils in parallel
| Voice coils | Total Impedance |
| 2+2 Ohm | 0.5 Ohm |
| 4+4 Ohm | 1 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 0.33 Ohm |
| 4+4 Ohm | 0.66 Ohm |
| Voice coils | Total Impedance |
| 2+2 Ohm | 0.25 Ohm |
| 4+4 Ohm | 0.5 Ohm |
CAUTION!!! High sound pressure can damage your health!
Please use common sense when controlling volume!
Selection of the diameter of speaker cables

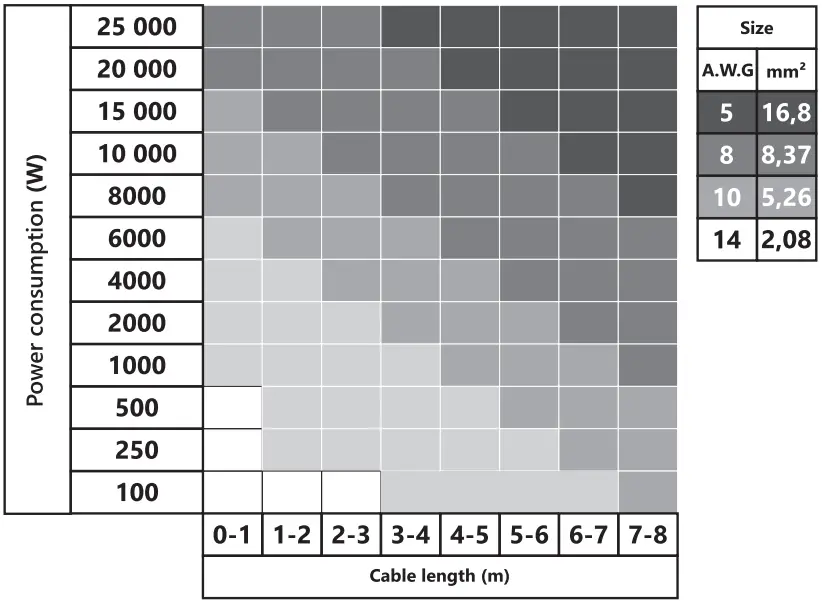

Use the table below to select the desired diameter based on the length and the power consumption.
RECOMMENDED ENCLOSURE PARAMETERS
Bass reflex box

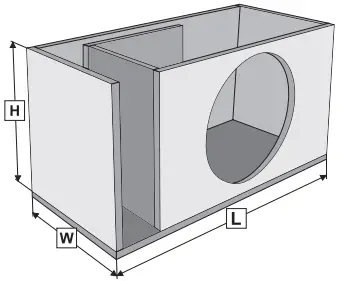

L*W*H = body volume
| Model | ML-10S D2/D4 | ML-125 D2/D4 |
| The recommended volume, liters / ft³ | 40 / 1.4 | 50 / 1.8 |
| Port area, cm² / inch² | 80 / 12.4 | 100 / 15.5 |
| Port length, cm / inch | 35 / 13.8 | 33 / 13 |
| The port setting, Hz | 37 | 37 |
HOW TO USE
The correct choice of the amplifier, its settings, and enclosure design prolong the lifetime of your subwoofer. You should select an amplifier with a nominal power below the nominal power of the subwoofer. Proper coordination of the head unit (HU) with the amplifier will provide a clean, undistorted signal fed to the subwoofer, which prevents overheating and voice coil damage. Like any other speaker, the subwoofer has moving and stationary parts. We strongly recommend that the moving parts of the subwoofer should be warmed up at the beginning of the operation. Be extra careful when warming up the parts. Warm up the subwoofer using musical material for 40 hours at medium power. If you feel a strange smell during operation at maximum volume, you should lower the volume of the subwoofer and let the device to cool down at a low volume.
Recommended settings of the amplifier and HU: The volume of HU should not exceed 80%. The amplifier sensitivity should be set to 50%, subsonic filter frequency (Subsonic) should be set to 5 Hz below the port settings. For example, if you configure the port at 30 Hz, Subsonic should be set to 25 Hz. The low pass filter LPF (the filter that cuts all frequencies above those set for the filter) should be set to 63-80 Hz, and the bass boost should be set to 0.
SPECIFICATIONS
| Model | ML-10S D2/D4 | ML-12S D2/D4 |
| Size (Inch) | 10 | 12 |
| Surround material | Foam | Foam |
| Cone material | Pressed paper | Pressed paper |
| Frame material | Stamped steel | Stamped steel |
| Magnet type | Ferrite | Ferrite |
| Power RMS (W) | 300 | 300 |
| Power MAX (W) | 600 | 600 |
| Voice coil size (Inch) | 1.5 | 1.5 |
| Voice coil wire | Copper | Copper |
THIELE-SMALL PARAMETERS
| Impedance (Ohm) | 2+2 / 4+4 | 2+2 / 4+4 |
| Re (Ohm) | 1.8+1.8 / 3.6+3.6 | 1.8+1.8 / 3.6+3.6 |
| SPL (dB) | 85.9 / 86 | 88.9 / 89 |
| Xmax (mm) | 10 | 10 |
| Fs (Hz) | 39.7 / 40 | 35.7 / 36 |
| Vas (L) | 16.2 / 16.9 | 41.6 / 42 |
| Qts | 0.4 / 0.41 | 0.46 / 0.47 |
| BL | 16 / 16.3 | 15.8 / 16.1 |
This specified sensitivity is not directly connected with the sound pressure in the vehicle and therefore should not be used as the sole indicator for comparison with other subwoofers.
DIMENSIONS
BOX CONTENTS
- Subwoofer -1 pc.
- Owner’s Manual -1 pc.
- Warranty card -1 pc.
WARRANTY AND MAINTENANCE INFO
Deaf Bonce products are warranted against defects concerning materials and their manufacturing under normal functioning conditions.
While the product is under warranty, defective parts will be repaired or replaced at the manufacturer’s decision. The defective product, along with a notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.
Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses, or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read the warranty card.
INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION)
Items marked “crisscrossed wheeled bin” are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal/recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal help to protect the environment and prevent harmful effects on health.
Manufacturer: Ningbo Sound Solution I&E Trading Co., Ltd Made in China
https://alphard.audio
