KING OF BLUES OVERDRIVE
USERS MANUAL
DESCRIPTION
- Two channels overdrive,mutual independence
- Dynamic, excellent clean up for each channel
- Engine A: Plump middle frequency, outstanding edge
- Engine B: Smooth and fat tone
- High-quality component, true bypass circuit

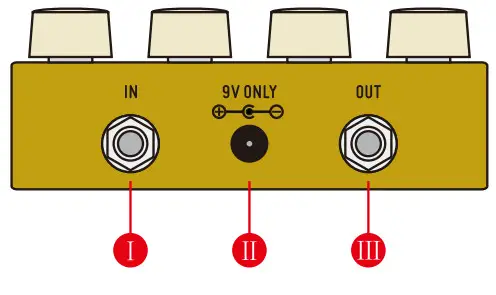

Input Jack
DC Adapter Jack
Output Jack

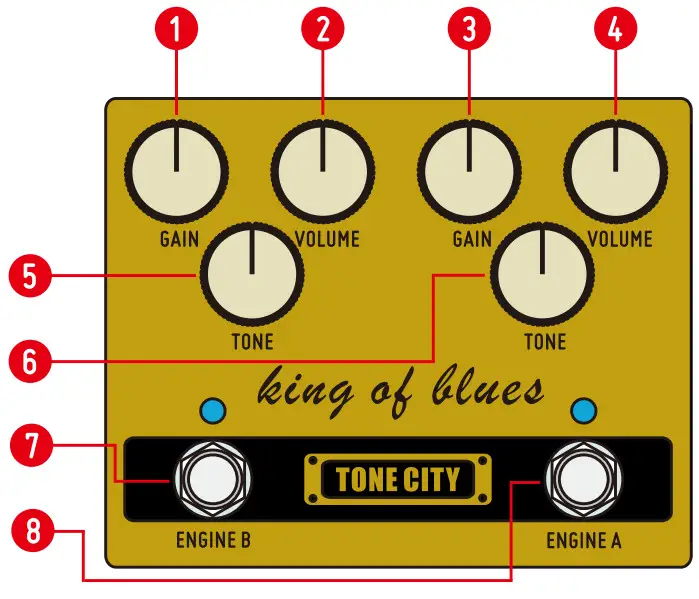

- Gain control of channel B
- Volume control of channels B
- Gain control of channel B
- Volume control of channels B
- Tone control of channel B
- The tone control of channel B
- On/Off switch of channel B
- On/Off switch of channel B
SPECIFICATIONS
| Input Impedance: | 1MQ |
| Output Impedance: | 10 KO |
| Nominal Input Level: | -10dB |
| Max Output Level | |
| Engine A turn on only | 11 dB |
| Engine B turn on only | 10 dB |
| Bypass: | True bypass |
| Current Draw: | Both Engine Turn On 25mA |
| Power Supply: | DC 9V Regulated |
| Dimensions: | 92mm120mm55mm |
| Weight: | 500g |
Thank you for choosing Tone City products.This pedal is granted two years warranty.More information please visit our website.
Serial#
Purchase [a[…………………
Retailer:………………………………
TONECITYAUDIO CO., LTD WWW.TONECITYAUDIO.COM
