Asus Pad-b3000dq1 Expertbook B3 Detachable Laptop User Guide

E18865
First Edition / February 2022
IN SEARCH OF INCREDIBLE
User Guide

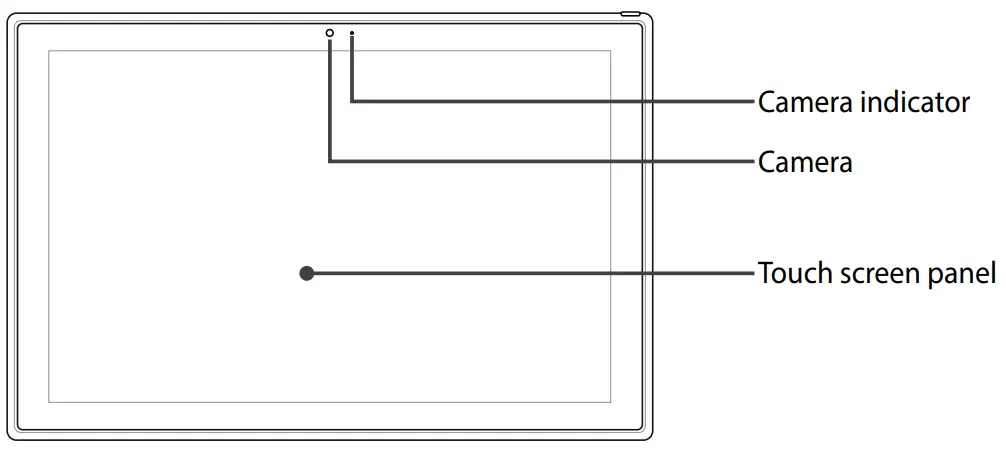

Front View

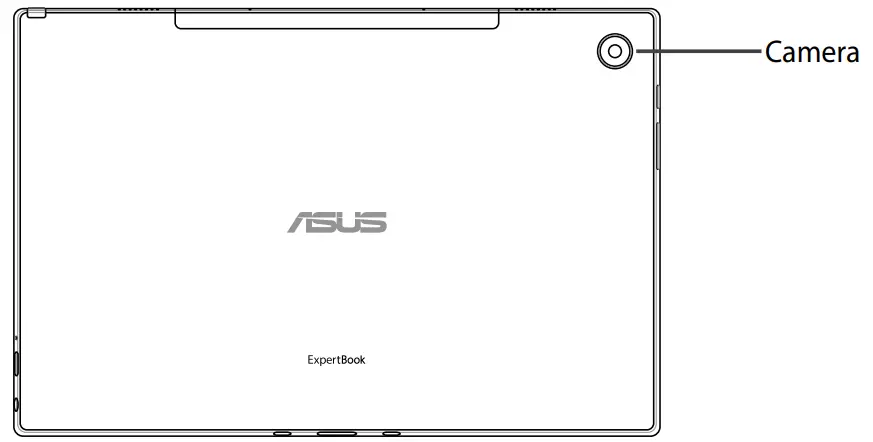

Rear View

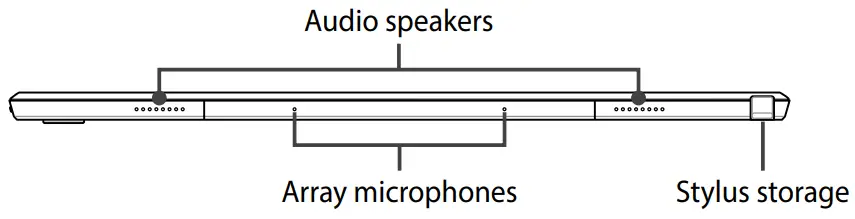

Top View

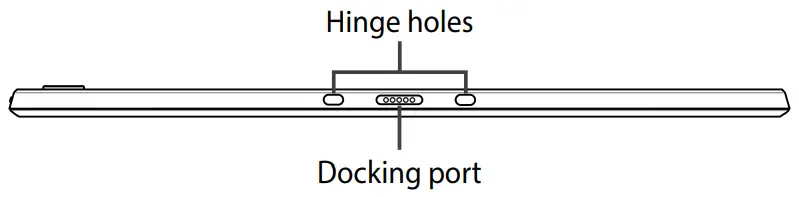

Bottom View

Right View

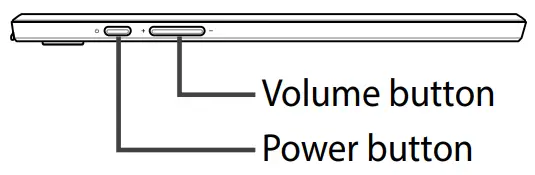

Left View

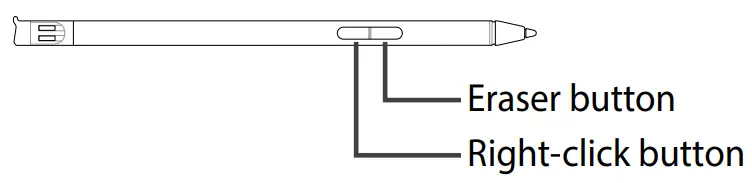

ASUS Pen (on selected models)

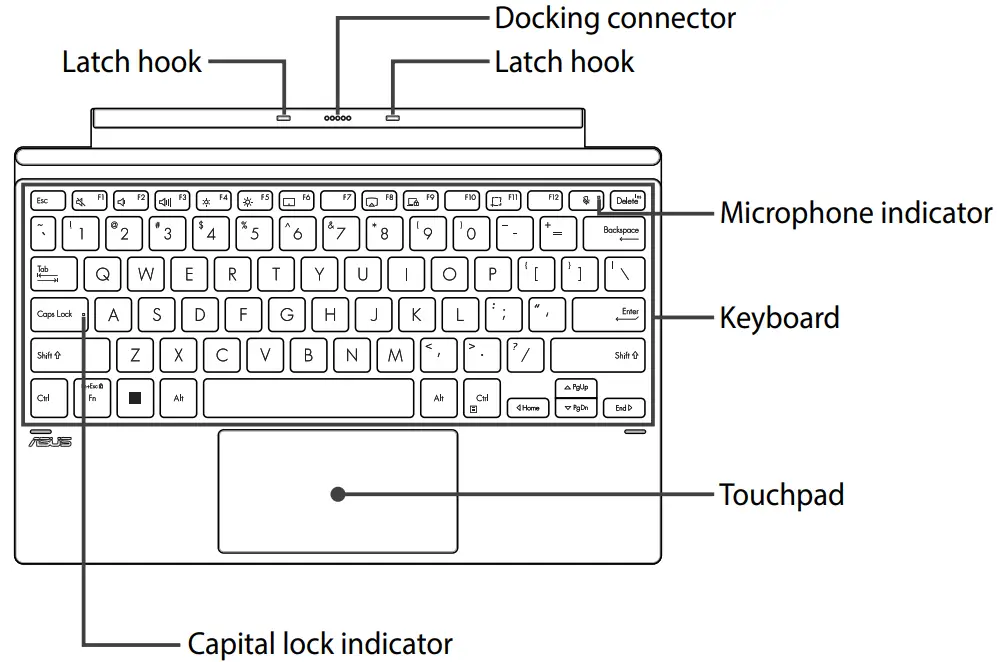

Detachable keyboard (on selected models)

NOTE: The keyboard’s layout may vary per region or country.

Dual-orientation kickstand

Using the kickstand

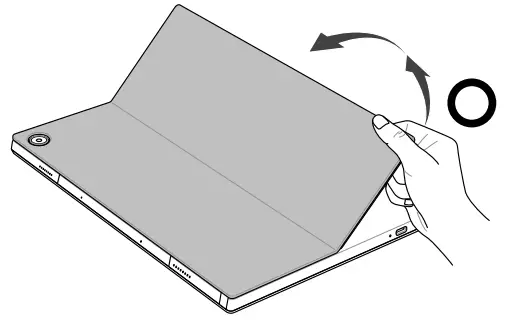

Remove the kickstand

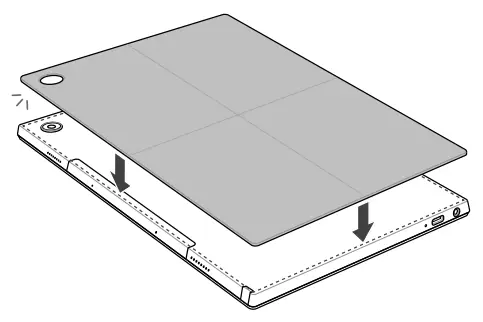

Attach the kickstand

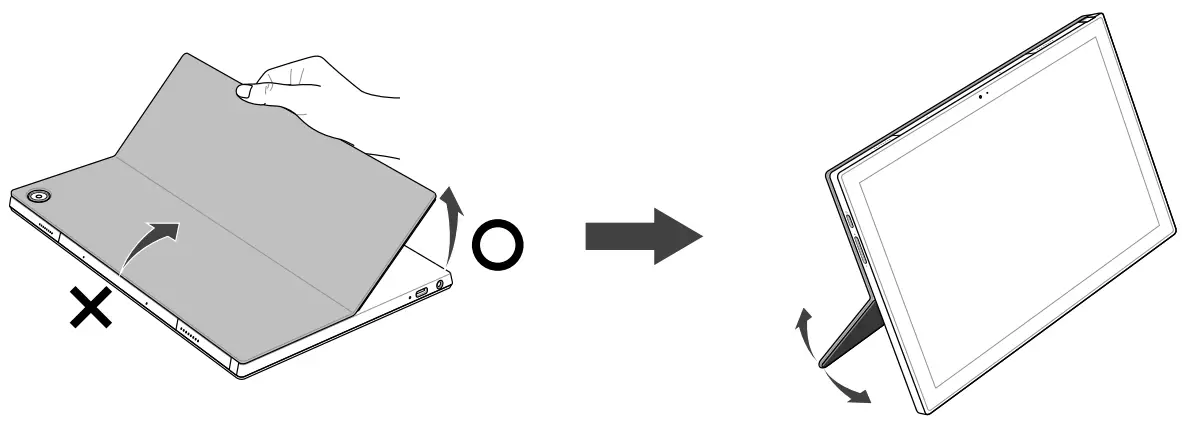

Landscape view

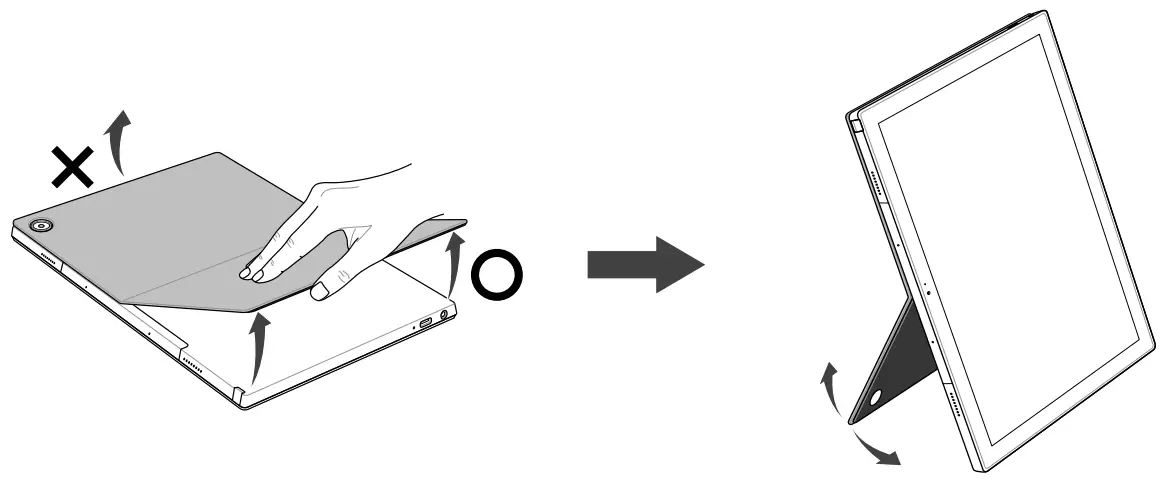

Portrait view

Getting started

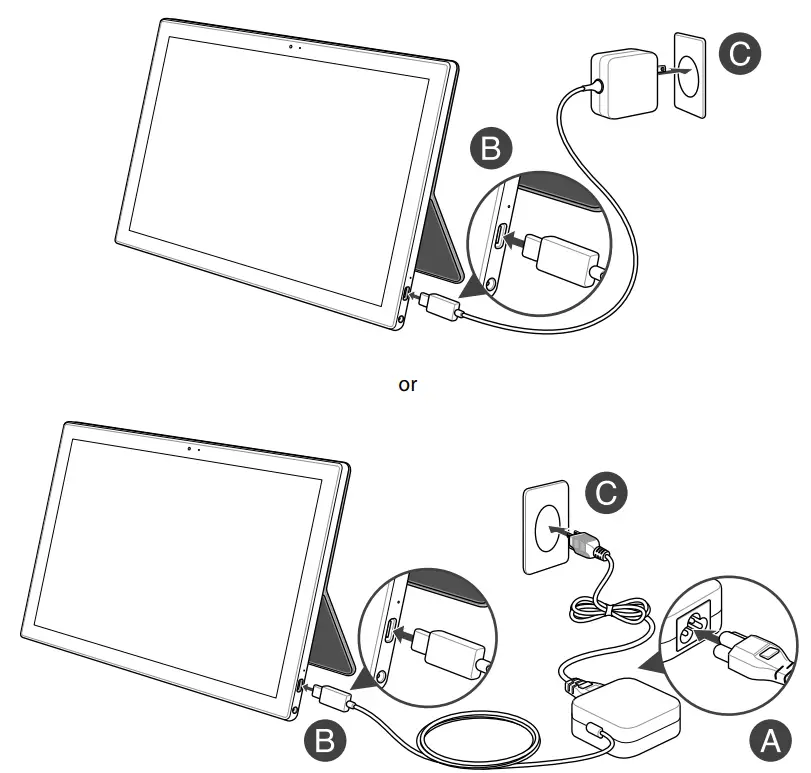

Charge your ASUS Tablet
A. Connect the AC power cord to the AC/DC adapter.
B. Connect the DC power connector to your ASUS Tablet’s power (DC) input port.
C. Plug the AC power adapter into a 100V~240V power source.
IMPORTANT! Use only the bundled power adapter to charge the battery pack and supply power to your ASUS Tablet.
NOTE: The power adapter may vary in appearance, depending on models and your region.

Charge the ASUS Tablet for 3 hours before using it in battery mode for the first time.

Press the power button

Safety notices for your ASUS Tablet

WARNING!
Your ASUS Tablet can get warm to hot while in use or while charging the battery pack. Do not leave your ASUS Tablet on your lap or near any part of your body to prevent injury from heat.
When working on your ASUS Tablet, do not place it on surfaces that can block the vents.

CAUTION!

• This ASUS Tablet should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F).
• Refer to the rating label on the bottom of your ASUS Tablet and ensure that your power adapter complies with this rating.
• The power adapter may become warm to hot while in use. Do not cover the adapter and keep it away from your body while it is connected to a power source.

IMPORTANT!

• Ensure that your ASUS Tablet is connected to the power adapter before turning it on for the first time. Always plug the power cord into a wall socket without using any extension cords.

For your safety, connect this device to a properly grounded electrical outlet only.

• When using your ASUS Tablet on power adapter mode, the socket outlet must be near to the unit and easily accessible.
• Locate the input/output rating label on your ASUS Tablet and ensure that it matches the input/output rating information on your power adapter. Some ASUS Tablet models may have multiple rating output currents based on the available SKU.
• Power adapter information:
  – Input voltage: 100-240Vac
  – Input frequency: 50-60Hz
  – Rating output current: 3A (45W)
  – Rating output voltage: 15V

WARNING!
Read the following precautions for your ASUS Tablet’s battery:

• Only ASUS-authorized technicians should remove the battery inside the device (for non-removable batteries only).
• The battery used in this device may present a risk of fire or chemical burn if removed or disassembled.
• Follow the warning labels for your personal safety.
• Risk of explosion if the battery is replaced by an incorrect type.
• Do not dispose of it in fire.
• Never attempt to short-circuit your ASUS Tablet’s battery.
• Never attempt to disassemble and reassemble the battery (for non-removable batteries only).
• Discontinue usage if leakage is found.
• This battery and its components must be recycled or disposed of properly.
• Keep the battery and other small components away from children.

Copyright Information

You acknowledge that all rights of this Manual remain with ASUS. Any and all rights, including without limitation, in the Manual or website, are and shall remain the exclusive property of ASUS and/or its licensors. Nothing in this Manual intends to transfer any such rights or to vest any such rights to you.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS.
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages, or claims based on contract, tort, or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Service and Support

For a complete E-Manual version, refer to our multi-language website at: https://www.asus.com/support/

FCC Radio Frequency (RF) Exposure Caution Statement
WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact with the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

UL Safety Notices

• DO NOT use the ASUS Tablet near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.
• DO NOT use the ASUS Tablet during an electrical storm. There may be a remote risk of electric shock from lightning.
• DO NOT use the ASUS Tablet in the vicinity of a gas leak.
• DO NOT dispose of the ASUS Tablet battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• DO NOT use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL-certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Coating Notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except in the areas where the I/O ports are located.

Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.

Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to H05VV-F, 3G, 0.75mm2 or H05VV-F, 2G, 0.75mm2.

Declaration of Compliance for Product Environmental Regulation
ASUS follows the green design concept to design and manufacture our products and makes sure that each stage of the product life cycle of ASUS product is in line with global
environmental regulations. In addition, ASUS discloses the relevant information based on regulation requirements. Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with.
EU REACH and Article 33
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products on the ASUS REACH website at http://csr.asus.com/english/REACH.htm.
EU RoHS
This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35.
Japan JIS-C-0950 Material Declarations
Information on Japan RoHS (JIS-C-0950) chemical disclosures is available at http://csr.asus.com/english/article.aspx?id=19.
India RoHS
This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits the use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS
ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Ecodesign Directive
European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specific Implementing Measures are aimed at improving the environmental performance of specific products or across multiple product types. ASUS provides product information on the CSR website.
Further information could be found at https://csr.asus.com/english/article.aspx?id=1555.
EPEAT Registered Products
The public disclosure of key environmental information for ASUS EPEAT (Electronic Product Environmental Assessment Tool) registered products is available at https://csr.asus.com/english/article.aspx?id=41. More information about the EPEAT program and purchase guidance can be found at www.epeat.net.

Regional notice for Singapore
Complies with IMDA Standards DB103778
This ASUS product complies with IMDA Standards.

RF Exposure Information (SAR)

This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.
RF Exposure information (SAR)
This device meets the EU requirements (2014/53/EU) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The limits are part of extensive recommendations for the protection of the general public. These recommendations have been developed and checked by independent scientific organizations through regular and thorough evaluations of scientific studies. The unit of measurement for the European Council’s recommended limit for mobile devices is the “Specific Absorption Rate” (SAR), and the SAR limit is 2.0 W/Kg averaging over 10 grams of body tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).
For next-to-body operation, this device has been tested and meets the ICNIRP exposure guidelines and the European Standard EN 50566 and EN 62209-2. SAR is measured with the device directly contacted to the body while transmitting at the highest certified output power level in all frequency bands of the mobile device.
A minimum separation distance of 1 cm must be maintained between the user’s body and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in Europe.

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at https://www.asus.com/support/.
The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for countries listed in the table below:

Simplified UKCA Declaration of Conformity
ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 (S.I.
2017/1206). The full text of the UKCA declaration of conformity is available at https://www.asus.com/support/.
The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for the country listed below:

Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC COMPLIANCE INFORMATION
Per FCC Part 2 Section 2.1077

hereby declares that the product

compliance statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE RED RF Output table (Directive 2014/53/EU)

For the standard EN 300 440, if this device operates in 5725-5875 MHz, it will be considered as a receiver category 1.

UKCA RF Output table
(The Radio Equipment Regulations 2017)
For the standard EN 300 440, if this device operates in 5725-5875 MHz, it will be considered as a receiver category 1.
