LED Bulb String Light
User Manual
Pack Package Contents
| String Light ( 15M) | 1 |
| Remote Control | |
| Plug | 1 |
| Instruction Manual | 1 |
2 Pack Package Contents:
| String Light ( 15M) | 2 |
| Remote Control | 2 |
| Plug | 2 |
| Instruction Manual | 1 |
Software overview
1.1 Overview
- Magic Lantern is a mobile APP program that is compatible with Apple or Android systems to control LED string fights.
- The APP control replaces traditional infrared, 433, 2.4G, and other old remote control methods. which Is convenient, fast, powerful, and extensible!
- The color, brightness, and color temperature of the LED string light can be intelligently controlled through the APP to display various flashing modes and the string light can lump with the rhythm of the music. Just open the Intelligent APP control software. APP can connect one or more LED string lights via Bluetooth to regulate various settings and control several strings of LED The operation is very simple, easy to learn, and use!
1.2 Function
- LEO string light supports 60 thousand light colors and brightness adjustment when you set it up to multiple colors mode. When light displays single color, you can only adjust brightness and color temperature.
- Playing mobile phone music or turning on an audio playback device can make the light change its color and brightness with the rhythm of the music, and the effect of light fluctuation Is beautiful.
- A variety of preset light modes, automatic changes its effect separate from the control of the mobile phone.
- Long-distance control without distance Imitation, and group to group control mode:
- Led string lights will automatically connect to your Bluetooth next time once successfully connected.
1.3 Performance
Magic Lantern APP is easy to use as well as great compatibility for all kinds of smartphones, The test verification of hundreds of mobile phones has proved that APP can be compatible watt more than 95% of the mobile phones on the market. APP is small and convenient to use. it occupies fewer system resources. and has low requirements for the configuration of mobile phones. It barely appears to control delay, the operation feels good. the Rita control is very smooth with people’s visual sense.
Operating environment
This APP requires a mobile phone system is Android 4.3 and iOS 8.0 or higher. No Imitation on the configuration of mobile phone.
How to use
Note: The Android system and iOS system are basically the same for downloading and operating. Here, the Android system is used as an example for explanation.
3,1 APP download
Both iOS and Android systems can download the Magic Lantern by scanning the OR coda.
http://www.easytrack.net.cn/download_Mgc/184SHANGPINZHINENG
After the software is successfully downloaded and installed, click APK to install. After the installation is complete. the following program icons will appear on the desktop:

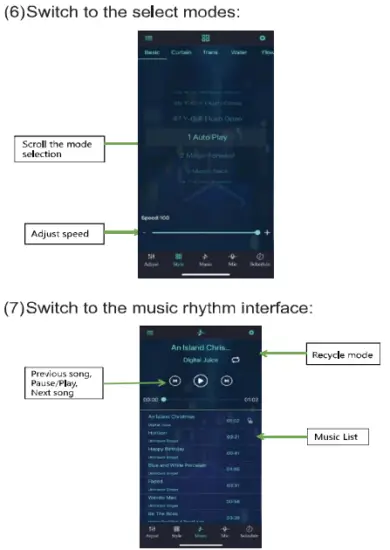

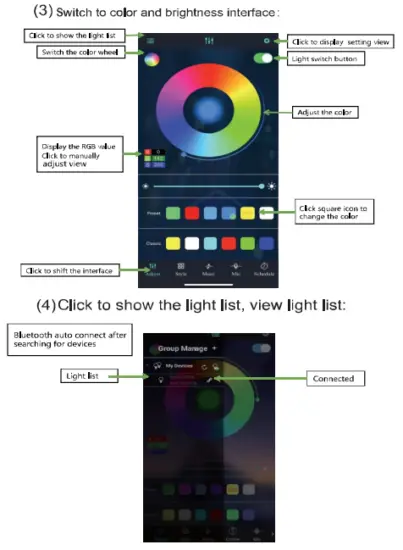

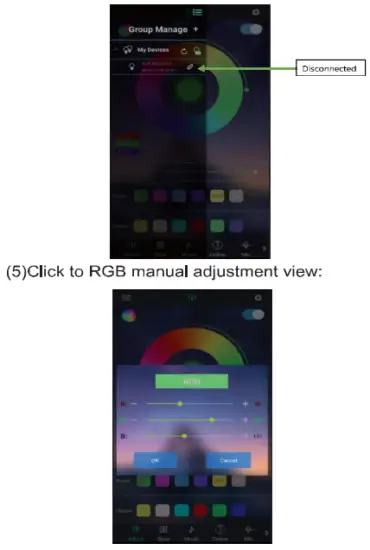

3.2 Software operation (1) Click the Magic Lantern APP
(2)After entering the APP Interface, If Bluetooth does not turn on, It will pop up “An application wants to turn on the Bluetooth function of this device’ Click [Allow]:

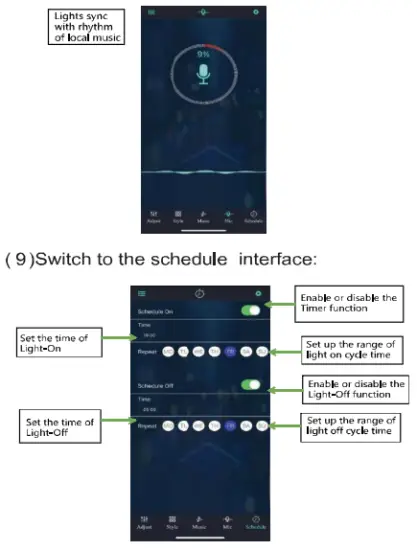

(8) Lights sync with the rhythm of external music
| NO. | Specifications | Parameters(Unit) | Picture: |

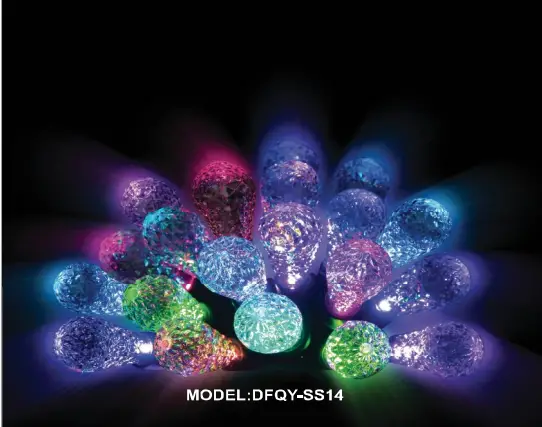

| 1 | Model No | DFOY-5514 |  |
| 2 | Diameter | 25 heads 15M | |
| 3 | Lamp Weight | 7000109 | |
| 4 | Color | Black | |
| 5 | Base Type | C35 | |
| Housing — material | PVC | ||
| Lens—Material Power | PS | ||
| 6 | Box—Malarial | PC | Diameter: (Unit mm) |
| 7 | Dimmable | Yes  NO | |
| 8 | Control Distance | Within 20rn | |
| 9 | Output power: | lOW | |
| 10 | Output voltage: | AC85V -265V 25pcs, 505ORGB | |
| 11 | LED | LEoaiw 30mA testing | |
| 12 | Lifetime | 25000H(Ta=25°C ) | |
| 13 | rating | IP66 | |
| 14 | Cobra Temp | 2700k-6000k | |
| 15 | Lumen | 5LM each | |
| 16 | Work Temp | -20T -1-40 IC | |
| 17 | Work Humidity | 10 96-65% | |
| 18 | Storage Temp | -30°C —+70°C | |
| 19 | Storage Humidity | 1046-90% | |
| 20 | Lights Function Control | APP Control & Remote Control |
Instructions for Remote Control

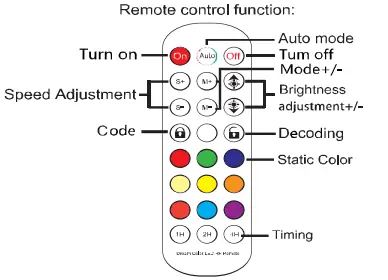

Remote control function:
Caution:
1-warranty: Do not use the chemical liquid as volatile alcohol. gasoline Of other corrosive liquids to clean the products, this will make damage the product. thus affecting the lifetime Of the product.
2.-Warning:
(1)When using this product, please pay attention to high voltage safety. make sure the AC Is cut off when wiring
(2)Check all circuits after the product is completely assembled. and make sure there is nothing wrong with the circuit before connecting with power supplies.
(3)Maintenance of lamps must be operated by professional GO& icons. Please don’t disassemble It if you are not a professional technician.
(4)11 the product is used in a non-airtight environment, it cannot be covered with any insulation material.
(5)Long time exposure to sunlight or IN can cause the gum to discolor.
(6)Please do not use it together with the materials containing sulfur.
(7)Please do not use it in conditions of high moisture or oxidizing 9a8 Such as CL.H2S.NH3.602,NOX.etc

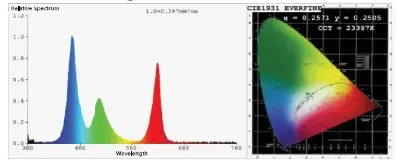

Spectrum
Data for Single Bulb:
Color Parameter:
Chromaticity Coordinates:
X=0.2571 y=0.2505/u’=0.1872 ii=0.4105
Correlated Color Temperature:
CCT=23397K(Chromatic Aberration Duv=-0.0043)
Dominant Wavelength:
Ad=475.3nm Color Purity:
Purity=33.9% Color Ratio:R=25.6% G=61.2% B=13.1%
Peak Wavelength•Ap=463.6nm
Half peak bandwidth: FWHM=18.4nm
Color Rendering Index:
Ra=34.3 CRI=30.7 Avgr=28.6 R1=8 R2=43 R3=69 R4=31 }
R5=33 R6=41 R7=50 R8=0 R9=0 R10=0 R11=19 R12=47
R13=13 R14=77 R15=0
Photometric Parameters:
Luminous Flux: 4)=4.4191m Light Effect:1.22 1 mAN
Radiant Flux : 4)e=20.19mW Electrical Parameters :
Voltage V=120.01v Current 1=0.06514 A Power P=3.621
Power Factor PF=0.4632
Grade: OUT White Light Classification:OUT
Instrument Status: T=4737ms Ip=16000(248)
Customer Quality Assurance The warranty period of this product in six months. During the warranty period, if it is not artificially damaged, we will replace it or refund it. Just contact us by Email or Facebook, we will be here to serve you. We try our best to ensure that your products are of excellent quality and meet the highest standards. You can expect every product to have outstanding quality and durability.
Important: You may be asked to provide proof of purchase, such as a screenshot of the order number or order details. If you can attach a video or photo to describe the problem, we would appreciate it.
Here is our email and Facebook OR code: Hopefriendl 230 outlook.com
https://www.facebook.com/profile.php?id=100065575813233
https://www.facebook.com/profile.php?id=100026707026865
LED Bulb String Light
ATTENTION:
- Light string lights must be powered under 24V
- The remote control must be aligned to the infrared receive
- The led strips light must be connected correctly according
Manufacturer: SHENZHEN DONGFANG QIVIOPTO ELECTRONIC TECHNOLOGY CO., LTD
Address: Zone A, Floor 4, Building 6,140.4Industrial Zone, xian Community, Gongmfng Street, Guangming New District, Shenzhen
Tel:86 0755 32920517 [email protected]
MADEN IN CHINA
