Vonyx 170.075 Spj Portable Sound System Instruction Manual

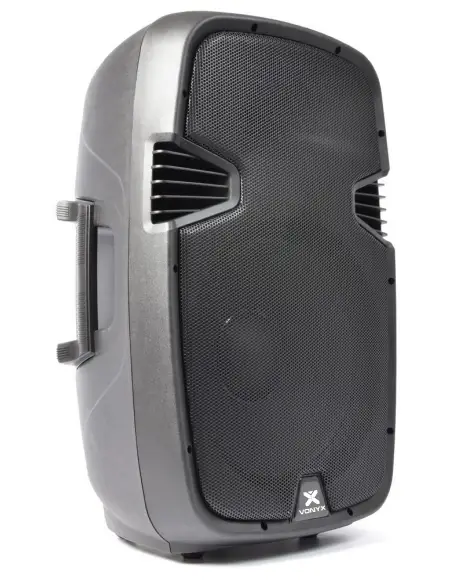

VONYX 170.075 SPJ Portable Sound System

INTRODUCTION

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe condition

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the product be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

+5Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire..

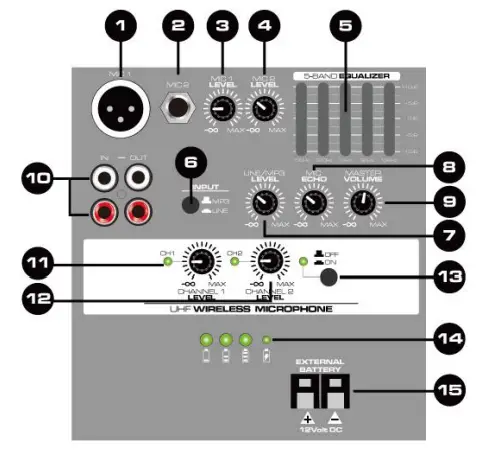

CONTROLS AND CONNECTIONS

1. Microphone Input Channel 1
   XLR input jack for connecting a microphone.
2. Microphone Input Channel 2
   6.3mm ¼” input jack for connecting a microphone.
3. Microphone Level Channel 1
   Adjust the signal level of microphone channel 1.
4. Microphone Level Channel 2
   Adjust the signal level of microphone channel 2.
5. Equalizer
   5-band equalizer for the master signal.
   Adjust frequencies are 100Hz, 300Hz,
   1kHz, 3kHz, 10kHz.
6. Input selector switch
   Selects the input signal:
   ● Button not pressed: signal of media player.
   ● Button pressed: signal of the line input.
7. Line/MP3 Level
   Adjust the level of line- or MP3-signal.
8. Microphone Echo
   Adjust the intensity of the echo effect.
9. Master Volume
   Adjust the overall output level of the portable sound system.
10. Line In-/ Output
    RCA jack in- and output for connecting audio units with line level output (e.g. mixer, CD player, tape recorder).
11. Wireless microphone Level Channel 1
    Adjust the signal level of wireless UHF microphone channel 1.
12. Wireless microphone Level Channel 2
    Adjust the signal level of wireless UHF microphone channel 2.
13. Microphone ON/OFF switch
    ● Button not pressed: received no signal from wireless microphones.
    ● Button pressed: receive signal from wireless microphones.
14. Battery indicator
    LED indicator of the battery capacity and charging.
15. External battery
    Connection for alternative power supply from a 12Volt DC source.

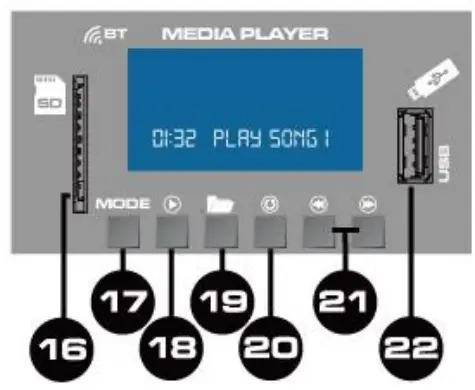

16. SD port
    Connect your SD/MMC card in this slot to play music with MP3 or WMA format.
17. Mode button
    Press the button to select BT/USB/SD function. Press for 2 seconds to turn the mediaplayer on or off.
18. Play button
    For switching between play and pause.
19. Folder button
    Press this button to open the foldermap of USB or SD-card.
20. Repeat button
    Press key for repeating of single track or all tracks.
21. Forward – Backward button
    For title selection (short actuation) and increase or decrease volume (long actuation).
22. USB port
    Connect your USB devices to this slot to play music with MP3 or WMA forma

UHF WIRELESS MICROPHONES

Insert the batteries into the wireless microphones (observe the polarity) and turn all volume controls down. Switch the system ON and the power led will light. Switch the microphones on and increase the Volume knobs to the desired position.

Take care not to incur feedback from the speaker. Turn the Echo and equalizer to a position in order to have the desired sound

CHARGING BATTERY

1.  Set the search function on of the BT device you want to play the music. See the operating instructions for that device..
2. Press the “MODE” button until “AUX” will show in display and activate BT function.
3. Find on your BT-device “VONYX SPJ” and make the connection.

If password is required, you can enter “0000”.

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the “normally correct speaker” is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

TECHNICAL SPECIFICATION

The products referred to in this manual conform to the European Community Directives to which they are subject:
European Union
Tronios B.V.,
Bedrijvenpark Twente Noord 18,
7602KR Almelo, The Netherlands

2014/35/EU
2014/30/EU
United Kingdom
Tronios Ltd.,
130 Harley Street,
London W1G 7JU, United Kingdom

S.I. 2016:1101
S.I. 2016:1091
