ASUS RT-AX88U Pro Dual Band Wi-Fi Router

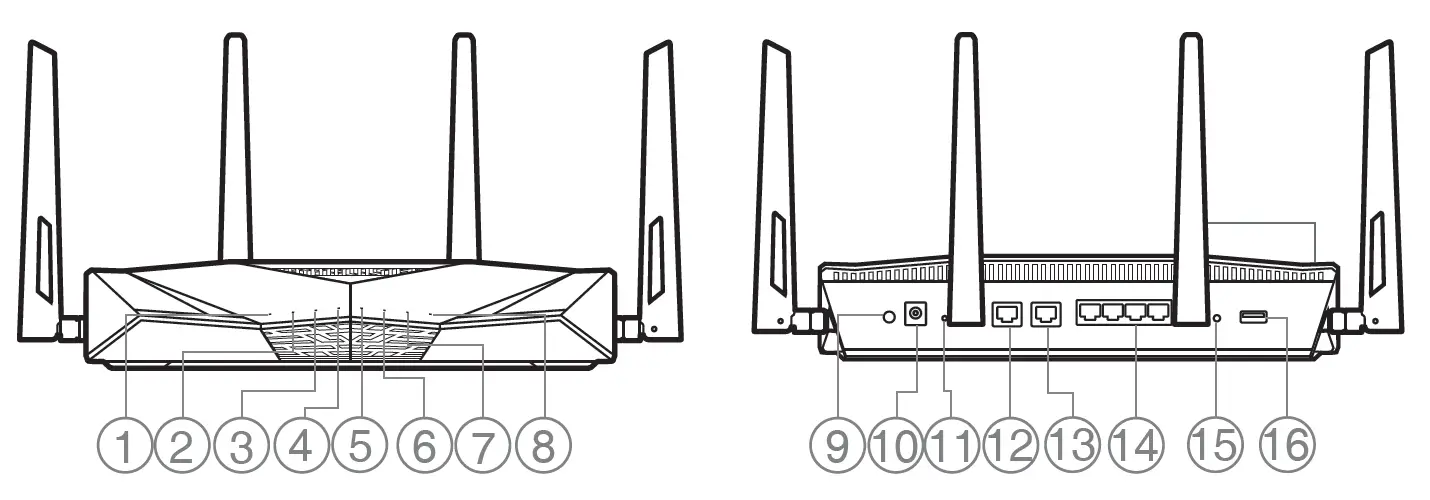

Router Overview
- Power LED
- 5GHz LED
- 2.4GHz LED
- 2.5G/1G WAN LED
- 2.5G/1G LAN LED
- LAN LED
- USB 3.2 Gen 1 LED
- WPS LED
- Power button
- DCIN port
- Reset button
- 2.5G/1G WAN port
- 2.5G/1G LAN port
- LAN 1~4 ports
- WPS button
- USB 3.2 Gen 1 port
* For detailed information, please refer to https://asus.click/RT-AX88U-PRO_ Manual
Specifications
| DC Power adapter | DC Output: +19.5V with 2.31A current +19V with 2.37A current | ||
| Operating Temperature | 0~40oC | Storage | 0~70oC |
| Operating Humidity | 50~90% | Storage | 20~90% |
Service and Support
Video Tutorials
https://qr.asus.com/wl_videotutorials

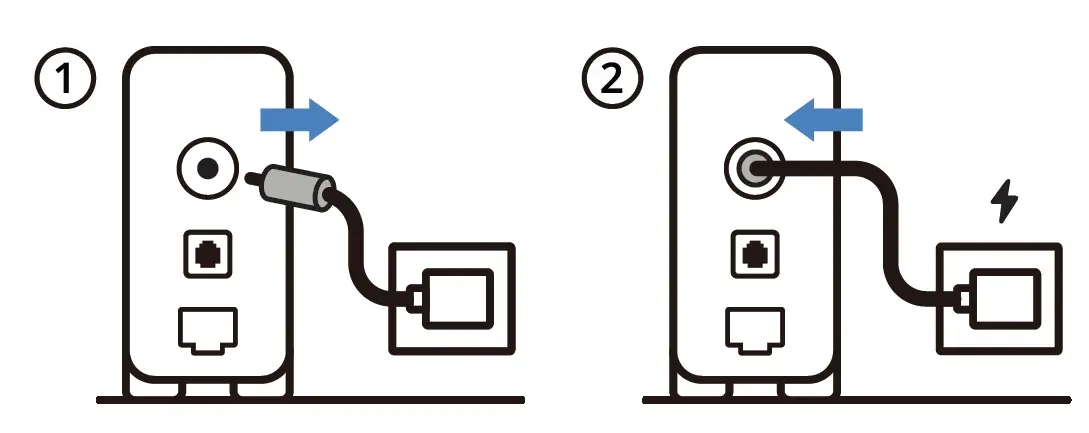

Reboot modem and ensure its connection is ready
Notice: Unplug modem for 10 sec then plug back in

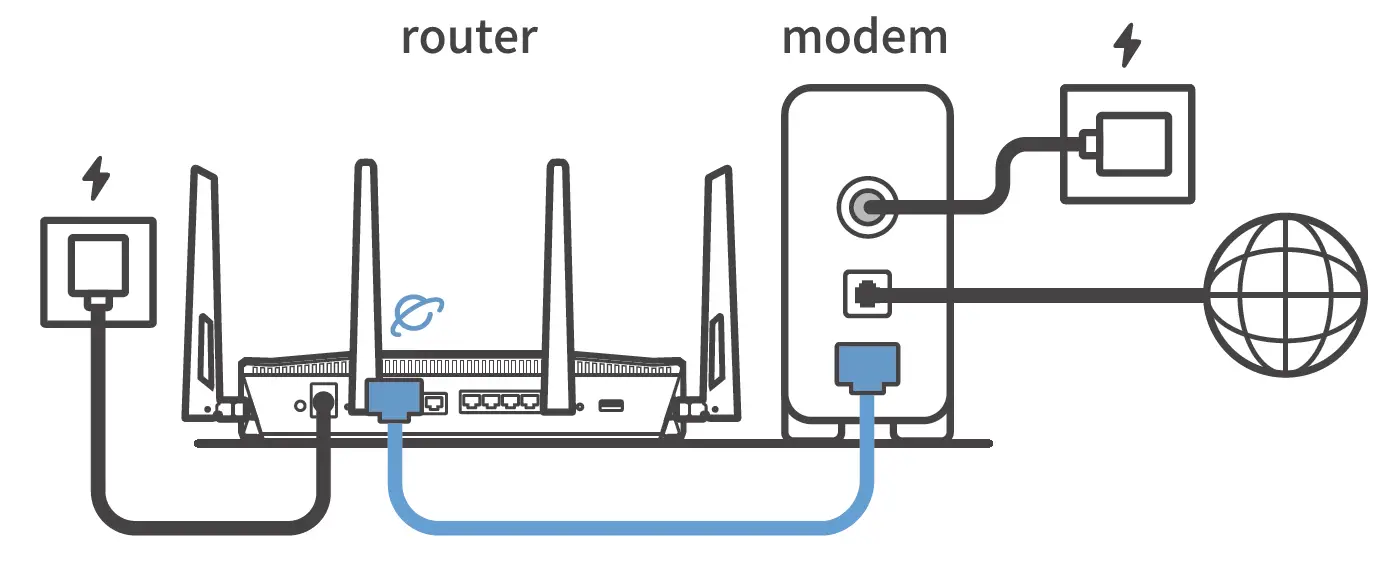

Wired up your ASUS router, and power it on
Once the WAN LED turns ON, it is ready for setup

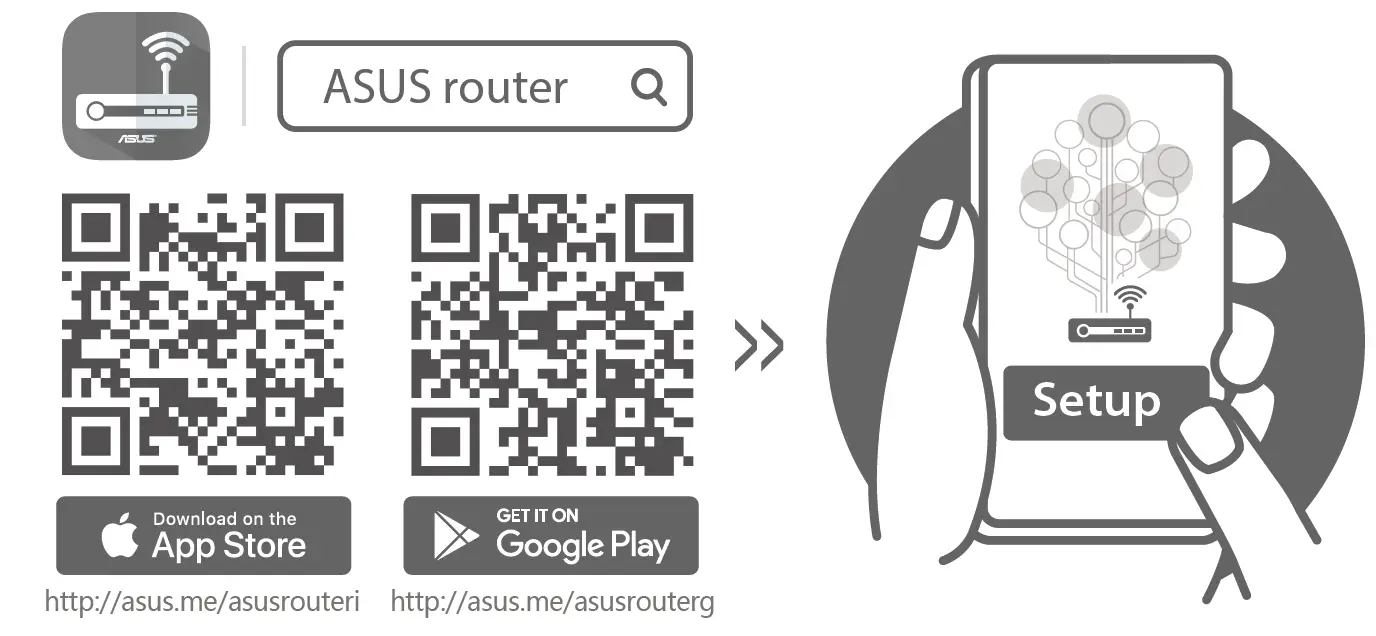

Scan the QR code and download ASUS Router app for setup
asus.me/asusrouterg
ASUS Global
qr.asus.com/wl_videotutorials
Official Support | ASUS Global
