Sonbus Sm5390b Rs485 Interface Outdoor Wind Speed Temperature Humidity Illuminance Integrated Sensor User Manual

Interface Outdoor Wind Speed Temperature Humidity Illuminance Integrated Sensor

 SM5390B User Manual http://www.sonbus.com/

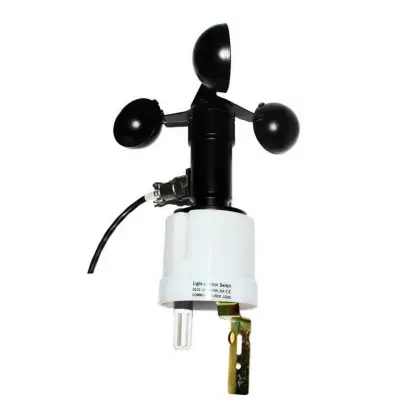

RS485 interface outdoor wind speed, temperature, humidity,  illuminance integrated sensor
User Manual

File Version: V21.3.24

SM5390B using the standard RS485 bus MODBUS-RTU protocol, easy access to PLCDCS and other instruments or systems for monitoring wind speed, temperature, humidity, Illuminance state  quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and  excellent long-term stability, can be customized

RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.

Shanghai Sonbest Industrial Co., Ltd Page1

 SM5390B User Manual http://www.sonbus.com/

Technical Parameters

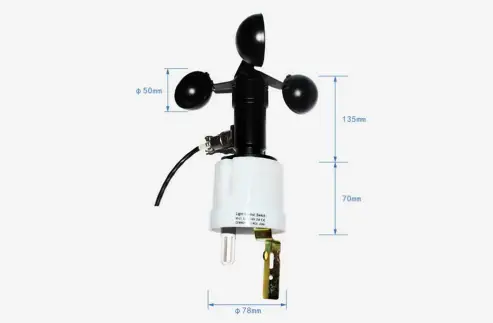

Product Size

Shanghai Sonbest Industrial Co., Ltd Page2

 SM5390B User Manual http://www.sonbus.com/

Wiring instructions

Any incorrect wiring can cause irreversible damage to the product. Please carefully wire the cable as  follows in the case of power failure, and then connect the cable to confirm the correctness and then use it  again.

In the case of broken wires, wire the wires as shown in the figure. If the product itself has no leads, the  core color is for reference.

Communication Protocol

The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands  are hexadecimal data. The default device address is 1 when the device is shipped, the default baud rate is  9600, 8, n, 1

1. Read Data (Function id 0x03)

Inquiry frame (hexadecimal), sending example: Query 1# device 1 data, the host computer sends the  command:01 03 00 00 00 04 44 09 .

For the correct query frame, the device will respond with data:01 03 08 00 7C 00 00 00 00 00 00 28 10 ,  the response format is parsed as follows:

Shanghai Sonbest Industrial Co., Ltd Page3

 SM5390B User Manual http://www.sonbus.com/

Data Description: The data in the command is hexadecimal. Take data 1 as an example. 00 79 is  converted to a decimal value of 121. If the data magnification is 100, the actual value is 121/100=1.21.  Others and so on.

For illuminance, since each parameter occupies 2 bytes and the actual resolution of the 200,000-range illuminance is less than 10, we express 200,000 at 20,000 or 20,000, ie The magnification is  10. For example, when the data read is 839, the actual illuminance value is 8390 LUX.

2. Data Address Table

3 read and modify device address

(1) Read or query device address

If you don’t know the current device address and there is only one device on the bus, you can use the  command FA 03 00 64 00 02 90 5F Query device address.

FA is 250 for the general address. When you don’t know the address, you can use 250 to get the real  device address, 00 64 is the device model register.

For the correct query command, the device will respond, for example the response data is: 01 03 02  07 12 3A 79, the format of which is as shown in the following table:

Response should be in the data, the first byte 01 indicates that the real address of the current device is,  55 3C converted to decimal 20182 indicates that the current device main model is 21820, the last two bytes  00 01 Indicates that the device has a status quantity.

(2) Change device address

For example, if the current device address is 1, we want to change to 02, the command is:01 06 00 66  00 02 E8 14 .

Shanghai Sonbest Industrial Co., Ltd Page4

 SM5390B User Manual http://www.sonbus.com/

After the change is successful, the device will return information: 02 06 00 66 00 02 E8 27 , its format  is parsed as shown in the following table:

Response should be in the data, after the modification is successful, the first byte is the new device  address. After the general device address is changed, it will take effect immediately. At this time, the user  needs to change the query command of the software at the same time.

4 Read and Modify Baud Rate

(1) Read baud rate

The device default factory baud rate is 9600. If you need to change it, you can change it according to  the following table and the corresponding communication protocol. For example, read the cu rrent device’s  baud rate ID, the command is:01 03 00 67 00 01 35 D5 , its format is parsed as follows.

Read the baud rate encoding of the current device. Baud rate encoding: 1 is 2400; 2 is 4800; 3 is 9600;  4 is 19200; 5 is 38400; 6 is 115200.

For the correct query command, the device will respond, for example the response data is: 01 03 02  00 03 F8 45, the format of which is as shown in the following table:

coded according to baud rate, 03 is 9600, ie the current device has a baud rate of 9600. (2)Change the baud rate

For example, changing the baud rate from 9600 to 38400, ie changing the code from 3 to 5, the  command is: 01 06 00 67 00 05 F8 1601 03 00 66 00 01 64 15 .

Change the baud rate from 9600 to 38400, changing the code from 3 to 5. The new baud rate will take  effect immediately, at which point the device will lose its response and the baud rate of the device should  be queried accordingly. Modified.

5 Read Correction Value

(1) Read Correction Value

When there is an error between the data and the reference standard, we can reduce the display error  by adjusting the correction value. The correction difference can be modified to be plus or minus 1000, that  is, the value range is 0-1000 or 64535 -65535. For example, when the display value is too small, we can  correct it by adding 100. The command is: 01 03 00 6B 00 01 F5 D6 . In the command 100 is hex 0x64 If  you need to reduce, you can set a negative value, such as -100, corresponding to the hexadecimal value of  FF 9C, which is calculated as 100-65535=65435, and then converted to hexadecimal to 0x FF 9C. The  correction value starts from 00 6B. We take the first parameter as an example. The correction value is read and modified in the same way for multiple parameters.

For the correct query command, the device will respond, for example the response data is: 01 03 02

Shanghai Sonbest Industrial Co., Ltd Page5

SM5390B User Manual http://www.sonbus.com/

00 64 B9 AF, the format of which is as shown in the following table:

In the response data, the first byte 01 indicates the real address of the current device, and 00 6B is the  first state quantity correction value register. If the device has multiple parameters, other parameters  operate in this way. The same, the general temperature, humidity have this parameter, the light generally  does not have this item.

(2)Change correction value

For example, the current state quantity is too small, we want to add 1 to its true value, and the current  value plus 100 correction operation command is:01 06 00 6B 00 64 F9 FD .

After the operation is successful, the device will return information: 01 06 00 6B 00 64 F9 FD, the  parameters take effect immediately after successful change.
