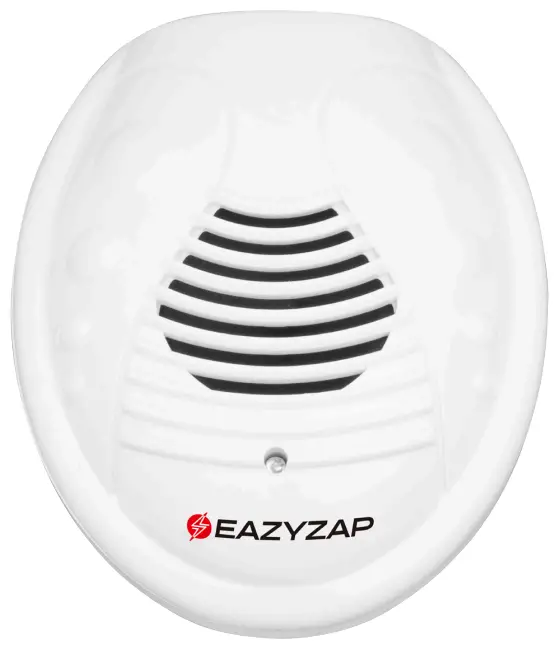

Eazyzap Ft990 Plug-in Pest Repeller Instruction Manual (+ PDF)

Consult Local and National Standards to comply with the following:
– Health and Safety at Work Legislation
– BS EN Codes of Practice
– Fire Precautions
– IEE Wiring Regulations
– Building Regulations
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Keep all packaging away from children.
Install the appliance out of the reach of children and pets.
Do not cover or block in any way.
Protect the appliance against heat, direct sunlight, moisture, dripping, and splashing water.
DO NOT insert any objects into the openings.
Always disconnect the power supply to the appliance before cleaning.
EAZYZAP recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Insulation Continuity, and Functional Testing.
EAZYZAP recommends that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your EAZYZAP product.

Features:

The combined technology of Electro-magnetic and Ultrasonic waves
Can be plugged into any room, loft, or basement
Chases away unwanted insects, bugs, and small rodents
Effective against spiders, flies, wasps, cockroaches, mice, and rats
Suitable for a room up to 200m²
Harmless to pets or humans

Pack Contents

The following is included:

Pest repeller
Instruction manual

EAZYZAP prides itself on quality and service, ensuring that at the time of unpacking the contents are supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your EAZYZAP dealer immediately.

Installation

Suitable for use in homes, apartments, warehouses, hotels, supermarkets, garages, offices, etc.
Do not install behind curtains, furniture, or furnishing as this would reduce the effectiveness.
For optimal coverage, it is recommended to use one unit per room.

Operation

The appliance works to drive away insects using Electromagnetic and Ultrasonic waves. It uses no chemicals and is pollution free. To use:

Connect the appliance to mains power.
The LED light will come on, indicating the appliance starts to work.
At the initial period, it is normal to see increased insect activity as they are highly disturbed by the emitted waves. Soon they will leave the area covered by the device.

Cleaning, Care & Maintenance

Always disconnect the appliance from the power supply before cleaning.
Regularly Wipe clean the surface to remove dirt and dust.
DO NOT immerse the appliance in water.
If not to use for an extended period of time, disconnect from the mains power supply.

Troubleshooting

Fault	Probable Cause	Solution
Unit not working	The unit is not plugged in	Check the unit is plugged in correctly
Unit not working	Mains power supply fault	Check the mains power supply

Technical Specifications

Model	Voltage	Power	Dimensions h x w x d (mm)	Net Weight	Ultrasonic frequency
FT990	220-240V~ 50-60Hz	<3.5W	90 x 79 x 35	0.28kg	20-30KHz

Electrical Wiring

This appliance is supplied with a 3-pin BS1363 plug.
The plug is to be connected to a suitable main socket.
This appliance is wired as follows:

Live wire (colored brown) to the terminal marked L
Neutral wire (colored blue) to the terminal marked N

If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required, they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

EAZYZAP parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
EAZYZAP products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of EAZYZAP.
Every effort is made to ensure all details are correct at the time of going to press, however, EAZYZAP reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

Equipment Type	Model
Application of Territory Legislation & Council Directives(s)	Low Voltage Directive (LVD) – 2014/35/EU EN 60335-1:2012 +A11:2014 EN 60335-2-59:2003 +A1:2006 +A2:2009 EN 62233:2008 Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU – recast of 2004/108/EC EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU
Producer Name	Eazyzap

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

Date	13th January 2021
Signature
Full Name	Ashley Hooper	Eoghan Donnellan
Position	Technical & Quality Manager	Commercial Manager/ Importer
Producer Address	Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland
