Asus Va247he Led Eye Care Monitor User Guide

VA247 Series
LCD Monitor

User Guide

Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, maybe reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modified, or altered, unless such repair, modification, or alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS, AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Notices

Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

Safety information

• Before setting up the monitor, carefully read all the documentation that came with the package.
• To prevent fire or shock hazards, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power standard.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor cabinet.
• To ensure satisfactory operation, use the monitor only with UL-listed computers that have appropriate configured receptacles marked between 100 ~ 240V AC.
• The socket-outlet shall be installed near the equipment and shall be easily accessible
• If you encounter technical problems with the monitor, contact a qualified servicer.
• Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the main plug from the mains.

WARNING
Usage of other than the specified head- or earphones can result in hearing loss due to excessive sound pressures.
Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum).
If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature.

Declaration of Conformity
This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards are published under Directives of the Official Journal of the European Union.

WEEE Symbol Statement
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with a mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Conventions Used in this guide

	WARNING: Information to prevent injury to yourself when trying to complete a task.
	CAUTION: Information to prevent damage to the components when trying to complete a task.
	IMPORTANT: Information that you MUST follow to complete a task.
	NOTE: Tips and additional information to aid in completing a task.

Where to find more information
Refer to the following sources for additional information and for product and software updates.

1. ASUS websites
   The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com
2. Optional documentation
   Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.

Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries, and other components as well as the packaging materials.

Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Welcome!

Thank you for purchasing the ASUS® LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual experience that the monitor brings you!

Package contents

Check your package for the following items:

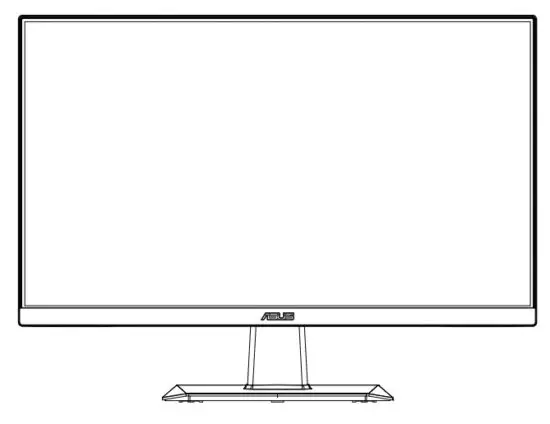

LCD Monitor
Monitor Base
Monitor Column
Quick Start Guide
Warranty Card
1x Power Cord *
1x HDMI Cable (optional)
1x VGA Cable (optional)
1x DVI Cable (optional)
1x Mini PC Kit (optional)

• If any of the above items is damaged or missing, contact your retailer immediately.

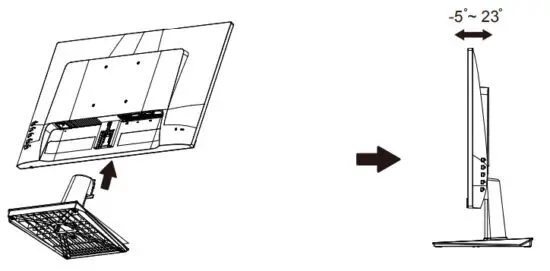

Assembling the monitor

To assemble the monitor:

1. Place the display flat on a cloth on the table, then attach the base to the arm and fix it with the screw to join them tightly. You can easily tighten the screw with your fingers.
2. Adjust the monitor to the angle that is most comfortable for you.


Connect cables

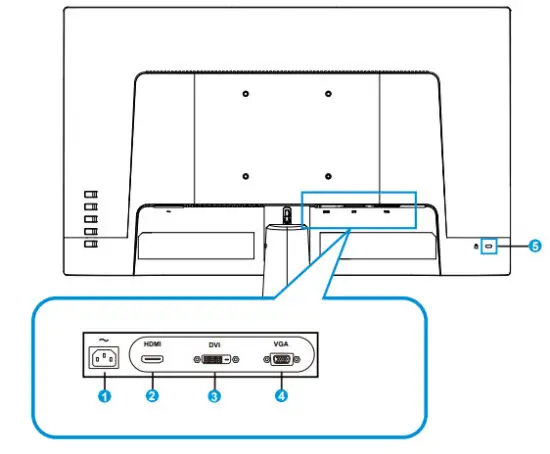

1.4.1 Rear of the LCD monitor

1.  AC-IN Port
2. HDMI Port
3. DVI Port
4. VGA Port
5. Kensington Lock

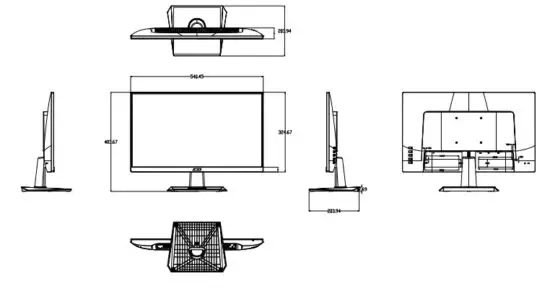

1.4.2 Six sides figure

ASUS VA247 Series
UNIT:mm(inch)

Monitor introduction

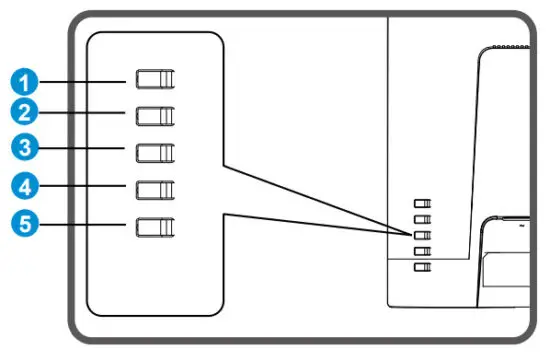

1.5.1 Using the Controls button
Use the control button on the back of the monitor to adjust the image settings.

1. Menu Button / Close:
   • Press this Button and enter the OSD menu.
   • Exit the OSD menu.
   • Return to the previous menu.
   • Key Locked Hotkey(*Note1)
2. Close / Return Button:
   • Exit the OSD menu.
   • Enter/select the icon (function) highlighted while the OSD is activated.
3. Input source hotkey/Increase value:
   • Add or Increase value
   • Input source hotkey
4. Brightness hotkey/Decrease value:
   • Next Item or Decrease value
   • Brightness hotkey
5. Power Button:
   • Power on/off monitor when the monitor is powered off/on.

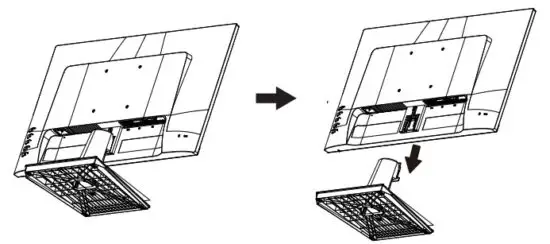

Detaching the arm/stand (for VESA wall mount)

The detachable stand of this monitor is specially designed for a VESA wall mount.

To detach the arm/stand

1.  Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table.
2. Remove the base/stand from the monitor.

• We recommend that you cover the table surface with a soft cloth to prevent damage to the monitor.

• The VESA wall mount kit ( 100 x 100 mm) is purchased separately.
• Use only the UL Listed Wall Mount Bracket with a minimum weight/load of 12 kg (Screw size: M4 x 10 mm).

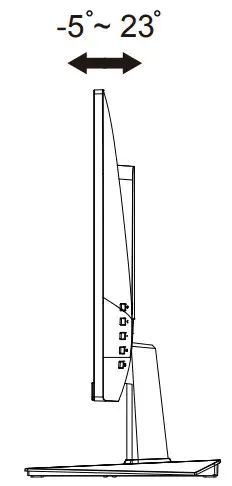

Adjusting the monitor

• For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• You can adjust the monitor’s angle from +23˚ to -5˚.

  It is normal that the monitor slightly shakes while you adjust the viewing angle.

OSD (On-Screen Display) menu

3.1.1 How to reconfigure

1. Press the MENU button to activate the OSD menu.
2. Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
3. To select the highlighted item on the menu press the Center key.
4. Press the and buttons to select the desired parameter.
5. Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes.

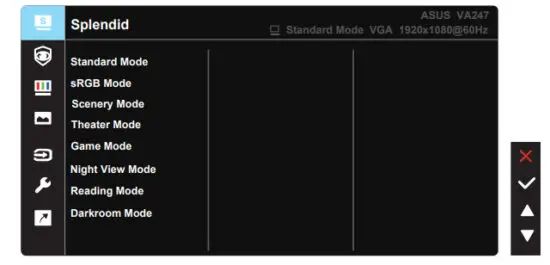

OSD Function Introduction

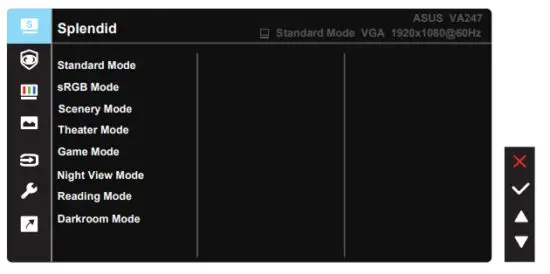

1. Splendid
   This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode.
   • Standard Mode: This is the best choice for document editing with SPLENDID™ Video Intelligence Technology.
   • sRGB Mode: This is the best choice for viewing photos and graphics from PCs.
   • Scenery Mode: This is the best choice for scenery photos displayed with SPLENDID™ Video Intelligence Technology.
   • Theater Mode: This is the best choice for movie watching with SPLENDID™ Video Intelligence Technology.
   • Game Mode: This is the best choice for game playing with SPLENDID™ Video Intelligence Technology.
   • Night View Mode: This is the best choice for playing dark-scene games or watching dark-scene movies with SPLENDID™ Video Intelligence Technology.
   • Reading Mode: This is the best choice for book reading.
   • Darkroom Mode: This is the best choice for a weak ambient light environment.
   • In the Standard Mode, the Saturation, SkinTone, Sharpness, and ASCR functions are not user-configurable.
   • In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast, and ASCR functions are not user-configurable.
   • In the Reading Mode, the Saturation, SkinTone, ASCR, contrast, and Color Temp functions are not user-configurable.

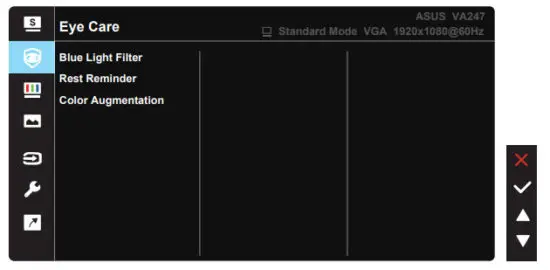

2.  EyeCare
   • Blue Light Filter: In this function, you can adjust the blue light filter from 0 to max. 0: no changes； Max: The higher the level, the less blue light is scattered. When the blue light filter is activated, the default settings of Standard Mode will be automatically imported. Besides the maximum level, the brightness is user-configurable. Maximum is the optimized setting.
   It is in compliance with TUV low blue light certification*. The brightness function is not user-configurable.
   • When the user adjusts the blue light filter bar to the maximum level.
   • *When color augmentation is in default value (50).
   • Rest Reminder: This function provides you a rest reminder according to how long you set your working time. For example, a user sets 60 minutes of working time and there will be a pop-up reminder appearing on the upper left corner of the monitor for 5 seconds. Press any key to make this reminder OSD disappear.
   • When this function is enabled, the following functions are not available: Splendid Demo Mode, GamePlus, and QuickFit.
   • Color Augmentation: The adjusting range of color enhancement is from 0 to 100.
   • This function is not available in sRGB mode under Splendid.
   • This function is not available when Reddish or Yellowish is selected in the Skin Tone menu.

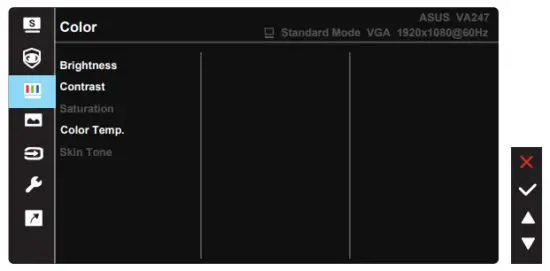

3. Color
   Select the image color you like from this function.
   • Brightness: The adjusting range is from 0 to 100.
   • Contrast: The adjusting range is from 0 to 100.
   • Saturation: The adjusting range is from 0 to 100.
   • Color Temp.: Contains three preset color modes (Cool, Normal, Warm) and User Mode.
   • Skin Tone: Contains three color modes including Reddish, Natural, and Yellowish.
   • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-configurable; the adjusting range is from 0 ~ to 100.
   • In the Standard Mode, the Saturation and Skin Tone functions are not user-configurable.

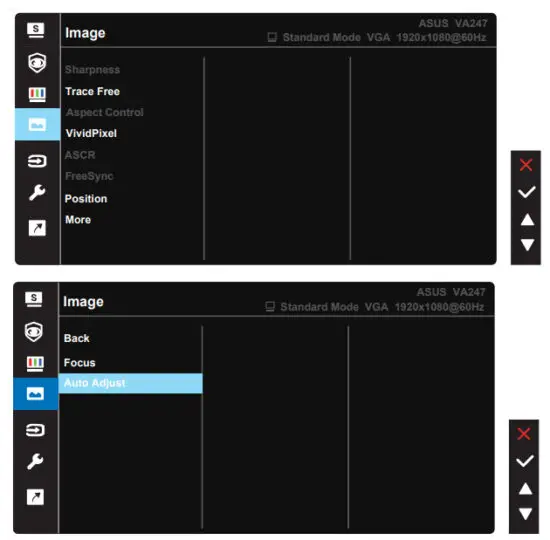

4. Image
   You can adjust the image Sharpness, Trace Free, Aspect Control, VividPixel, ASCR, FreeSync, Position (VGA only), Focus (VGA only), and Auto Adjust (VGA only), from this main function.
   • Sharpness: Adjusts the picture sharpness. The adjusting range is from 0 to 100.
   • Trace Free: Speeds up the response time by OverDrive technology. The adjusting range is from lower 0 to faster 100.
   • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”.
   • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.
   • ASCR: Select ON or OFF to enable or disable the dynamic contrast ratio function.
   • FreeSync: It can allow a FreeSync-supported graphics source to dynamically adjust display refresh rates based on typical content frame rates for power-efficient, virtually stutter-free, and low-latency display updates.
   • Position: Adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100 (Only available for VGA input).
   • More: Return to the next page of System Setting.
   • Back: Return to the previous page of System Setting.
   • Focus: Reduces Horizontal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100 (Only available for VGA input).
   • Auto Adjust.: Automatically adjust the image to its optimized position, clock, and phase. (Only available for VGA input.)
   • 4:3 is only available when the input source is in 4:3 format。
   • Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances.
   • Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional.

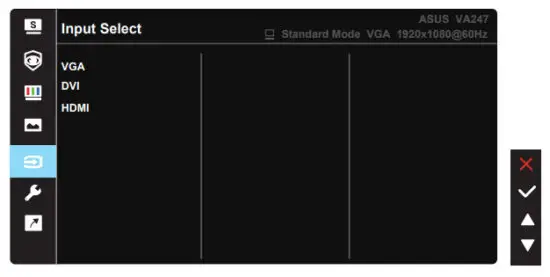

5. Input Select
   Select the input source from VGA, DVI, HDMI, or input signal.

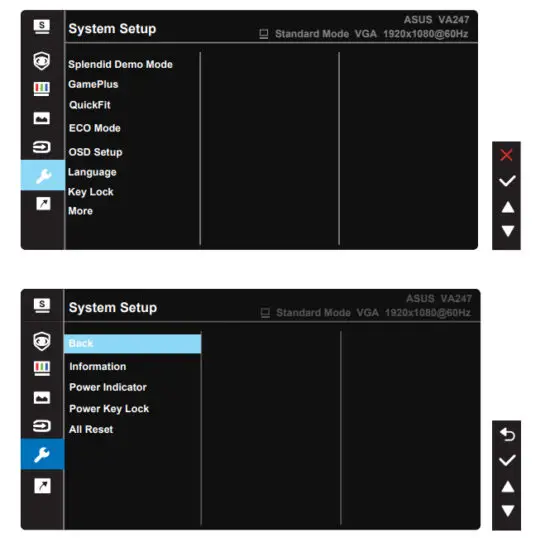

6. System Setup
   Adjusts the system configuration.
   • Splendid Demo Mode: Activate the demo mode for the Splendid function.

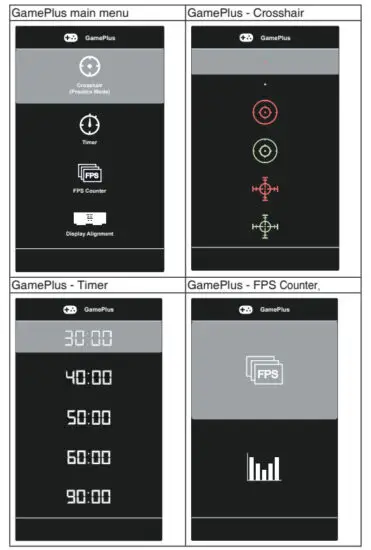

   • GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. Particularly, the Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active GamePlus:
   • Select ON to enter the GamePlus main menu.
   • Press and select between Crosshair, Timer, FPS Counter, and Display Alignment function.
   • Press the Center key to confirm the function you choose. Press to go back. Press to go off, and exit.


• QuickFit: contains three patterns: (1) Grid (2) Paper size (3) Photo size.

1.  Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel.

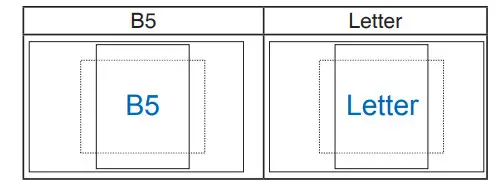

2. Paper size: Provides users to view their documents in real size on the screen.

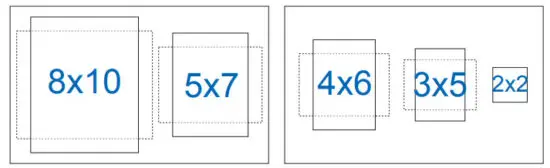

3. Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen.

   • ECO Mode: Activate the ecology mode for power saving.
   • OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen.
   • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, and Indonesian.
   • Key Lock: Disable all key functions. Press the menu button for more than five seconds to disable the key lock function.
   • More: Return to the next page of System Setting.
   • Back: Return to the previous page of System Setting.
   • Information: Displays the monitor information.
   • Power Indicator: Turn the power LED indicator on/off.
   • Power Key Lock: To disable/enable power key
   • All Reset: Selects “Yes” to revert all settings to the factory default mode.

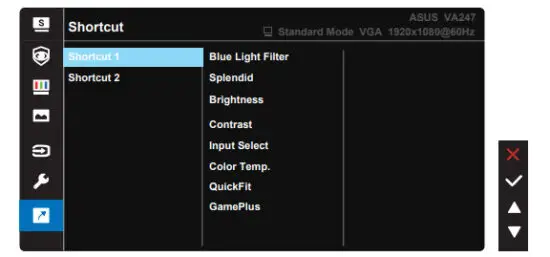

7. Shortcut
Selecting this option allows you to set two shortcut keys.

• Shortcut 1: The user can select from “Blue Light Filter” “Splendid”, “Brightness”, “Contrast”, “Input Select”, “Color Temp.”, “QuickFit”, “GamePlus”, and set as a shortcut key. The default setting is Input Select.
• Shortcut 2: The user can select from “Blue Light Filter” “Splendid”, “Brightness”, “Contrast”, “Input Select”, “Color Temp.”, “QuickFit”, “GamePlus”, and set as a shortcut key. The default setting is Brightness.

Specifications

Troubleshooting (FAQ)

Problem	Possible Solution
Power LED is not ON	Press the button to check if the monitor is in the ON mode. Check if the power cord is properly connected to the monitor and the power outlet. Check the Power Indicator function in the main menu OSD. Select “ON” to turn on the power LED.
The power LED lights amber and there is no screen image	Check if the monitor and the computer are in the ON mode. Make sure the signal cable is properly connected to the monitor and the computer. Inspect the signal cable and make sure none of the pins are bent. Connect the computer with another available monitor to check if the computer is properly working.
The screen image is too light or dark	Adjust the Contrast and Brightness settings via OSD.
Screen image bounces or a wave pattern is present in the image	Make sure the signal cable is properly connected to the monitor and the computer. Move electrical devices that may cause electrical interference.
The screen image has color defects (white does not look white)	Inspect the signal cable and make sure that none of the pins are bent. Perform Reset via OSD. Adjust the R/G/B color settings or select the Color Temperature via OSD.
No sound or sound is low	Adjust the volume settings of both your monitor and computer. Make sure the computer sound card driver is properly installed and activated.

Supported Timing List

PC Supported Primary Timing

IBM Modes, Factory Preset Timing

MAC Modes, Factory Preset Timing

VESA Modes, User Available Timing

SD/HD Timings (HDMI input only)

HDMI 1.3.CEA-861B Formats. SD/HD Supported Primary Timings of (HDMI input oniy)

HDMI 1.3.CEA-861B Formats. SD/HD Supported Optional Timings of (HDMI input only

* The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables.

References

• ASUS Corporate Social Responsibility
• ASUS Global
