Ogrow OG4979-2T8/OG03-GBK7449E Portable Lawn and Garden Greenhouse
Package Contents

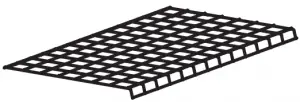

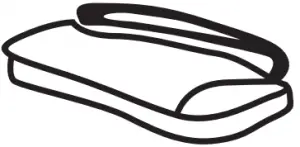

Number | Picture | QTY. |
A |  | 4 |
B |  | 6 |
C |  | 2 |
D |  | 6 |
E |  | 26 |
F |  | 1 |
G |  | 2 |

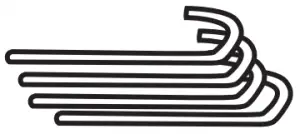

Anchors |  | 4 |
2 | (25 in.) | 3 |
6 | (10 in.) | 20 |
7 | (31 in.) | 6 |
11 | (17.5 in.) | 32 |
16 | (35.5 in.) | 30 |
X |  | 8 |
Y |  | 1 |
Ropes |  | 4 |
| IMPORTANT: Please check contents before attempting to construct growhouse. |

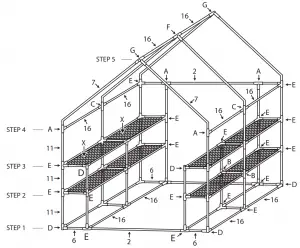

ARRANGE PARTS INTO GROUPS AS LISTED IN YOUR PACK CONTENTS UNFOLD COVER AND PUT TO ONE SIDE
STEP 1: 4xD 8xE 8×16 2×2 6×6 12×11
Assemble the base with the above parts. 1 Once base is assembled build upwards using the parts listed in step 2.
STEP 2: 8xE 4xB 4×6 12×11 6×6 8×16 4xX
This forms the next level. Once completed build the next level with parts listed in step 3.
STEP 3: 8xE 2xB 4×6 8×11 2xD 6×6 8×16 4xX
This forms the next level. Once completed build the next level with parts listed in step 4.
STEP 4: 4xA 2xC 2xE 1×2 4×16 2×6 6×7
This forms the next level. Once completed build the next level with parts listed in step 5.
STEP 5: 2xG 1xF 2×16
This forms the final level. Once completed, place the cover (Y) over the frame and attach.

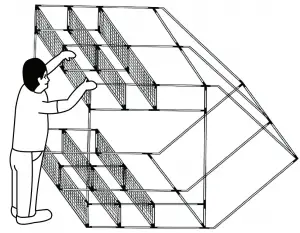

STEP 6: In order to have the frame connected you will need to assemble the frame by pushing downward while connecting two rods at a time, giving it an extra force (when frame is complete repeat from all angles, as picture shown). This will result in a tighter and smaller frame enabling the greenhouse cover to slide on easily.
Anchor kit Assembly Instructions
Step 1

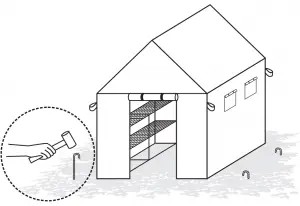

Hammer the anchors into the soil, placing them on all four sides of the greenhouse.
Step 2

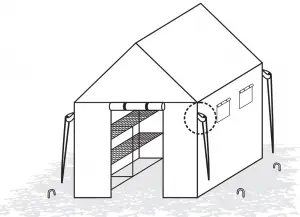

Connect the top end of the rope into the strap on the top of the greenhouse for all 4 sides as image shown.
Step 3

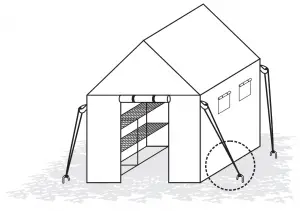

Take the other end of the rope and pass it through the bended side of anchor as shown in Figure. Repeat the step for all 4 sides.
