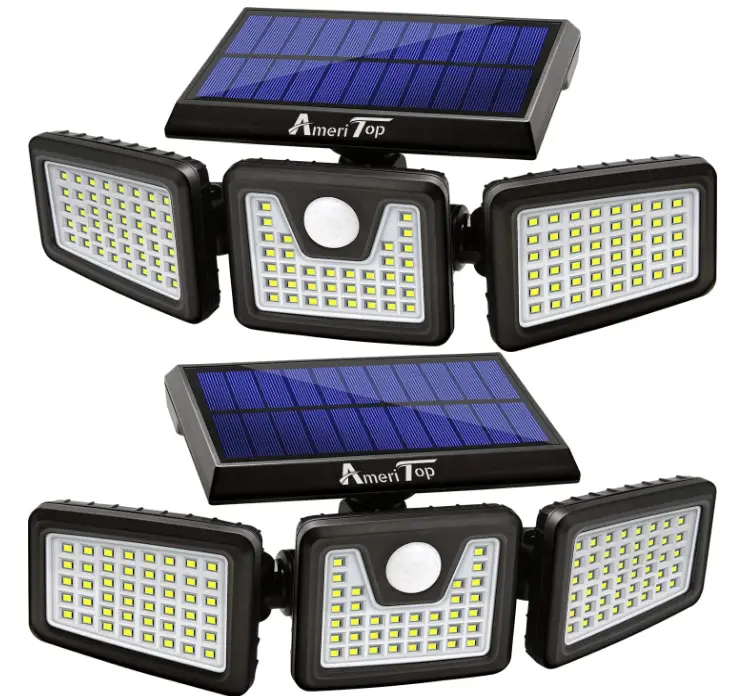

AmeriTop 800LM Cordless Solar Lights Outdoor
SAFETY INFORMATION
- Your motion light is not a toy. Keep it out of reach from small children.
- Your motion light and solar panel are both weather-resistant.
- You can mount your motion light Indoors, but your solar panel must be installed outdoors to receive light from the sun.
- If using a step ladder, you may require a second person to help install the solar motion light.
- Prior to installation, lay out all components and check against the part list section in this manual.
- Never look directly Into the solar motion light when illuminated.
BATTERY REPLACEMENT INSTRUCTIONS
When replacing the batteries. be sure to:
- Use rechargeable batteries only.
- Match the replacement battery specifications with the batteries that have been removed.
- Observe the correct polarity(+ and-) when installing the replacement batteries.
- Do not mix old and new batteries and Do not mix alkaline, standard(carbon-zinc), or rechargeable (ni-cad, ni-mh, etc.) batteries.
- IMPORTANT: Dispose of the Lithium-ion battery In accordance with local. state and federal regulations.
CARE & MAINTENANCE
- From time to time, ensure the plug between the solar panel and the light is securely connected.
- It is advisable to adjust the angle of the solar panel to optimize exposure to the sun during the winter months.
- The solar panel should be cleaned with a damp cotton cloth on a regular basis. This will ensure optimal performance and battery charging. Periodically, utmze the same technique to clean the lenses of the motion lights.
- Never let any abrasive material come into contact with the solar panel.
WARRANTY
This product is covered under a one-year limited warranty. Manufacturer warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase. The included batteries are not covered under this warranty. Proof of purchase including date and explanation of complaint is required for warranty service.
PRODUCT FEATURES
- 64 LEDs
- Adjustable time and sensitivity settings
- Adjustable motion sensor
- Solar panel with 15 ft wire
INSTALLATION
NOTE Recommended Tools: Power Drill, Phillips Screwdriver

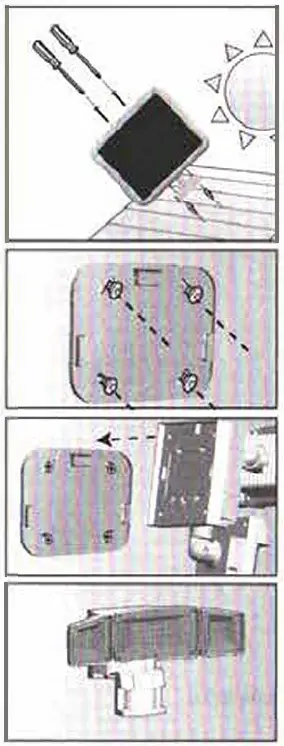

- Ensure your solar panel is placed where exposes to optimize sunlight. Be aware of objects such as trees or proper overhangs that may impede the panel’s ability to generate a change.
- Optional: Use a power drill (not included)to create holes on your chosen mounting wall plugs and screws to fasten the solar panel to the surface.
- Use a power drill (not included) to drill the holes on your chosen mounting surface. Place the mounting plate over the holes & use 4 of the included wall plugs and screws to fasten the mounting plate to the surface.
- Buckle the motion light into the mounting plate securely.
- Before using the solar security light, the solar panel needs to be connected to the light for THREE DAYS. The initial charge should be done in the OFF(O) position. After this, there will be enough power from batteries to operate the light. Place the light in the AUTO(I) mode. Push the switch to “ON”(II) to turn on the normally-on mode. This will allow a limited period of constant illumination.

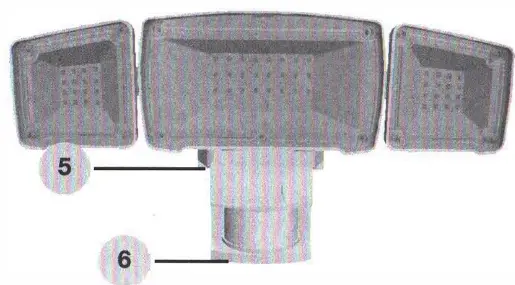

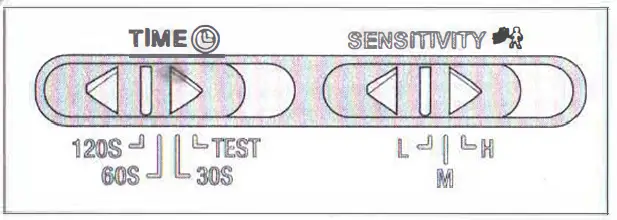

- Two different control switches adjust the light’s illumination time and range of motion detection.
TIME: Determines the duration of the light once motion is detected: 30 seconds, 60 seconds, or 120 seconds.
TEST: Allows the positioning of the light’s motion sensor to be tested day or night. Once the motion sensor is in the desired position, attempt to trigger the light by moving in the intended detection zone. If- the light illuminates, the motion sensor is positioned correctly. You are now ready to move the switch to the preferred duration option. The light will now only turn on in darkness.
SENSITIVITY: Controls the distance of the range of motion detection: low, medium or high.

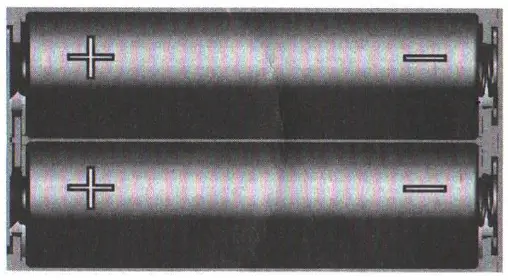

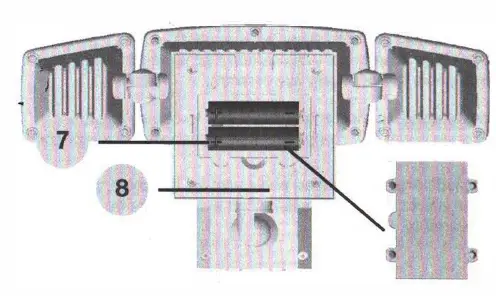

- Batteries are located in the battery housing behind the light fixture. Select the OFF position on the light prior to opening the battery housing. Remove the four screws to reveal the batteries. When replacing the batteries, observe the correct polarity and match the battery specifications with the batteries you have removed. Use rechargeable batteries only.

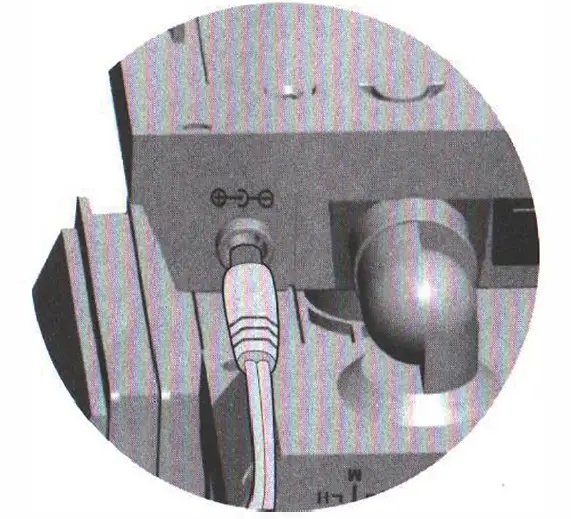

- Connect the wire from the solar panel to the socket located under the light fixture. Your solar motion light will now begin to charge.
TIME: Determines the duration of the light once motion is detected: 30 seconds, 60 seconds, or 120 seconds.
FAQs
The battery life depends on the number of hours of operation per day. The more hours of operation, the shorter the battery life. For example, if you use your light for 3 hours per day, the battery should last about 3 months. If you use it for 12 hours per day, the battery should last about 1 month.
It takes about 10 hours to fully charge a completely discharged battery.
When you notice that your light is not as bright as it used to be, it is time to recharge your batteries. If you are using a solar panel, you can easily tell when it is time to recharge your batteries because the solar panel will not be able to keep up with charging your batteries during daylight hours. You can also use a voltmeter or multimeter to check and see if your batteries are fully charged or not.
If you have a voltmeter or multimeter, you can check and see if your solar panel is working by placing one end of the multimeter on one of the terminals on the solar panel and placing the other end on one of the terminals on the light fixture. If there is a voltage reading (between 0 and 5 volts) then your solar panel is working properly. You can also determine if there is enough sunlight by looking at how bright your light is compared to other lights in your yard or area. If it seems dimmer than other lights in your yard, then you may need to move your solar panel so that it receives more sunlight during daylight hours.
Mount your solar panel in a position that will enable the most amount of light to be absorbed (refer to Step 1 on page 2). In the Northern this is usually south facing.
The solar panel can charge the internal batteries in direct and indirect light. For best results, try to optimize your solar panel’s sun exposure.
At this point there are no extensions available for the cable that connects the light to the solar panel. Any additions to the cable will void the warranty.
A rapidly flashing light is caused by undercharged batteries. Turn the solar motion light’s switch to the “OFF” position and charge for two full sunny days to bring the batteries to full charge. After two days, return the switch to the “AUTO” position.
Yes, the sensor of the solar motion light is light-sensitive. For nighttime usage, ensure no other light activates the motion sensor.
Your solar motion light requires the use of 2 pcs of 3.7V 18650 1500MAH Lithium ion rechargeable batteries.
The majority of solar lamps have a runtime of 6 to 10 hours with a full battery. This was specifically created so that, after a day of typical sunlight, lights could run all night.
Even when the light is deflected or partially covered by clouds, solar panels will continue to function. Rain actually aids in maintaining the effectiveness of your solar panels by removing any dust or grime.
The longer the solar lights operate at night, the more likely it is that they were exposed to sunlight during the day. In order for solar lights to run for at least 8 hours on a full charge, they need to be exposed to sunshine for roughly 6 hours.
The batteries lose their ability to charge with time since they are charged during the day and discharged at night while the light is on. Your lights’ shorter runtime in the evening, even after a sunny day, may be an indication that something is occurring to them.
