GC3-S Waterproof 3-Axis Gimbal 4K Camera for SplashDrone
User Guide

Visit www.swellpro.com to download the latest version of the manual and firmware.

Thank you

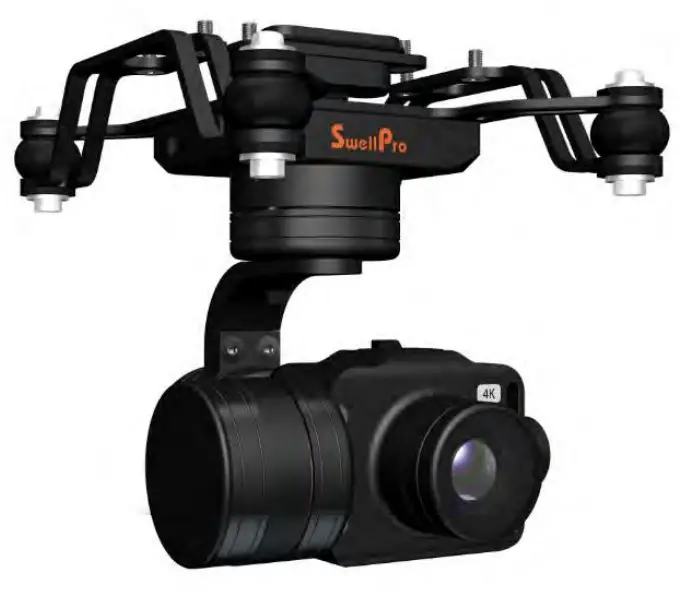

Thank you for purchasing our gimbal camera. GC3-S is the waterproof 4K 3-axis gimbal camera designed for SplashDrone 4 for the purpose of shooting great photography.  With the powerful 3-axis gimbal, GC3-S can capture ultra-smooth videos and crisp photos in the air or underwater. GC3-S has Pro mode and supports RAW photos. ND filters can also be added for greater creative freedom.

Using this manual
This document is designed to be printed or viewed on a computer or mobile device.

Tutorial videos
To watch tutorial videos or download the firmware, please visit the SwellPro website www.swellpro.com

Precaution

• The GC3-S is a piece of precision electronics with corrosion-resistant materials which allow for use in harsh marine environments. As with any marine equipment, trouble-free and lasting operations depend on proper attention and maintenance of the equipment.
• When taking off or landing, slowly proceed to avoid damage to the gimbal camera which can cause by the huge impact when contacting the surface at high speeds. Drop or crash directly into the water from above will result in significant damage to the drone and the gimbal camera.
• After using in seawater, soak and rinse thoroughly with clean fresh water before the seawater dries out.
• If seawater or other sediments form on the gimbal camera, soak thoroughly with fresh water and clean all sediments on the camera and motor before use. For more information, check the drone’s “Maintenance manual”.

Installation

Install the Gimbal

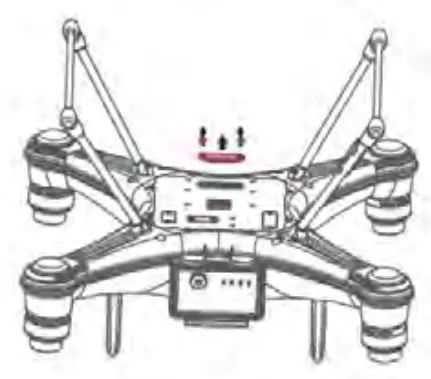

	1. Unscrew and take off the gimbal port cover plate using a hex screwdriver. (equipped with SplashDrone 4)

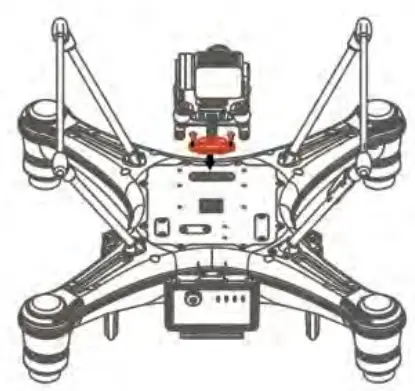

	2. Plug the gimbal connector into the drone’s gimbal port and screw it in place with a screwdriver. ⚠ Make sure the rubber ring is attached to the gimbal connector before you screw the connector.

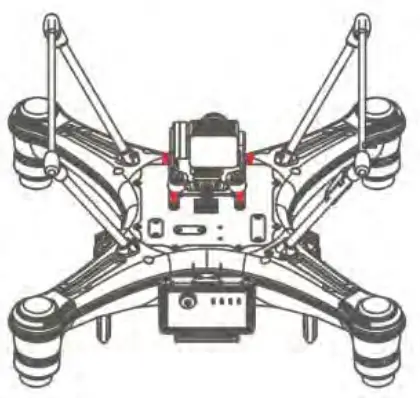

	3. Aline the holes on the base of the gimbal to the bottom of the drone, and screw in to mount the gimbal. Make sure the camera is pointing to the front of the drone.

Install SD Card

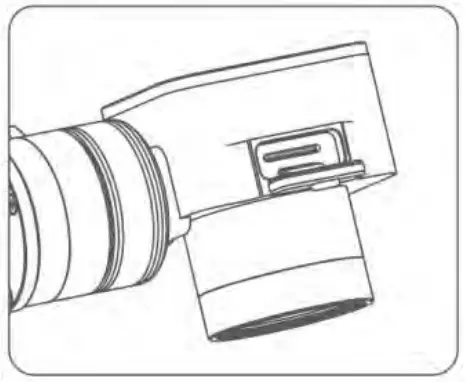

1. Open the soft rubber seal on the top of the camera, insert the Mirco SD card in the correct direction, and press the Mirco SD  card, the “click” sound indicates that the installation is in place. 2. After installing the Mirco SD card, plug the rubber seal back. ⚠ Make sure the rubber seal is tightly plugged in to ensure waterproofing.

• The GC1-S supports Mirco SD cards with a maximum capacity of 128GB. Since the camera requires fast reading and writing of high-stream video data, please use Mirco SD  cards with Class 10 or UHS-1 or above to ensure proper functioning.
• Do not insert or unplug the Mirco SD card during aircraft shooting, as data files may be damaged or lost.
• Once you are done recording, stop recording and save the file. If you turn off the power directly before saving the files, the recording file will be lost.

After Use Casing

After using the gimbal camera, you can choose not to take off the gimbal camera and put it directly into the case with the drone. Follow the following steps to make sure the gimbal camera is properly secure after casing.

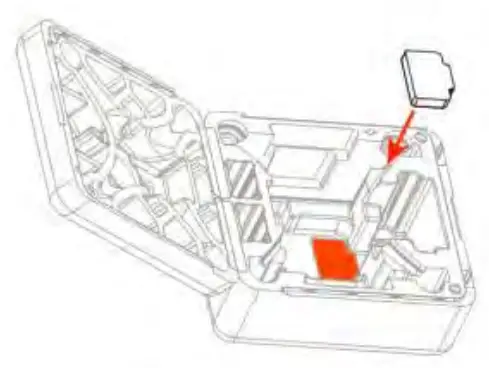

	1. Remove the double-side-glued pad from the gimbal box and paste the pad into the drone’s case as shown to the left.

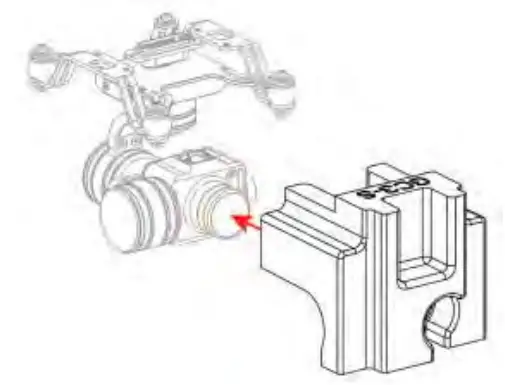

	2. After cleaning and drying the gimbal camera and the aircraft, secure the gimbal camera with the fixing case, then put the aircraft and other parts into the case. The case is secure and ready to be carried or transported.

Control

Gimbal Control

Remote controller[1]	Description

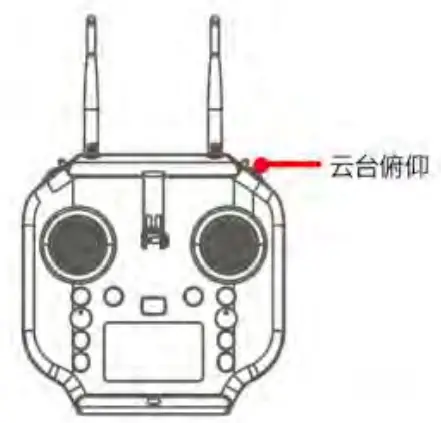

	Tilt: Toggle the right gimbal control as shown to turn the gimbal up or down from 0° to -90°. Pan: Toggle the left gimbal control as shown to turn the gimbal left or right from -25° to 25°.

Camera control

Remote controller	Description

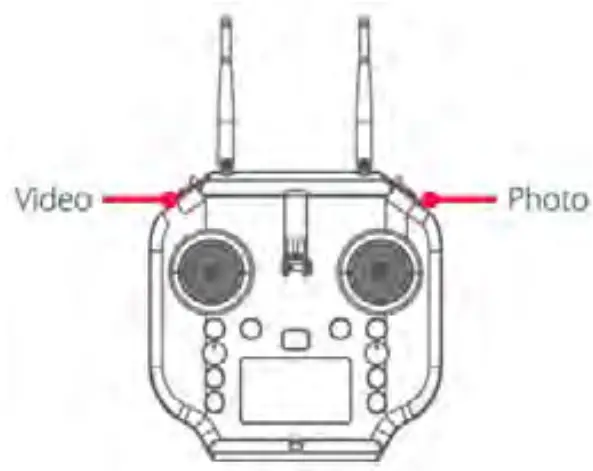

	Video: press once to start recording, press again to stop recording, and save files. Photo: press once to take a picture.

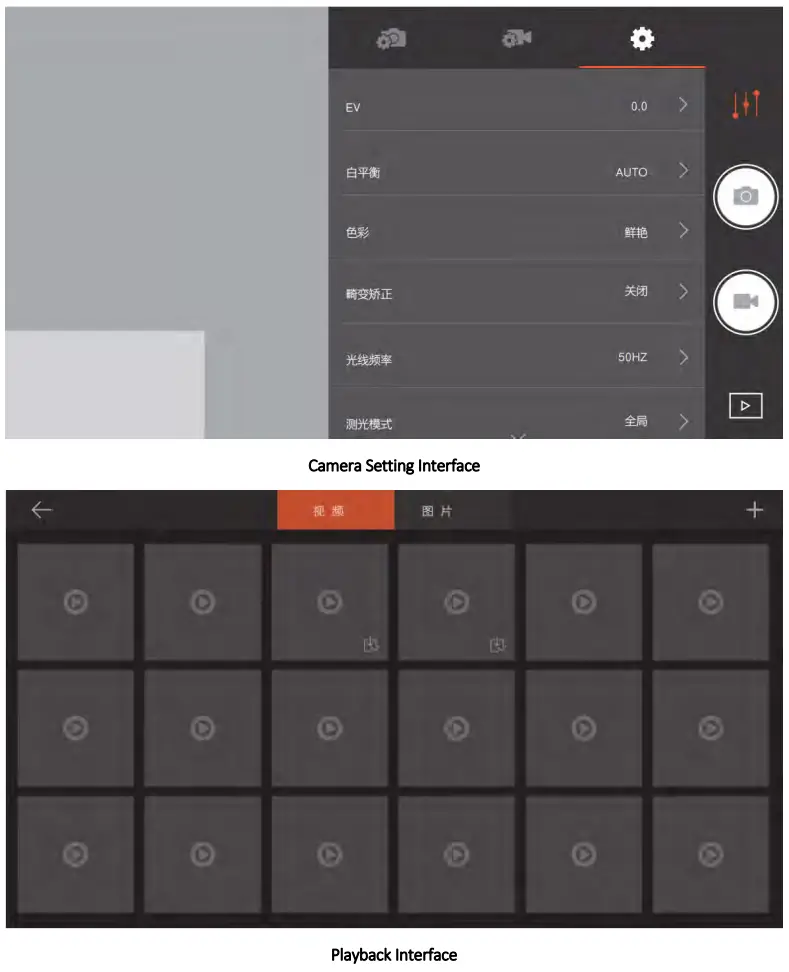

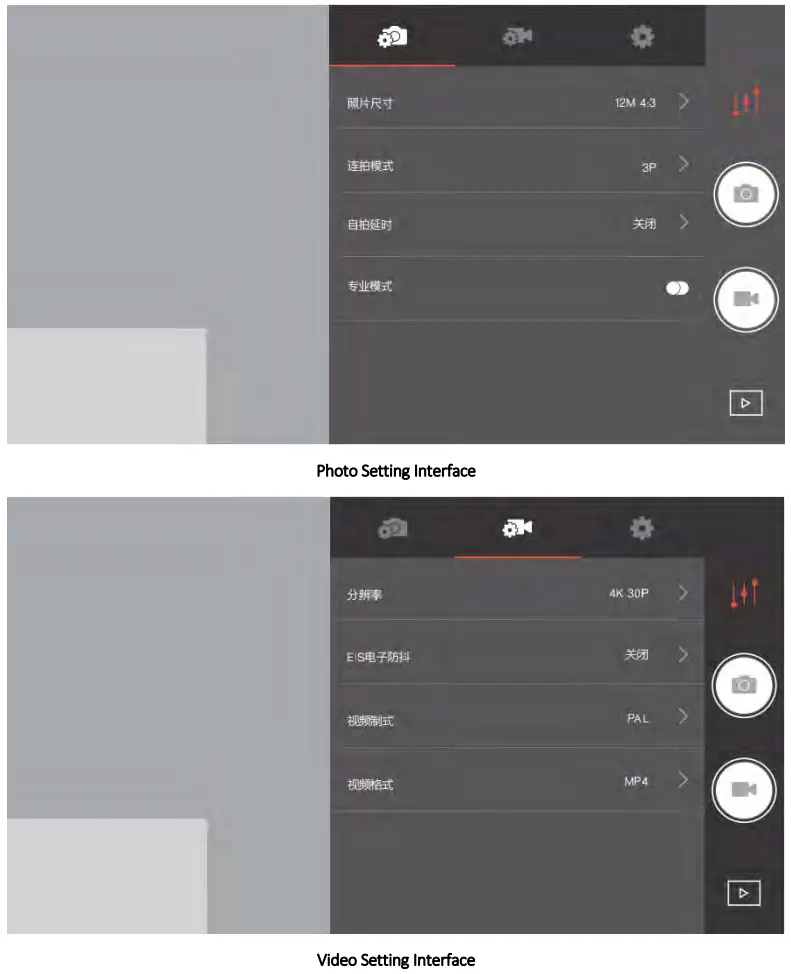

APP Interface

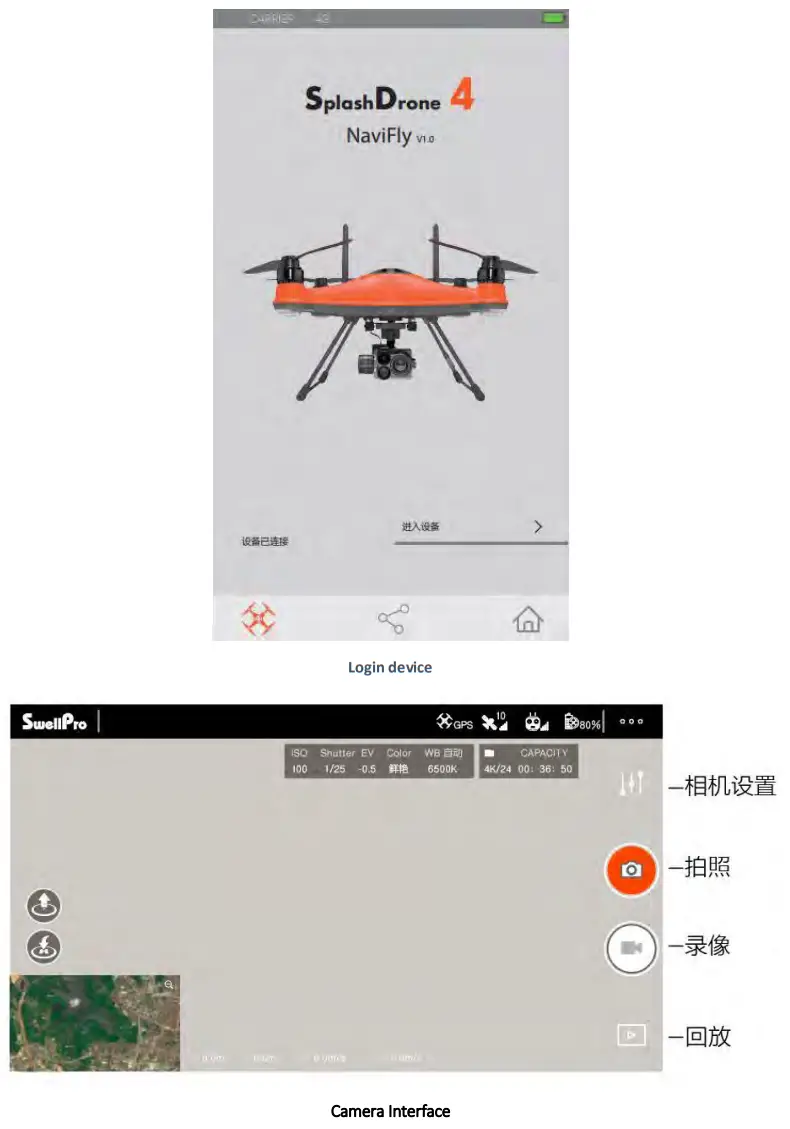

To get into APP’s camera interface: Power on the remote controller, then the aircraft. Connect the phone to the remote controller’s Wi-Fi hotspot. Then click “Login device”.

Specification

Gimbal

Camera
