better bathrooms Nova Beba-26117 Shower Enclosure
Congratulations on your purchase
And welcome to our growing gang of savvy shoppers
We’re on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day. As one of the UK’s largest independent bathroom stores, we’ve received countless awards; including the National Business Awards UK, the Digital Entrepreneur Awards, and being placed on The Sunday Times Fast Track 100.
We hope your new product exceeds your highest expectations. However, if you experience any problems, please:
- call our friendly UK call center on 03303903062 (9 am-7 pm Monday to Friday, or 10 am-4 pm Saturday and Sunday), or
- send us a message via [email protected].
Important information
- Please read these instructions thoroughly and retain them for future reference
- Thoroughly inspect your product before proceeding with the installation.
- The warranty will be void if the products are installed with a conspicuous defect
- Before commencing drilling please check that no pipes or cables can be damaged.
CAUTION

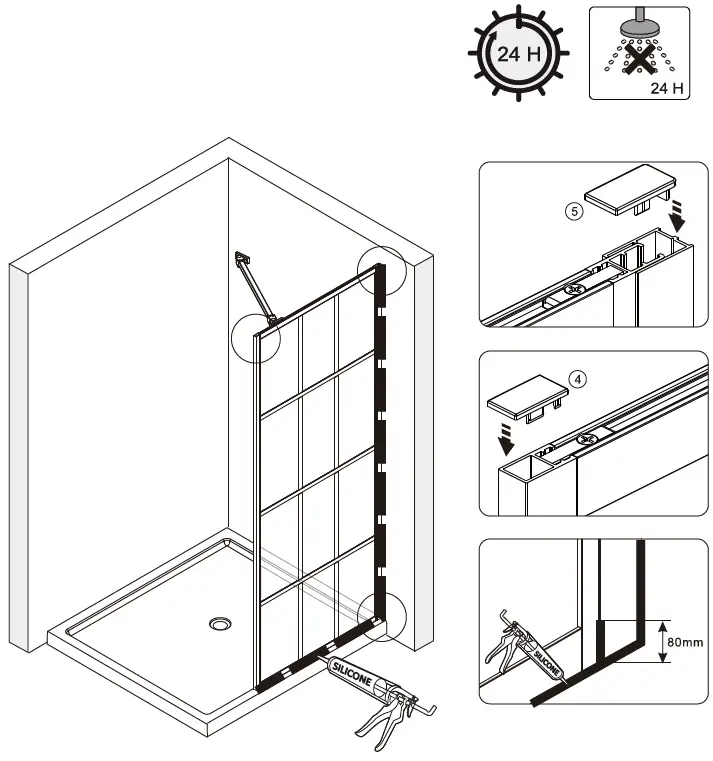

- To prevent leaks, silicone must be applied on the outside of the shower and not on the inside
- Read all instructions carefully before starting the installation
- Save this manual for future reference.

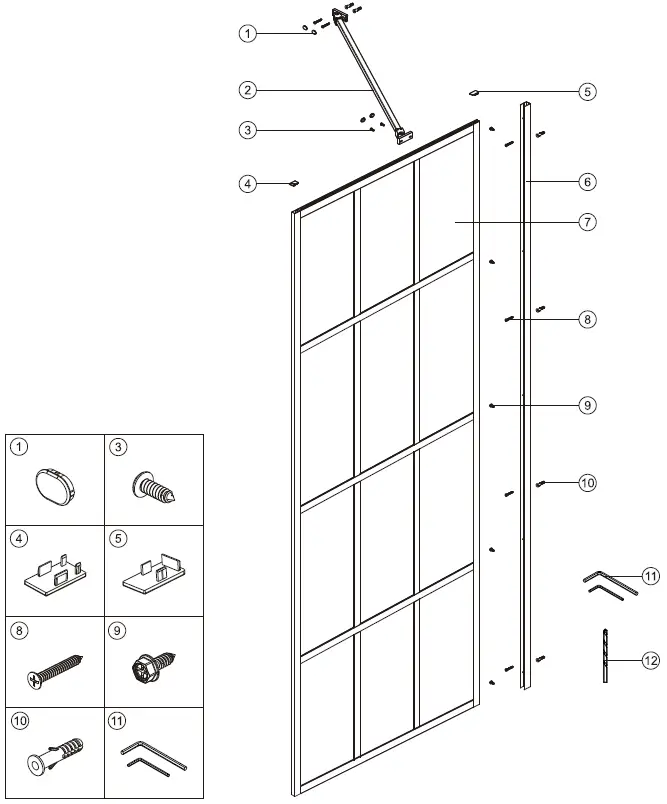

PARTS LIST
| NO | Qty | Description | NO | Qty | Description I | |
| 1 | 4 | Screw cap | 7 | 1 | Fixed glass | |
| 2 | 1 | Bracing bar | 8 | 6 | Screw ST4X30 | |
| 3 | 2 | Screw ST4X12 | 9 | 5 | Screw ST4X12 | |
| 4 | 1 | Profile cap | – 10 | Wall anchor | ||
| 5 | 1 | |||||
| Profile cap 0 | Allan key kit | |||||
| 6 | 1 | Wall profile | Drill di! |

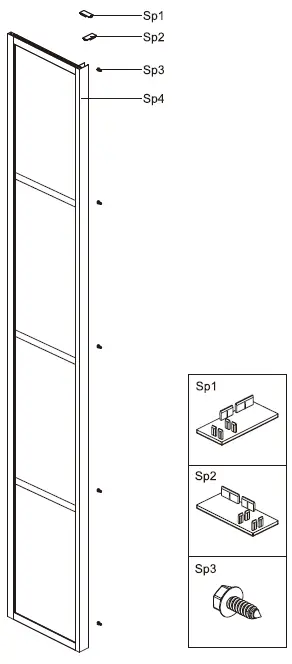

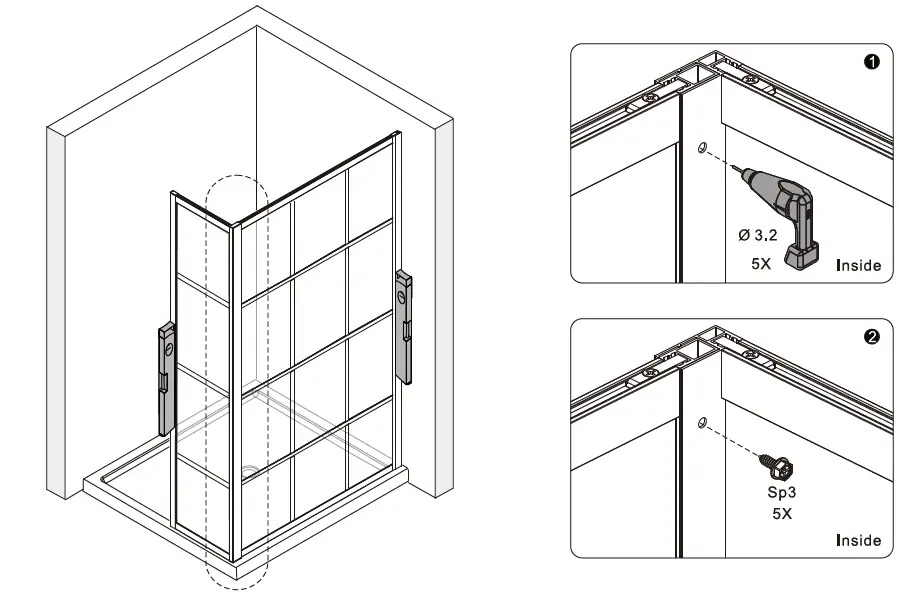

| NO | Qty | Description |
| SP1 | 1 | Profile cap L |
| SP2 | 1 | Profile cap R |
| SP3 | 5 | Screw ST4X12 |
| SP4 | 1 | Fixed glass |

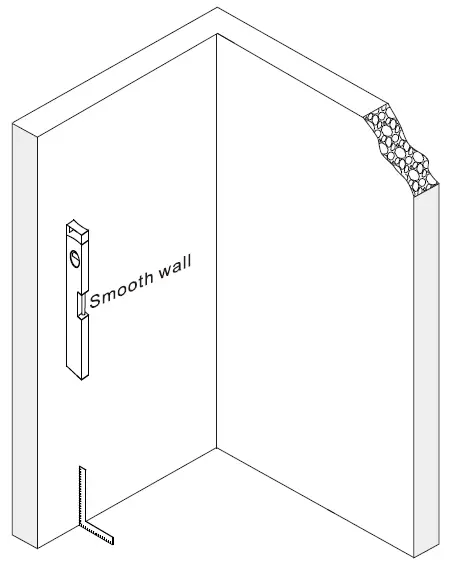

Preparation

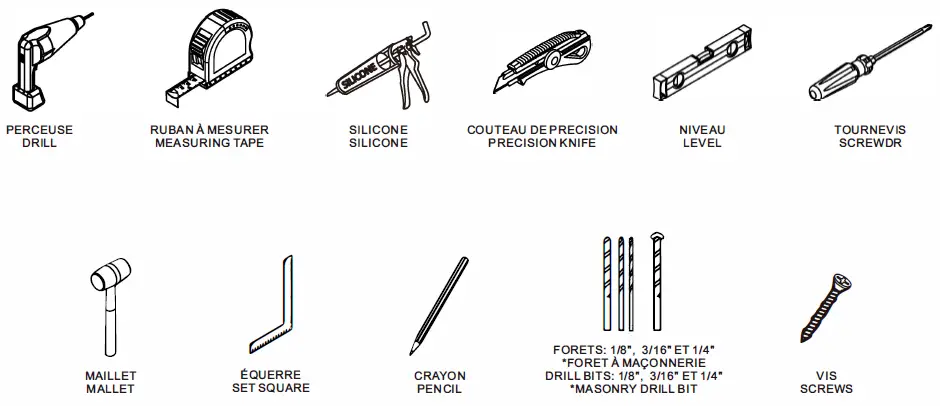

Tools required

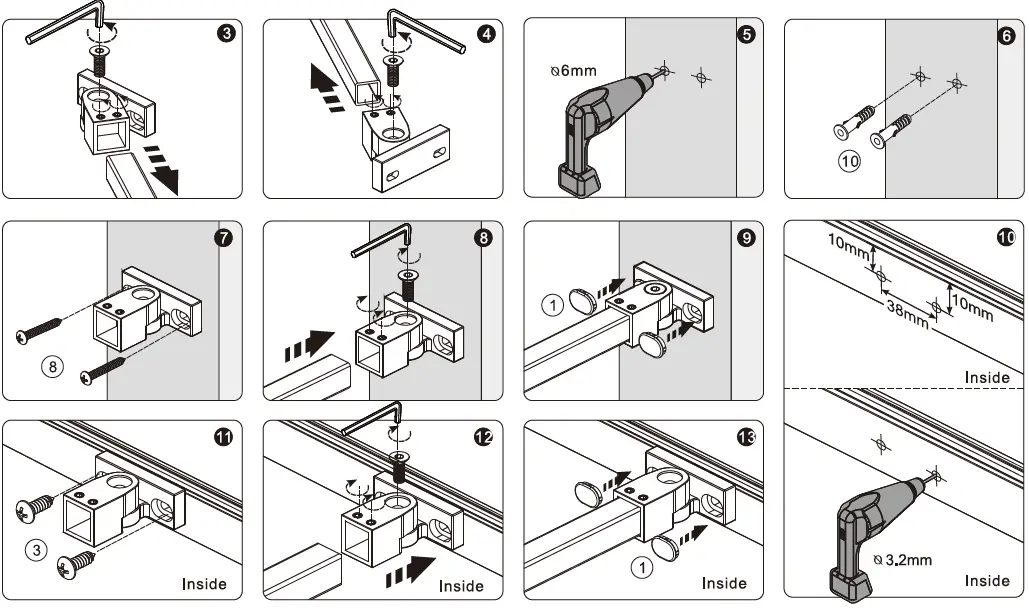

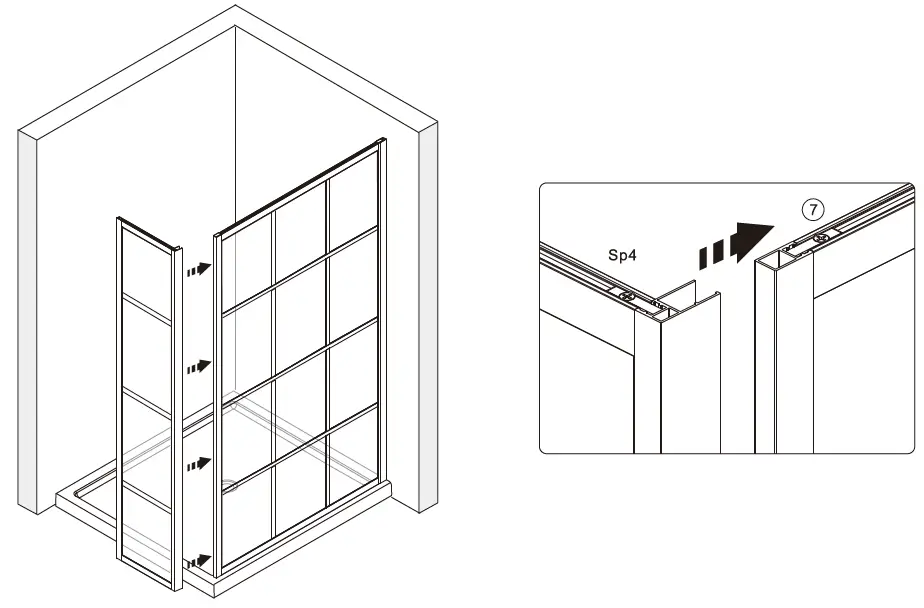

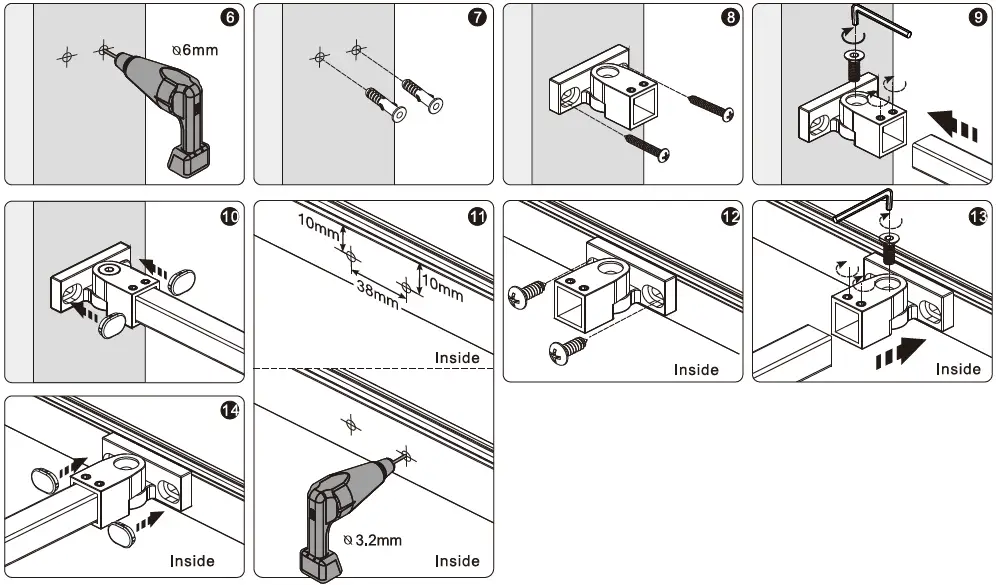

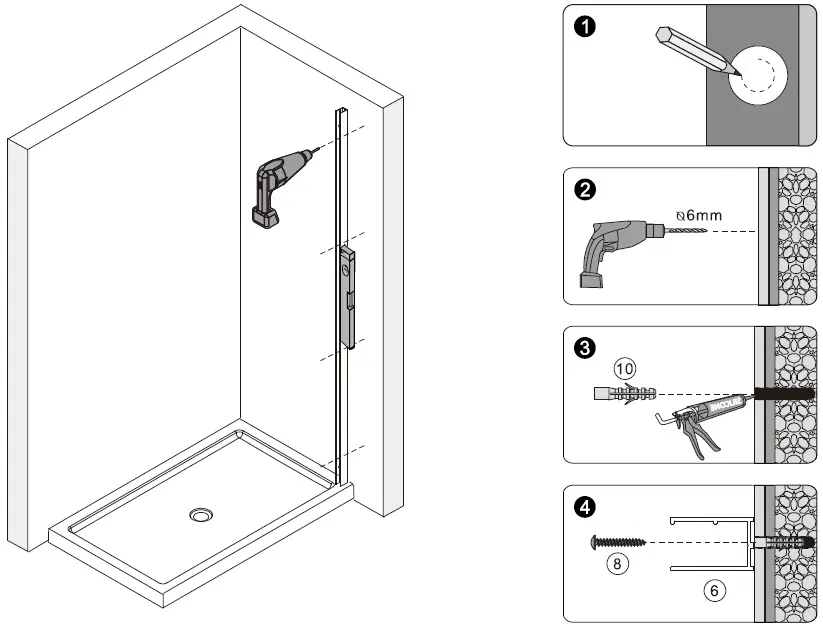

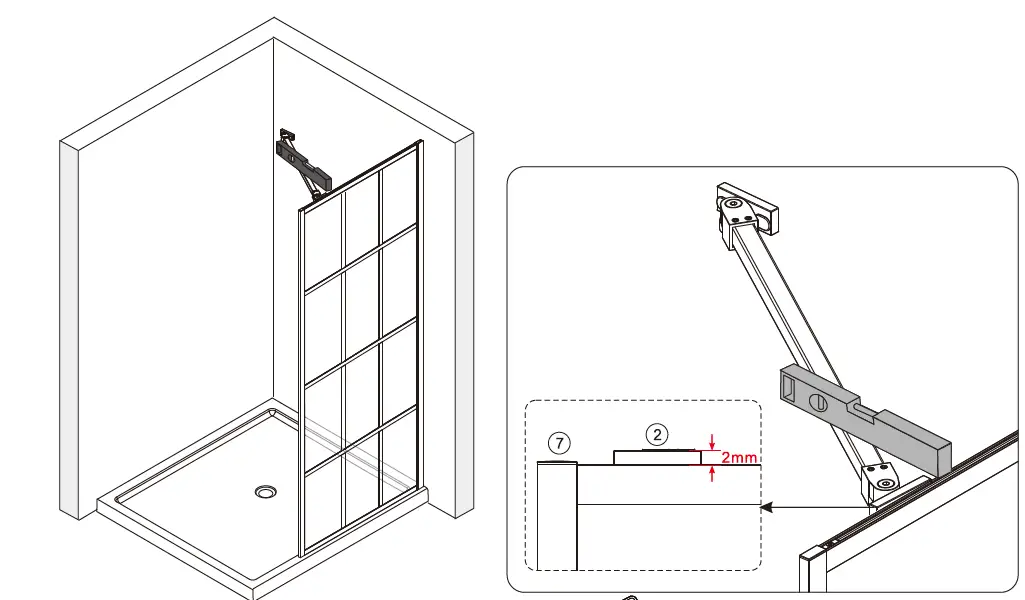

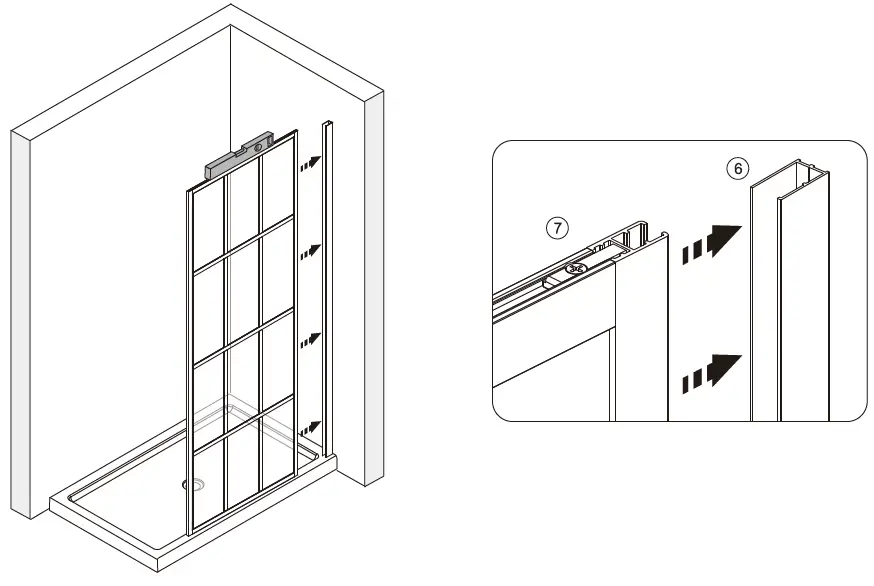

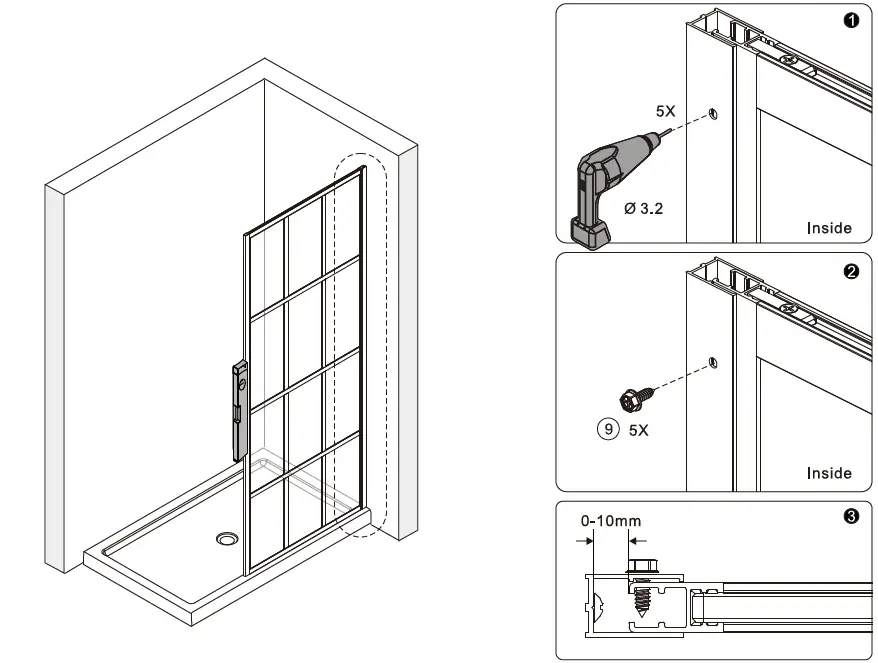

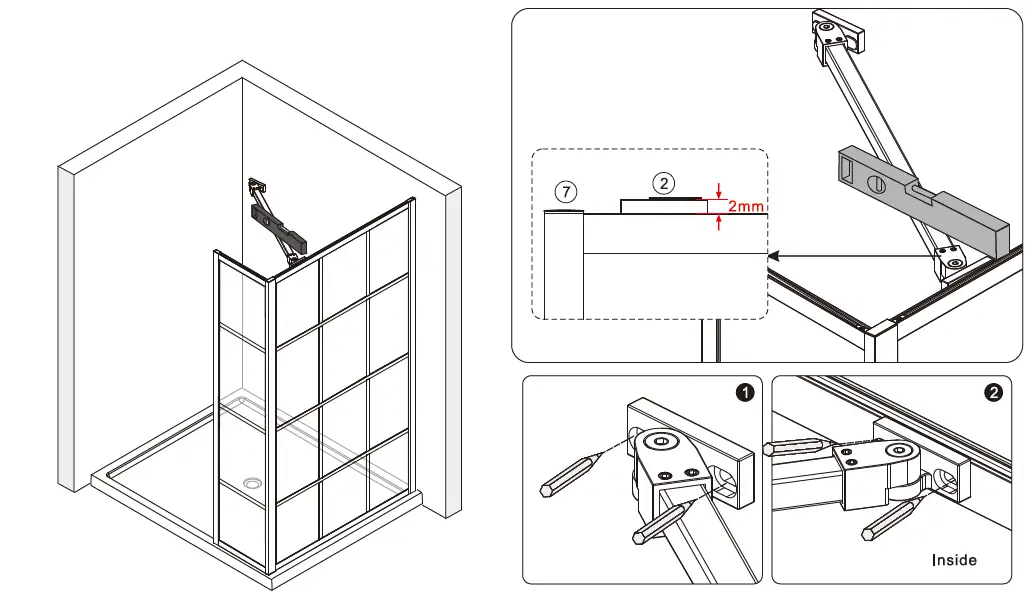

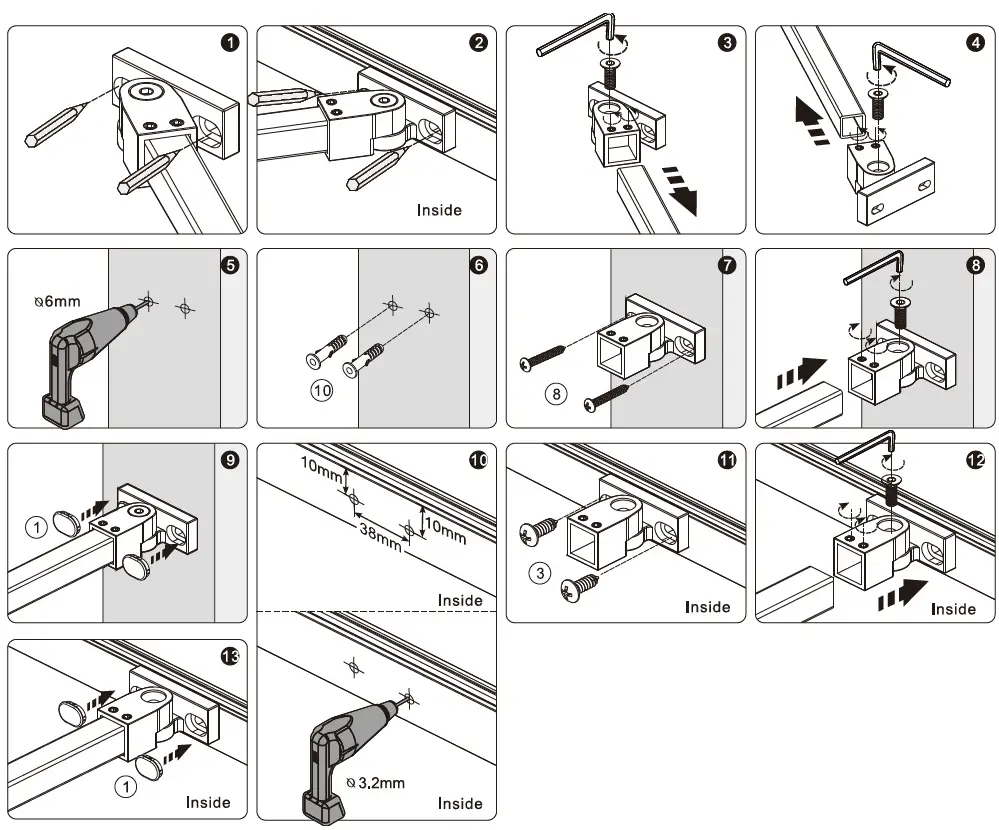

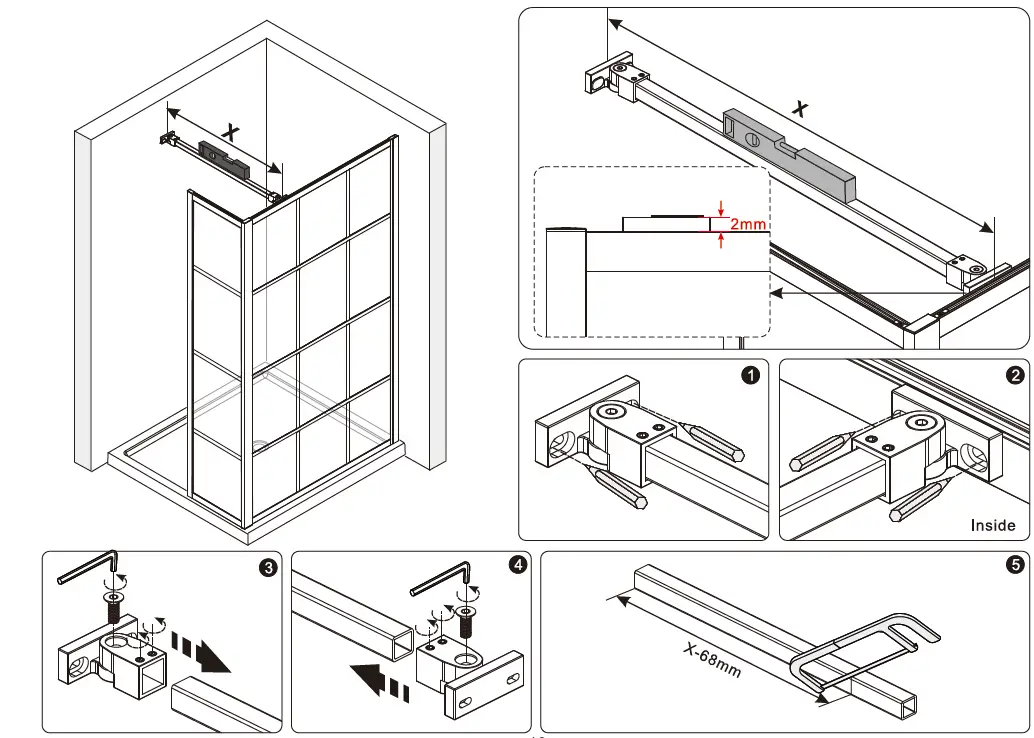

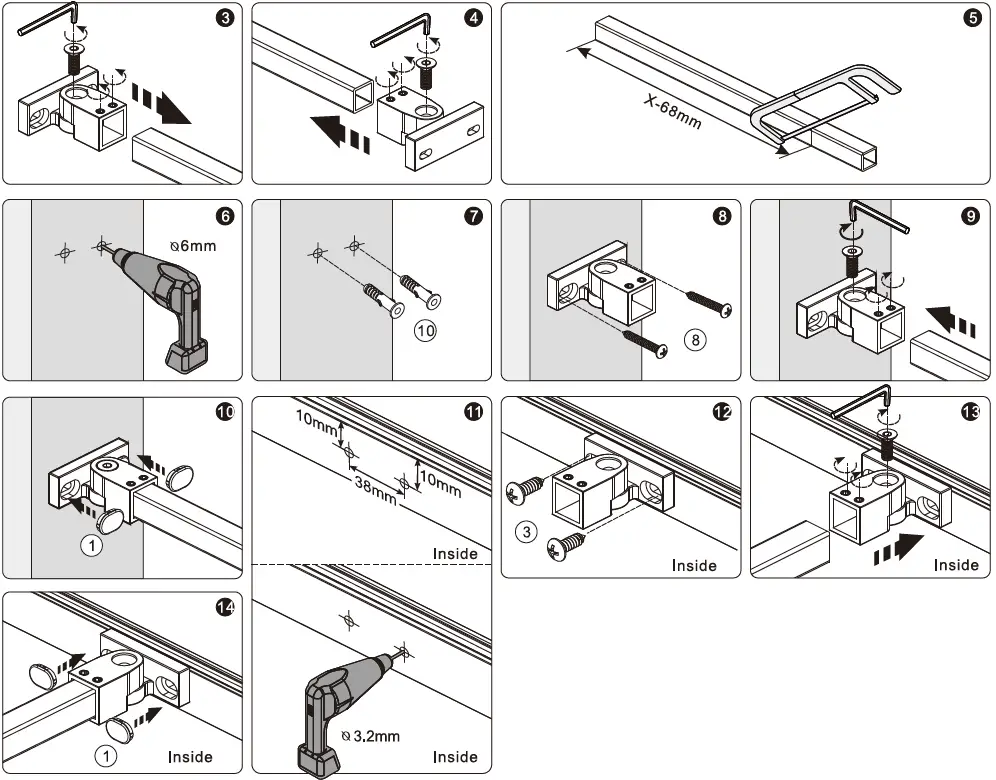

Installation

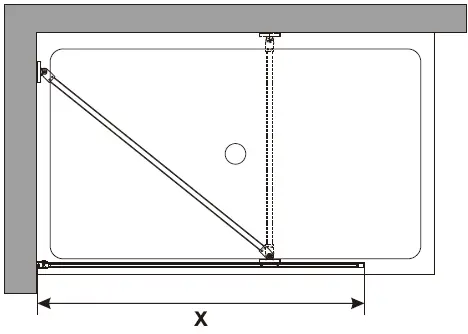

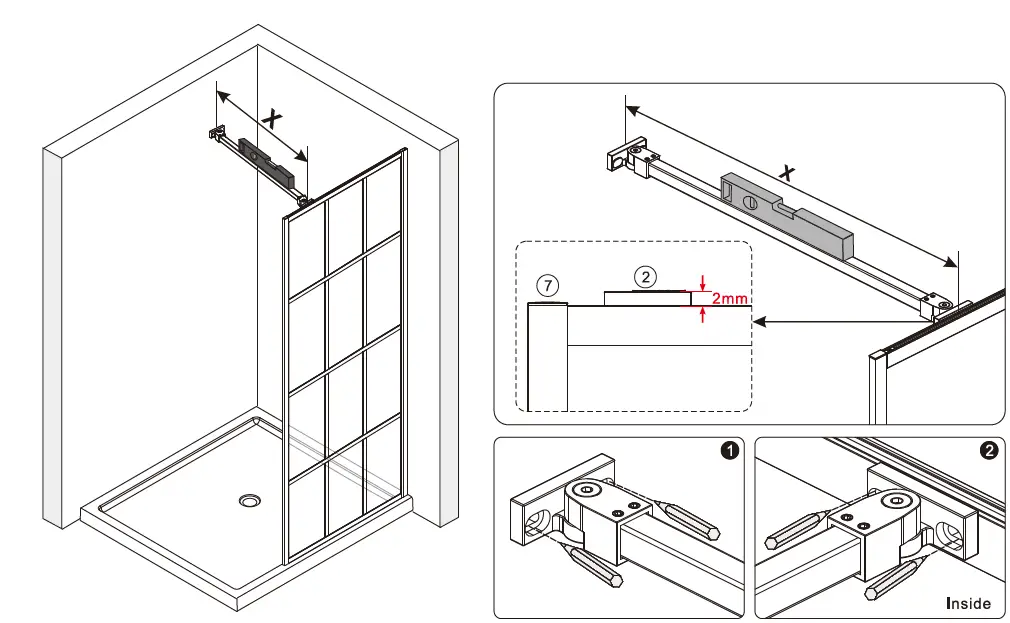

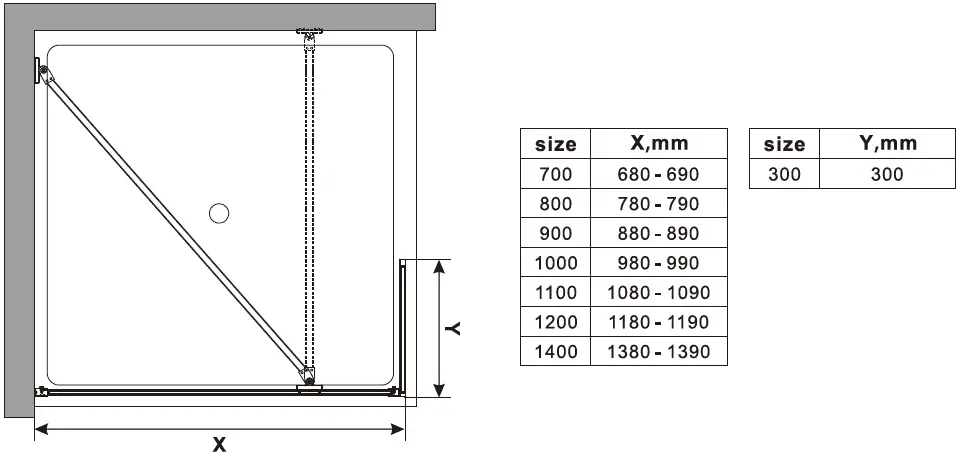

| size | X,mm |
| 700 | 680 – 690 |
| 800 | 780 – 790 |
| 900 | 880 – 890 |
| 1000 | 980 – 990 |
| 1100 | 1080 – 1090 |
| 1200 | 1180-1190 |
| 1400 | 1380 – 1390 |
Maintenance & Cleaning
Use a PH-neutral cleaning agent to maintain and clean the surface of your product. Not to use alkaline, solvent, acid and chloric or scrubbing agents. To maintain the surface of your product, wipe with a clean damp cloth and wipe dry, do not use any abrasive cleaning agents or materials. If any harsh chemicals come into contact with the surface of the product, rinse and wipe clean immediately.
For more information
- visit betterbathrooms.com
- email [email protected]
- call 03303903062
- write to Trident Business Park, Neptune Way, Huddersfield, HD2 1UA.
