Explorer-XPL – User manual
Supplied with Lithium battery, Charging station with fixings, red cone, and an AC mains charger with 4 country plug adaptors.

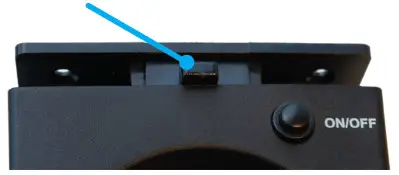

Mounting the charging station to the wall
- Push the button, and push the wall plate down to slide it off the charging station.
- Fix the wall plate to the wall using fixings provided
- Slide the wall station onto the wall plate.

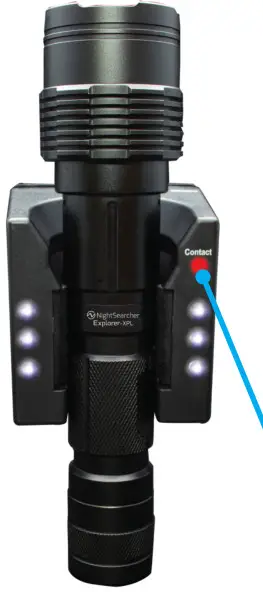

- Charging the Flashlight
- Insert battery in a flashlight
- Plug the charger into the charging station and connect to an AC power supply
- Press the ON button on the wall station
- Place the flashlight into the wall station making sure the two pin connectors line up between the flashlight and charging station. The red LED will light up when a good connection is made.
- When the battery is fully charged, the LED on the charger will turn green.

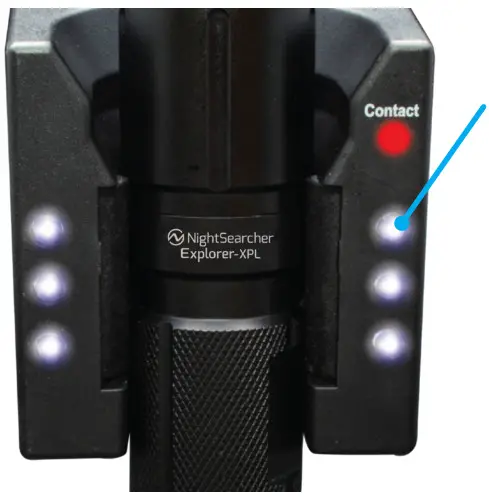

EMERGENCY LEDS ON THE CHARGING STATION
- If there is a power cut when the flashlight is mounted in the charging station the 6 white LEDs will turn on so the flashlight can be easily found in the dark. The switch on the charging station must be turned ‘ON’ for the function to work. Users can choose to switch this function ‘ON’ or ‘OFF’.
For use in vehicles:
Optional 12/24V Vehicle Charger Product code: CHIC3_7-LI-ION
NightSearcher Limited
Unit 4 Applied House, Fitzherbert Spur, Farlington, Portsmouth, Hampshire, PO6 1TT, UK
T: +44 (0)23 9238 9774
E: [email protected]
All NightSearcher products have a 3-year standard warranty on all manufacturing defects and a 1-year warranty on all rechargeable batteries from the date of purchase.
For an extended 5 year warranty please visit
https://nightsearcher.co.uk/en/extended-warranty.html
proof of purchase is required
| Product weight (g) | 280g |
| Product size (mm) | 120x190X70mm |
| NS Part No. | NSEXPLORERXPL |
