BN 2134130

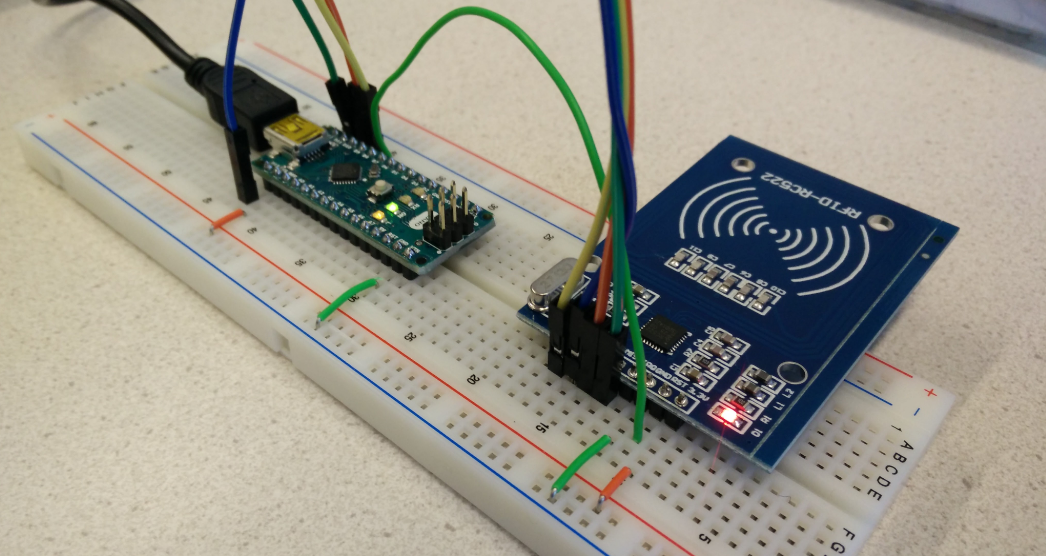

RFID Read and Write Module
Quick Instructions
Version: 2
Delivery Content
- Module
- FID key fob
Description
The product is a MIFARE® MF RC522 13.56 MHz read and write module.
Features
- MF RC522
- 13.56 MHz
- Supports CRYPTO1 encryption algorithm
- Communication via SPI
- Supported cards: Mifare1 S50, Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare DESFire
Development Resources
There are plenty of online tutorials available on the use of the MIFARE
RC522 module. For an open-source RFID, library go to: https://github.com/miguelbalboa/rfid
Pinout / Pin Map
| Pin | Description |
| VCC | 3.3 V Input voltage |
| RST | Reset and power down |
| GND | GND |
| MISO | Master-In-Slave-Out |
| MOSI | Master-Out-Slave-In |
| SCK | Serial Clock |
| NSS | Signal pin / Serial data |
| IRQ | Interrupt pin |
Specifications
| Operating voltage | 3.3 V/DC |
| Current consumption | <30 mA (peak) 13 – 26 mA (operation) 10 – 13 mA (idle) <80 µA (sleep) |
| Transmission frequency | 13.56 MHz |
| Data rate | 10 Mbit/s |
| Transmission power (max.) | 0.43- 0.86 mW |
| Transmission distance | 0 – 35 mm |
| Operating temperature | -20 to +80 °C |
| Operation humidity | 5 – 95 % RH |
| Storage temperature | -40 to +85 °C |
| Storage humidity | 5 – 95 % RH |
| Dimensions (approx.) | 40 x 60 mm |
| Weight (approx.) | 20 g |
Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the 2014/53/EU directive. Click on the following link to read
the full text of the EU declaration nonconformity: www.conrad.com/downloads Select a language by clicking on a flag symbol andenter the product order number in the search box. You can then download the EU declaration of conformity in PDF format.
Disposal
Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines.
You thus fulfill your statutory obligations and contribute to the protection of the environment.
Legal Notice
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems requires prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represents the technical status at the time of printing. Copyright 2022 by Conrad Electronic SE.
