LG CM1560 Micro Hi-Fi Audio

To view the instructions for advanced features,
visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit.

IN THE BOX

Front Panel

(Standby/On)
Switches the unit ON or OFF.
F (Function)
Selects the function or input source.
(Skip/Search)
- Searches backward or forward.
- Skips to the previous/next track/file.
  TUNING – / +
  Selects the radio stations.
  (Play/Pause)
- Starts or pauses playback.
- Selects Stereo/Mono.
  (Stop)
  Stops playback.
(Open)
Uses it when inserting or removing a CD.
Display window
Volume Knob
Adjusts the volume of the speaker.
USB
Plays the audio files by connecting the USB device.
PORT. (Portable) IN
Connects to a portable device.

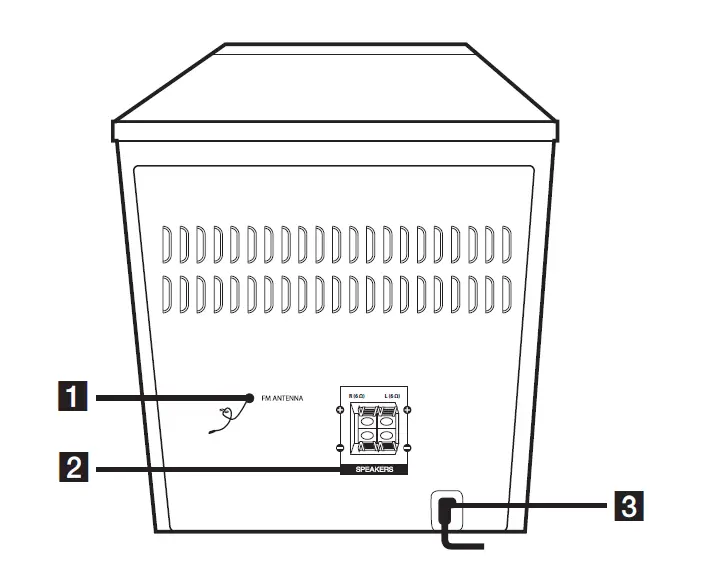

Rear Panel

FM ANTENNA
SPEAKERS (L/R) terminals
POWER IN

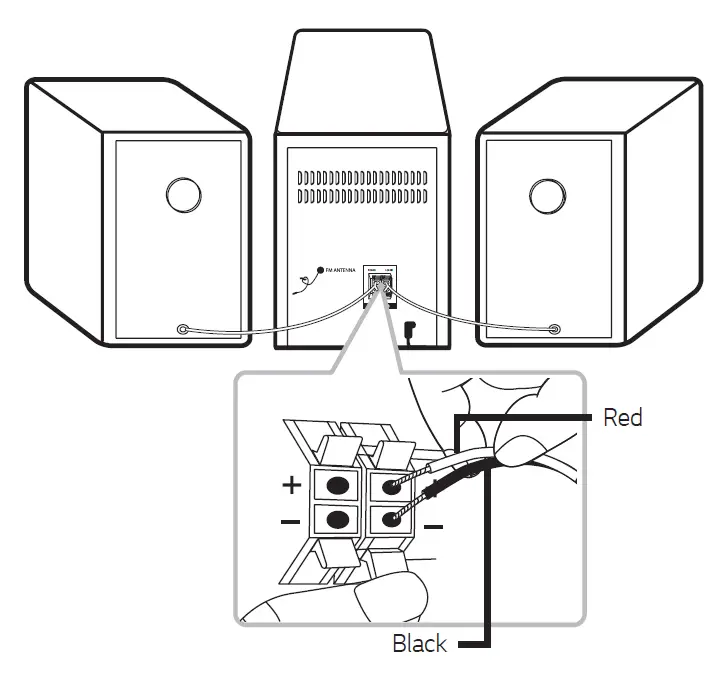

Speaker Connection

Specifications

Power Requirements
- Refer to the main label on the unit.
Power Consumption
- Refer to the main label on the unit.
- Networked standby: 0.5 W (If all network ports are activated.)
Dimensions (W x H x D)
- Approx. 150 mm x 181 mm x 210 mm
Net Weight
- Approx. 1.24 kg
Bus Power Supply (USB)
- 5 V 0 500 mA
Amplifier
(Total RMS Output power)
- 10 W

Design and specifications are subject to change without notice.

How to disconnect the wireless network connection or the wireless device
Turn off the unit by pressing the power button for more than 5 seconds.

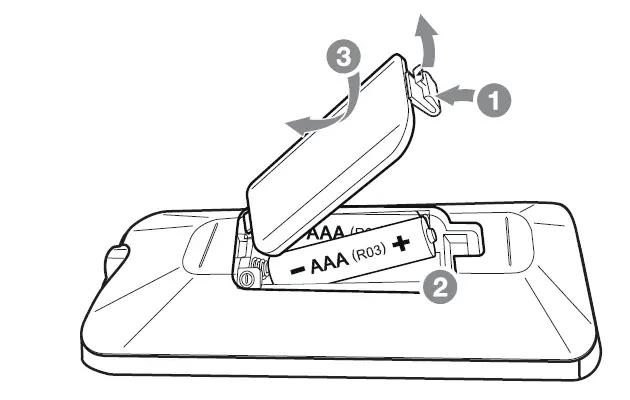

Replacement of battery

Declaration of Conformity

Hereby, LG Electronics declares that the radio equipment type MICRO HI-FI SYSTEM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
For the consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
