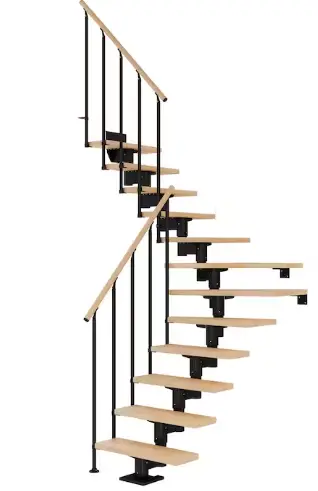

DOLLE Cork Classic Banister
INSTRUCTION

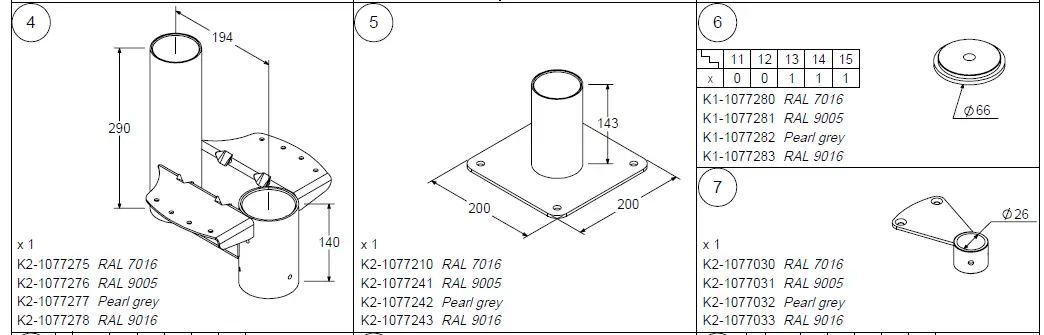

- x 6
- K1-1077150 RAL 7016
- K1-1077151 RAL 9005
- K1-1077152 Pearl grey
- K1-1077153 RAL 9016

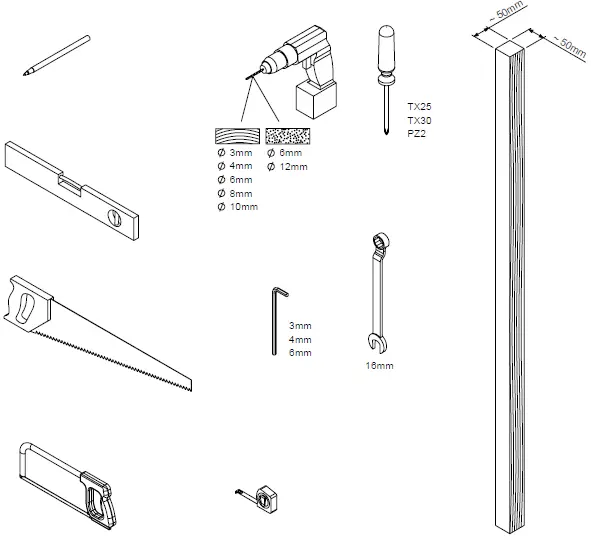

Tools not included!

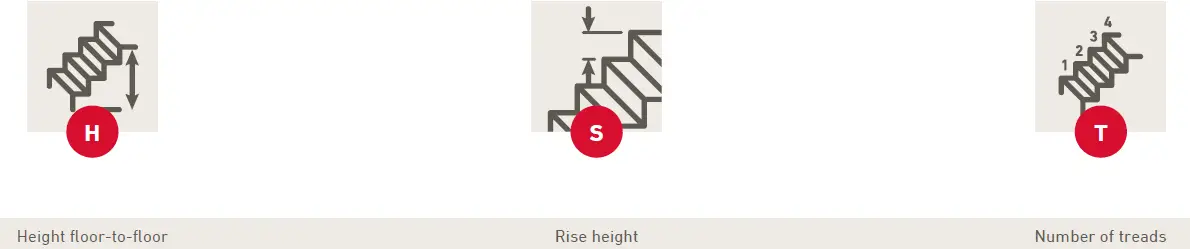

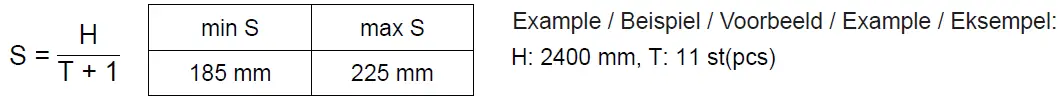

| T | min H | max H |
| 9 | 1850 mm | 2250 mm |
| 10 | 2035 mm | 2475 mm |
| 11 | 2220 mm | 2700 mm |
| 12 | 2405 mm | 2925 mm |
| 13 | 2590 mm | 3150 mm |
| 14 | 2775 mm | 3375 mm |
| 15 | 2960 mm | 3600 mm |

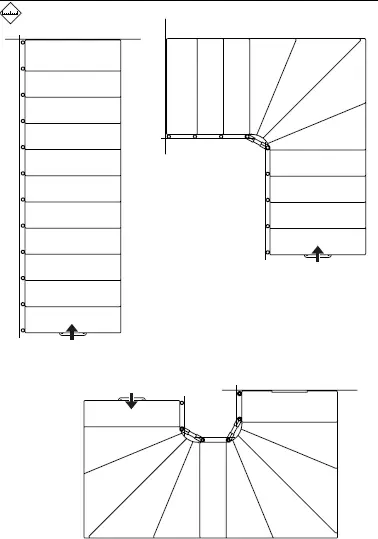

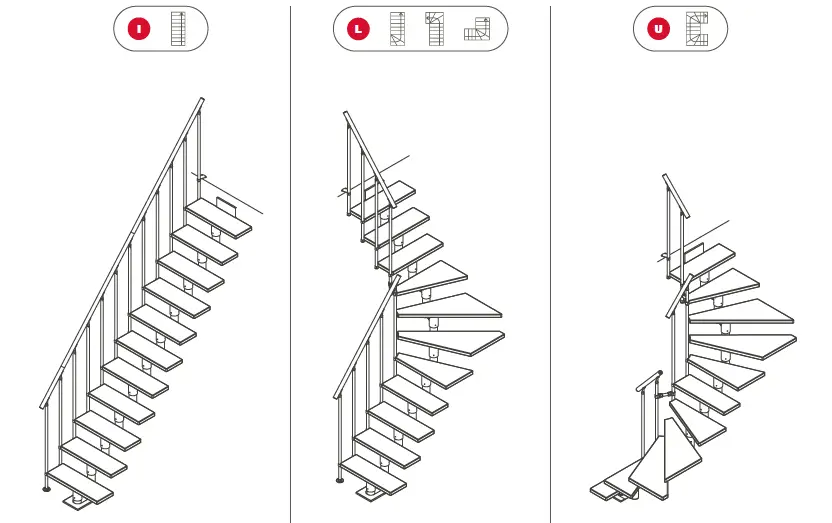

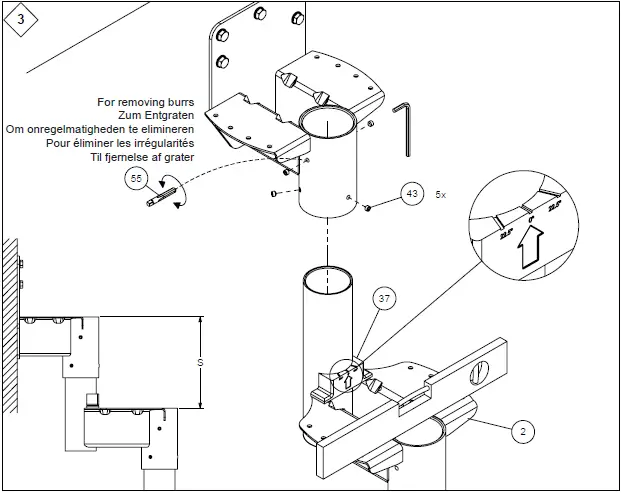

| I | Mounting of wall brackets is optional |

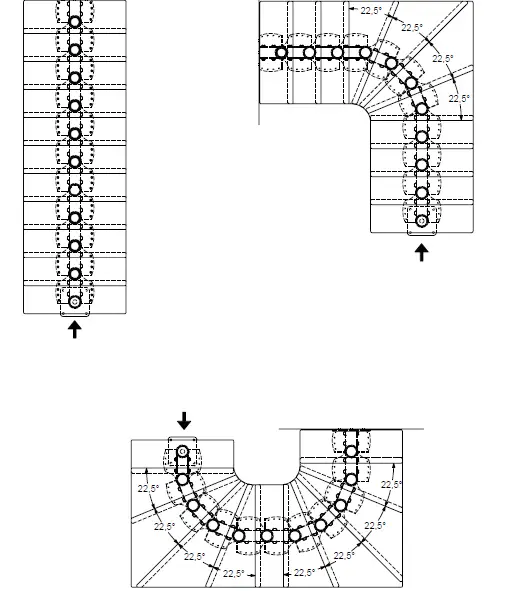

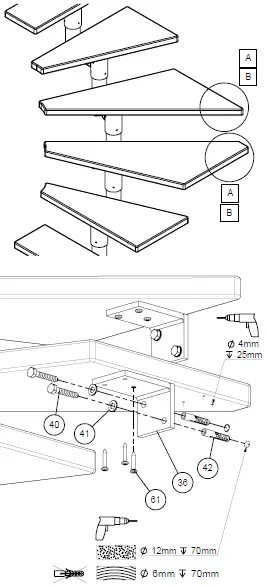

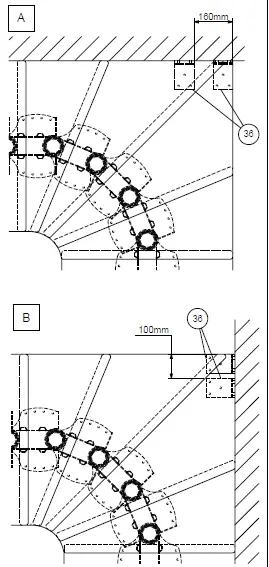

| L | wall brackets in position A or B |
| U | 4 wall brackets in position A or B |
wall brackets must be mounted on a 1/4 turn or 4 on a 1/2 turn staircase.
DOLLE loft ladders, banisters and staircases since 1951
