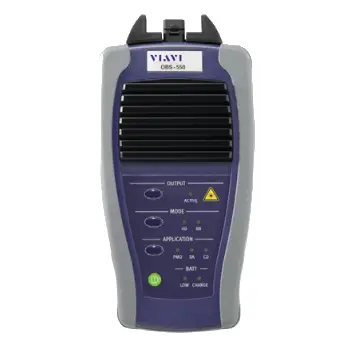

SmartClass OBS 500/550 Optical Broadband Light Sources
High Performance Light Source for PMD, CD and Attenuation Profile (AP) Measurements
10 GE /40 GE service delivery and 40G /100G network deployments or upgrades are driving fiber characterization test out to field tech support groups. Cost effective solution and fast return on investment are required due to wider test set dispatch.
The growing number of projects is driving an increasing demand for higher productivity with better reliability and availability.
The OBS-500/550 combines three applications in one rugged and splash-proofed field solution. Its high output power (OBS-550) and wide wavelength range enable the characterization of any fiber network configuration. In combination with the Viavi Optical Dispersion Modules (ODM) (MRDISPAP & DISPAP modules for T-BERD/MTS-6000A and – 8000 platforms), high performance CD, PMD and AP measurements can be executed.
Key Benefits
- Cost-effective solution, designed for high-performance testing
- SmartClass design for harsh environmental conditions
- Battery-operated, portable field handheld
- High dynamic range for ultra-long haul PMD and CD testing
- Compatible with Viavi MRDISPAP and DISPAP modules for PMD, CD and AP Measurements
- Covers the SCL bands (1460 – 1640nm)
- OBS-550 version features a high-dynamic mode to test non amplified links of up to 300km for PMD and 260km for CD (in combination with DISPAP module)
- Both versions allow testing through in-line amplifiers/EDFAs

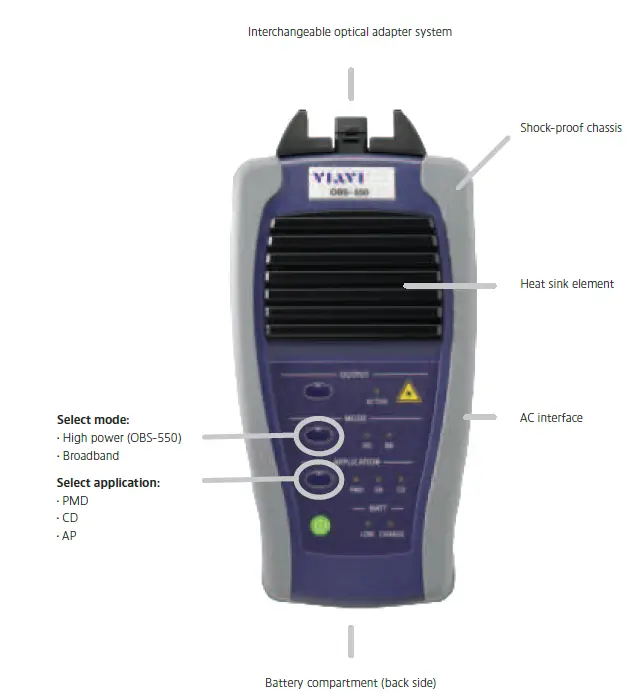

Overview
Specifications
| Wavelength range | OBS-500 1485 to 1640 nm | OBS-550 1485 to 1640 nm |
| Output power level | >8 dBm | >16 dBm(1) >8 dBm(2) |
| Spectral power density | >–46 dBm/0.1 nm | >–46 dBm/0.1 nm (1485 to 1640 nm)(2) >–30 dBm/0.1 nm (1530 to 1610 nm)(1) |
| State of polarization | Polarized or non-polarized | Polarized or non-polarized(1) |
| Operating mode indication | LED (no display) | |
| Optical interface | PC with interchangeable adapter system | |
| Battery life | 2.5 hours(2), (3) | |
| Power supply | – Four dry batteries Mignon/AA 1.5 V or NiMH rechargeable cells Mignon/AA – AC line operation via separate AC adapter – Nominal range of use 100 to 240 V, 50/60 Hz | |
- non-polarized for “AP” and “CD” (HD) mode
- in broadband (BB) mode
- at 20 °C ambient temperature
| Temperature | |
| Operation | –10 °C to +40 °C |
| Storage | –40 °C to +70 °C |
Dimensions and weight
| OBS-500/550 | |
| W × H × D | 125 × 50 × 260 mm (9.05 × 4.72 × 1.97 in) |
| Weight | 600 g (1.3 lb) |
| Included with the OBS-500/-550 | |
| 2150/00.xx | One interchangeable adapter |
| 2237/90.02 | Four NiMH rechargeable cells Mignon/AA |
| 2277/90.01 | SNT-121 AC adapter |
| Operating manual | |
| 2279/90.10 | Soft bag |
| Ordering number | Accessories |
| 2150/00.32 | Optical adapter ST type |
| 2150/00.58 | Optical adapter SC type |
| 2150/00.51 | Optical adapter FC type |
| 2150/00.50 | Optical adapter DIN type |
| 2229/90.21 | OCK-10 Optical Connector Cleaning Kit |
| 2229/90.07 | Optical cleaning tape |
| 2229/90.08 | Spare tape for optical cleaning tape |
| 2237/90.02 | NiMH cells, Mignon/AA, 1.2 V (4 required per instrument) |
| 2277/90.01 | SNT-121A Worldwide compatible AC adapter |
| K804 | USB connection cable |
| 2279/90.10 | OBS-500/-550 soft bag |
