AIR SEA DR-2036 Rechargeable Nail Drill
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING.
To reduce the risk of burns, electrocution, fire, or injury to persons. Please be sure to read the safety instruction as follow to avoid potential hazards that could result in personal injuries or damage to the device.
Check before Using
- Check the power supply cord for damage before the first use and during the life of the device. Do not use this device if it has a damaged cord or plug or it is not working properly or damaged.
- Do not plug this device into a voltage system that is different from the voltage system specified on the device or charger. Use with improper voltage will damage the device and VOID warranty.
- Do not use a charger not sold by AIRSEE.
- The handpiece of this nail drill is not compatible with other models of nail drill machines from AIRSEE and other brands. Please don’t connect the handpiece with a different nail drill machine.
Note for Battery
- The Battery needs to be charged fully before first use to ensure optimal performance.
- Do not overcharge the device or use it when it is charging.
- Charge the device in well-ventilated condition with O ·c ~40 t:. Do not charge the device close to flammable or explosive materials. When charging the device, please do not cover it with clothes or other things.
- If the device is not used for long periods of time, you should charge and discharge once every three months. In normal conditions, the battery performance will decline over several.
Note for Using
- Do not draw out the connecting wires during use or touch the plug with the wet hand to prevent electric leakage and shock or fire. Please turn the power off after use.
- Do not use the crooked or damaged nail drill bit or replace the bit when the power is on.
- Adjust the speed gradually, not abruptly. Please stop to use once the unusual movement and noise happens.
- Do not cover the ventilation of the handpiece avoiding burning your hand or touching any rotating part while the device is working.
- Misuse, dropping or excessive force may cause device damage.
- Children under 18 years of age should not use this device without parental consent and supervision.
Maintenance Work
- Do not disassemble the device. Doing so could be dangerous and constitutes voiding warranty conditions.
- Do not keep the device in a place that is about or more than SO’C(in a metal box, car or other places in high temperature). Keep the handpiece dry and keep it away from the oil and grease.
- D Store the device in a cool and dry place. Do not store it in a hot or humid environment.
- Keep electrical cord away from heated surfaces.
- Do not dispose of the device in heat or fire.
- Do not clean the device with harmful chemicals or detergents.
Note for Injury
- Having manicures done frequently can cause injuries to the nails as well.
- If you need to remove the gel polish of natural nails, try to use the nail polish remover pads to avoid damage to the nail bed with the improper operation.
- Do not use the device if you have an open wound on your nail or hand.
- 1f you have any skin diseases, heat-sensitive, allergic reaction, onychomycosis or any other disorder, you should consult your doctor and or medical professional before using the device.
If you require any technical support, contact us at [email protected]. SAVE THESE INSTRUCTIONS
Items Included
- 1 x Rechargeable Nail Drill
- 1 x Power Supply
- 1 x Handpiece Holder
- 6 x Drill Bits
- 6 x Sanding Bands
- 1 x User Manual

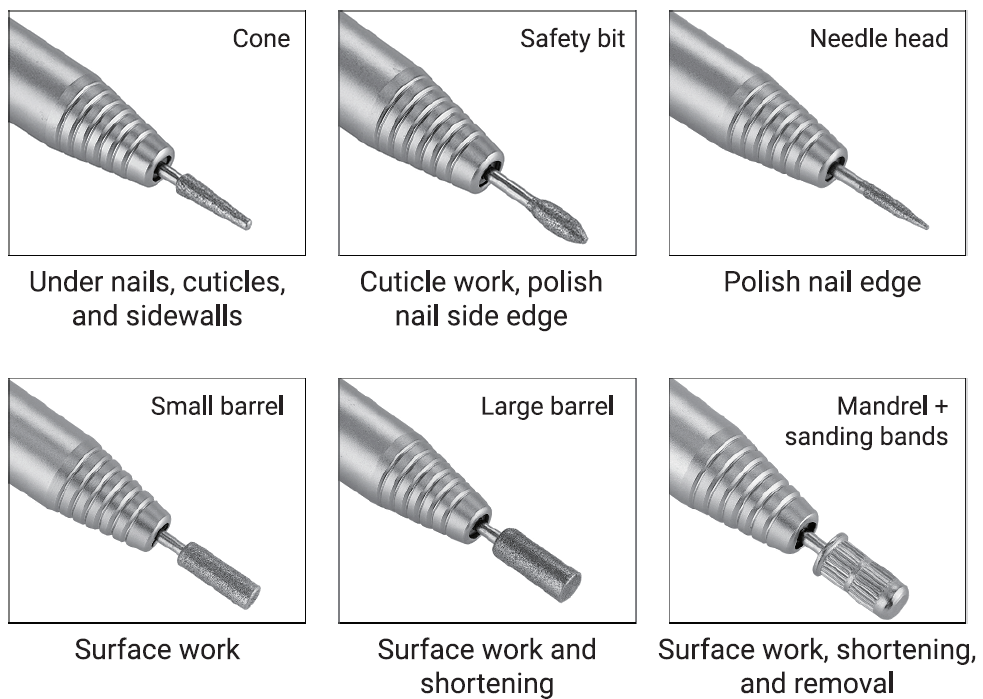

Six Drill Bits
How To Use
- choose one grinding drill bit, release the handpiece, insert the drill bit at the drill head and lock it in place.
- Rotate the ON/OFF button to turn on the device.
- Rotate the speed control knob to accelerate or decelerate the rotation speed.
- Change the rotation direction of the grinding drill bit on the F/R button if needed.
- After the polishing is finished, please rotate the central barrel and take out the drill bit. The handpiece fixture could be used to place the hand piece when not in use.
- ON/OFF Speed control knob
- Handpiece jack
- F/R button
- LCD screen (It will show the RPM and the battery.)
- Portable hook
- Handpiece fixture
- DCsocket
- Ventilation holes
- Handpiece connector
How to Replace Drill Bit
Originally a blank bar is attached but it can be removed as you like. Please make sure that the desired bit is suitable for the collet.
- Do not move Central barrel during operation.
- Do not cover the ventilation holes on the hand piece, when using the device.
- Turn Central barrel clockwise until hearing a “click” sound to release drill bit. Taking out the blank bar. Put the desired bit into the handpiece.
- Turn Central barrel counterclockwise until hearing a “click” sound to lock drill bit in place.
- Be sure to confirm the rotation of the bit and collet. Please take care of your fingers not to be hurt by bit edge.
Charging
- Take out the adapter and connect it with the DC Socket. fl
- Connect the power supply with adapter and insert the main plug into a wall socket.
- LCD screen will show the battery. When the symbol flashes, it means that the drill needs to be charged.
Problem and Terms of Settlement
| Misoperation | Causing | Terms of settlement |
| Changing the nail drill bit when the power is on | 1. Motor burns out 2. Bearing damages (Loud Noise) | Turn off the power when changing the nail drill bit |
| The power is on when not in use | Turn off the power when not in use | |
| Overcharge | 1. Battery lifespan shortens | Not exceed the specified charging time |
| The continuous working | ||
|
Long time, Large load work | 1. Motor burns out 2. Device lifespan shortens 3. Bearing damages (Loud Noise) 4. Handpiece damages | time should not be too long when the working condition is in heavy load. When the device is overheating, it should be stopped immediately to |
| make it return to normal temperature . | ||
| Insert into a mismatched power supply |
1. Motor burns out | According to the device voltage requirements, insert the matching |
| power supply | ||
| Put the power cord at random/ Pull the power cord/ Use the device when charging | 1. Battery damages and device lifespan shortens 2. Power cord brokes 3. Poor connection 4. Easy to cause short circuit |
Do not pull the power cord/ Do not use the device when charging |
| 1. Device charging | ||
| Replace the original charger randomly | unsuccessfully 2. Battery damages 3. Easy to cause short circuit | Use the original specification charger |
| 1. Bearing damages (Loud Noise) |
Clean dust, add the | |
| Dust into device | 2. Motor gets hot 3. Rotational speed slows down 4. The potentiometer speed regulation fails 5. Handpiece damages | dust-proof protection of the dustproof hood/ Avoid device drops or by other impacts |
| Misoperation | Causing | Terms of settlement |
|
Device drops to the ground or by other impacts | 1. The ON/OFF button doesn’t work 2. The potentiometer speed regulation fails 3. F/R button doesn’t work 4. Handpiece damages |
Avoid device drops or by other impacts ( If the handpiece was damaged, it can be purchasedseparately. ) |
| Insert the nail drill bit into the device incorrectly /Rotate the central barrel into the place incorrectly / Take the drill bit out when the Central barrel is locked | 1. Drill bit falls out 2. High vibration 3. Drill bit stucks 4. The Handpiece stucks and cannot be turned on 5.Handpiece damages | Insert the nail drill bit into the device correctly/If the drill bit stucks, please release the handpiece and try to take out it hard/ Rot ate the Central barrel correctly |
| Replace drill bit when handpiece is not completelystopped | 1. The handpiece stucks and cannot be turned on 2. Handpiece damages | Do not replace drill bit when handpiece is not completely stopped |
| Cover the ventilation holes on the handpiece, when using the device |
1. Handpiece overheats 2. Hand burns | Do not cover the ventilation holes on the handpiece, when using the device |
| The size of drill bit is not suitable | Can not insert the drill bit into the device | Use standard drill bit |
| Water into the device/Operate in wet or moist conditions/Use a wet cloth to clean the device |
1. Motor burns out 2. Device li fespanshortens | Do not operate in wet or moist conditions/Only a dry cloth is allowed for cleaning |
Specifications
Input voltage range: 100-240V /50-60Hz 0.6A Output voltage: 24.0V 1 .0A Charging time: 2.5 hours
Email: [email protected] Website: www.airseelife.com

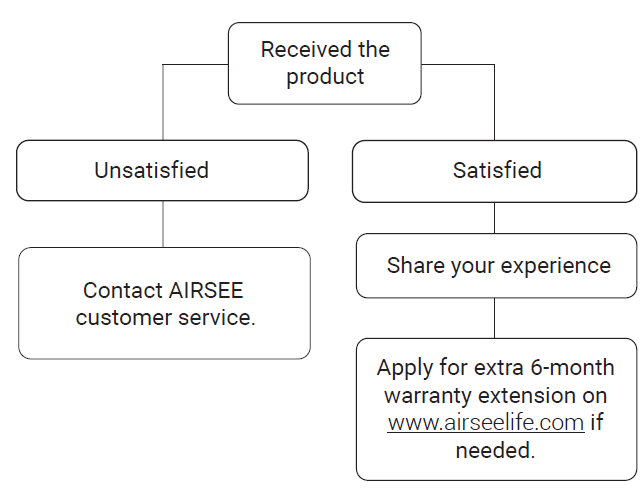

Warranty and Customer Service
AIR SEA offers a 6-month limited warranty on quality-related issues. Please apply for your extra 6-month warranty extension and download the user manual in other languages by registering on www.airseelife.com if needed.
