Fridababy Fb9080 Breathefrida 3-in-1 Humidifier User Manual

Fridababy FB9080 BreatheFrida 3-in-1 Humidifier

INTRODUCTION

When baby’s more congested than rush hour traffic, it’s time to turn on the BreatheFrida 3-in-1 Humidifier for some much-needed sinus-soothing, ultrasonic humidity. Between the cool mist, the aromatherapy vapors + the relaxing color-change nightlight, the baby will be in the fast lane to feeling better in no time. Here’s what it can do.

SPECIFICATIONS

TECHNICAL DATA

• Product Name: BreatheFrida 3-in-1 Humidifier
• Model Number: FB9080
• Input Voltage: 24VDC, 0.5A
• Water Tank Volume: 0.5 Gal
• Rated Power: 12 W
• Dimensions: 196x201x200mm
• Coverage Area: 320 sq ft

Use only with a Class 2 Power Supply Model IVP2400-0500W

FEATURES

HUMIDIFIER – This bad boy uses the power of ultrasonic vibrations to turn water into a cool hydrating mist that runs for up to 12 hours. Can your smart phone do that?!
AROMATHERAPY – Add BreatheFrida Vapor Drops or any aromatherapy-grade essential oil when you’re ready to set the mood.
COLOR CHANGING NIGHTLIGHT – Looking to inspire dreams of unicorn gardens or space exploration? Want the light to match your baby’s outfit? More of the set it and forget it type? Whatever your color preference, the 3-in-1 Humidifier is equipped with a range of nightlight colors for even more control over the ambiance. Dreamy.
AUTO-STOP FEATURE – The 3-in-1 Humidifier is designed to automatically turn off when the water runs out or the tank is removed. Safety first.|
MIST ADJUSTER – Go from gentle mist to tropical rainforest with a twist of the knob.

WARNINGS:

READ AND SAVE THESE INSTRUCTIONS

• Failure to comply with the warnings below may result in electric shock or serious injury.
• STRANGULATION HAZARD! – Keep out of reach of children. Do not use with extension cords. This is not a toy. For adult use only.
• This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

CAUTION:

• Disassembly, repair or remodeling by any unauthorized person may result in serious harm and will void the manufacturer’s warranty.
• Always place the humidifier on a flat surface. It may not work properly on an uneven surface.
• Do not place the humidifier on cloth, carpet or a soft and fluffy surface, as this may block air intake.
• This product releases mist. Do not place this humidifier directly on wooden furniture, flooring or any surface that could be damaged by water.
• The manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not remove the water tank from the unit while it is on.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the 360O mister is pointed directly at an object or person.
• Do not directly inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep product running for more than 12 hours.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.

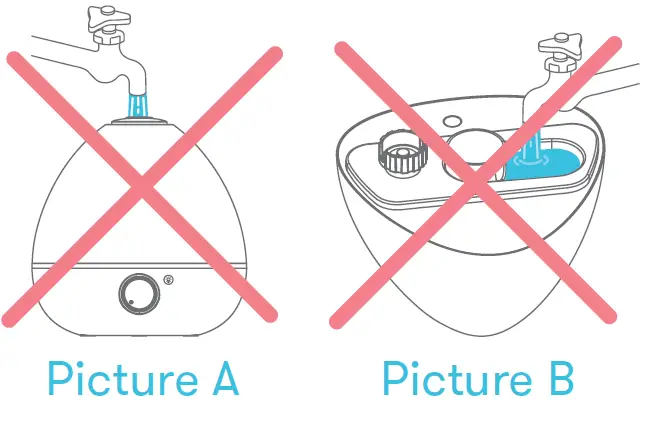

• Do not fill water through the 360O Mister (as in picture A).
• Do not fill water through air outlet (as in picture B.).
• Do not use this product near any other electronic device.
• Do not cover the mister at any time during use.
• Do not put anything other than water or essential oil in the water tank.
• For household use only. Do not use outdoors.
• Do not use the power cord as a handle. Never pull on the power cord.
• Arrange power cord to minimize the possibility of accidents. Discontinue use if any signs of deterioration appear on the unit or on the power cord.
• Do not tamper with humidifier in any way. If for any reason the unit fails to function properly, immediately return it to Fridababy LLC if within the
  warranty period.
• This product is not intended for use by children or persons with limited physical and mental capabilities unless they have been instructed or supervised on the
  proper use of this product by a person responsible for their safety.

OPERATING INSTRUCTIONS

• Lift Water Tank off of Base
• Unscrew Water Tank Cap in a counter-clockwise direction.
• Fill tank with water. Use filtered or distilled water for best performance.
• (Optional) Add BreatheFrida Vapor Drops (or other aromatherapy -grade essential oils) as desired.
• Screw Cap back on the Water Tank in a clockwise direction.
• Place Water Tank back on Base.
• Plug Power Cord into Base + outlet.
• Twist the Power + Mist Adjuster knob clockwise to turn the humidifier on and to control the mist level.
  •  Twist the knob to ON, and the humidifier starts to work.
  •  Twist the knob clockwise to adjust the mist level from min to max.
  •  Twist the knob counter-clockwise to adjust the mist level from max to min.
• Tap the lightbulb icon to turn nightlight on with rotating colors. Tap again to select a specific color. Tap one more time to turn off the nightlight.
• Twist Power + Mist Adjuster knob counterclockwise to OFF

CLEANING

ALWAYS UNPLUG THE UNIT BEFORE CLEANING.

INSIDE THE BASE OF THE UNIT:

Pour excess water out of the unit. Wash the unit with fresh water using a cleaning brush and soft cloth as needed. DO NOT submerge the Base of the unit into water.

WATER TANK:

Empty Water Tank. Remove Mister and clean the mist outlet with fresh water and a soft bristle brush (bottle cleaning brush is recommended).

OUTER SURFACE OF THE UNIT:

Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

TRANSDUCER:

• Unplug humidifier.
• Remove the tank and empty all the water in the Base and Water Tank.
• Locate the Transducer on the inner center of the base unit and wipe clean with a soft cloth. (Do not scrub or scrape the transducer.)

DEEPER CLEANING + DESCALING:

Everyone’s water content is different, so cleaning and scale removal may be required weekly or every other week to optimize unit performance. If scale becomes difficult to remove with brush, follow the steps below.

• In a cup, combine 1 tsp of white vinegar and 1 tsp of water.
• Let solution stand for 5 minutes.
• Pour the mixture into the base, cleaning all interior surfaces with a soft cloth or brush to help remove scale.
• Check 360O Mister and Mist Tube in Water Tank. Clean as needed.
• Rinse the base thoroughly with water to remove remaining scale and the leftover vinegar solution.

STORAGE

•  Follow the Cleaning and Descaling instructions when the humidifier will not be in use for a long period.
•  Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
•  Pack the unit in its original box and store in a cool, dry location.

INFORMATION ON USE OF ESSENTIAL OILS:
Using essential oils is a great way to enhance the humidifier’s effects. Be sure to follow our recommendations on how to use essential oils with your humidifier. Failure to do so may result in malfunction or damage to the humidifier or even harm to the user.

• Add drops of BreatheFrida Vapor Drops or other aromatherapy- grade essential oils into 0.5 Gal. of water.
• Only use essential oils with adult supervision. Do not allow child to use essential oils unsupervised.
• Wash the Water Tank thoroughly after each use to remove residue.
• The Water Tank and the Tank Cap are made of oil-proof materials. Other parts may be damaged by direct contact with oil. Do not spill oil outside the Water Tank.
• Clean Water Tank every time you change essential oils.
• Do not apply undiluted oil directly onto your skin or swallow it.
• If oil comes in direct contact with your skin, wash it off with water. If swallowed, seek medical help immediately. Keep oils away from eyes. If oils come in contact with eyes, wash eyes immediately with water. Consult a doctor, should irritation persist.
• If you feel unwell while using the product, turn off the device immediately.
• Pregnant women, elderly people, young children or people with chronic diseases may be more sensitive to scent. If they feel unwell, stop using immediately.
• Store essential oils in a dark cool place with the cap tightly closed and out of reach of children and pets.
• Use essential oils with a valid expiration date.

TROUBLESHOOTING GUIDE

FCC

The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.
•  Increase the separation between the equipment and receiver.
•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•  Consult Fridababy LCC or a qualified technician for help.

BREATHE EASY, BABY

YOU JUST FINISHED READING THE MANUAL.

3-in-1 Humidifier Questions?
[email protected]
