KD67B86

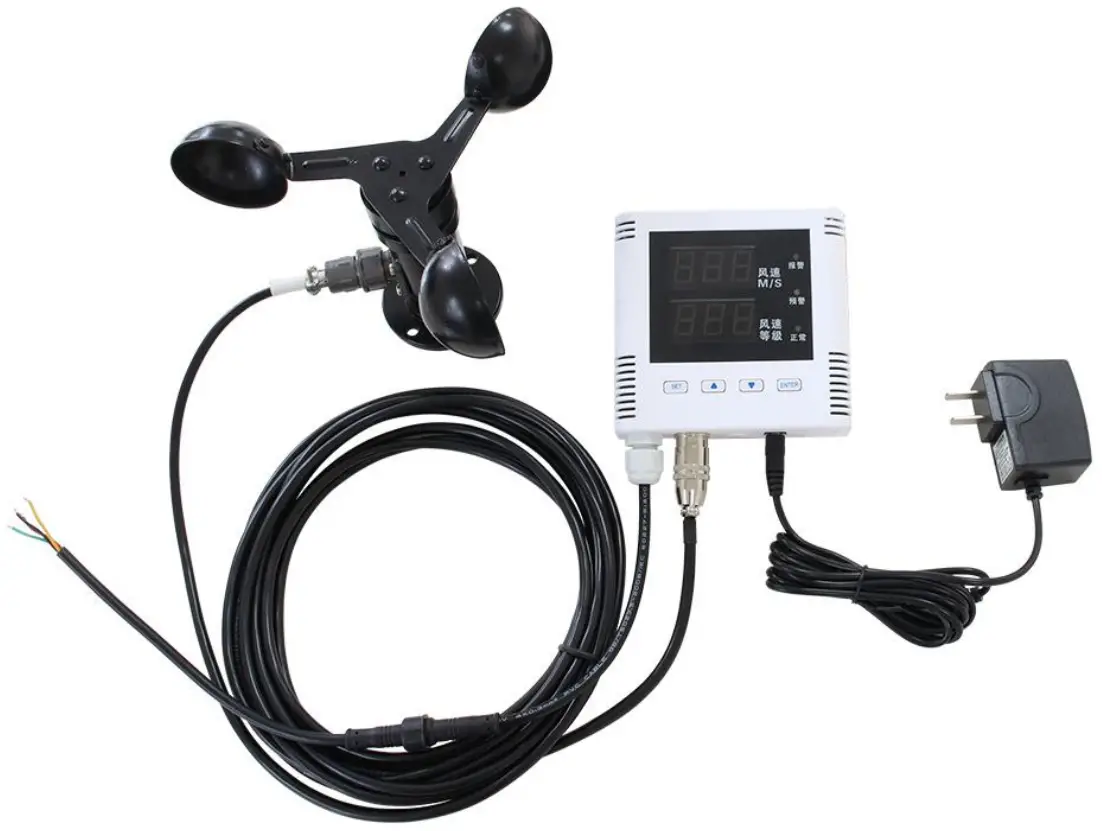

RS485 tower crane wind speed alarm instrument
User Manual
File Version: V21.3.6
KD67B86 using the standard RS485 bus MODBUS-RTU protocol, easy access to PLC DCS, and other instruments or systems for monitoring wind speed state quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS232, RS485, CAN,4-20mA, DC0~5V\10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.
Sha nghai Sonbest Industrial Co., Ltd KLHA Brand Division
Technical Parameters
| Technical parameter | Parameter value |
| Brand | KHA |
| Wind speed range | 0~30m/s |
| Start wind | 0.2m/s |
| Wind speed accuracy | ±3% |
| Shell material | aluminum |
| Communication Interface | RS485 |
| Default baud rate | 9600 8 n 1 |
| Power | DC9~24V 1A |
| Display | LED |
| Running temperature | -40~80°C |
Product Size

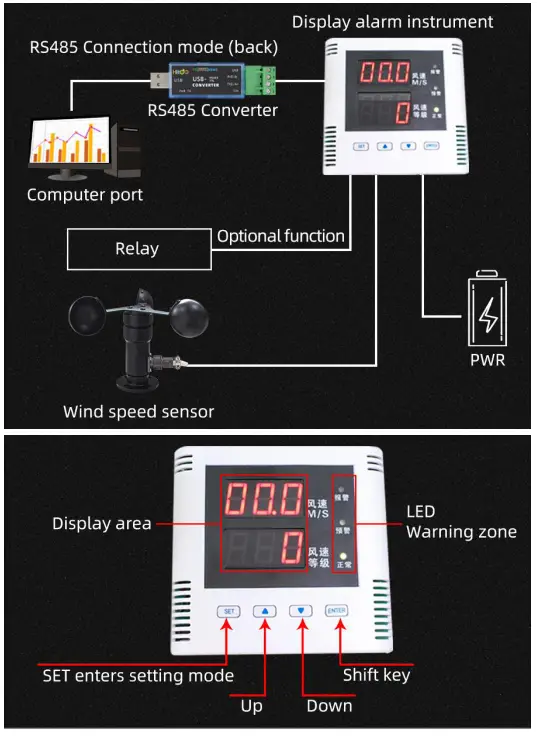

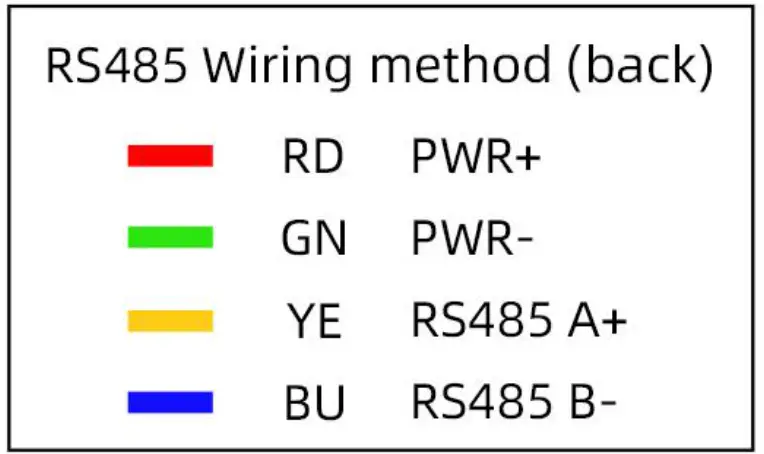

How to wiring?

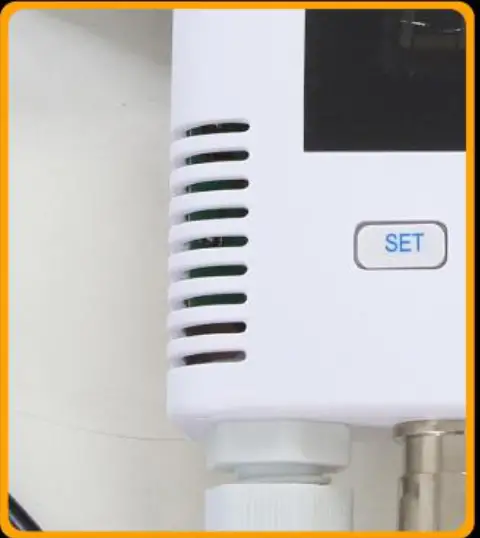

BREATHABLE GRID HOLES
All four corners have ventilation holes to Prevent internal overheating from affecting measurement results

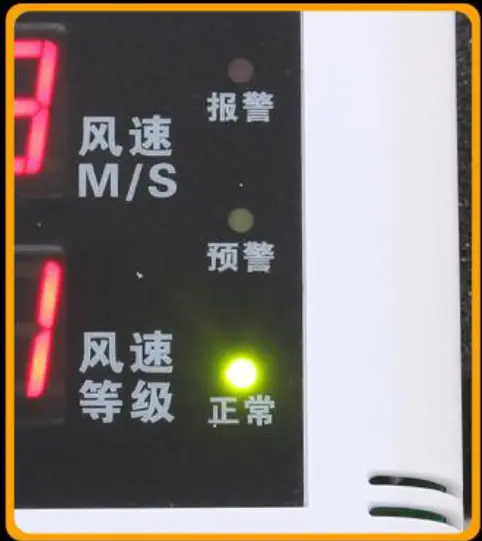

STATUS INDICATOR
When the warning threshold is reached, the yellow light is on When the alarm threshold is reached, the red light is on and the buzzer is turned on

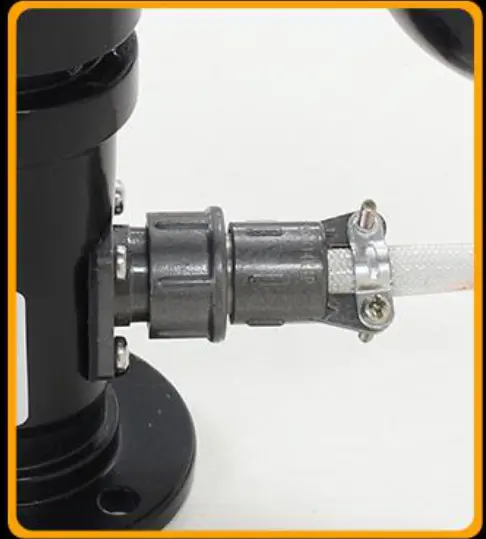

WATERPROOF CONNECTOR
Water-proof connector on the side of the sensor

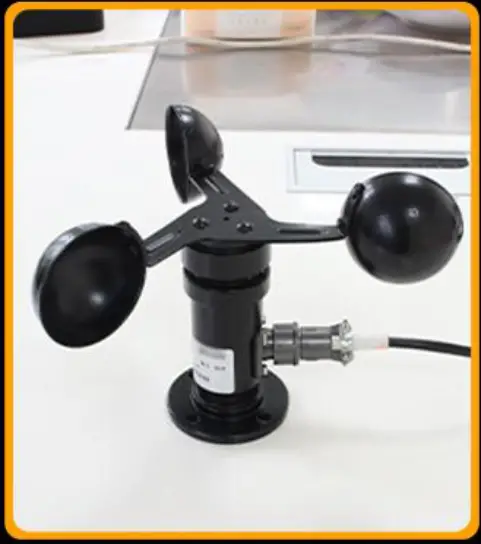

THREE-CUP APPEARANCE
360° measurement does not miss any dead angle

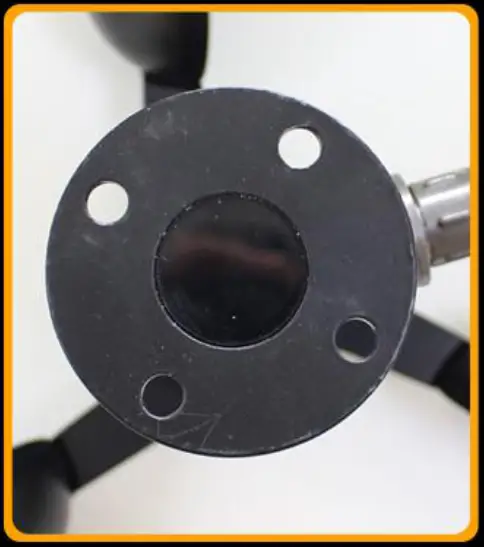

FLANGE BASE
The porous position is convenient to fix Robust and stable installation is simple and convenient
Optional function-relay wiring method (lead)
| Alarm relay output line |  The alarm normally opens pin 1 The alarm normally opens pin 2 |
| Early warning relay output line |  Early warning normally opens pin 1 Early warning normally open pin 2 |
Note: When wiring, connect the positive and negative poles of the power supply first, then connect the signal wire Application solution
Communication Protocol
Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability or the infringement liability for any patent, copyright or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice. Contact Us
Company: Shanghai Sonbest Industrial Co., Ltd KLHA Brand Division
Address:Building 8,No.215 North east road,Baoshan District,Shanghai,China
Web: http://www.klha.com
Web: http://www.klha.com
SKYPE: soobuu
Email: [email protected]
Tel: 86-021-51083595 / 66862055 / 66862075 / 66861077
