Ue Systems Ultraview Ultrasonic Air And Gas Leak Detection Camera User Guide

Instrument Identification
ULTRAVIEW Quick Visual Guide

UltraView Quick Visual Guide

• Instrument Identification

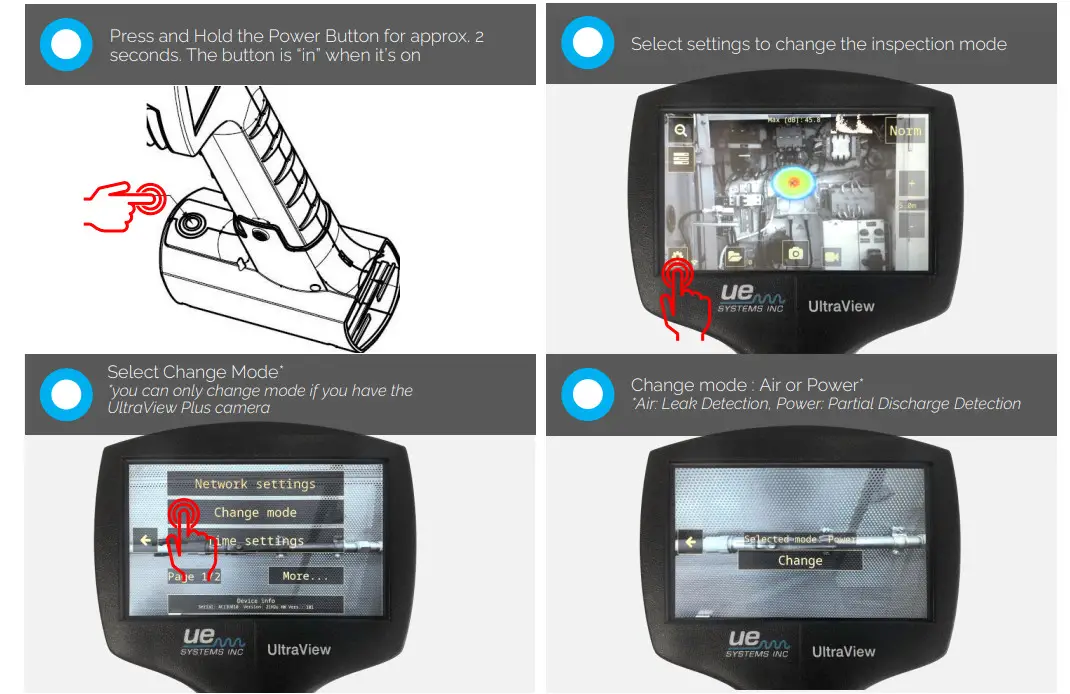

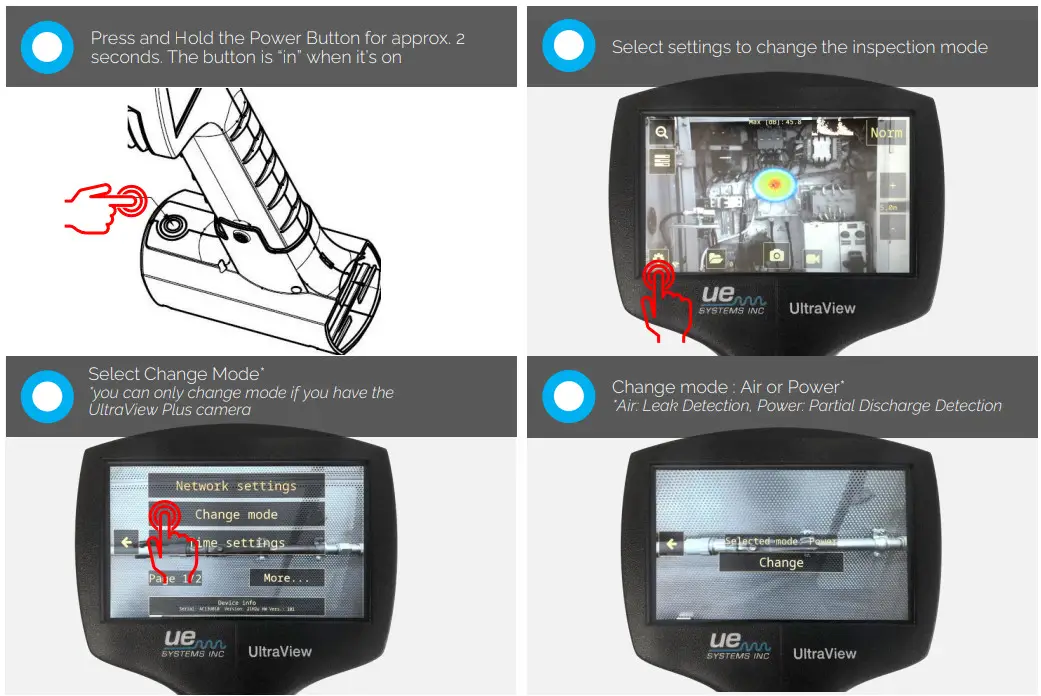

• Leak Detection Mode
• Power Mode (Partial Discharge Detection)*
  *only available in the UltraView Plus model

UltraView Ultrasonic Air and Gas Leak Detection Camera

To login go to: ultraview.uesystems.com Create a new account

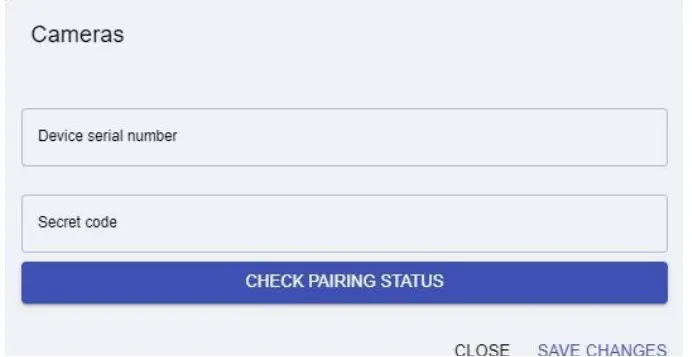

After login, pair your device

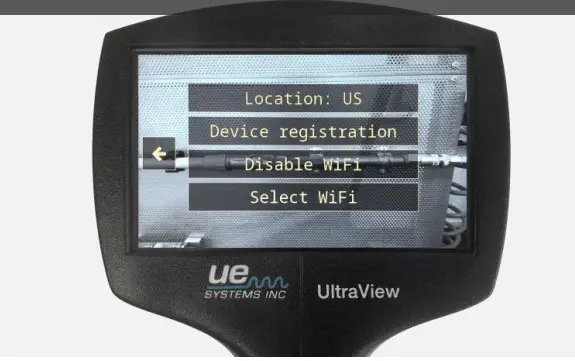

To retrieve the secret code, select settings, network settings, device registration

Need more help?

• Contact UE Systems: [email protected]
  +31-546725125 www.uesystems.eu
• Download the complete manual

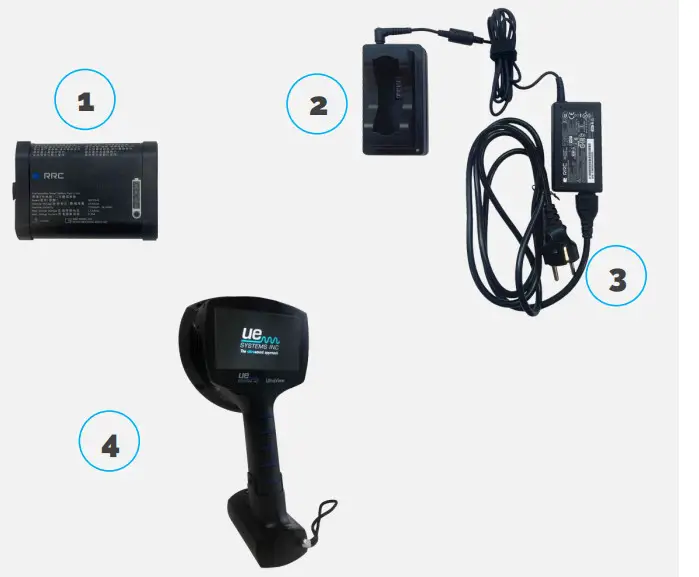

Items included with the UltraView

1. 2 Rechargeable batteries
2. Battery charger pod
3. Power adapter
4. UltraView

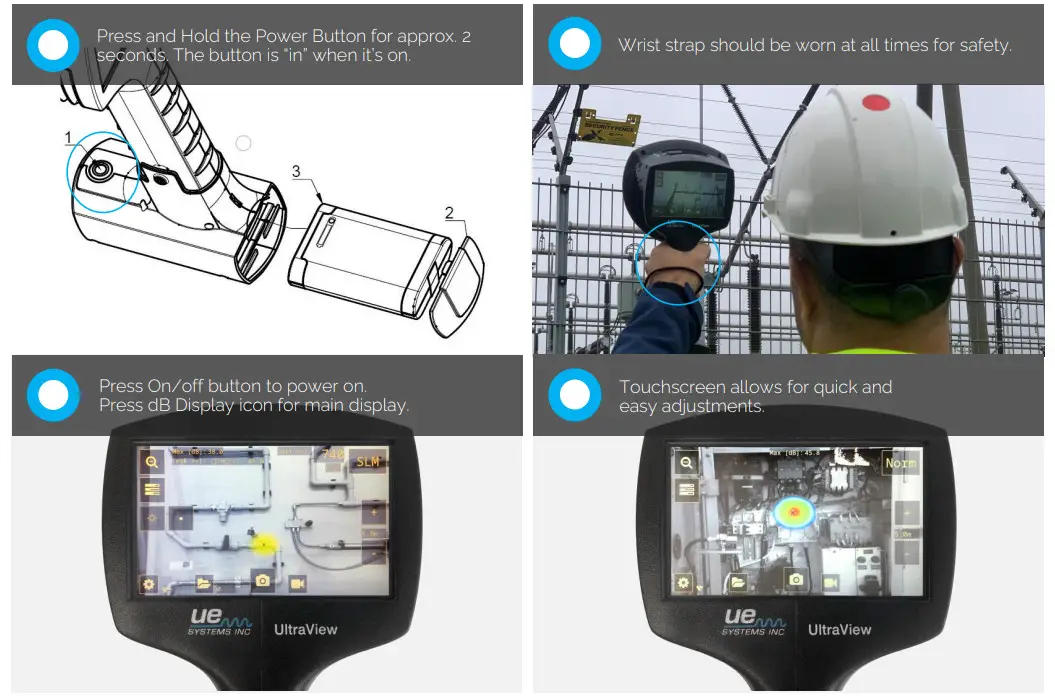

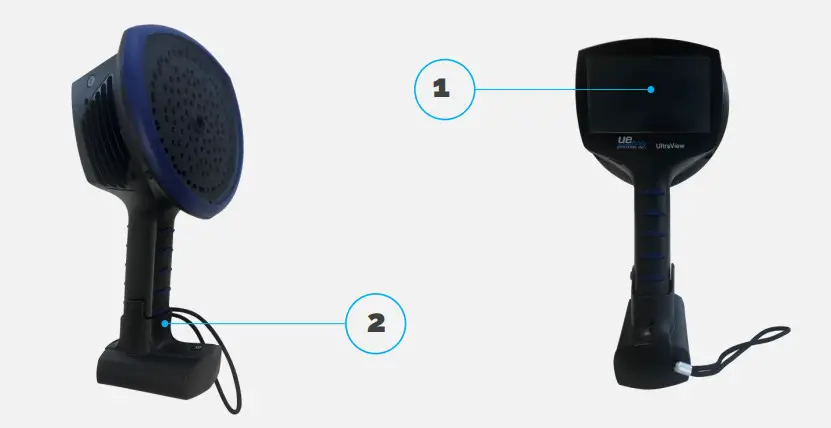

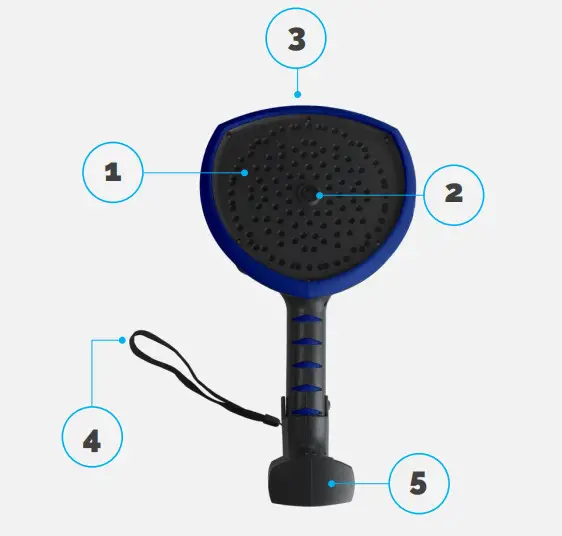

UltraView Identification

1. Touchscreen
2. On/Off Button

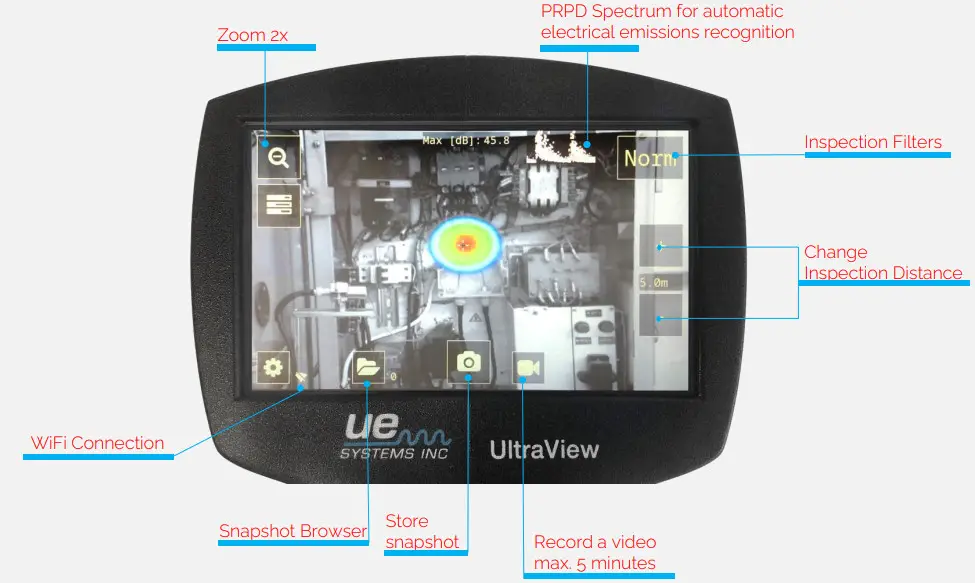

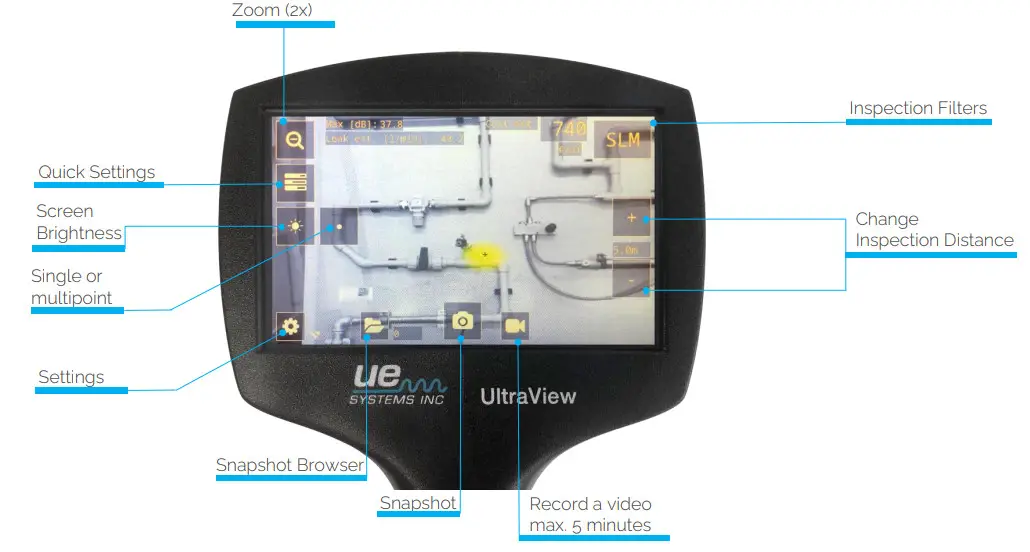

UltraView Main Screen

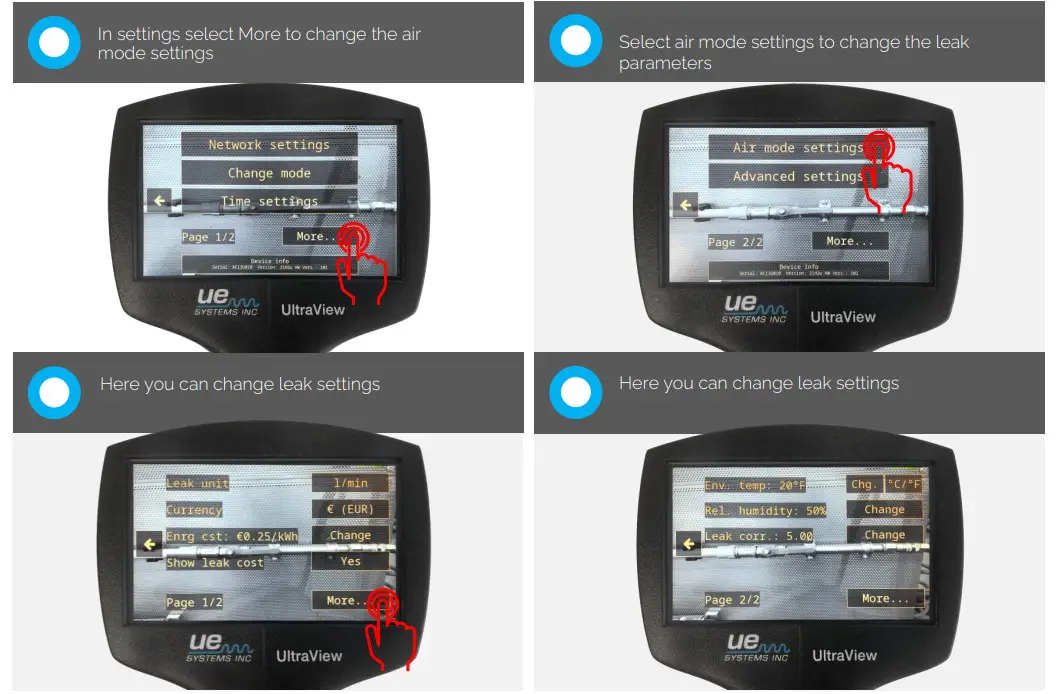

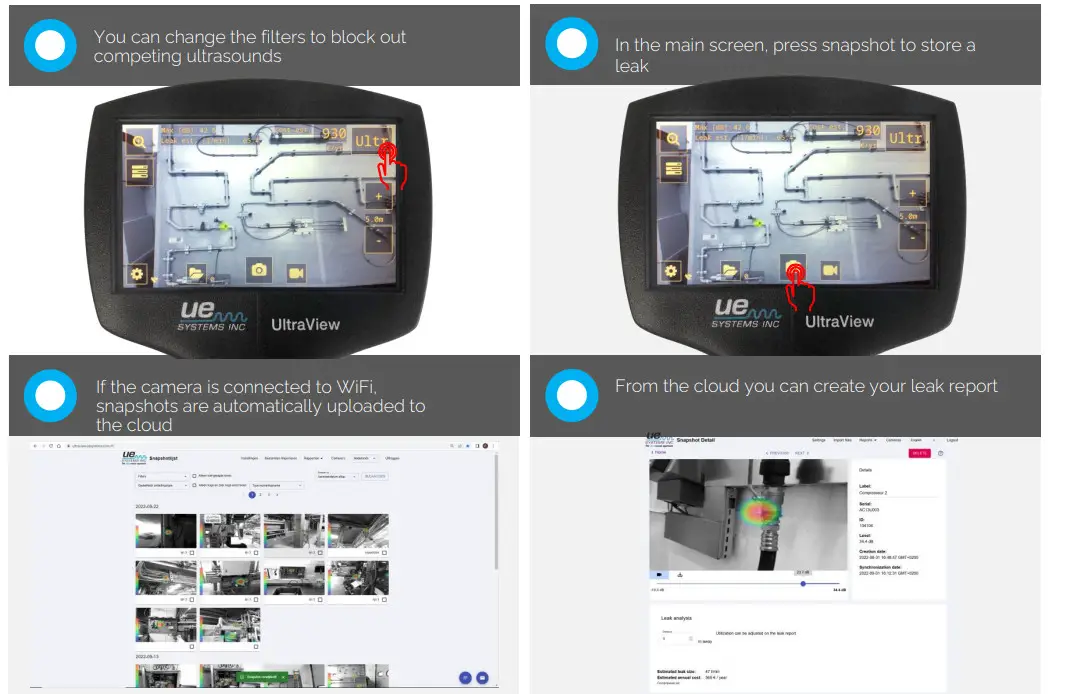

UltraView Leak Detection Screen.

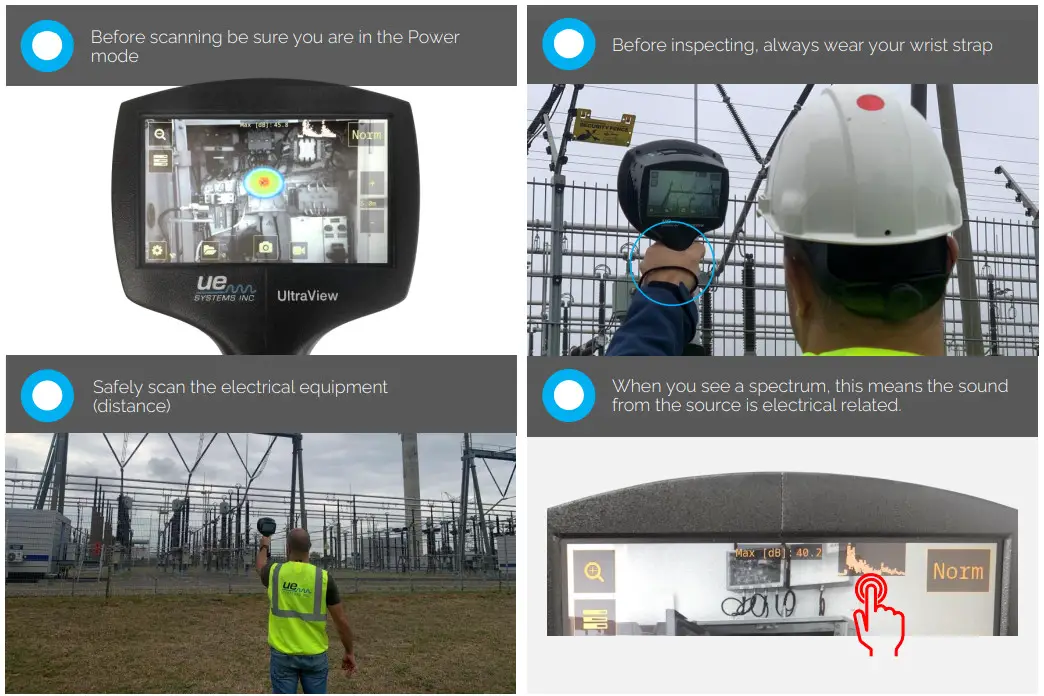

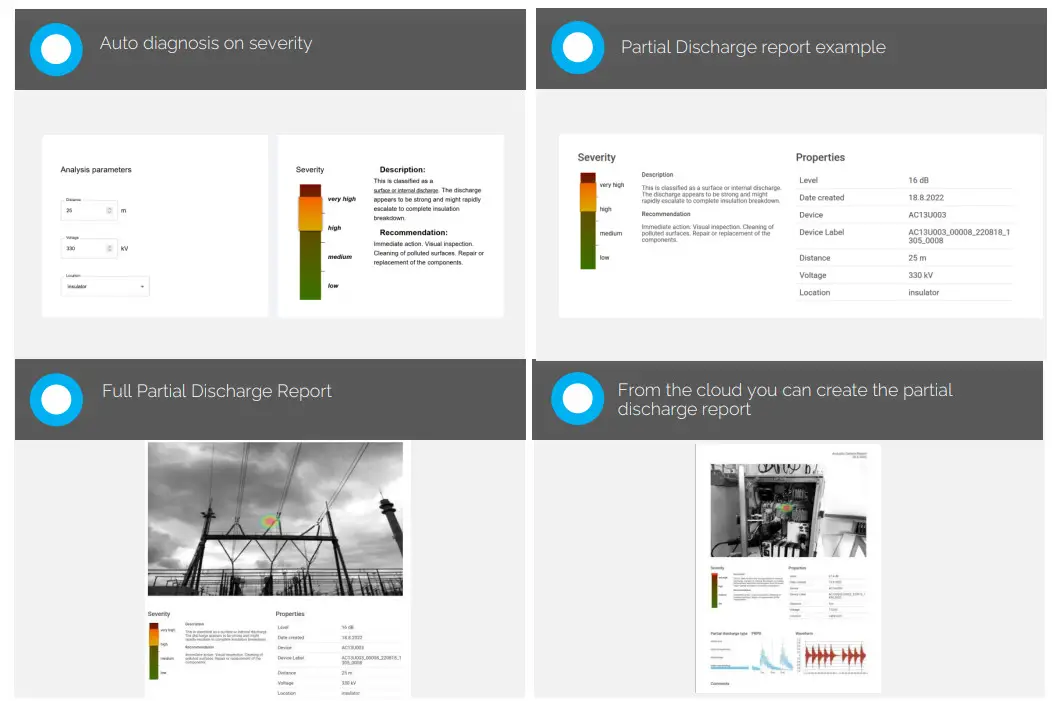

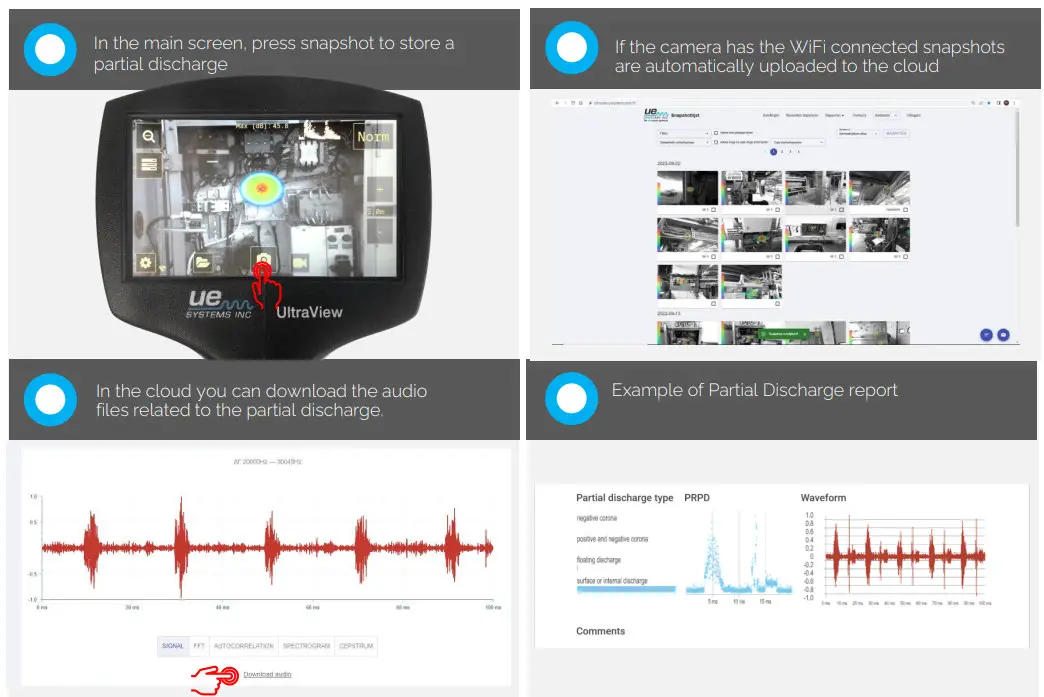

UltraView Partial Discharge Screen (Power Mode)

Need further support?
Want information regarding products or training?
CONTACT:
UE Systems Europe – Windmolen 20, 7609 NN Almelo, The Netherlands
T: +31 546 725 125 | E: [email protected]| W: www.uesystems.eu
