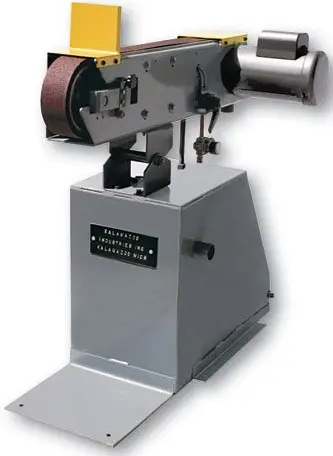

KALAMAZOO KS390V Belt Grinder

WARRANTY

All products are guaranteed for a period of one year from receipt of the order to the original purchaser, against defects in material workmanship under normal use. Electric motors are warranted by the motor manufacturer for a period of one year and will be repaired by the nearest motor repair station. If non-repairable, they will be replaced by Kalamazoo Industries. Please call for instructions (269) 382-2050.

RETURN POLICY

Authorization must be obtained before returning merchandise. Please call our customer service department for a return authorization number (269) 382-2050. Please include with your return a copy of your invoice of the packing slip. All material must be new and unused in the original packaging. The material must be sent back prepaid (unless otherwise indicated) by Kalamazoo Industries. Credit upon inspection at Kalamazoo Industries. All returns will be subject to a 10% restock charge. Used merchandise is non-returnable. No returns will be accepted after one year of the invoice date.

BELT GRINDER SAFETY

• READ THE OPERATING INSTRUCTIONS BEFORE RUNNING THE MACHINE.
• ALWAYS WEAR SAFETY GLASSES OR A FULL FACE SHIELD FOR PROTECTION.
• KEEP HANDS CLEAR OF THE SANDING AREA.
• NEAR WEAR GLOVES OR LOOSE-FITTING CLOTHES WHEN OPERATING THIS MACHINE.
• ALWAYS KEEP YOUR HAIR TIED BACK OR COVERED.
• LET MACHINE ROTATION COME TO A FULL STOP BEFORE CHANGING THE BELT.
• KEEP SAFETY GUARDS IN PLACE. DO NOT ALTER THE GUARD OR MACHINE IN ANY WAY. ANY ALTERATIONS TO GUARDS OR MACHINES COULD CAUSE SERIOUS INJURY.
• ALL BELT SANDERS SHOULD BE OPERATED IN A WELL-VENTILATED AREA. THE DUST CREATED WHEN SOME MATERIALS ARE SANDED CAN BE HARMFUL. DUST MASKS ARE RECOMMENDED AS A PRACTICAL MEANS OF MINIMIZING DUST INHALATION. FUMES FROM OTHER OTHER SOURCES CAN ALSO CAUSE FIRES WHEN INTACT WITH SANDING SPARK.
• SPARKS CREATED BY SANDING SHOULD BE DIRECTED DOWNWARD AND AWAY FROM THE FACE AND BODY. DO NOT GRIND NEAR FLAMMABLE MATERIAL.
• ELECTRIC GRINDING MACHINES ARE NOT INTENDED FOR USE IN OR NEAR WATER. THIS INCLUDES AN OPERATOR STANDING ON A WET FLOOR OR WORKING AROUND CONTAINERS OF WATER OR OTHER CONDUCTIVE LIQUIDS.

READ AND UNDERSTAND ALL OPERATING INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE OPERATING UNIT

OPERATING INSTRUCTIONS

INSPECT YOUR NEW UNIT CAREFULLY FOR SIGNS OF SHIPPING DAMAGE. IF DAMAGED, PLEASE CONTACT THE CARRIER AND SUBMIT A CONCEALED DAMAGED REPORT. DO NOT RETURN GOODS TO US WITHOUT OUR RGA NUMBER AND SHIPPING INSTRUCTIONS. SEE PAGE 2 FOR THE RETURN POLICY AND WARRANTY.

• BEFORE STARTING OR CONNECTING ELECTRICALS, VERIFY THE PHASE AND VOLTAGE OF THE UNIT.
• BE SURE THE MACHINE IS BALANCED CORRECTLY SO IT WILL NOT TIP OVER.

TO GUARD AGAINST CONCEALED DAMAGE, STAND CLEAR AND OBSERVE UNIT FOR THE FIRST FEW MINUTES OF OPERATION. GUARDS MUST NEVER BE REMOVED. KEEP ALL SAFETY GUARDS, WORK TABLES, ETC, IN PROPER ADJUSTMENT. WORK TABLE MUST BE KEPT WITHIN 1/8” FROM THE SANDING BELT.

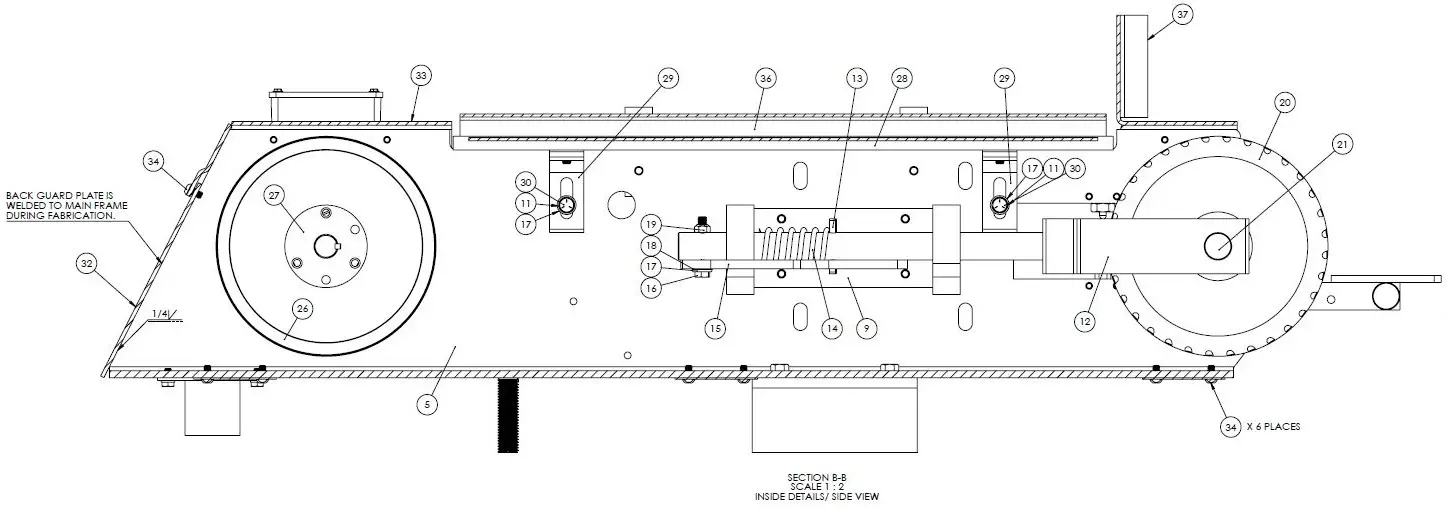

ABRASIVE BELT TENSION

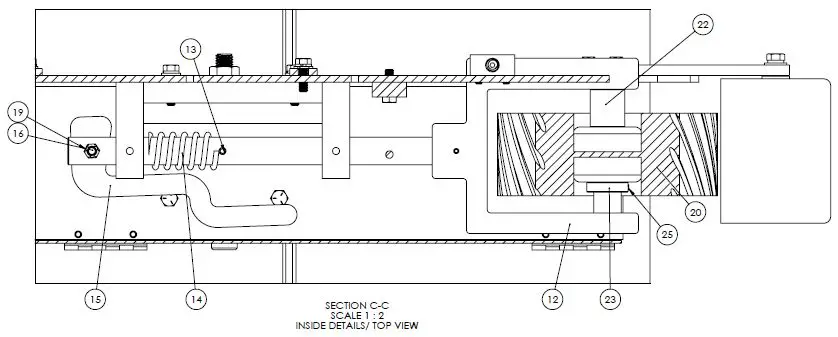

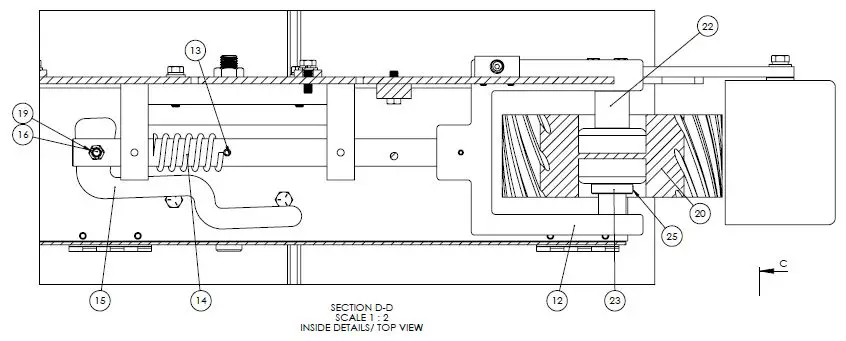

AN ABRASIVE BELT IS CONTROLLED BY SPRING TENSIONS. THE TENSIONS RELEASE LEVER (#15) CONTROLS THE BELT BELT TENSION. PULL (#15) OUT TO RETRACT THE HEAD, WHICH WILL RELEASE BELT TENSION. PUSH (#15) IN TO EXTEND THE HEAD, WHICH WILL APPLY TENSION TO THE SANDING BELT. ADJUST THE BELT TENSION TO THE MINIMUM SUFFICIENT TO ENSURE GOOD CONTACT WITH THE DRIVE AND IDLER WHEELS. THEN THE BELT WILL TRACK PROPERLY UNDER BOTH START-UP AND GRINDING CONDITIONS..

PLATEN ALIGNMENT
USING A STRAIGHT EDGE, SET THE STRAIGHT EDGE ON THE PLATEN (#28) SO IT SPANS ACROSS BOTH THE DRIVE AND CONTACT WHEEL PULLEY FACES. DRIVE PULLEY CLEARANCE SHOULD BE 1/8” LOWER THAN THE PLATEN FACE AT THE OUTER EDGES OF THE DRIVE PULLEY. CONTACT WHEEL CLEARANCE SHOULD BE 1/32” LOWER THAN THE PLATEN FACE. USE BRACKETS (#29) TO LOWER OR RAISE THE PLATEN HEIGHT.

DRIVE PULLEY
POOR BELT TRACKING CAN RESULT FROM NORMAL WEAR OVER TIME OF THE DRIVE PULLEY. THE DRIVE PULLEY FACE IS CROWNED SLIGHTLY TO HOLD BELT TRACKING. WHEN THE CROWN IS WORN DOWN AND THE DRIVE PULLEY BECOMES FLAT-FACED, TRACKING PROBLEMS WILL RESULT. A QUICK FIX WOULD BE TO WRAP A FEW LAYERS OF MASKING TAPE AROUND THE CENTER HIGHER THAN THE OUTER EDGES IF THIS ALLEVIATES THE PROBLEM, THEN A NEW PULLEY WILL BE NEEDED WITH THE CORRECT CROWN ON IT.

CHANGING BELT
TURN THE MACHINE POWER OFF. RELEASE BELT TENSION WITH THE TENSION RELEASE HANDLE (#15), AND CHANGE THE BE LT (MAKE SURE OF THE CORRECT ROTATION). RE-TENSION THE BELT WITH (#15).

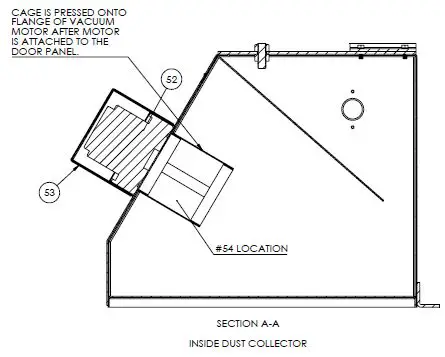

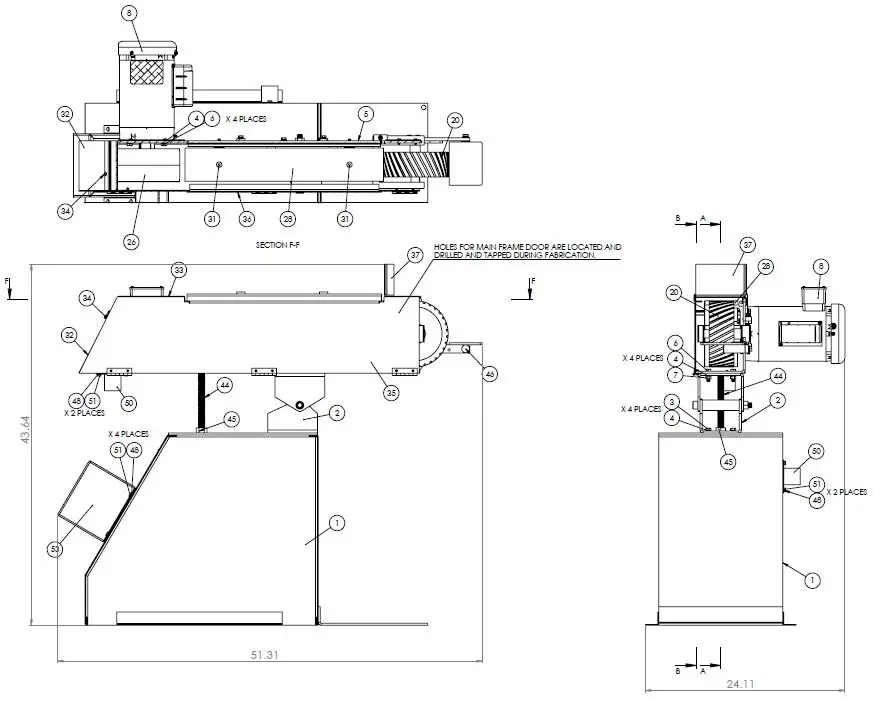

DUST COLLECTOR
IF YOUR GRINDER HAS A DUST COLLECTOR SYSTEM BE SURE TO THOROUGHLY CLEAN THE BASE AND FILTER AFTER EVERY USE AND OR SWITCHING MATERIALS. DO NOT MIX MATERIALS. MIXING MATERIALS COULD CAUSE A FIRE.

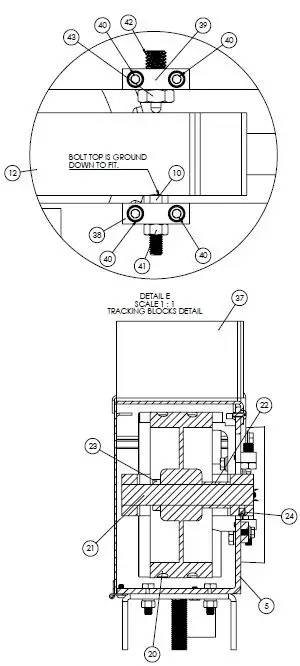

TRACKING THE BELT
TO TRACK THE BELT LOOSEN (#41) THEN ADJUST (#10) UP AND OR DOWN. ONCE THE ABRASIVE BELT IS CENTERED LOCK (#41) TO KEEP THE BELT TRACKED. BE SURE THE ABRASIVE BELT FULLY COVERS THE CONTACT WHEEL. DO NOT SLIP OFF THE ABRASIVE BELT AND RUB THE CONTACT WHEEL WITH THE WORKPIECE. THIS WILL RADIUS THE CONTACT WHEEL FACE EDGES AND RESULT IN POOR BELT TRACKING.

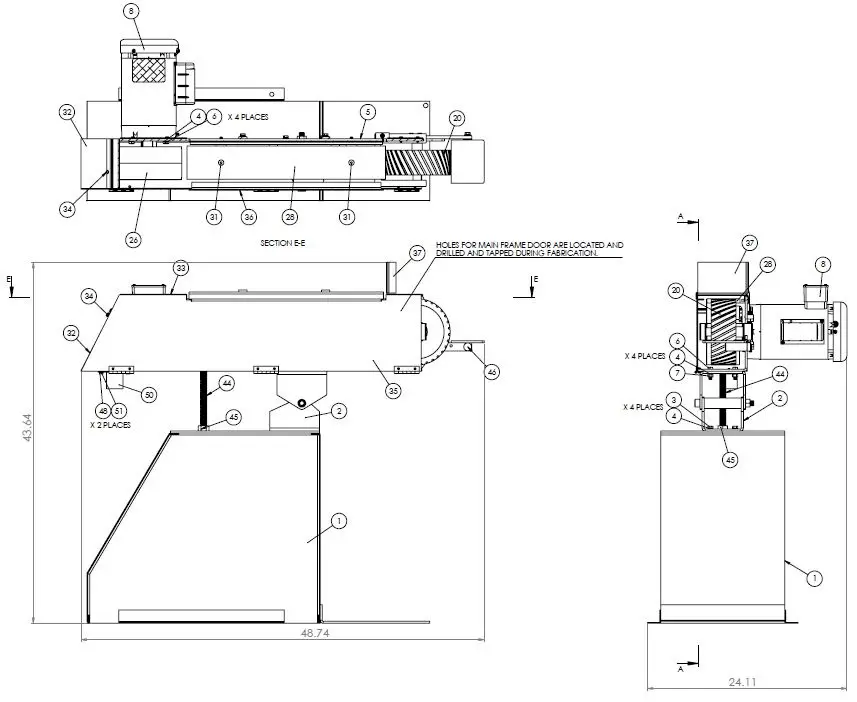

MACHINE HEAD ANGLE

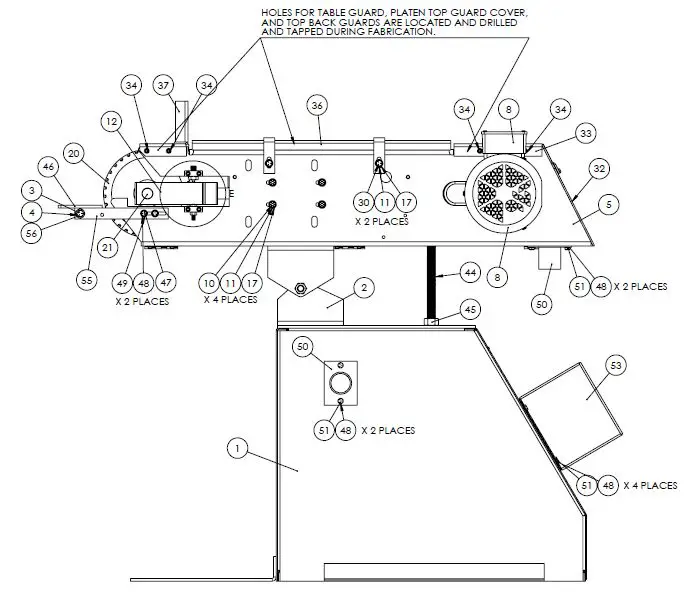

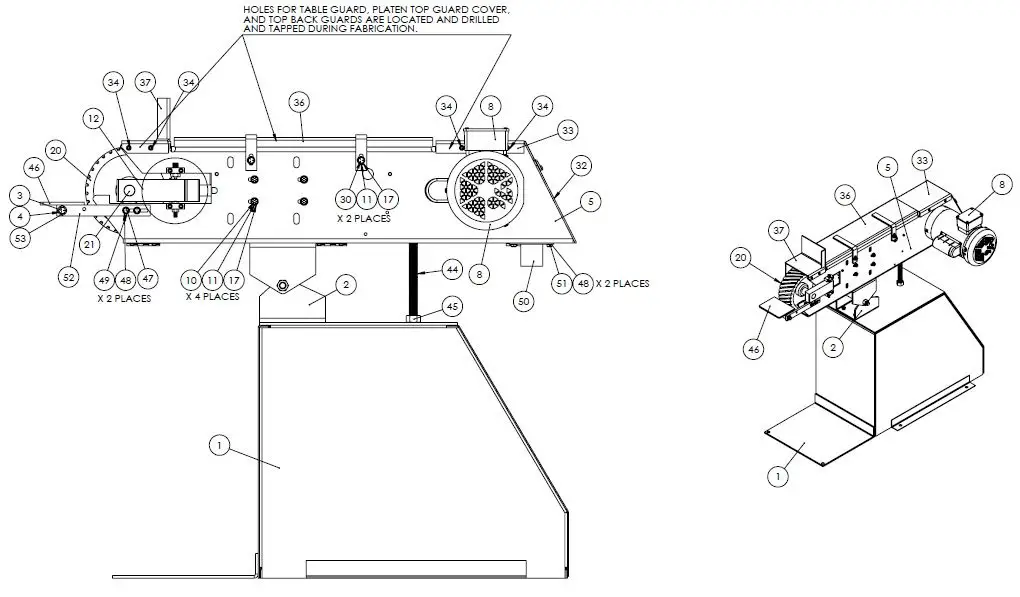

KS390/KS390V CAN BE ADJUSTED FROM HORIZONTAL. LOOSEN THE CAP SCREW ON THE TILT BRACKET (#2) ADJUST THE LEVELING STUD BY LOOSENING (#45) AND ADJUST THE LEVELING STUD UP AND OR DOWN (#44) TO SUPPORT THE MACHINE HEAD. RE-TIGHTEN THE CAP SCREW ON THE TILT BRACKET (#2).

BELT STORAGE
STORE COATED ABRASIVES IN A DRY AND COOL LOCATION.

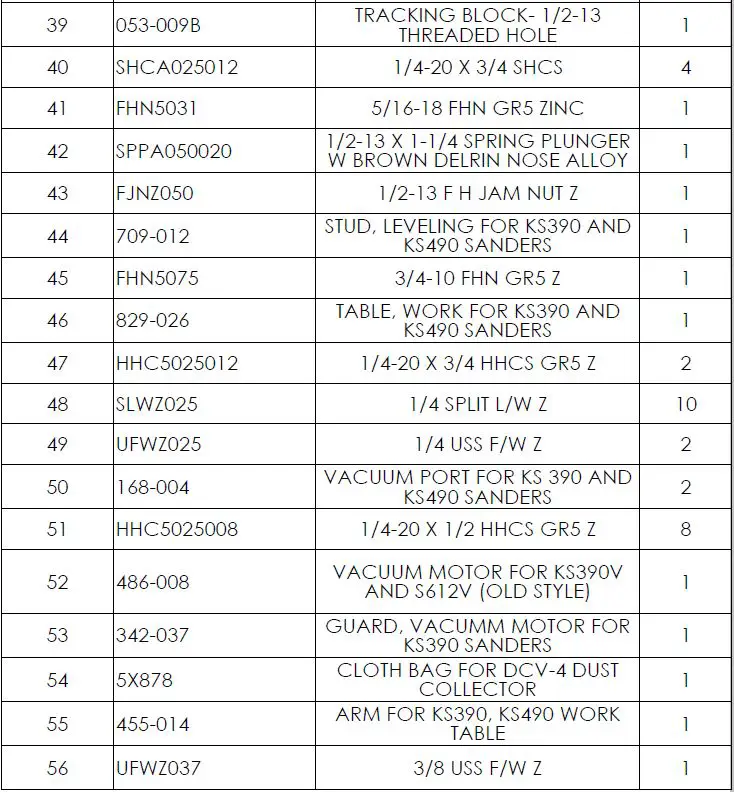

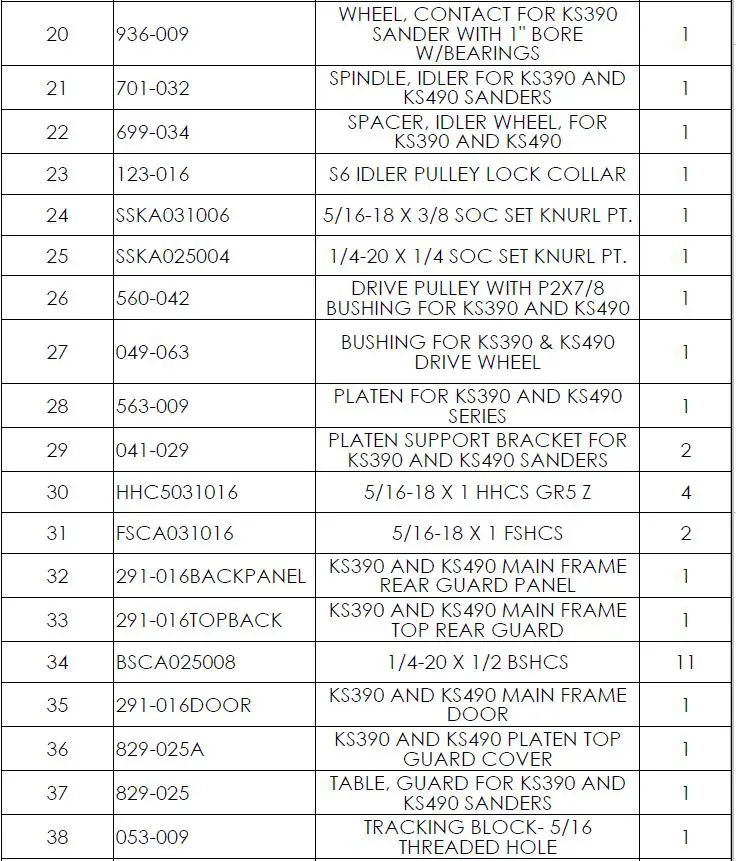

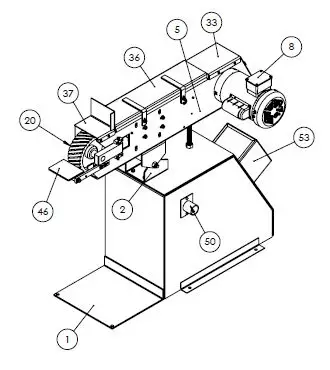

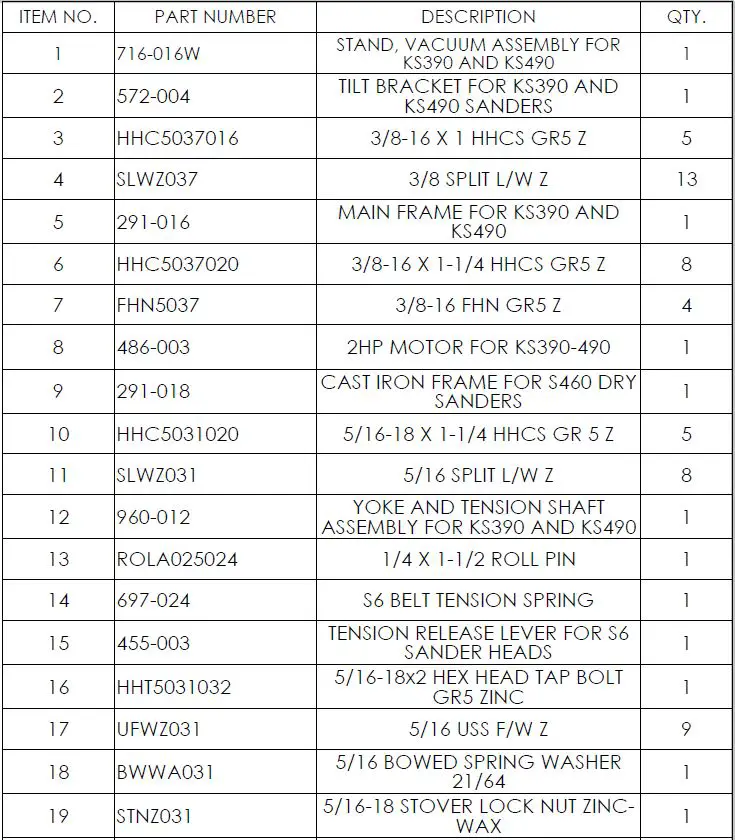

PARTS LIST
